HYSTER PART NUMBERS: • 1552880
DENSO PART NUMBERS: • 228000-6640, 2280006640
• 228000-6641, 2280006641
• AS228000-6641, AS2280006641
• 228000-1753, 2280001753
• 228000-7902, 2280007902
• 228000-6670, 2280006670
• 228000-0633, 2280000633
CUMMINS PART NUMBERS: • 3922474
• 3970101
• 3957593
• 3920644
• 3957592
KOMATSU PART NUMBERS: • 600-863-4210, 6008634210
• 600-863-4110, 6008634110
WILSON PART NUMBERS: • 91-29-5694, 91295694

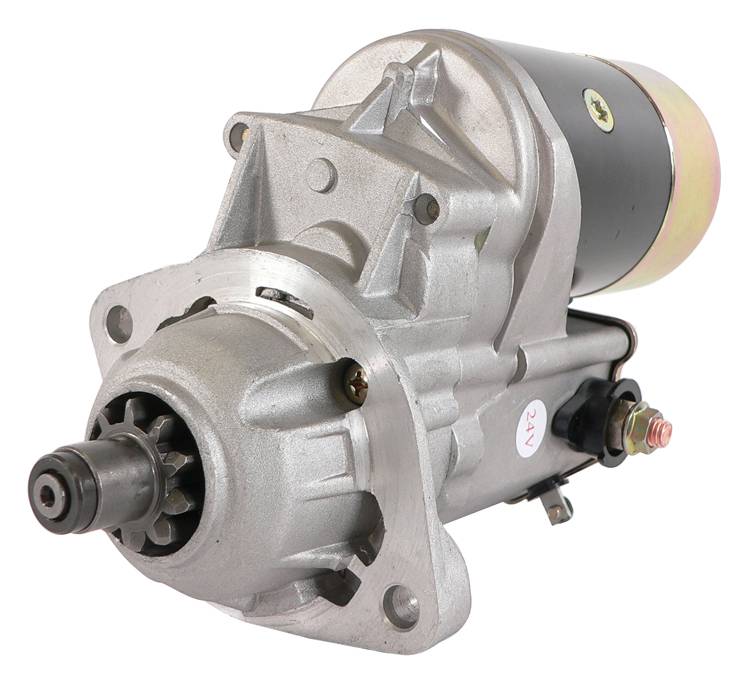

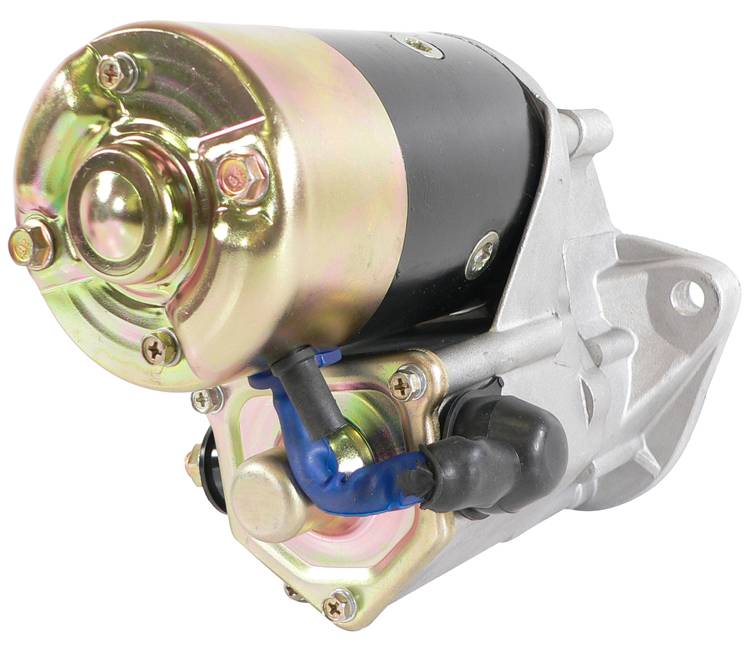

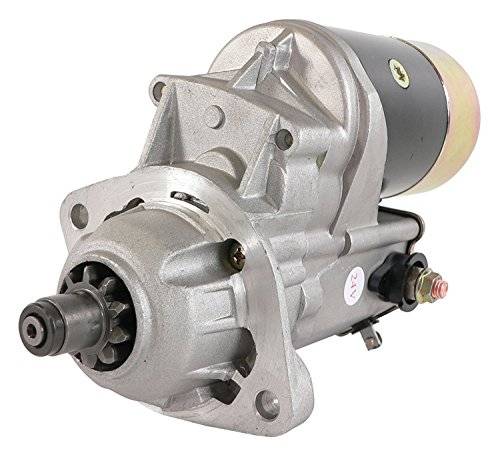

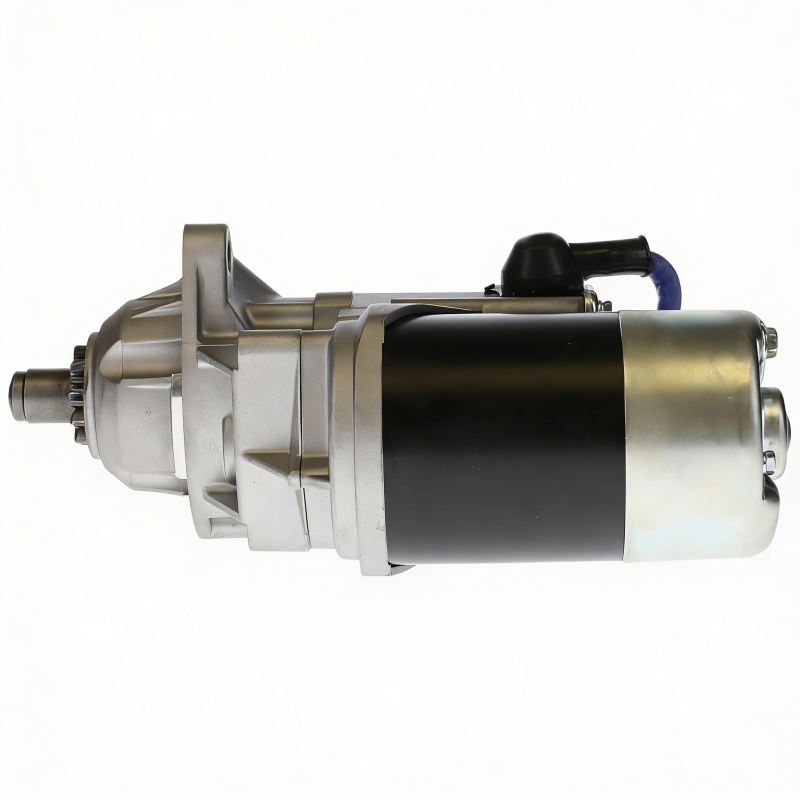

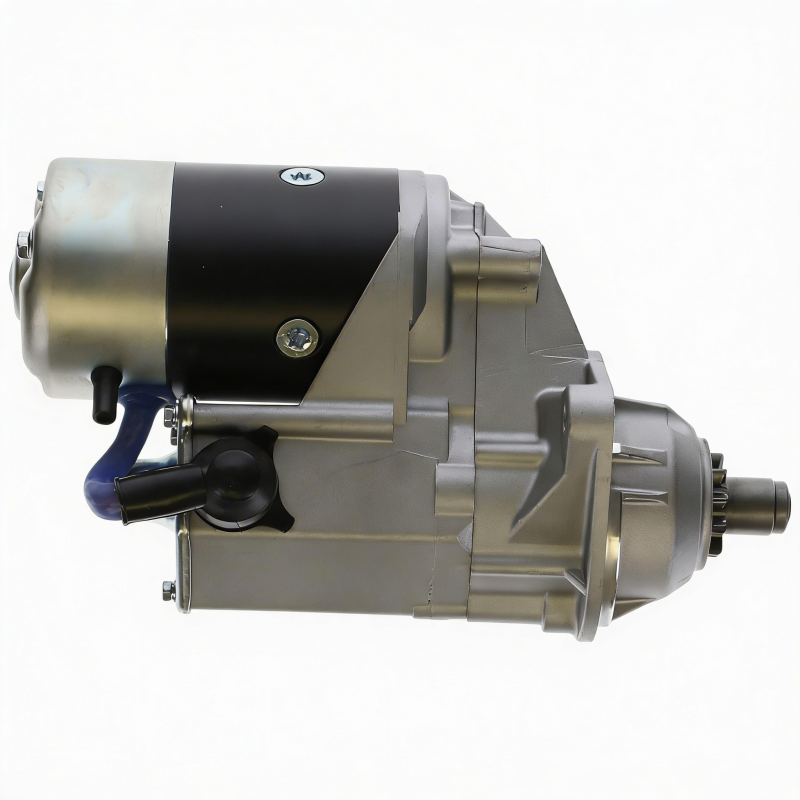

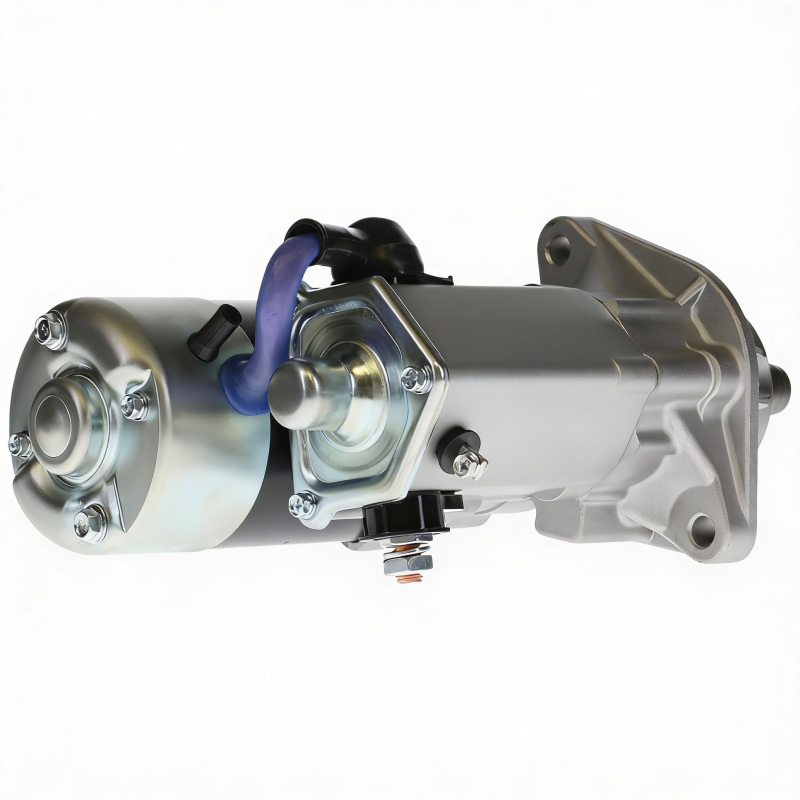

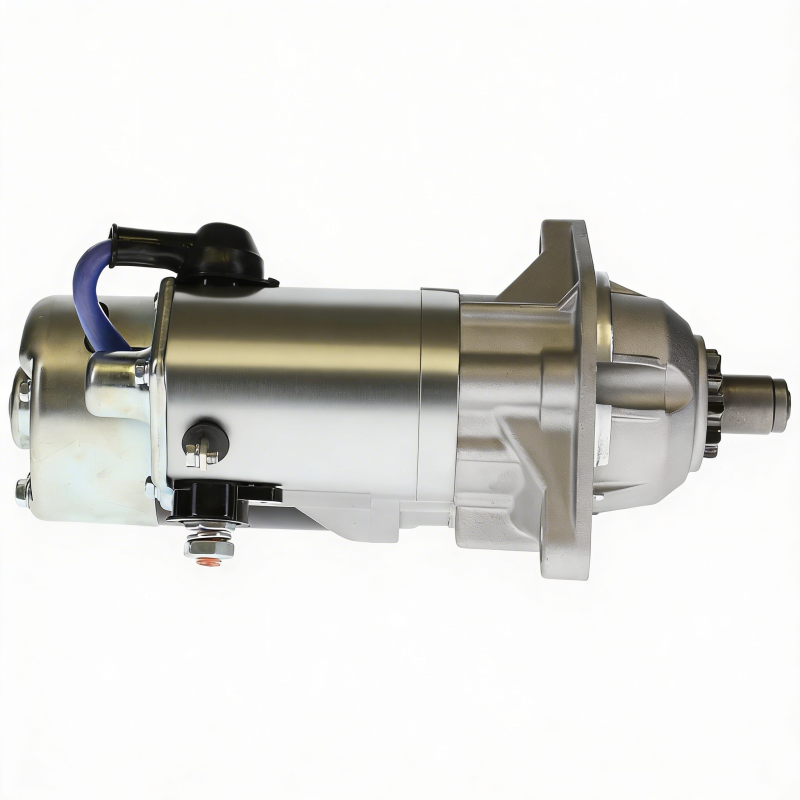

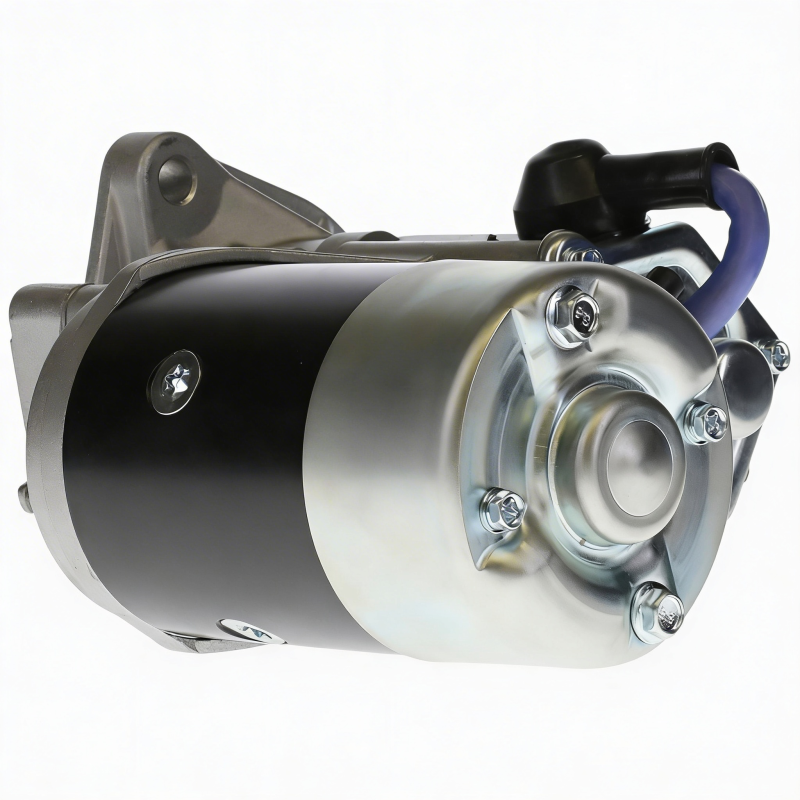

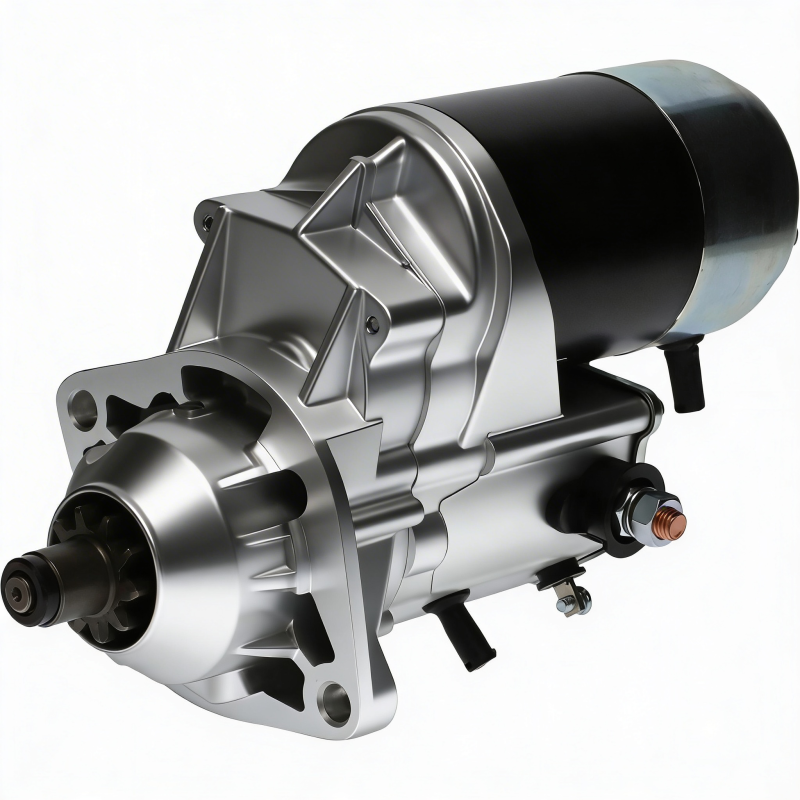

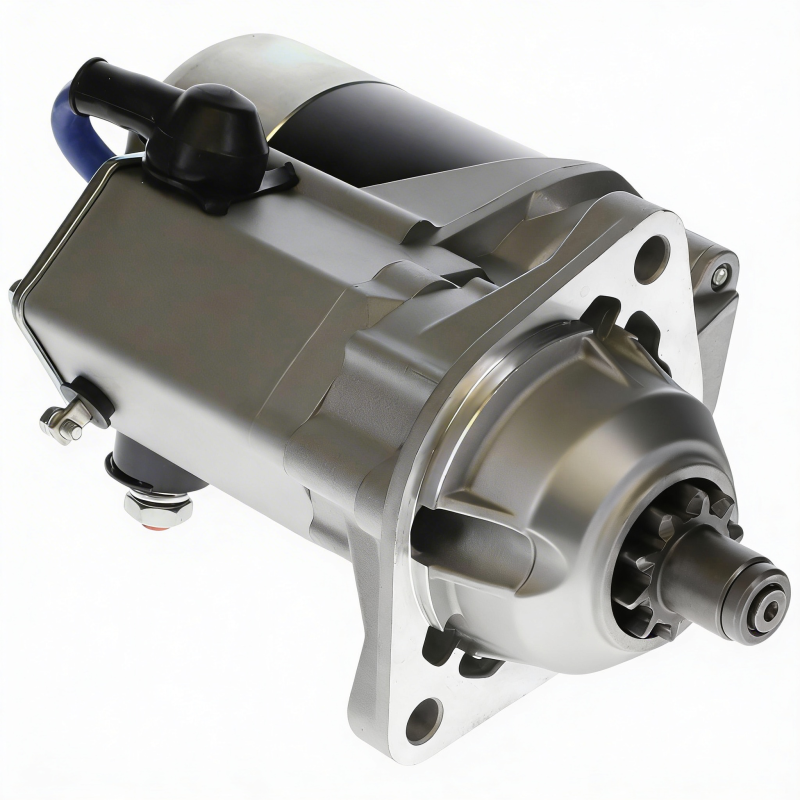

SPECIFICATIONS: • Type: offset gear reduction (OSGR)
• Voltage: 24 Volt
• Power: 4.5 kW
• Rotation: Clockwise (CW)

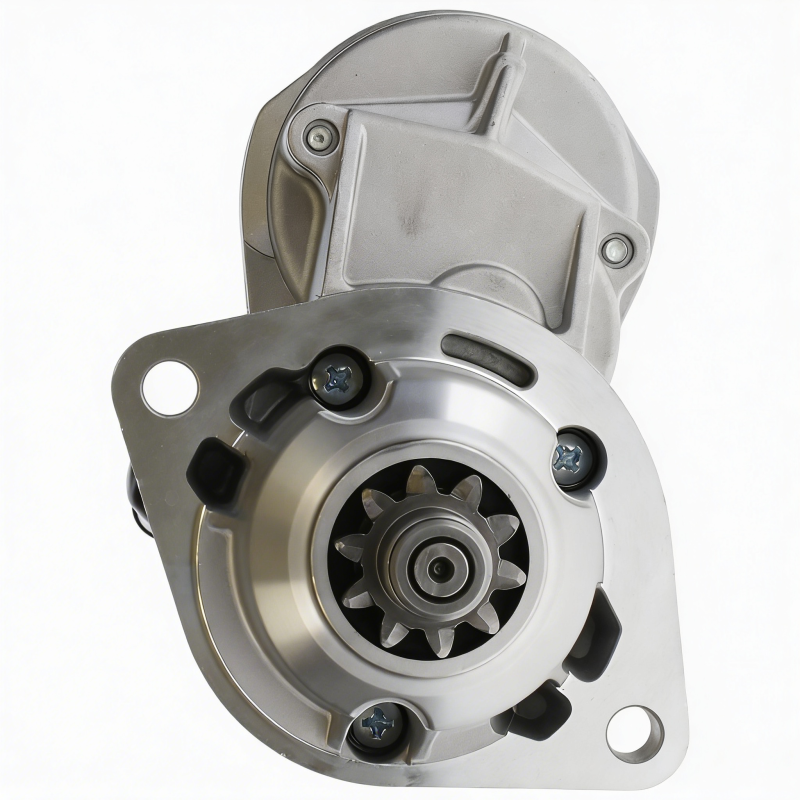

• Pinion: 10 tooth
• Gear OD: about 38.75 to 40.4 mm (1.526 to 1.591 in)
• Mounting: 2 ears, 11 mm unthreaded, about 89 mm pilot
• Terminals: M10-1.5 battery stud, M5-0.8 switch terminal
• Weight: about 18.5 to 20 lb (8.4 to 9 kg)
• Condition: New aftermarket
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
