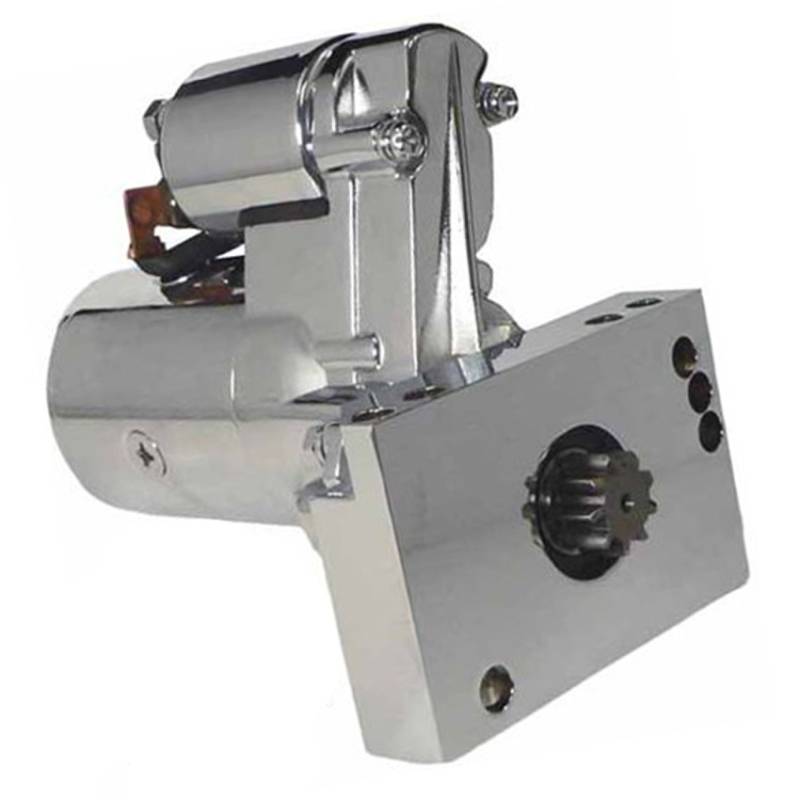

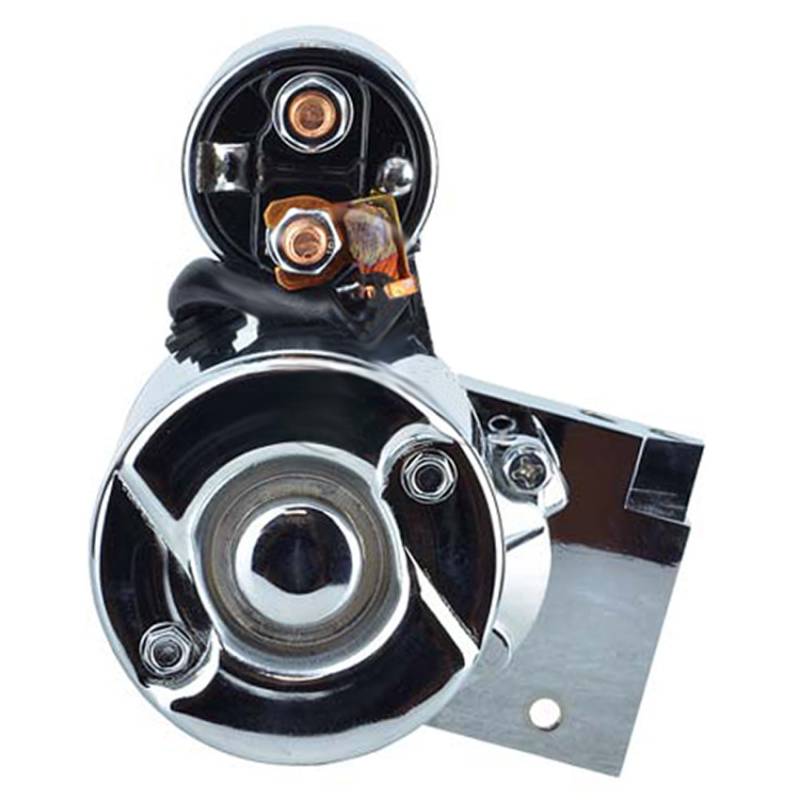

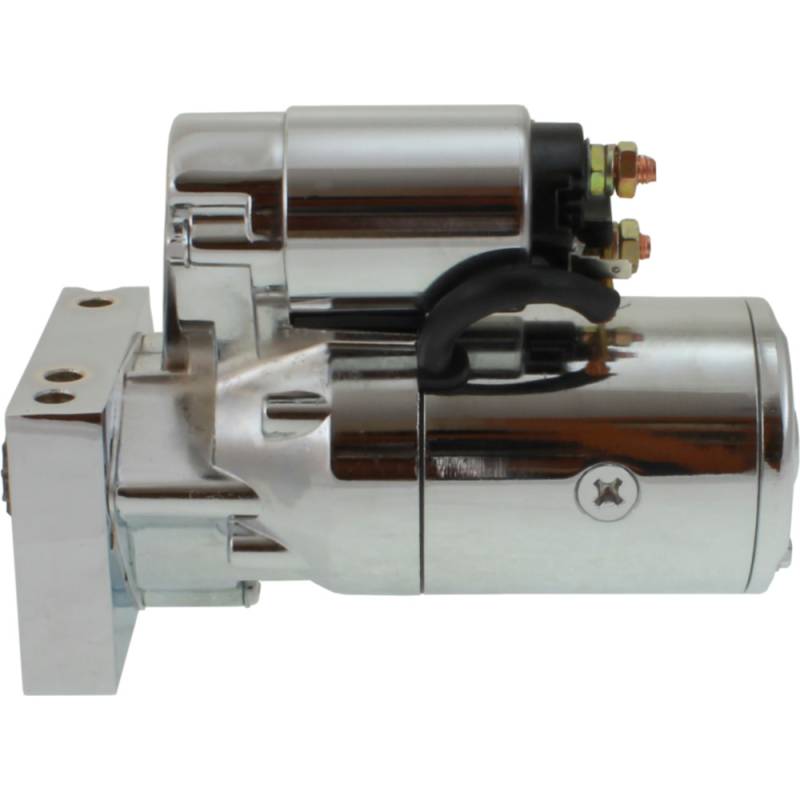

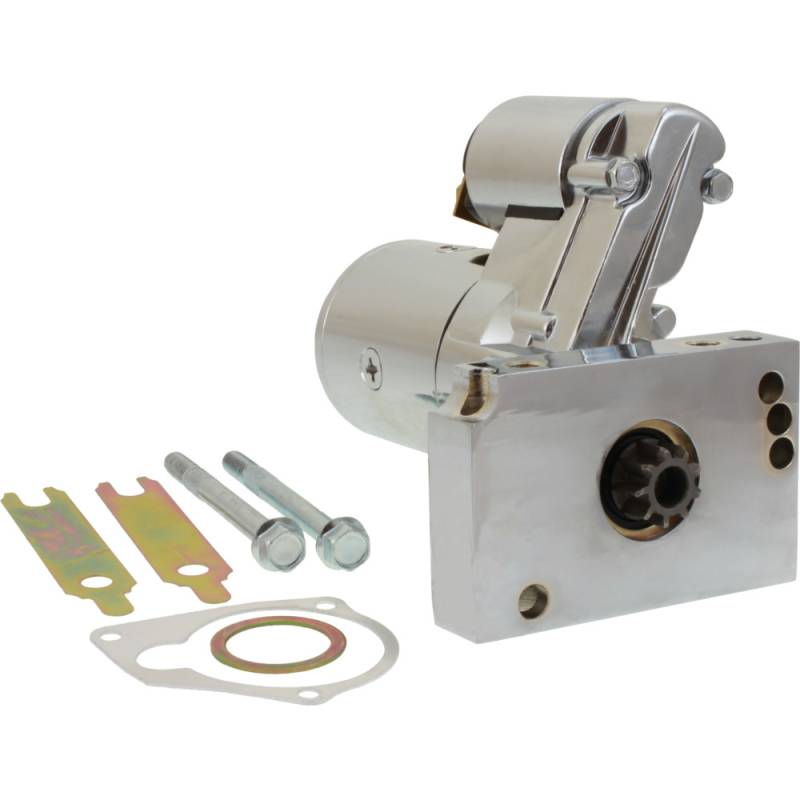

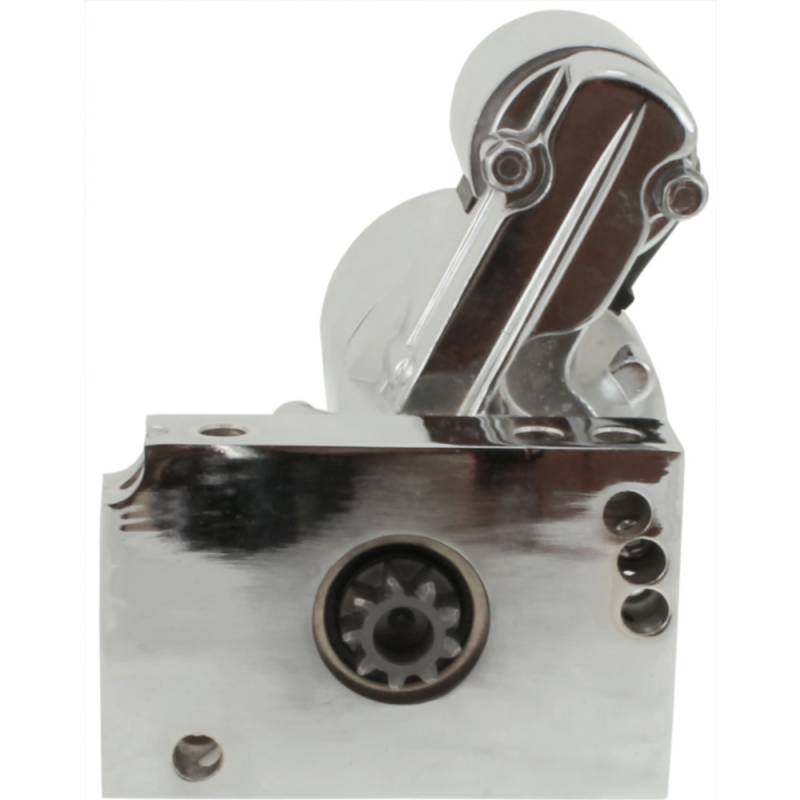

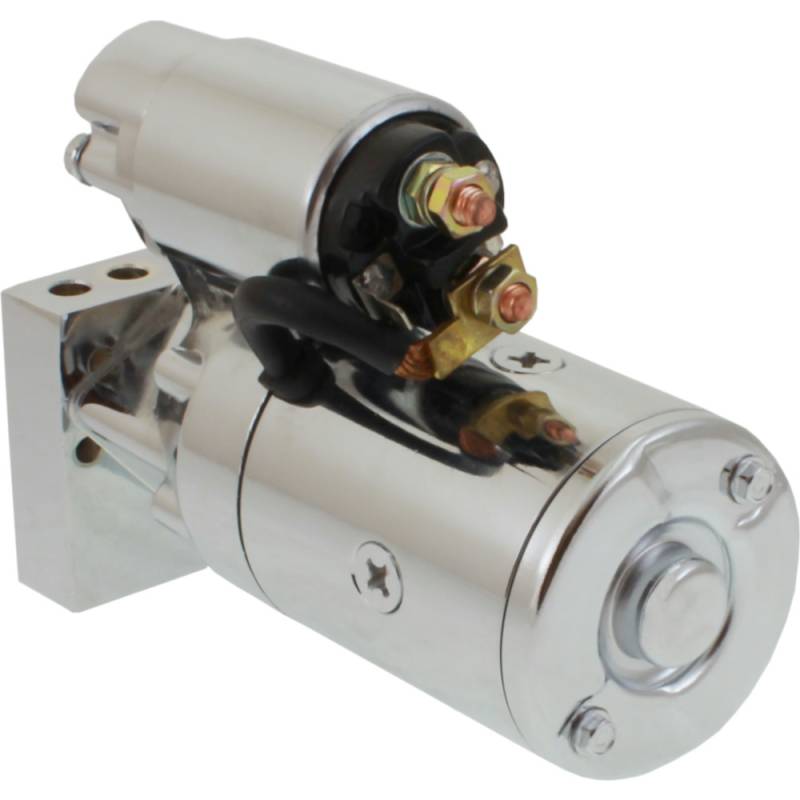

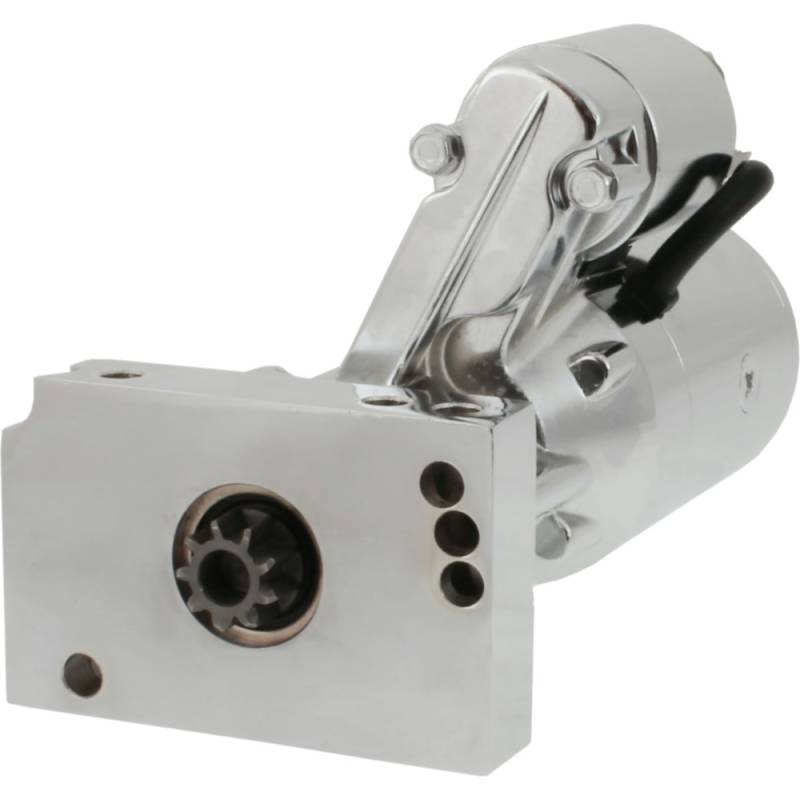

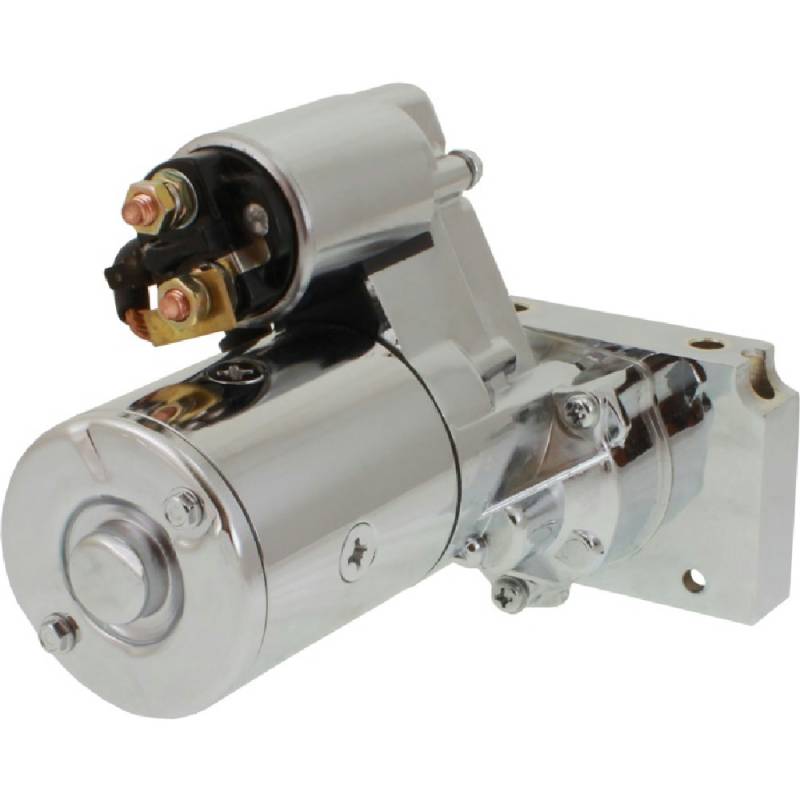

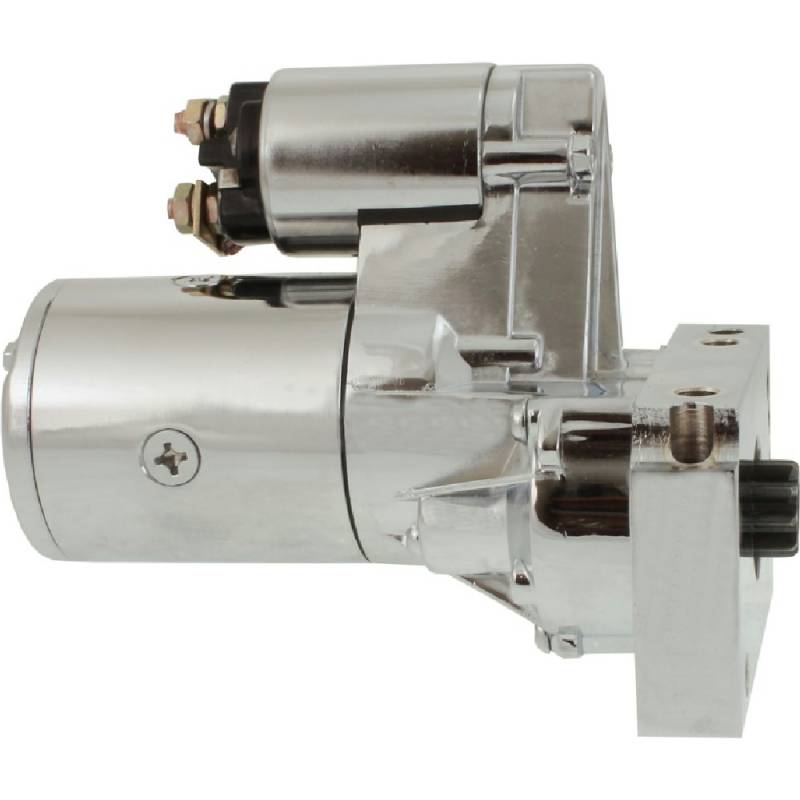

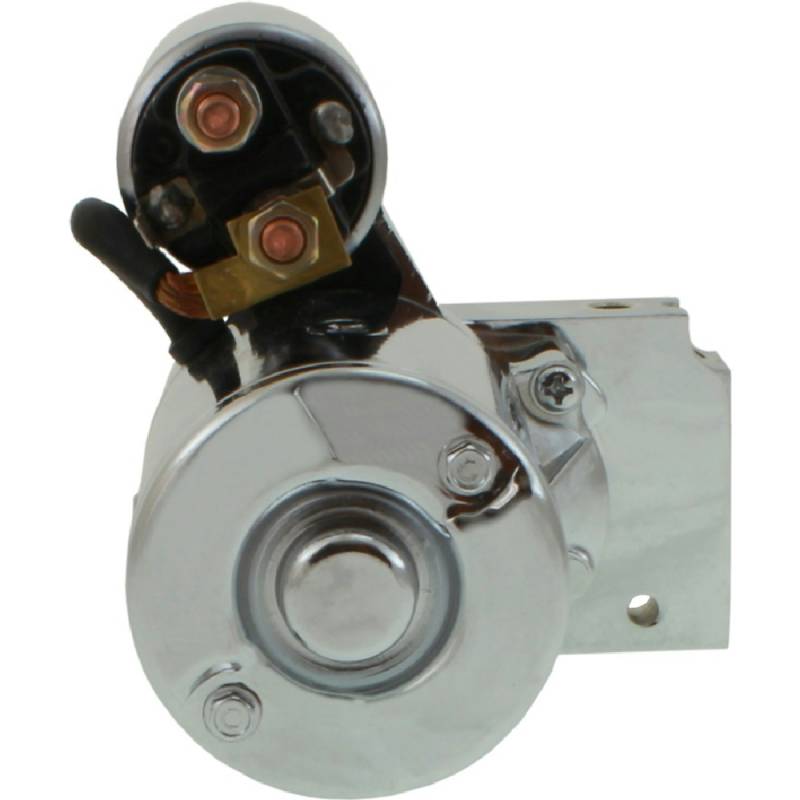

New 12V Chrome Starter Fits Chevrolet K10 5.0 5.7L 1977-86 6.6L 76-80 S114823sbx

18492CHD3
HITACHI PART NUMBERS:
• S114-254S1BX, S114254S1BX
• PP106, PP-106
• S114-823SBX, S114823SBX
• SD114-254S1, SD114254S1

WILSON PART NUMBERS:
• 91-25-1122, 91251122
• 91-25-1122N, 91251122N

POWERMASTER PART NUMBERS:
• 19000 PowerMax Plus (PP106 Hitachi style)

SPECIFICATIONS:
• Type: Hitachi PP106 type offset gear reduction (OSGR), 3.73:1
• Voltage: 12 Volt
• Power: 1.4 kW (1.9 HP)
• Rotation: Clockwise (CW)
• Pinion: 9 teeth, 25.1 mm (0.988 in) OD
• Flywheel: Chevrolet 153 tooth (12-3/4 in) or 168 tooth (14 in)
• Mounting: pad mount block, 4 bolt holes, 10 mm unthreaded, straight and staggered patterns
• Clocking: 3 positions
• Case: grounded
• Nose: open nose
• Length: 210.2 mm (8.276 in)
• Compression: up to 14:1
• Finish: chrome
• Weight: 11.77 lb (5.35 kg)
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $363.81
Sale: $207.89
Save: 43%
Save: $155.92
Qty:
Free Shipping!

Description

⚠️ CHROME 1.4 KW 9 TOOTH CW HITACHI PP106 TYPE OSGR STARTER, PONTIAC WITH THE CHEVROLET-BUILT V8:
• 12V, 1.4 kW (1.9 HP), clockwise, Hitachi offset gear reduction (OSGR) 3.73:1, 9 tooth pinion, 25.1 mm (0.988 in) gear OD
• Pad mount block with 4 bolt holes (10 mm unthreaded) for the straight 153 tooth and staggered 168 tooth Chevrolet patterns, 3 clocking positions
• Grounded case, open nose, chrome finish, 210.2 mm (8.276 in) long, 11.77 lb (5.35 kg), rated to 14:1 compression, new
• Chevrolet-built V8 and V6 only, automatic or manual; Pontiac, Oldsmobile and Buick-built V8s use a 166 tooth flywheel and a different starter

PONTIAC (CANADA) WITH CHEVROLET V8:
• Pontiac Acadian 4.6L 283 V8 1964-1967, 5.4L 327 V8 1965-1968, 5.0L 307 V8 1968-1971, 6.5L 396 V8 1968-1969, 7.4L 454 V8 1970-1971
• Pontiac Beaumont 4.6L 283 V8 1964-1967, 5.4L 327 V8 1964-1968, 6.5L 396 V8 1965-1969, 5.0L 307 V8 1968-1969
• Pontiac Laurentian 4.3L 265 V8 1955-1957, 4.6L 283 V8 1957-1967, 5.4L 327 V8 1962-1969, 6.5L 396 V8 1966-1969, 5.0L 307 V8 1968-1969, 7.4L 454 V8 1970, 6.6L 400 V8 1972-1974, 5.0L 305 V8 1977-1979
• Pontiac Laurentian Base 4.4L 267 V8 1980-1981, 5.0L 305 V8 1980-1981
• Pontiac Laurentian Safari 4.4L 267 V8 1980-1981, 5.0L 305 V8 1980-1981
• Pontiac Parisienne 4.6L 283 V8 1959-1967, 5.4L 327 V8 1962-1969, 6.5L 396 V8 1966-1969, 5.0L 307 V8 1968-1970, 7.4L 454 V8 1970, 6.6L 400 V8 1972-1974, 5.0L 305 V8 1977-1986, 4.4L 267 V8 1980-1981
• Pontiac Parisienne Base 4.4L 267 V8 1982, 5.0L 305 V8 1982
• Pontiac Parisienne Brougham 4.4L 267 V8 1982, 5.0L 305 V8 1982
• Pontiac Parisienne Safari 4.4L 267 V8 1982, 5.0L 305 V8 1982
• Pontiac Pathfinder 4.3L 265 V8 1955-1957, 4.6L 283 V8 1957-1958
• Pontiac Strato-Chief 4.6L 283 V8 1958-1967, 5.4L 327 V8 1962-1969, 6.5L 396 V8 1965-1969, 5.0L 307 V8 1968-1970, 7.4L 454 V8 1970

PONTIAC WITH CHEVROLET-BUILT 267 / 305 / 307 V8:
• Pontiac Bonneville 5.0L 305 V8 1983-1986
• Pontiac Catalina 4.4L 267 V8 1980-1981, 5.0L 305 V8 1980-1981
• Pontiac Firebird 5.0L 305 V8 1980-1986, 4.4L 267 V8 1981
• Pontiac Firebird Base 5.0L 305 V8 1977-1979
• Pontiac Firebird Esprit 5.0L 305 V8 1977-1979
• Pontiac Firebird Formula 5.0L 305 V8 1977-1979
• Pontiac Grand Am 5.0L 305 V8 1978-1980
• Pontiac Grand LeMans Base 5.0L 305 V8 1977-1983, 4.4L 267 V8 1980-1982
• Pontiac Grand LeMans Brougham 5.0L 305 V8 1976-1983, 4.4L 267 V8 1982
• Pontiac Grand LeMans LE 4.4L 267 V8 1979-1981, 5.0L 305 V8 1981
• Pontiac Grand LeMans SA 5.0L 305 V8 1978-1981, 4.4L 267 V8 1981
• Pontiac Grand LeMans Safari 5.0L 305 V8 1978-1980
• Pontiac Grand Prix 5.0L 305 V8 1978-1986, 4.4L 267 V8 1981-1982
• Pontiac LeMans 4.4L 267 V8 1980-1981, 5.0L 305 V8 1980-1981
• Pontiac LeMans Base 5.0L 305 V8 1976-1979, 4.4L 267 V8 1979
• Pontiac LeMans Safari 5.0L 305 V8 1978-1979, 4.4L 267 V8 1979
• Pontiac LeMans Sport 5.0L 305 V8 1977
• Pontiac LeMans Sport Coupe 5.0L 305 V8 1976
• Pontiac Phoenix 5.0L 305 V8 1977-1979
• Pontiac Sunbird Base 5.0L 305 V8 1978-1979
• Pontiac Ventura 5.0L 307 V8 1971-1973, 5.0L 305 V8 1977
