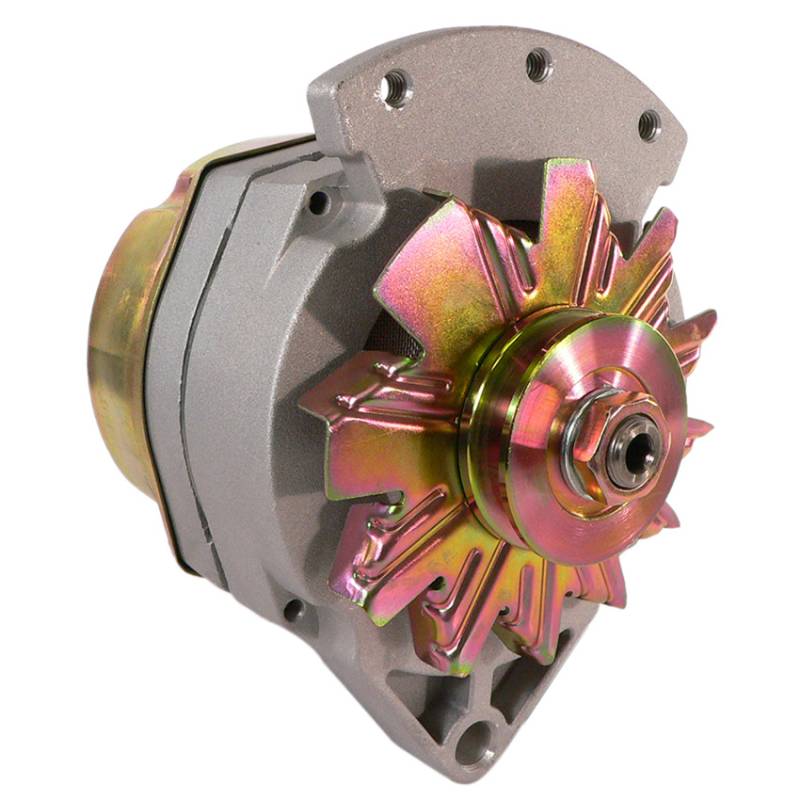

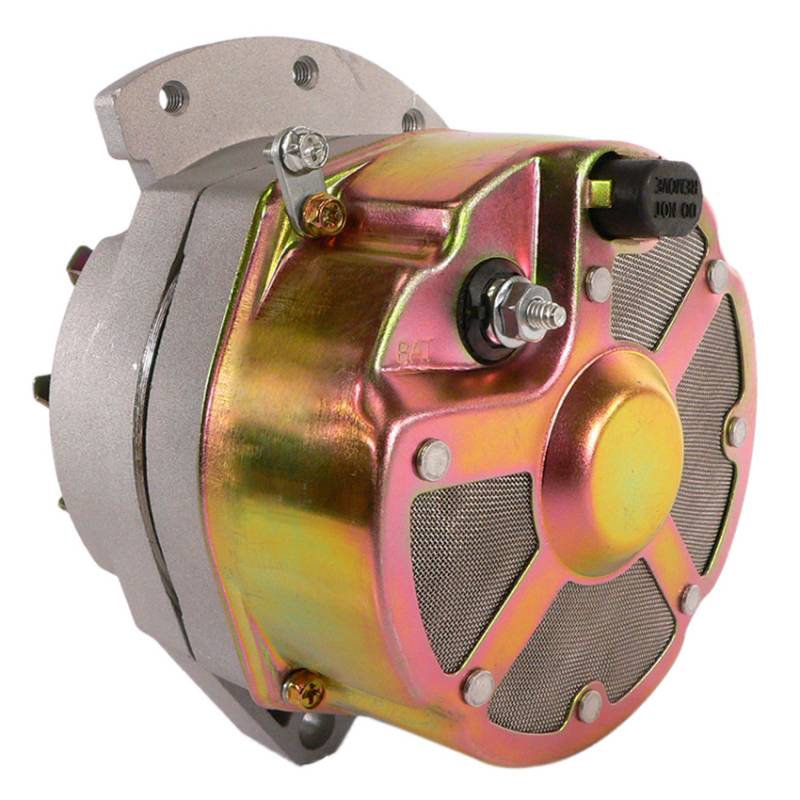

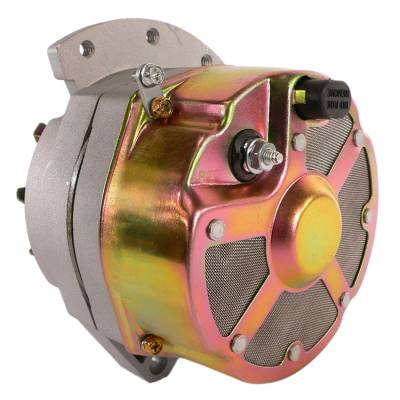

⚠️ 12V 94 AMP 10SI TYPE ONE WIRE MARINE ALTERNATOR, NEW AFTERMARKET:
• 12 volt, 94 amp, negative ground, internal regulator, external fan
• 1-wire self exciting hook-up, spark arrestor screens for marine use
• 1 inch wide pivot foot, 1 groove V pulley 60.5 mm (2.382 in) OD
• New aftermarket, not a Delco Remy, Motorola or Prestolite branded unit
UNIVERSAL MARINE REPLACEMENT FOR:
• Motorola marine alternators with a 1 inch wide pivot foot
• Prestolite marine alternators with a 1 inch wide pivot foot
• OMC marine alternators built by Motorola or Prestolite
• Boat alternator conversions to a 1-wire self exciting 10SI type unit
MOUNTING:
• Pivot foot: 1 inch wide (26.2 mm, 1.031 in), 13 mm unthreaded hole
• Adjusting ear: three 5/16-18 threaded holes, 11 mm (0.433 in) thick
• 2 inch and 3 inch mounting feet: use spacers, spacers not included
• Pulley: 1 groove V belt, 60.5 mm (2.382 in) OD
WIRING:
• 1-wire self exciting: one charge wire from the B+ stud (12-24 thread)
• Internal regulator, no separate regulator or exciter wire needed
• Rev the engine above idle after start-up to start charging
HOW TO CHOOSE:
• 94 amp high output build: MES 400M-HO, API Marine 20092
• MES 400M is the standard output number for the same 1 inch foot mount
• Measure the pivot foot on your old alternator before ordering
