DELCO PART NUMBERS: • 1108694 (original 20MT, 12V grounded CW)
• 1109199 (20MT/100, superseded by 1998363)
• 1998348 (22MT150)
• 1998363 (22MT150, replaces 1108694 and 1109199)
• DRZ5108
• DRZ5126
CLARK PART NUMBERS: • 2385787, 2385787R
• 3737153R
• 3737235R
• 1719166
HYSTER PART NUMBERS: • 3005414, 3005414R
YALE PART NUMBERS: • 2200026-51, 220002651
WILSON PART NUMBERS: • 91-01-4244, 91014244
LUCAS PART NUMBERS: • LRS01259, LRS1259
BOSCH PART NUMBERS: • 0001359054
• 0001359042
• 0001367051

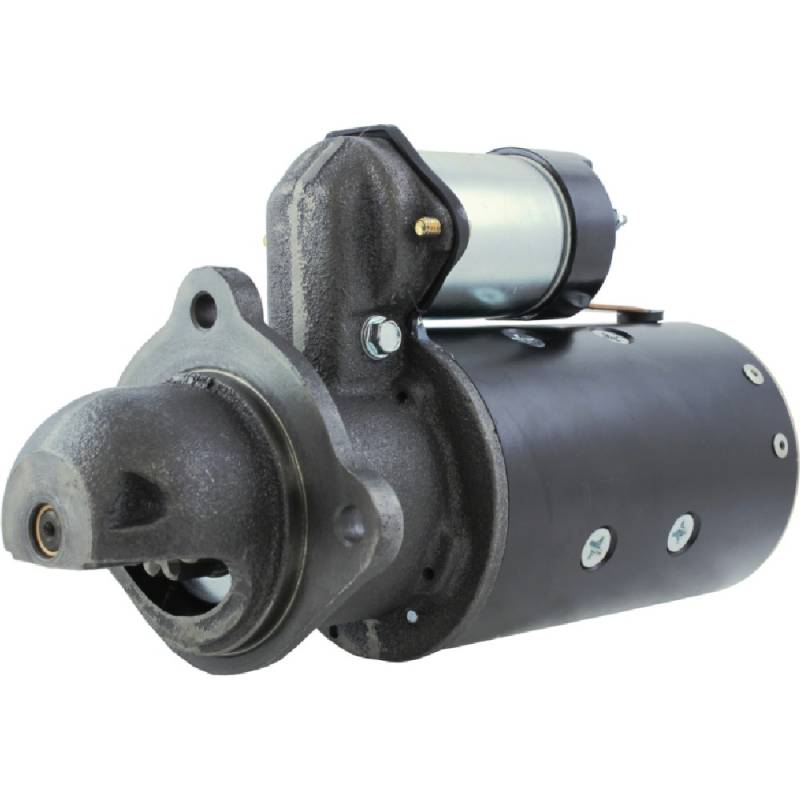

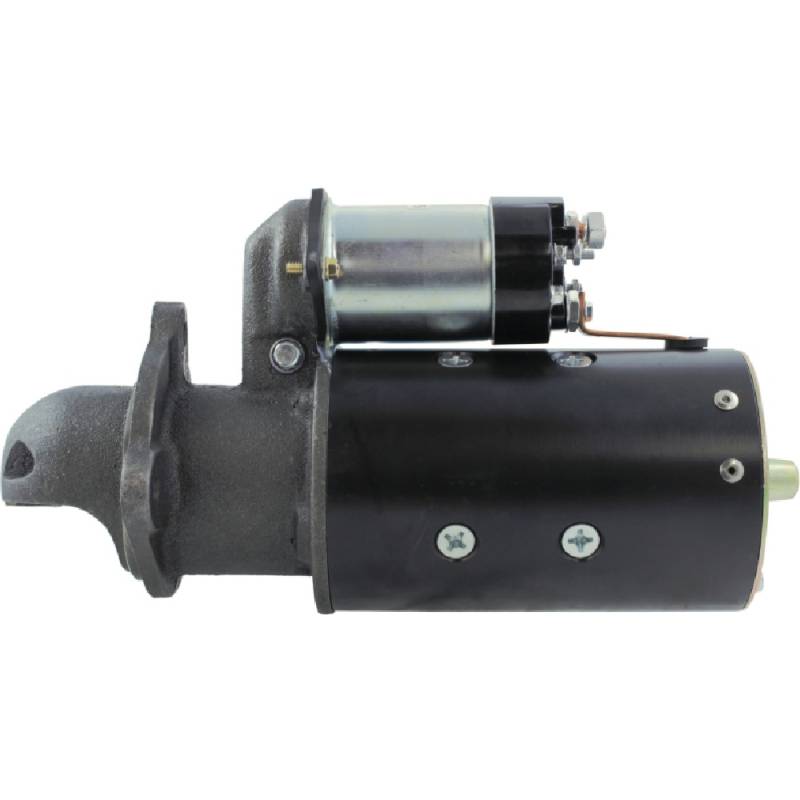

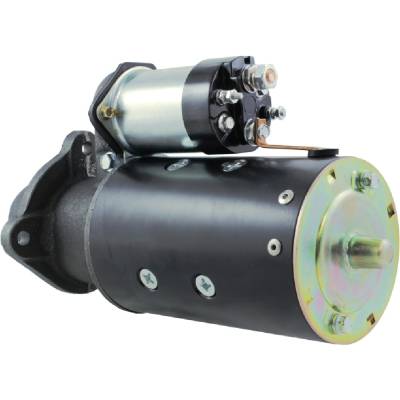

SPECIFICATIONS: • Type: Delco 20MT direct drive (DD), later 22MT150 service number
• Voltage: 12 Volt
• Rotation: Clockwise (CW)
• Pinion: 10 teeth, 39.5 mm (1.555 in) OD
• Mounting: three bolt, 89 mm flange, three 11 mm unthreaded ears
• Solenoid: attached
• Engine: Perkins 4-203 (4.203) diesel
• Weight: 31.8 lb (14.5 kg)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
