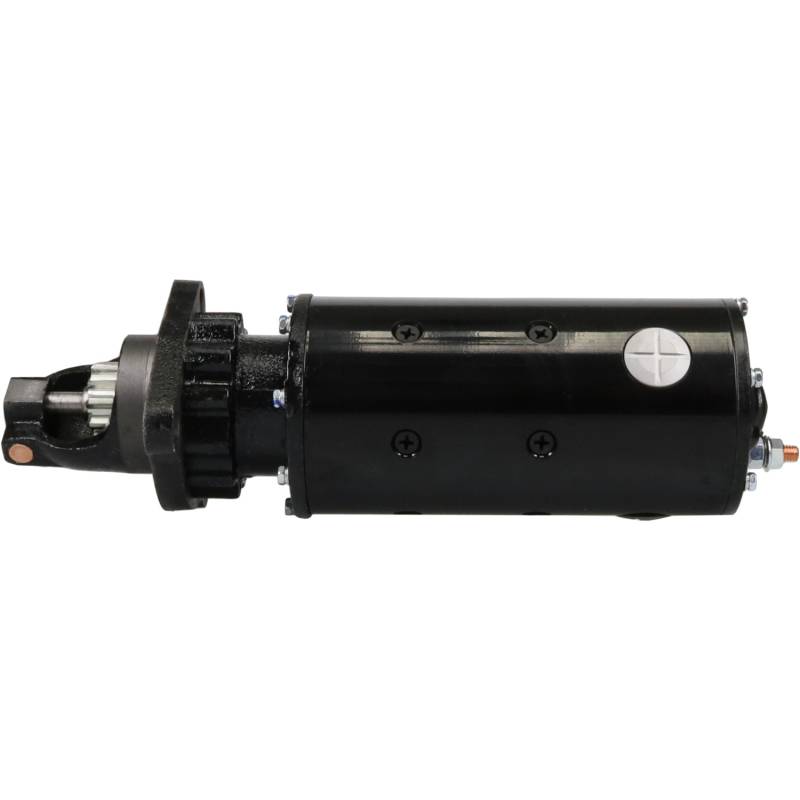

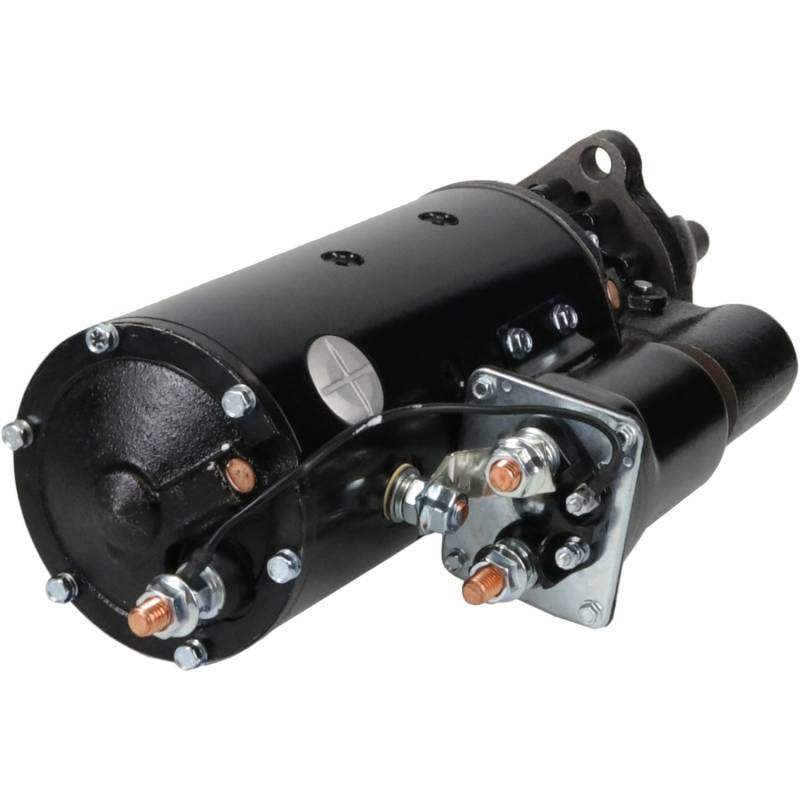

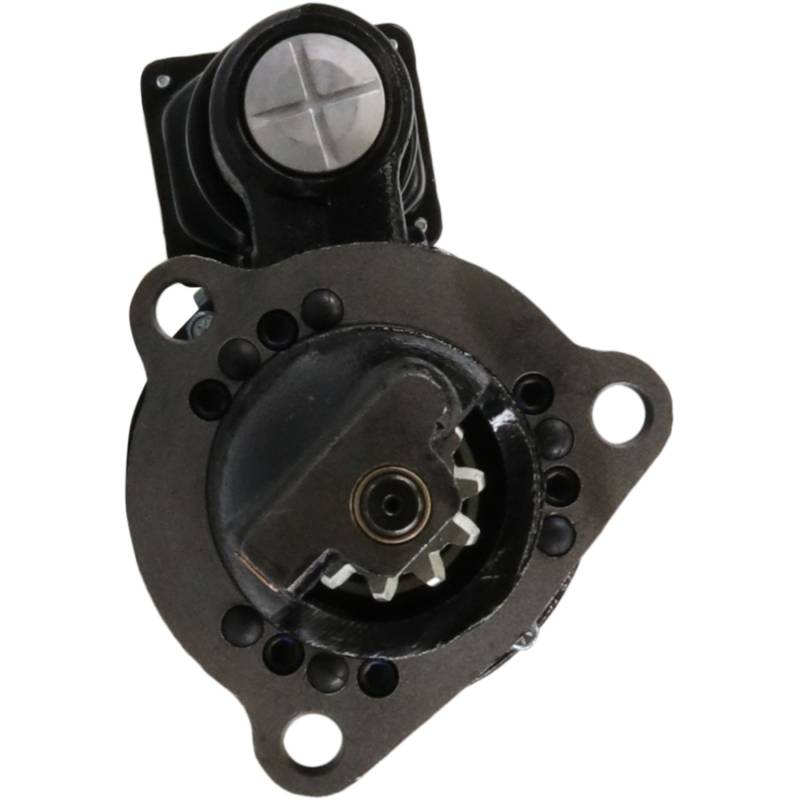

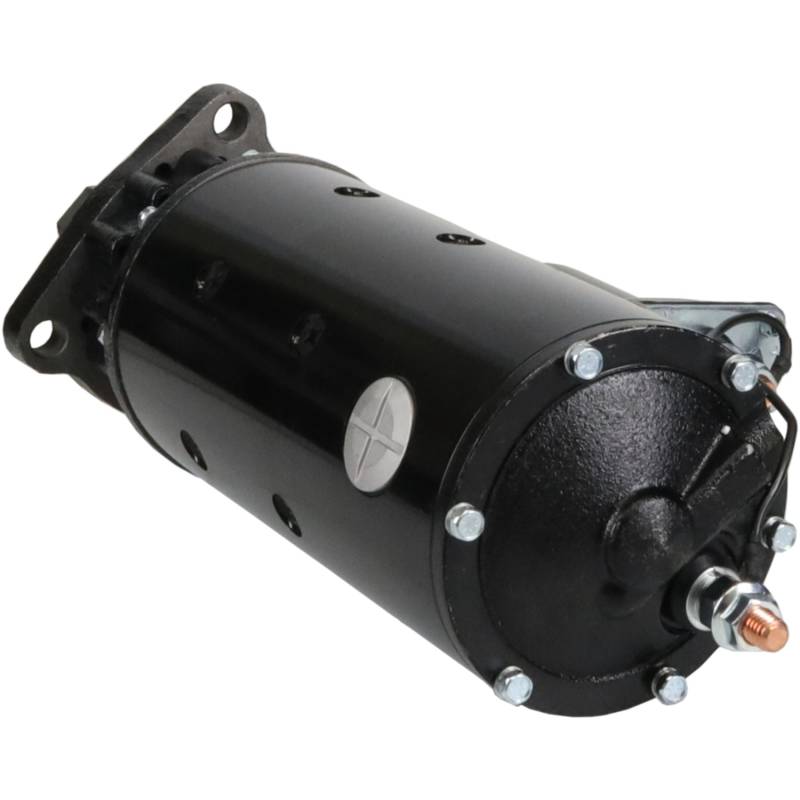

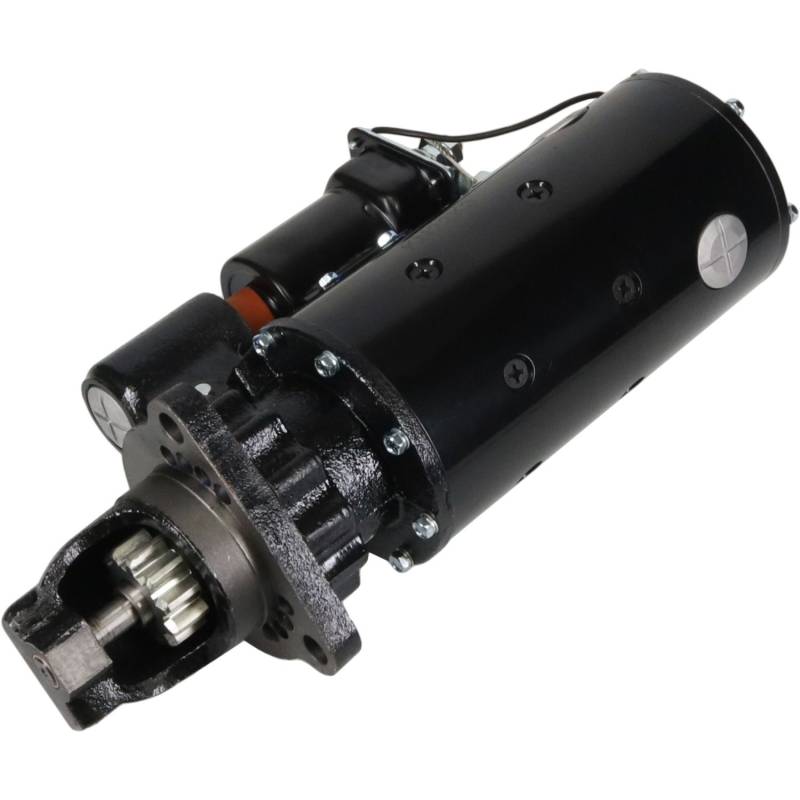

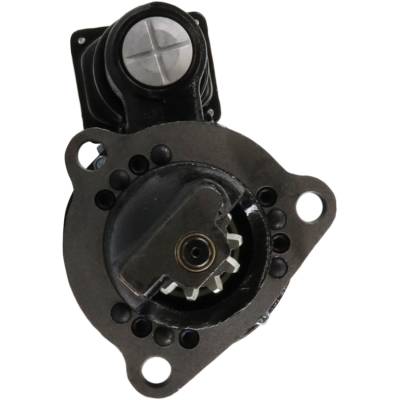

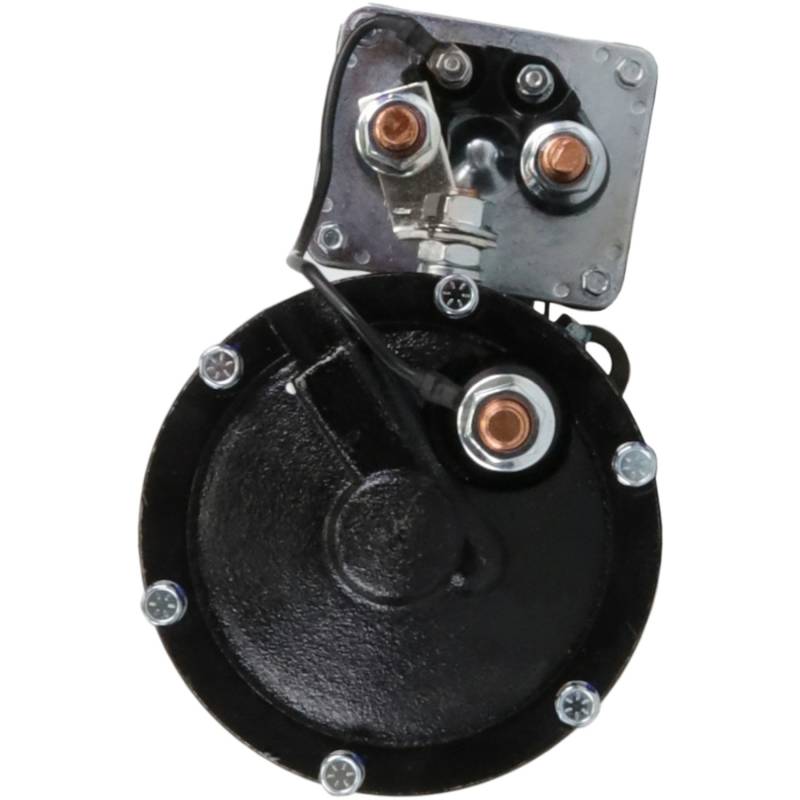

24V Starter Motor Compatible With Kenworth C500 K100 W900 Dd 12V-71 Dd 8V-92 Cw Prestolite Ms7300a

4930NA5
OEM PART NUMBERS:
• Caterpillar: 3T8961
• Cummins: 3171099, 3636820, 4081236
• Delco: 1109493, 1109646, 1109844, 1109971, 1109978, 1990267, 8200207, 8201153
• Prestolite: MS7300A, MS7-411

SPECIFICATIONS:
• Voltage: 24V • Starter Type: DD (Direct Drive) - 50MT Series • Rotation: CW (Clockwise) • Teeth: 11 • Pinion OD: 55.9mm (2.201") • Power Output: 9kW • Mounting Holes: 3x 16.6mm (0.660") Unthreaded • Weight: ~80 lbs / ~36 kg
APPLICATION:
• Clark/Euclid/Fiat-Allis (1960-1982)
• Freightliner/IH/Kenworth/Autocar (1962-1979)
• JD 990 (1983-1989)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $1,040.64
Sale: $594.65
Save: 43%
Save: $445.99
Qty:
Free Shipping!

Description

ALLIS CHALMERS:
• Scraper 460C DD 12V-71N65 (1969-1973)

AUTOCAR:
• Heavy Duty Cummins KT-450 (1975-1979)

CLARK:
• Dozer 380 Cummins KTA-1150 (1979-1980)

EUCLID:
• Crawlers C260 DD 8V-71 (1964-1966)
• Scrapers 60SH/61SH/62SH/63SH/65SH/66SH/S-24/S-28/SS-33/SS-40/TS-28/TSS-40 (1961-1967)
• Tractors 34LDT/38LOT/39LOT/40LOT/43LDT/45LDT/49LDT/51LDT/53LDT/6UOT (1960-1972)
• Wagon 137W DD 12V-71 (1961-1962)

FIAT-ALLIS:
• Tractor HD-31 Cummins KT-1150 (1976-1982)
• Tractor HD-41 Cummins VT-1710 (1978-1982)
• Scraper 460C DD 12V-71N65 (1974-1976)

FREIGHTLINER:
• WF (C,P,T) Series Cummins K6 (1975-1976)

INTERNATIONAL:
• Transtar/Unitstar DD 12V-71 (1971-1976)
• Payhauler 350/PH-180 Cummins/DD (1965-1979)
• Payloader H-400 Cummins/DD (1968)

JOHN DEERE:
• 990 Utility Tractor (1983-1989)

KENWORTH:
• C500/K100/W900 DD 12V-71/8V-92 (1962-1979)

NOTE: Verify OEM part number before ordering.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 79.0 lbs.
  • W12.0000” x H12.0000” x L24.0000”
  • Free Shipping!
