OEM PART NUMBERS:
• Case / IH: 104205A1 / 383999R91 / 395758R91
• Delco: 1113176 / 1113197
• AC Delco: 323-706 / 323706
SPECIFICATIONS:

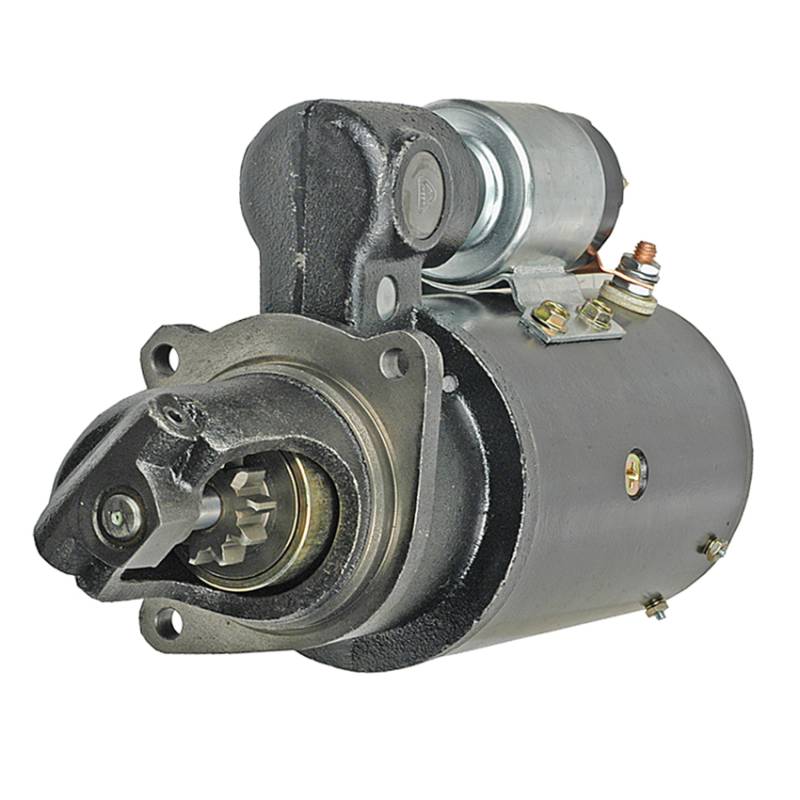

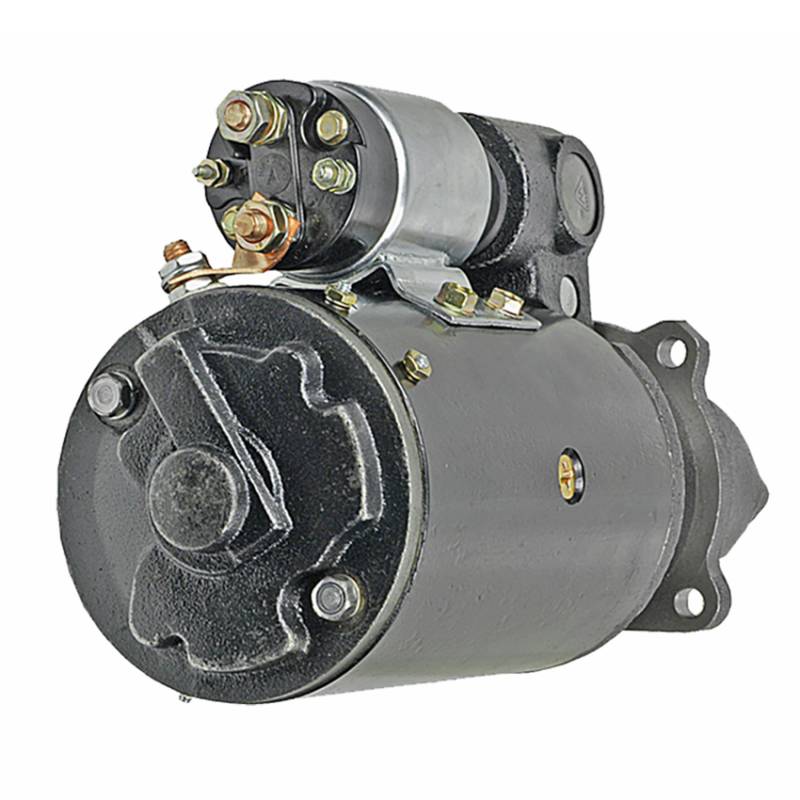

• Unit Type: Delco 30MT
• Type: DD (Direct Drive)
• Voltage: 12V
• Rotation: CCW (Counterclockwise)
• Tooth Count: 10
• Gear OD: 1.575in / 40mm
• Solenoid Position: 45 Degrees
• Mounting Holes: Three 10.2mm ID Unthreaded
• Weight: 46.9 lbs / 21.32 kg
• Internally Rotatable
• Condition: New
INTERNATIONAL HARVESTER APPLICATIONS:
• Tractors: 706D, Farmall 706D w/D-282 and D-310 Diesel (1963-1967)
• Tractors: 756D, 756DA, Farmall 756D w/D-310 Diesel (1967-1976)
• Tractor: 2756D w/D-310 Diesel (1968-1971)
• Cotton Pickers: 601, 602 w/D-310 Diesel (1965-1970)
• Cotton Pickers: 612, 616, 622 w/D-310 Diesel (1967-1979)
• Cotton Harvester: Model 95 w/D-310 Diesel (1974-1979)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
