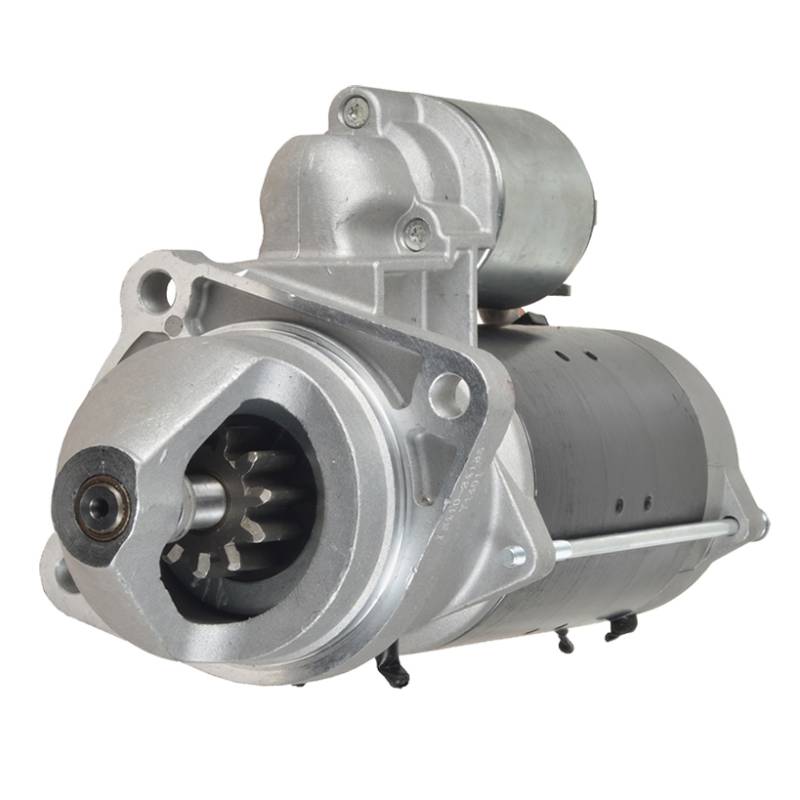

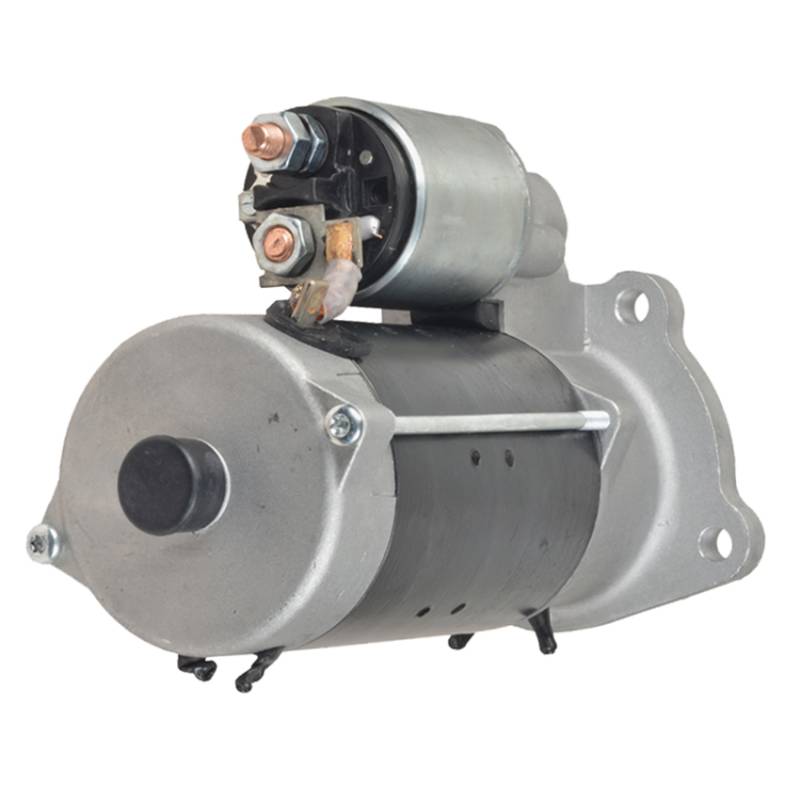

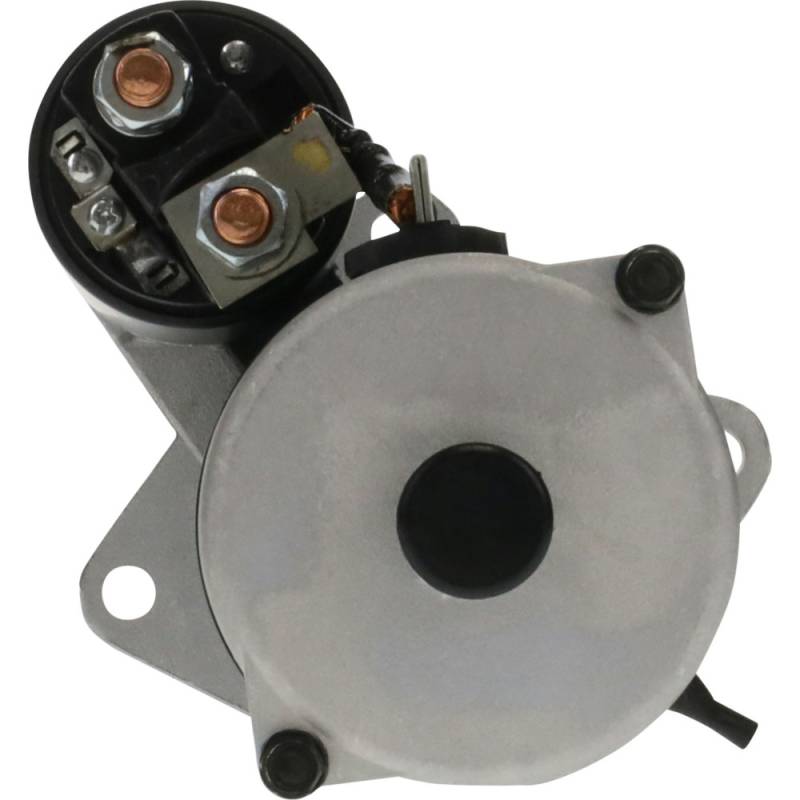

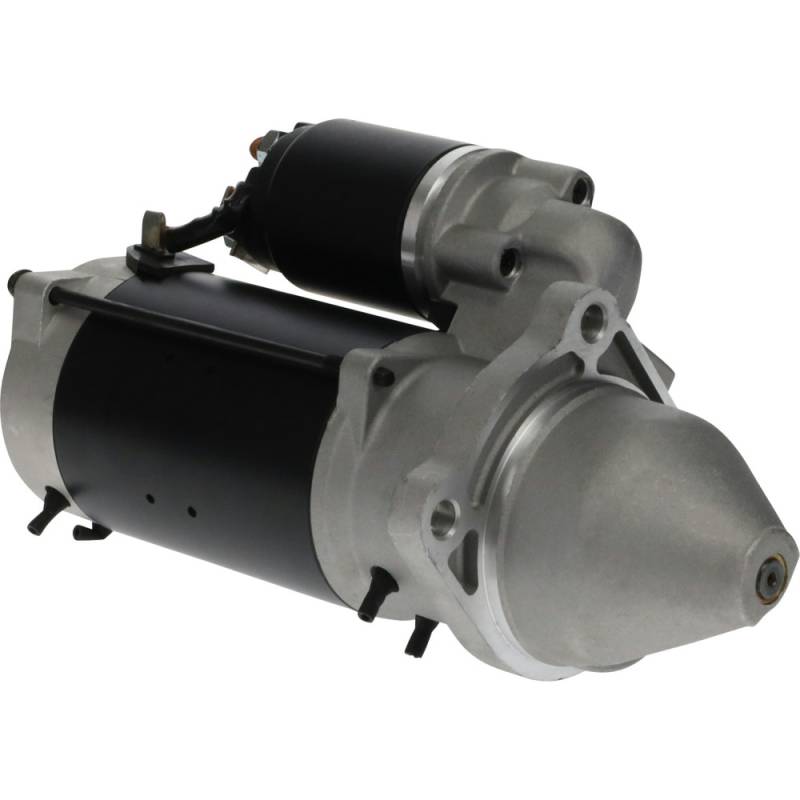

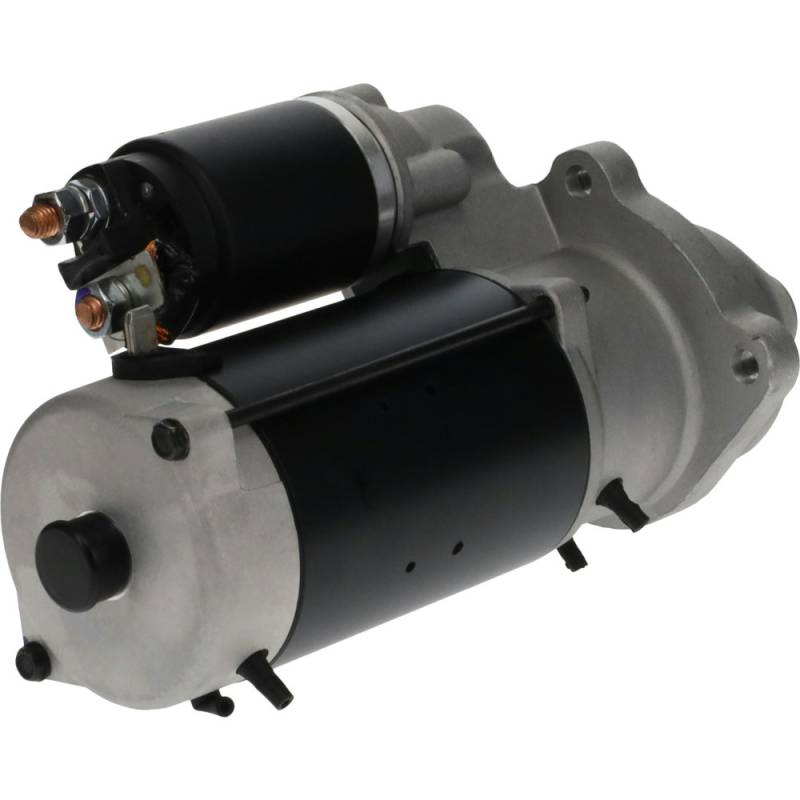

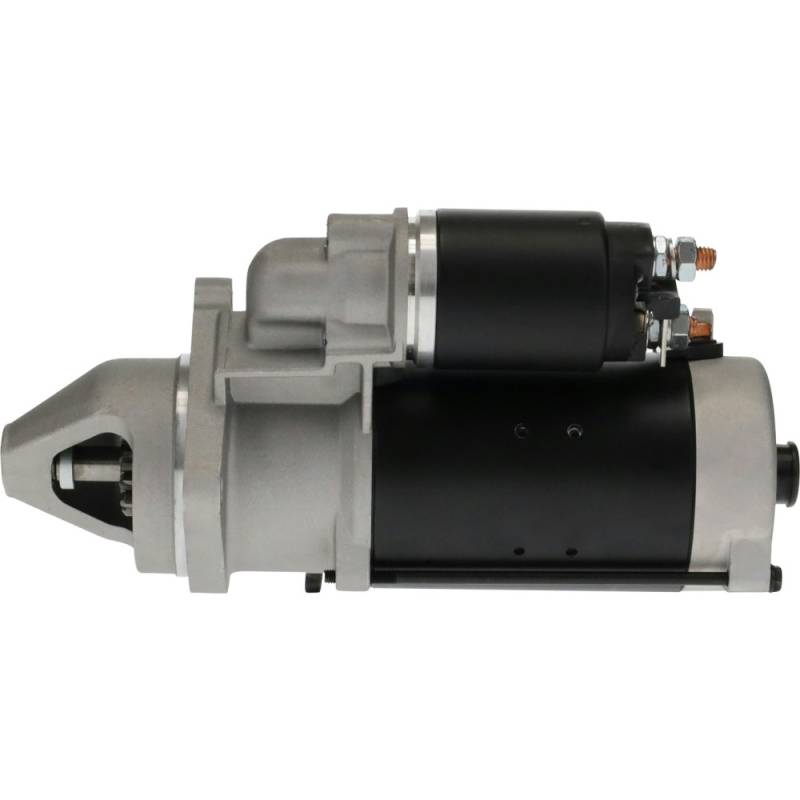

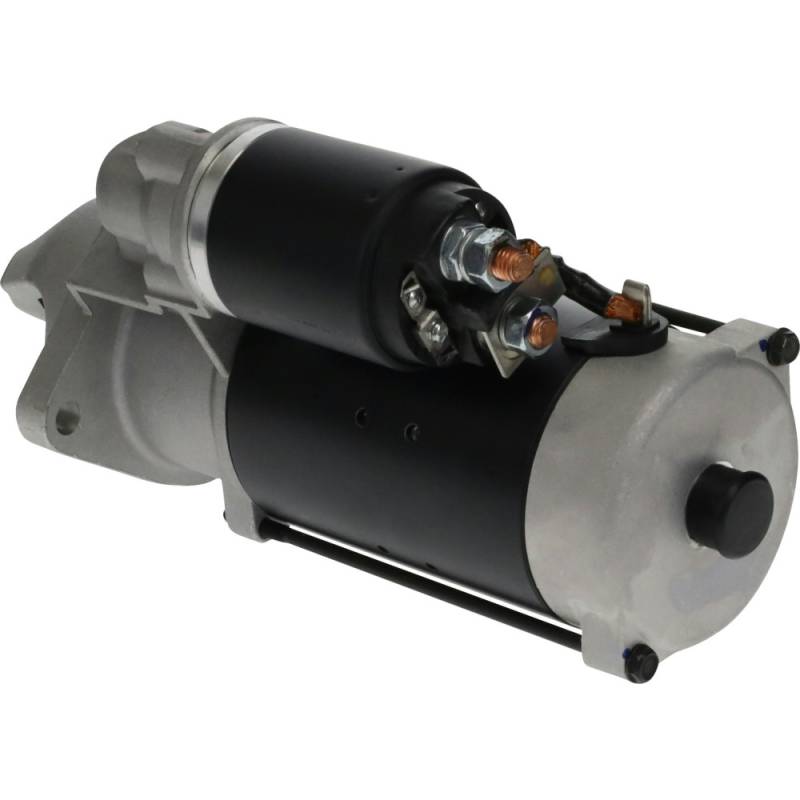

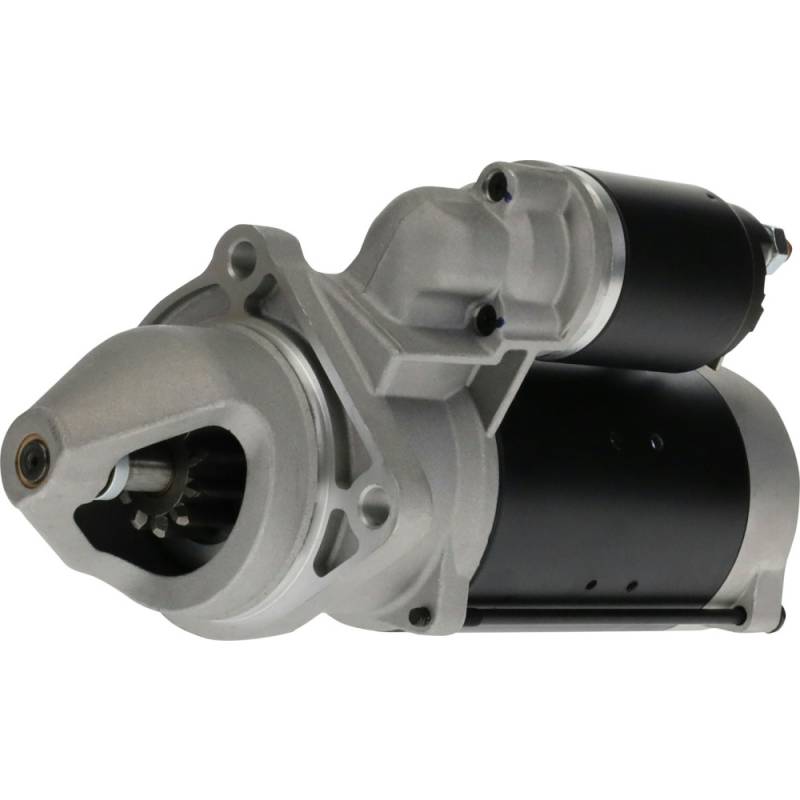

New Plgr 24V Starter Fits Man Europe 9.223 Em 11.222 13.222 51-26201-9213 Is0730

(0) Reviews: Write first review
30126NB5
BOSCH PART NUMBERS:
• 0001231019, 0-001-231-019, 0 001 231 019
• 0001231119, 0-001-231-119
• 0001231030, 0-001-231-030
• 0986018990, 0-986-018-990

MAN PART NUMBERS:
• 51.26201-9213, 51-26201-9213, 51262019213
• 51.26201-7183, 51-26201-7183, 51262017183
• 51.26201-7213, 51262017213
• 51.26201-9183, 51262019183
• 51.26201-7189, 51262017189
• 51.26201-7210, 51262017210

MAHLE / LETRIKA (ISKRA) PART NUMBERS:
• Mahle MS439, MS 439
• Letrika IS0730, IS 0730
• Letrika 11.130.730, 11130730
• Letrika AZF4509

OTHER REPLACEMENT NUMBERS:
• Lucas LRS01970, LRS1970
• Delco Remy DRS8990
• Hella 8EA-737-912-001, 8EA737912001
• Valeo 458843, 458 843

SPECIFICATIONS:
• Type: Bosch type planetary gear reduction (PLGR)
• Voltage: 24 Volt
• Power: 4.0 kW (5.36 HP)
• Rotation: Clockwise (CW)
• Pinion: 11 teeth, module 3, 40 to 41 mm (1.575 to 1.614 in) OD
• Flange: 89 mm
• Mounting: 3 unthreaded 11 mm ears, 127 mm bolt circle
• Battery terminal: M10
• Weight: 19.49 lb (8.86 kg)
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $503.93
Sale: $287.96
Save: 43%
Save: $215.97
Qty:
Free Shipping!

Description

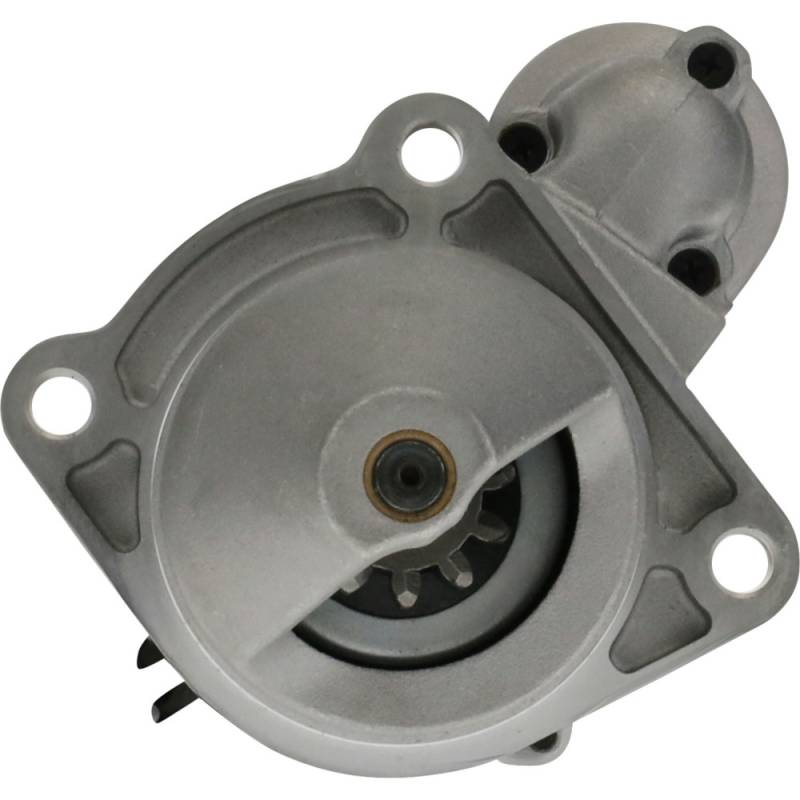

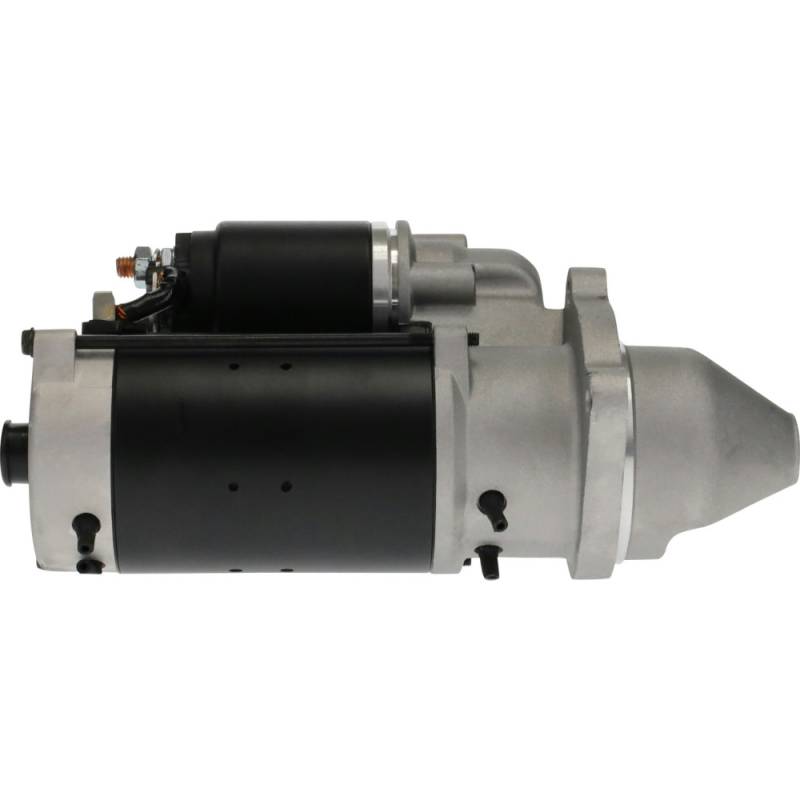

⚠️ 24 VOLT 4.0 KW 11 TOOTH CW BOSCH TYPE PLGR STARTER, NEW:
• 24V, 4.0 kW (5.36 HP), clockwise, planetary gear reduction (PLGR)
• 11 tooth module 3 pinion, 40-41 mm (1.575-1.614 in) gear OD
• 89 mm flange, three unthreaded 11 mm mounting ears on a 127 mm circle, M10 B+ stud
• 19.49 lb (8.86 kg), new
• A 9 or 10 tooth starter, or the long direct drive starter, is a different part

MAN M2000 14 TONNE AND 15 TONNE TRUCKS:
• MAN 14.264 L / LA / LL M2000L D0826LFL09 6.9L 1995-2001
• MAN 14.264 M / MA / ML M2000M D0826LF17 6.9L 1995-2001
• MAN 14.272 F / FL M90 D0826LF04 6.9L 1992-1996
• MAN 14.284 LC / LK / LLC / MC / MLS M2000 D0836LFL01 6.9L 2000-2001
• MAN 15.163 L / LL M2000L D0824LFL06, LFL09 4.6L 1995-2001
• MAN 15.224 L / LL M2000L D0826LFL03, LFL10 6.9L 1995-2001
• MAN 15.264 L / LL M2000L D0826LFL09 6.9L 1995-2001
• MAN 15.284 LC / LK / LLC M2000L D0836LFL01 6.9L 2000-2001

MAN M90 17 TONNE TRUCKS:
• MAN 17.192 F / FA / FL / GM2 M90 D0826LF01, LF05, LF07 6.9L 1990-1996
• MAN 17.222 FA M90 D0826LF11 6.9L 1994-1996
• MAN 17.232 F / FA / FL / GM2 M90 D0826LF02, LF06, LF217 Silent 6.9L 1988-1995
• MAN 17.272 FLS M90 D0826LF04 6.9L 1992-1995

MAN M90 / M2000 18 TONNE TRUCKS:
• MAN 18.192 F / FL M90 D0826LF01, LF05, LF07 6.9L 1990-1996
• MAN 18.222 F / FL M90 D0826LF11 6.9L 1994-1996
• MAN 18.224 L / LA / LL M2000L D0826LFL03, LFL10 6.9L 1995-2001
• MAN 18.224 M / MA / ML / MLLC M2000M D0826LF15, LF18 6.9L 1995-2001
• MAN 18.232 F / FL M90 D0826LF02, LF06, LF08 6.9L 1990-1996
• MAN 18.262 F / FL M90 D0826LF13 6.9L 1995-1996
• MAN 18.264 L / LA / LL M2000L D0826LFL09 6.9L 1995-2001
• MAN 18.264 M / MA / ML M2000M D0826LF17 6.9L 1995-2001
• MAN 18.272 F / FL M90 D0826LF04 6.9L 1992-1996
• MAN 18.284 LC / LK / LLC M2000L D0836LFL01 6.9L 2000-2001
• MAN 18.284 MC / MAK / MLS M2000M D0836LF01 6.9L 2000-2001

MAN 20, 24, 25 AND 26 TONNE TRUCKS:
• MAN 20.224 L / LL M2000L D0826LFL10 6.9L 1997-2001
• MAN 20.264 L / LL M2000L D0826LFL09 6.9L 1997-2001
• MAN 20.284 LNLC M2000L D0836LFL01 6.9L 2000-2001
• MAN 24.192 FNL / FVL M90 D0826LF01, LF05, LF07 6.9L 1989-1996
• MAN 24.222 FNL / FVL M90 D0826LF11 6.9L 1994-1996
• MAN 24.232 FNL / FVL M90 D0826LF02, LF06, LF08, LF217 Silent 6.9L 1989-1996
• MAN 24.262 FNL / FVL M90 D0826LF13 6.9L 1995-1996
• MAN 24.272 FNL / FVL M90 D0826LF04 6.9L 1992-1996
• MAN 25.224 M / ML / MVL M2000M D0826LF15, LF18 6.9L 1995-2001
• MAN 25.264 M / ML / MVL M2000M D0826LF17 6.9L 1995-2001
• MAN 25.284 MNLC / MVLC M2000M D0836LF01 6.9L 1998-2001
• MAN 26.225 DLK D0836LFL02 6.9L 2000-2002
• MAN 26.255 DLK D0836LFL05 6.9L 2000-2002
• MAN 26.284 DL D0836LFL01 6.9L 2000-2001
• MAN 26.285 DL / DLK D0836LFL03 6.9L 2000-2002

MAN G90 / L2000 8 TONNE AND 9 TONNE TRUCKS:
• MAN 8.103 F / L L2000 D0824FL01 4.6L 1993-1996
• MAN 8.113 L / LL L2000 D0824LFL04, LFL08 4.6L 1995-2001
• MAN 8.150 F / FAE / FL / FOC G90 D0826GF, GF01, GF03 6.9L 1987-1995
• MAN 8.150 FOC / FOCL L2000 D0824LFO01 4.6L 1995-1998
• MAN 8.153 F / L / LA / LL L2000 D0824LFL01, LFL05 4.6L 1993-1997
• MAN 8.163 F / L / LA / LL L2000 D0824LFL02, LFL06, LFL07, LFL09 4.6L 1994-2001
• MAN 8.185 L / LL L2000 D0834LFL03 4.6L 2000-2001
• MAN 8.223 F / L / LA / LL L2000 D0826LFL06 6.9L 1994-1996
• MAN 8.224 F / L / LC / LK L2000 D0826LFL03, LFL10 6.9L 1994-2001
• MAN 9.150 F / FAE / FL / FOC G90 D0826GF, GF01, GF03 6.9L 1987-1995
• MAN 9.153 F / L / LL L2000 D0824LFL01, LFL05 4.6L 1993-1996
• MAN 9.163 F / L / LL L2000 D0824LFL02, LFL06, LFL07, LFL09 4.6L 1994-2001
• MAN 9.185 L / LL L2000 D0834LFL03 4.6L 2000-2001
• MAN 9.223 F / L / LL L2000 D0826LFL06 6.9L 1994-1996
• MAN 9.224 F / L / LC / LK / LL L2000 D0826LFL03, LFL10 6.9L 1994-2001

MAN LE 2000 AND ME 2000 TRUCKS:
• MAN LE 110 C D0824LFL08 4.6L 2000-2001
• MAN LE 140 C D0834LFL02 4.6L 2001
• MAN LE 160 B and LE 160 C D0824LFL06 4.6L 2000-2001
• MAN LE 180 B and LE 180 C D0834LFL03 4.6L 2000-2001
• MAN LE 220 B and LE 220 C D0826LFL10, D0836LFL02 6.9L 2000-2001
• MAN LE 250 B D0836LF05, LFL05 6.9L 2001
• MAN LE 280 B D0836LF01, LF03, LFL03 6.9L 2000-2001
• MAN ME 220 B D0826LF18, D0836LF04 6.9L 2000-2001
• MAN ME 250 B D0836LF05, LFL05 6.9L 2001
• MAN ME 280 B D0836LF01, LFL03 6.9L 2000-2001

MAN BUS CHASSIS:
• MAN EM 11.222 D0826LOH15 6.9L 1996-2001
• MAN EM 13.222 D0826LUH12 6.9L 1997
