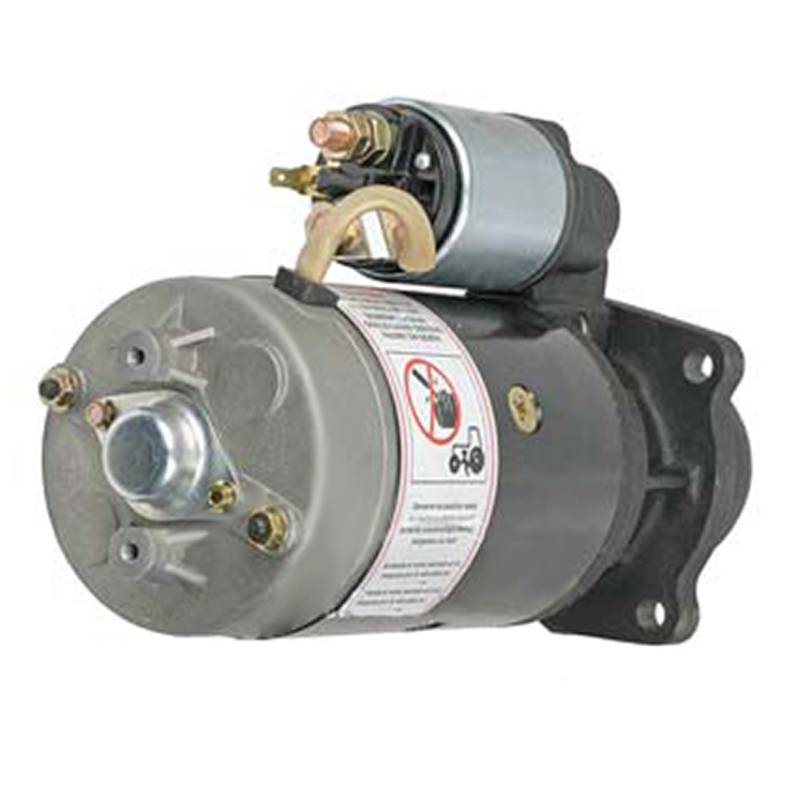

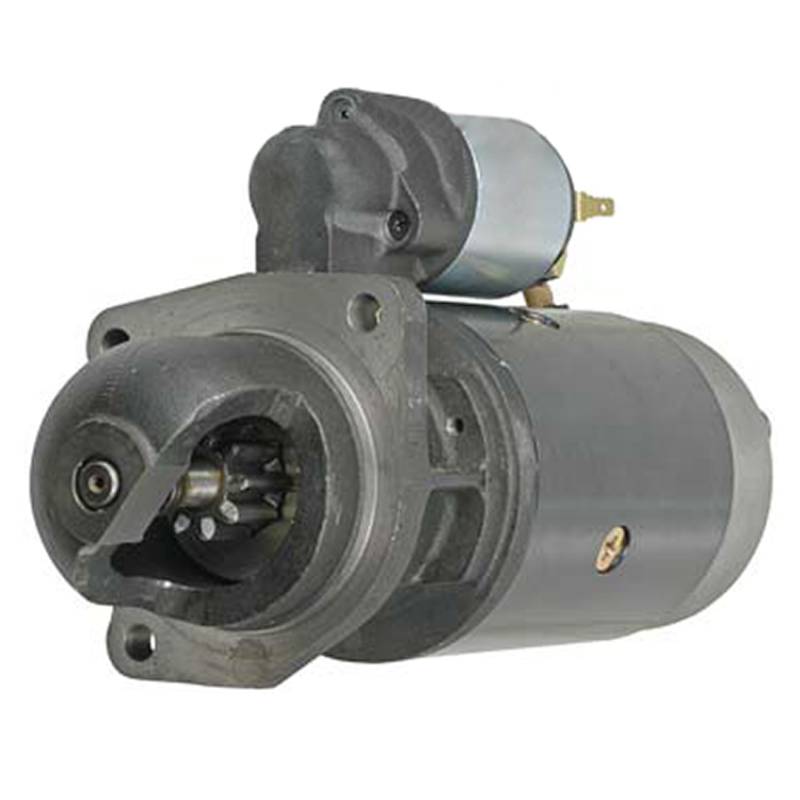

⚠️ 24V 4.0 KW 9 TOOTH CW BOSCH 368 SERIES DIRECT DRIVE STARTER, CASE / POCLAIN EXCAVATORS, MAGIRUS-DEUTZ, FUCHS, DEMAG:
• 24 volt, 4.0 kW, clockwise, Bosch direct drive (DD), 9 tooth pinion, 34.1 mm (1.343 in) gear OD, module 3
• 89 mm flange with 3 unthreaded 11 mm mounting holes (90 / 90 / 127 mm spacing), 28 mm pinion rest position, M10 battery stud
• For Deutz / KHD 911, 912 and 913 air cooled diesels on 24 volt systems: F3L911, F4L911, F6L911, F3L912, F4L912, F5L912, F6L912, BF6L912, F4L913, F6L913, BF4L913, BF6L913
• Weight 31.7 lb (14.4 kg), new
CASE EXCAVATORS:
• Case B60CL excavator 1976-1988
• Case B75CL excavator 1975-1988
• Case B75P excavator 1975-1988
• Case LC80 excavator 1969-1976
• Case LY80 excavator 1969-1977
MAGIRUS-DEUTZ (KHD) M110 AND M120 TRUCKS:
• Magirus-Deutz M110 D7FK, D8FK, D9FK with the Deutz F6L912 5.6L 1967-1974
• Magirus-Deutz M110 D7FS, D8FS, D9FS with the Deutz F6L912 5.6L 1967-1974
• Magirus-Deutz M110 D7FL, D8FL, D9FL, D11FL with the Deutz F6L912 5.6L 1967-1974
• Magirus-Deutz M120 D7FA, D7FK, D7FL, D7FS with the Deutz F6L912 5.7L 1969-1974
• Magirus-Deutz M120 D12K, D12AK with the Deutz F6L912 5.7L 1971-1973
FUCHS AND DEMAG EXCAVATORS:
• Fuchs 118M wheel excavator with the Deutz F6L912 1975-1986
• Demag H15C, H15P excavator with the KHD F4L912 3.8L 1974-1978
• Demag H21C, H21P excavator with the KHD F5L912 4.7L 1974-1978
• Demag H23C, H23L excavator with the KHD F6L912 5.6L 1974-1978
