OEM PART NUMBERS: • Denso: 028000-3530 / 0280003530, 028000-4560 / 0280004560
• Toyota: 28100-20560 / 2810020560, 28100-20560-71 / 281002056071, 28200-20560-71 / 282002056071
• Hyster: 3049006

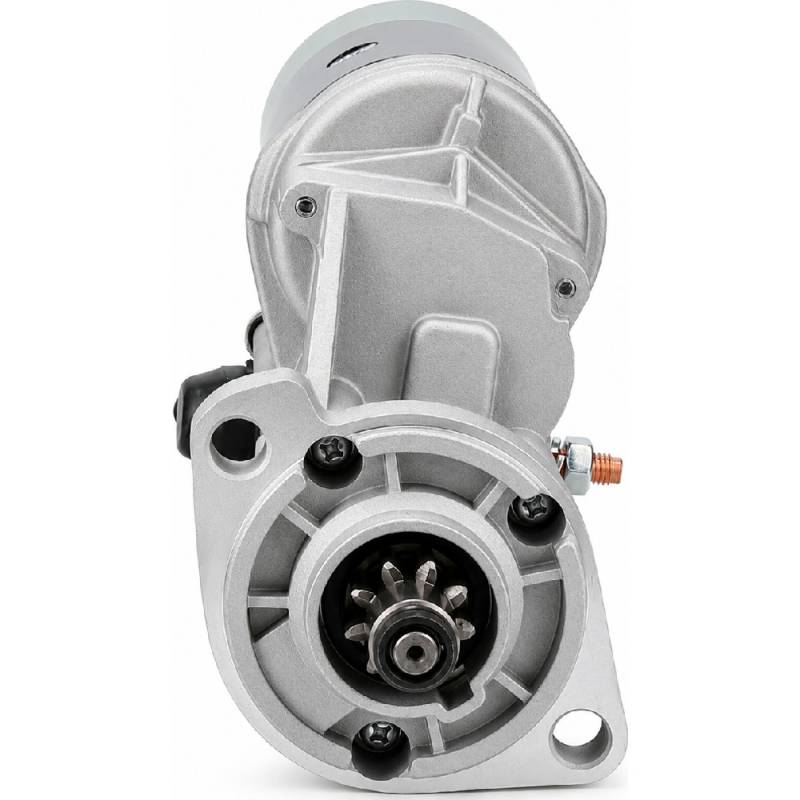

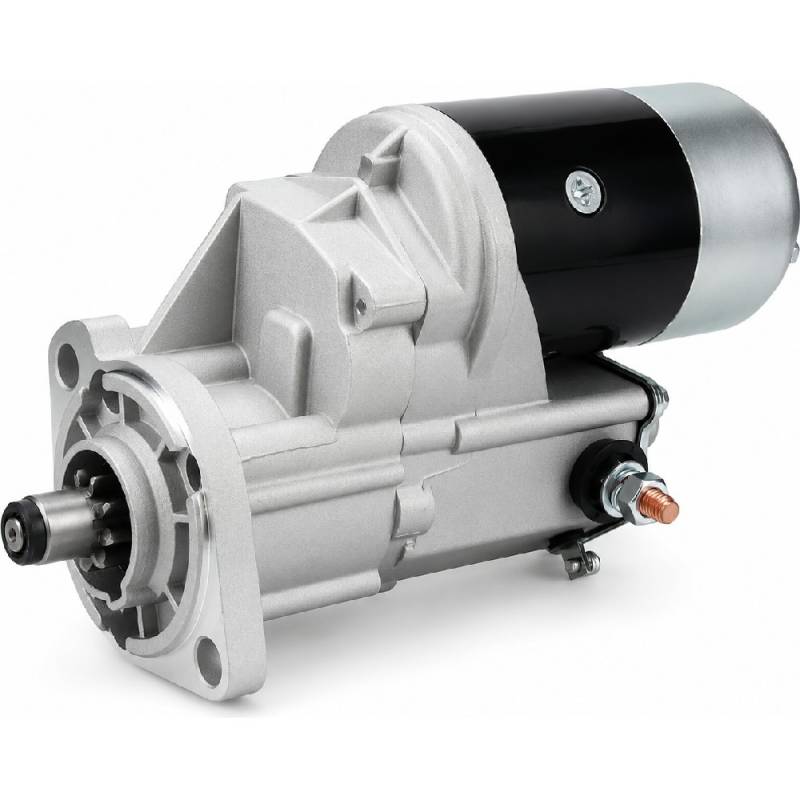

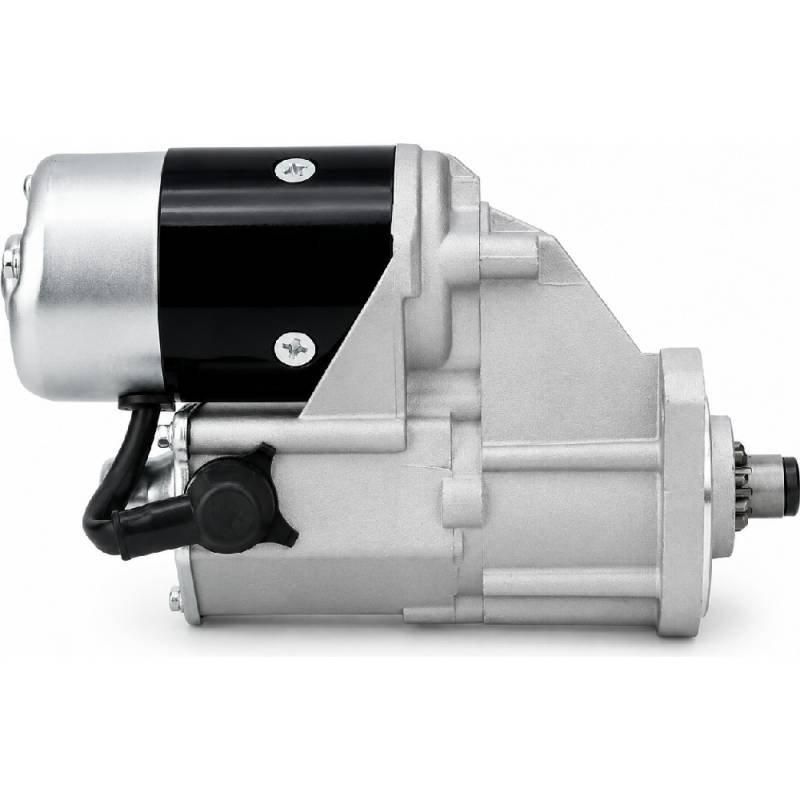

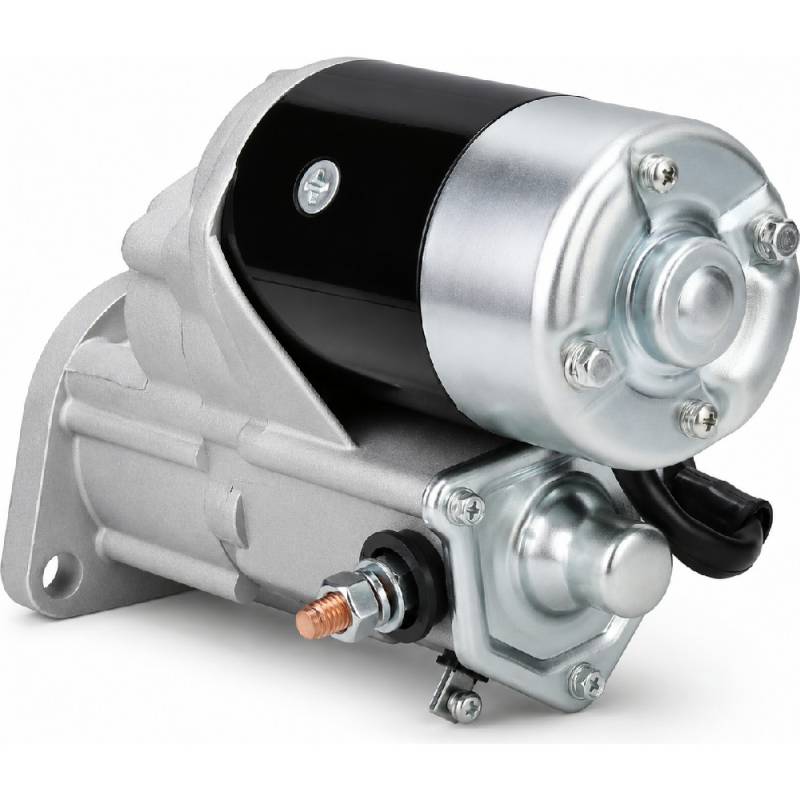

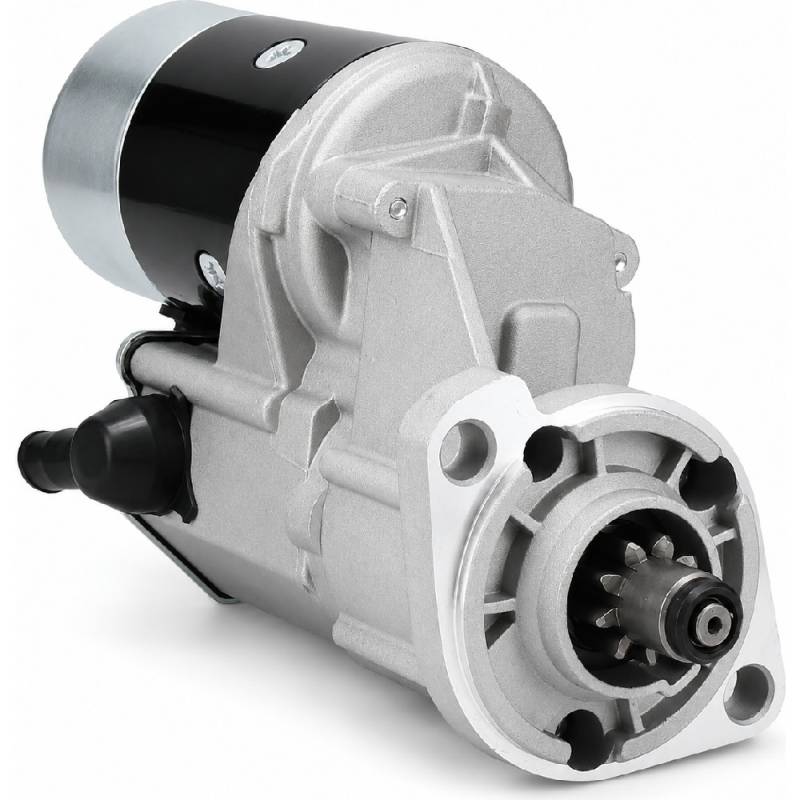

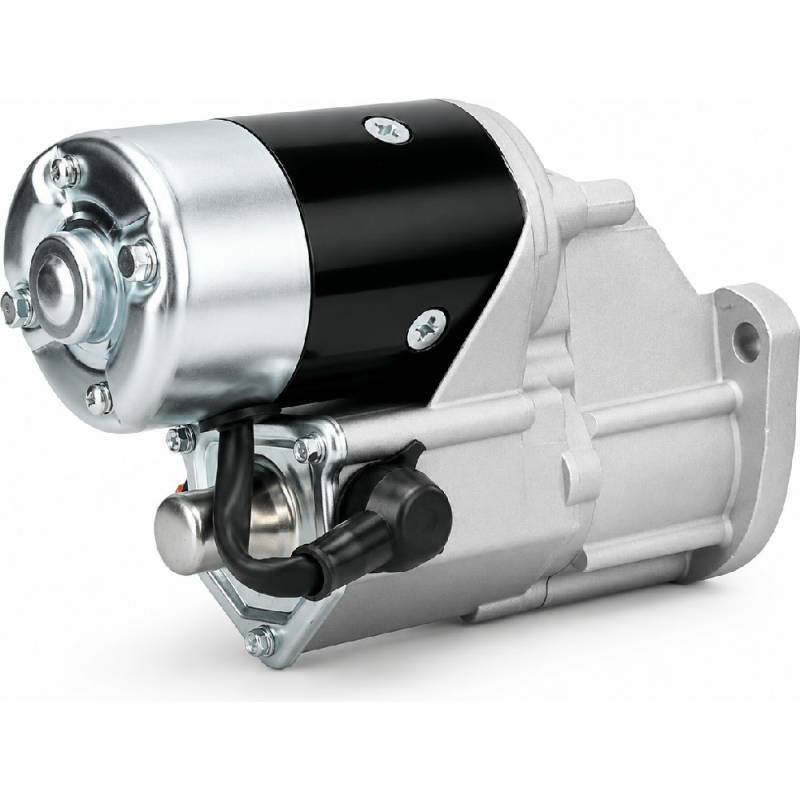

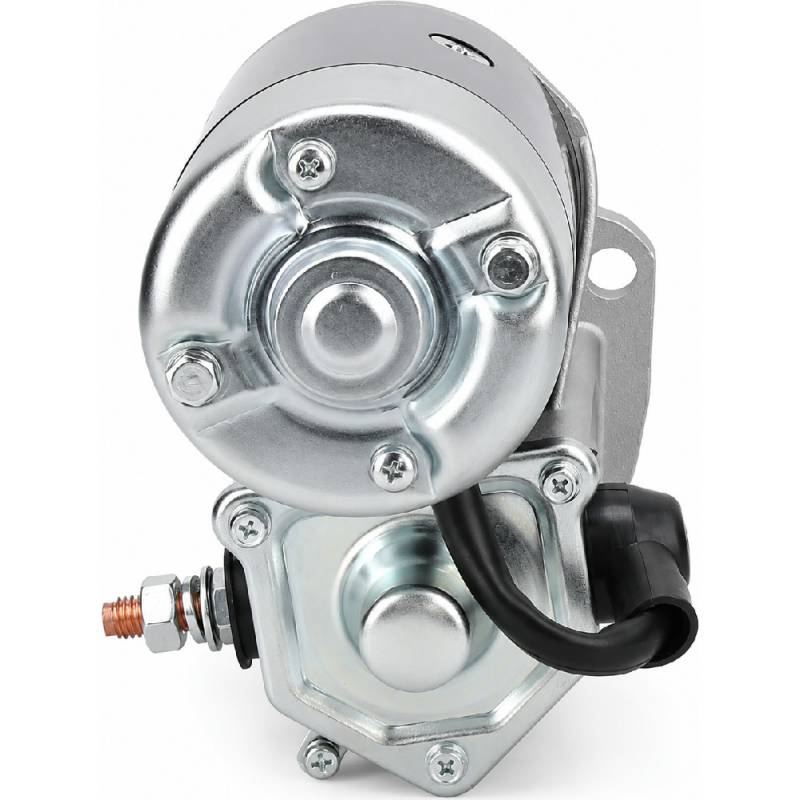

SPECIFICATIONS: • Type: Starter Motor - Denso OSGR (Offset Gear Reduction)
• Voltage: 24V
• Power: 4.5 kW
• Power Of The Direct Drive Unit It Replaces: 3.0 kW
• Tooth Count: 9, Same As The Unit It Replaces
• Rotation: Clockwise (CW, Right)
• Case Grounding: Grounded Case
• Mounting: Flange, 2 Bolt Holes
• Nose Cone: Open Nose
• Pinion Gear OD Of The Unit It Replaces: 31.2 mm / 1.228 in
• Weight Of The Direct Drive Unit It Replaces: 28.4 lb / 12.91 kg
• Condition: New
APPLICATIONS: • Toyota FDC-15 and FDC-25 lift truck 1976-1988 with the 2J diesel
• Toyota FDC-20 and FDC-30 lift truck 1976-1979 with the 2J diesel
• Toyota FDS-20 lift truck 1979-1999 and Toyota 2FD30 with the 2J diesel
• Hyster lift truck built with the Toyota 2J diesel
• 24V 3.0 kW 9-tooth direct drive starter, 28.4 lb / 12.91 kg
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
