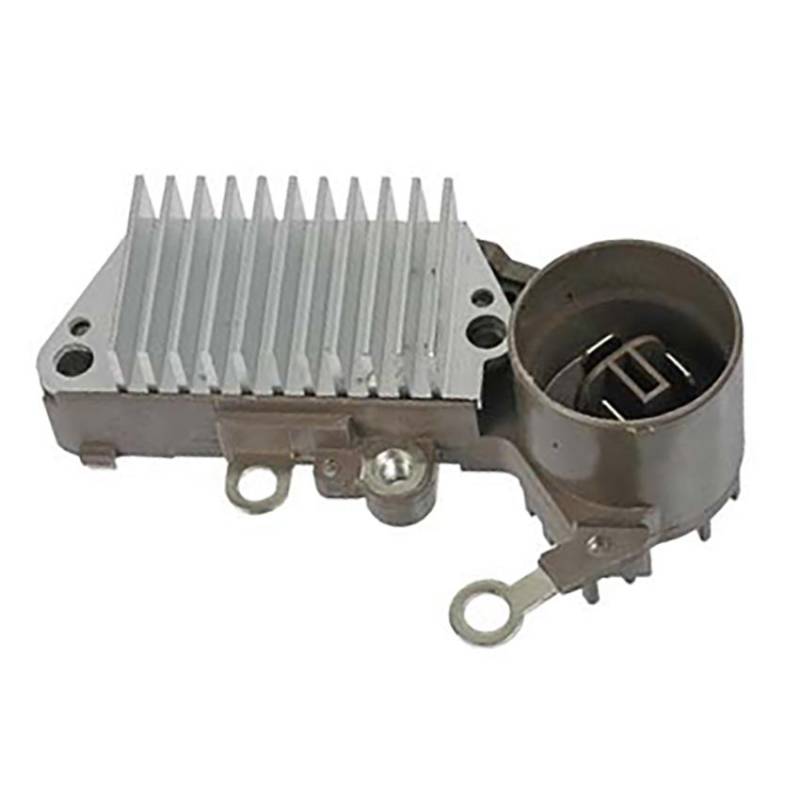

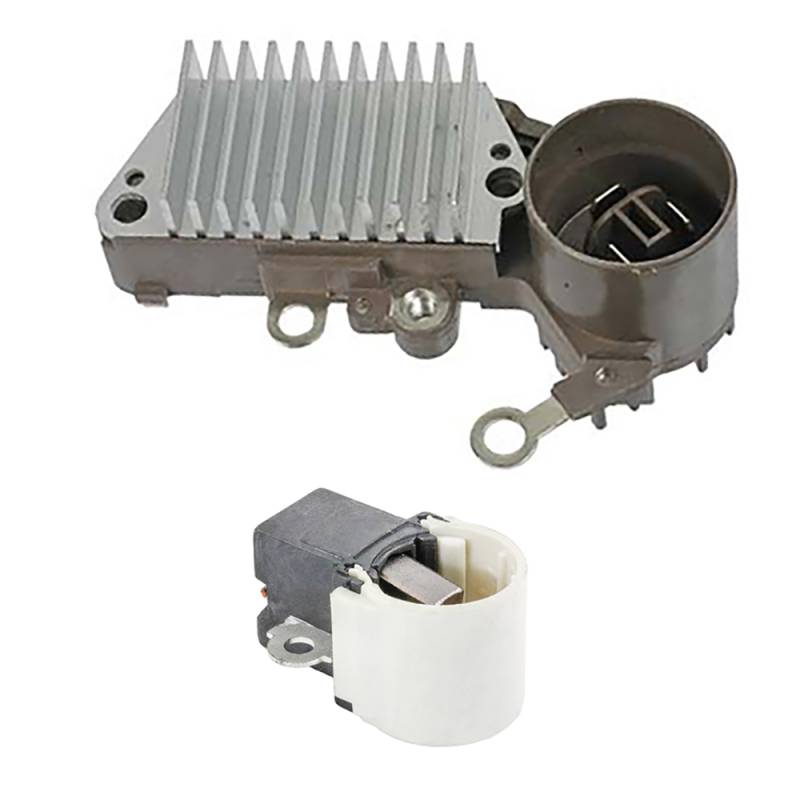

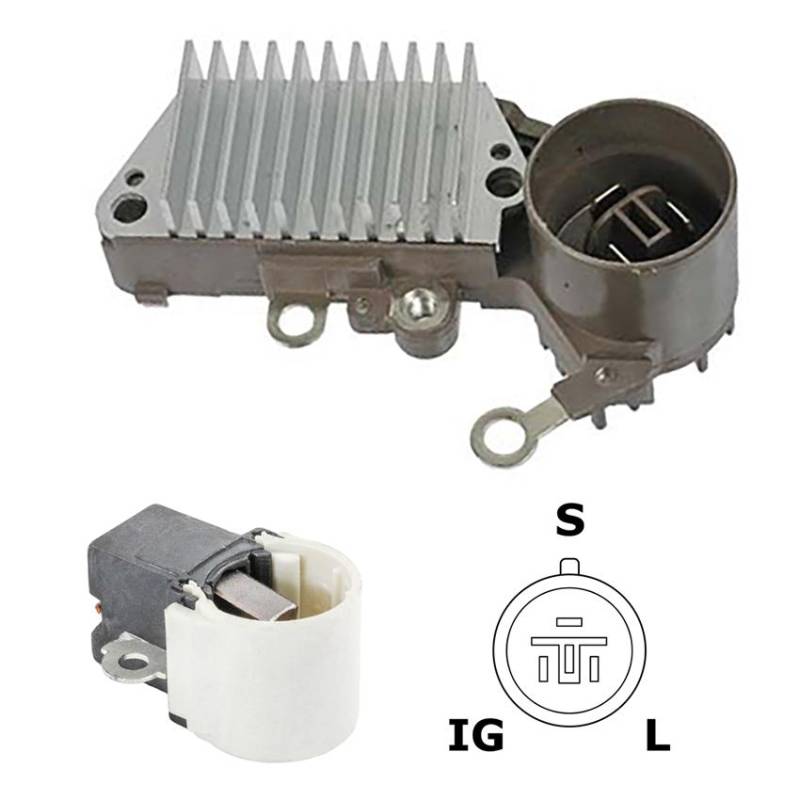

New 12V Regulator Kit Fits Toyota Van Wagon 1988 1260001530 1002118350 436536

THIS ITEM REPLACES THE FOLLOWING REGULATOR PART NUMBERS:
DENSO: 1260001530

THIS ITEM FITS THE FOLLOWING ALTERNATOR PART NUMBERS:
BOSCH REMANUFACTURED: AL3253X
BOSCH SERVICE EUROPE: 0 986 038 011 0-986-603-550 0986604639
DENSO: 1002112021 100211-3240 1002113500 100211-6031 1002117050 100211-7860 1002118350 100211-8801 9760211706
HELLA: 8EL-726-307-001 8EL730097001 8EL 737 495-001
JOHN DEERE: TY6684
TOYOTA: 2706011060 27060-55011 2706062012 27060-72071 2706074101 27060-76040 270601623084 27060-72170-84
VALEO REMANUFACTURED: 436536

ITEM DESCRIPTION: REGULATOR KIT
UNIT TYPE: DENSO
VOLTAGE: 12
SET POINT: 14.6

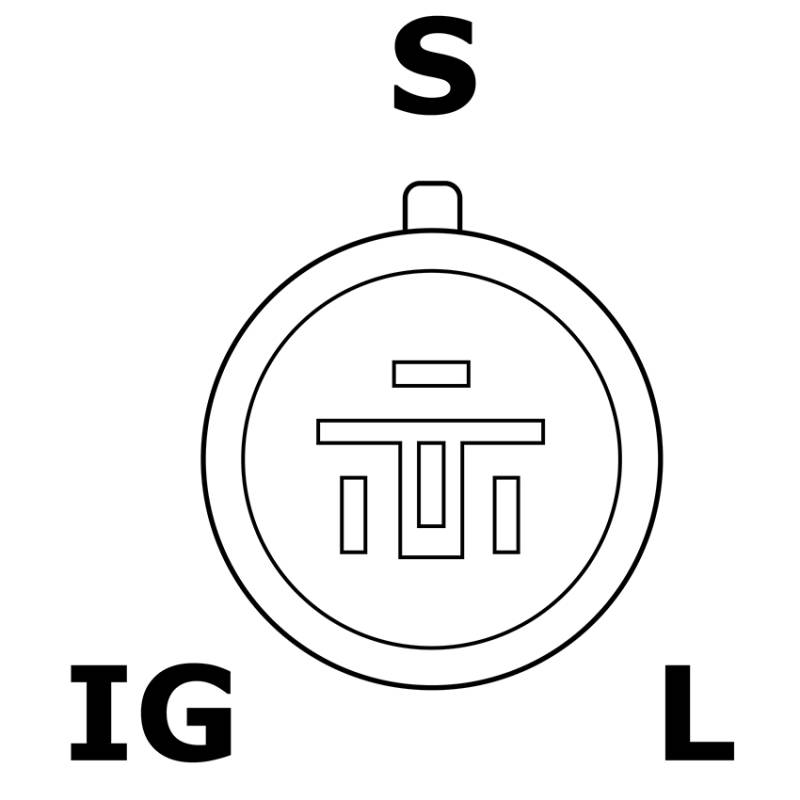

TERMINAL ID: IGNITION-BATTERY-LIGHT
POLARITY: NEGATIVE
INCLUDES BRUSH HOLDER: NO
ACTIVATION: IGNITION
ADJUSTABLE: NO
CIRCUIT TYPE: A-CIRCUIT
INCLUDES RECTIFIER: NO
INCLUDES TOLERANCE RING: NO
LOAD RESPONSE CONTROL: 8.5 SECONDS
SPECIFICATIONS: 63.5MM CENTER TO CENTER MOUNTING HOLES
SPECIFICATIONS: L TERMINAL DRIVES CHOKE
SPECIFICATIONS: SOFT START
SPECIFICATIONS: ACTIVE LAMP
