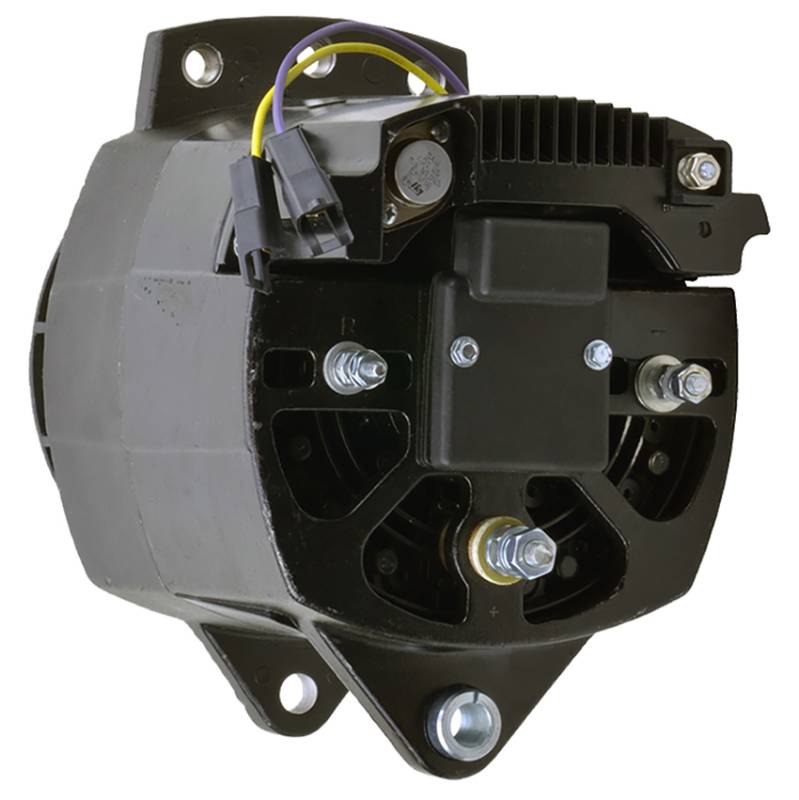

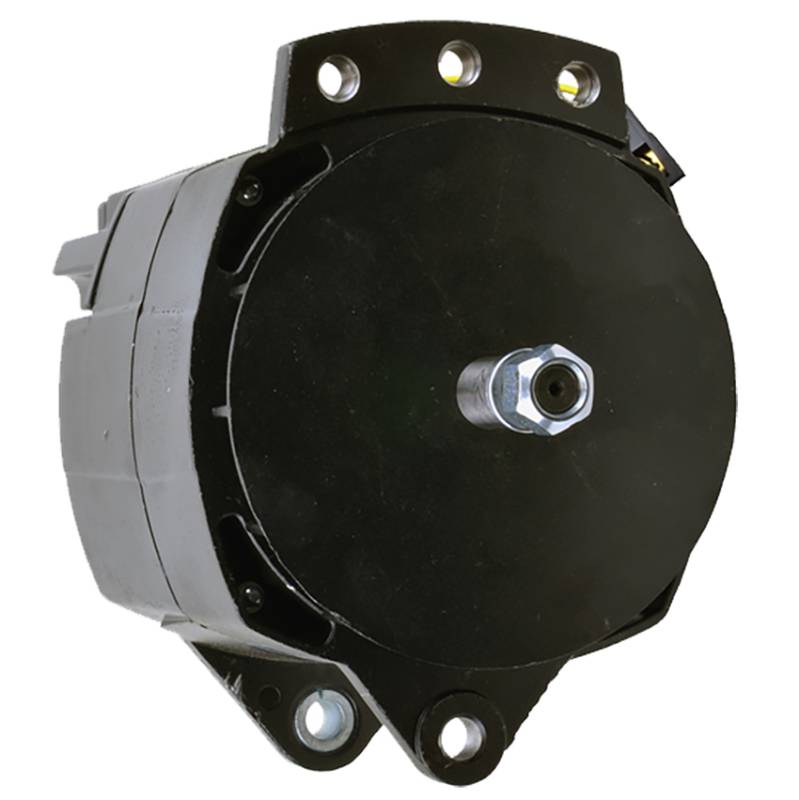

Alternator 150 Amp Compatible With Blue Bird Bus Thermo King Bus A/C 24V Batteryless 12V Excite

OEM PART NUMBERS:
• Motorola: 8SC3018VA / 8SC3018V
• Motorola: 10-576 / 10576
• 110-576 / 110576
• Thermo King: 4125D55G02
• Thermo King: 44-63 / 4463 / 44-6368 / 446368
• Blue Bird: 8312266
• AMO0045
• J & N: 400-16070
• 8634 / 8634N

SPECIFICATIONS:
• Type: Alternator — 8SC Series Brush Design
• Voltage: 24V
• Amperage: 150A
• Rotation: Clockwise (CW)
• Fan: External (EF)
• Regulator: Internal (IR)
• Mount Type: J180 Long Hinge
• J180 Hinge Length: 8.5 in / 215.9 mm
• B+ Terminal: 5/16-24
• Polarity: Negative
• Excitation: 12 Volt Excite
• Weight: 27.7 lbs / 12.59 kg
• ⚠️ BATTERYLESS SYSTEMS ONLY
• ⚠️ NEGATIVE GROUND ONLY
• ⚠️ 12 VOLT EXCITE REQUIRED
• Condition: New

APPLICATIONS (VERIFY PART NUMBER BEFORE ORDERING):
• Thermo King Truck Refrigeration Units — 24V Batteryless Systems with 12V Electrical
• Thermo King Bus A/C Units — Transit Bus A/C with 12V Electrical / 24V Alternator
• Thermo King Agricultural & Industrial Batteryless Systems
• Blue Bird Bus — Batteryless 24V Charging System (P/N 8312266)
• Toro Equipment — Batteryless 24V Alternator Applications

⚠️ CRITICAL INSTALLATION REQUIREMENTS:
• BATTERYLESS SYSTEMS ONLY — DO NOT use on systems with a battery
• NEGATIVE GROUND ONLY — Positive ground systems incompatible
• 12 VOLT EXCITE REQUIRED — Must have 12V excitation circuit

ALTERNATOR — Blue Bird Bus Thermo King A/C 24V 150A 8SC3018VA 4125D55G02 Batteryless J180
New 24V 150A 8SC series brush alternator for Blue Bird bus (P/N 8312266), Thermo King truck and bus A/C units (12V systems), and Toro industrial/agricultural batteryless applications. J180 long hinge mount, 8.5 in hinge, external fan, internal regulator, CW, 5/16-24 B+, 27.7 lbs. Replaces 8SC3018VA, 8SC3018V, 10-576, 110-576, 4125D55G02, 44-6368, 8312266, AMO0045, 400-16070.
