OEM PART NUMBERS:
• Arctic Cat / Arctco: 3206-303 / 3206303
• 101211-3720 / 1012113720
• 101211-3721 / 1012113721
• 101211-3722 / 1012113722
• 101211-3723 / 1012113723
• Europe: DAN1067
• Hella: 8EL012240-721 / 8EL012240721
• Kohler: 17580-64010 / 1758064010
• Kubota: 1758064010
• Lombardini: 1157326
• Lucas Electrical Europe: LRA03746
SPECIFICATIONS:

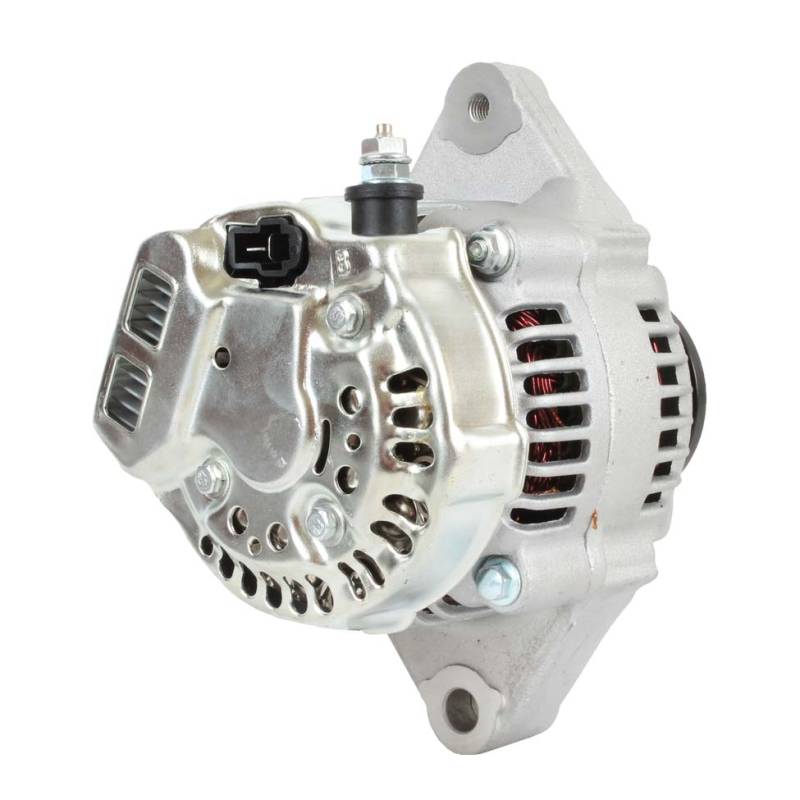

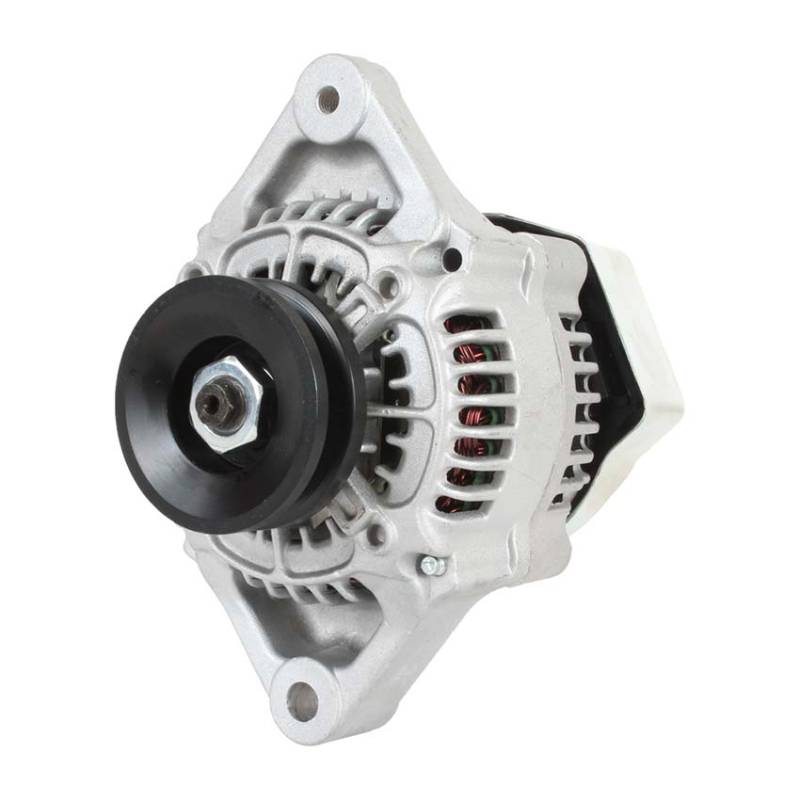

• Type: Alternator
• Unit Type:
• Voltage: 12V
• Amperage: 40A
• Fan: Internal (IF)
• Regulator: Internal (IR)
• Rotation: Clockwise (CW)
• Pulley: 4-Groove Poly-V
• B+ Terminal: M6-1.0
• Regulator Clock: 10:00
• Weight: 7.3 lbs / 3.32 kg
• Condition: New
APPLICATIONS:
• Arctic Cat 700 Diesel 4x4 — Lombardini LDW 702 686cc 2-Cyl SOHC Diesel ~18HP (2007)
• Arctic Cat 700 Diesel 4x4 TRV — Lombardini LDW 702 686cc 2-Cyl SOHC Diesel ~18HP (2007)
• Arctic Cat 700 Super Duty Diesel 4x4 — Lombardini LDW 702 686cc 2-Cyl SOHC Diesel ~18HP (2008-2015)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
