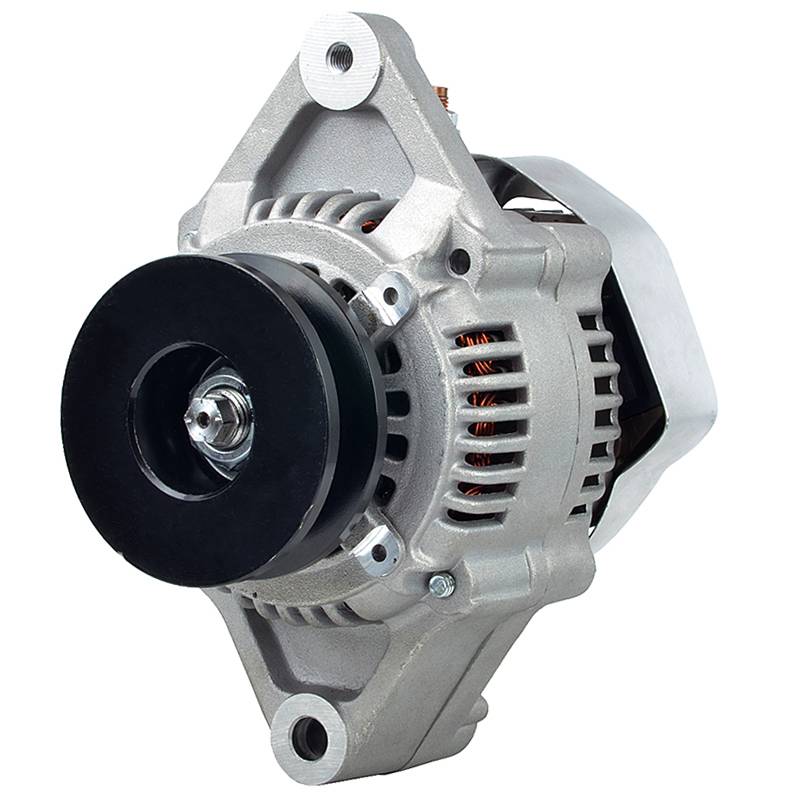

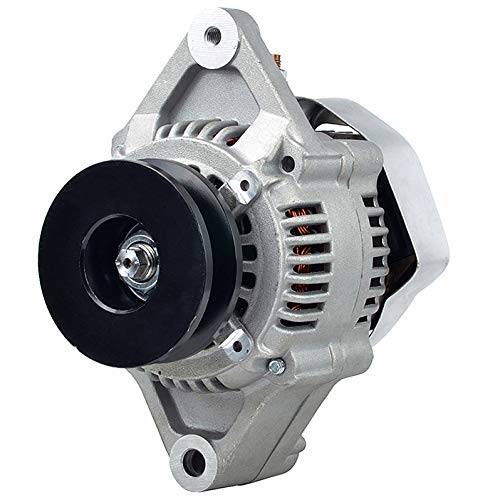

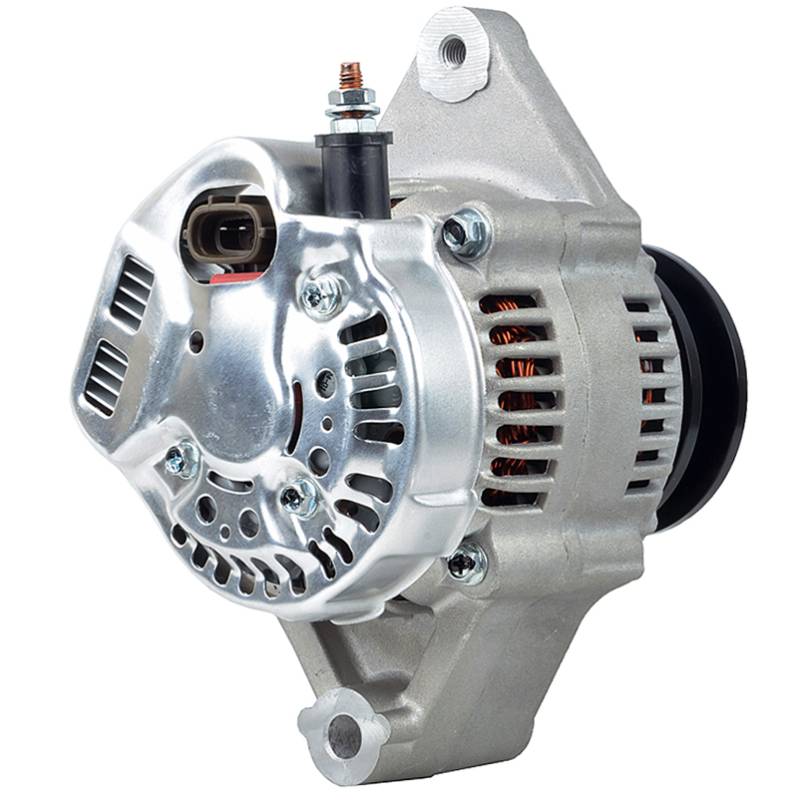

New Alternator Fits Toyota Lift Truck 7Fgcu20 7Fgcu25 7Fgcu30 7Fgk25 1012113580

12476N*5
DENSO PART NUMBERS:
• 101211-3580, 1012113580
• 101211-3680, 1012113680
TOYOTA PART NUMBERS:
• 27060-78153-71, 270607815371
• 27060-78201-71, 270607820171
WILSON PART NUMBERS:
• 90-29-5513, 90295513

SPECIFICATIONS:
• Type: Alternator
• Voltage: 12V
• Amperage: 50A
• Unit type: Denso
• Regulator: Internal, plug at 12:00
• Fan: Internal
• Polarity: Negative
• Output stud (B+): M6-1.0
• S, IG and L terminals: Spade
• Mount type: Spool
• Mounting ear 1 hole: M8-12.5 threaded, 0.61 in / 15.5 mm thick
• Mounting ear 2 hole: 10.5 mm unthreaded, 2.287 in / 58.1 mm thick
• Pulley: 1 groove, solid, 3 in / 76.2 mm OD
• Weight: 8.57 lb / 3.9 kg
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $283.08
Sale: $161.76
Save: 43%
Save: $121.32
Qty:
Free Shipping!

Description

TOYOTA LIFT TRUCKS:
• TOYOTA LIFT TRUCK 7FG10 5K ENGINE 1998-2001
• TOYOTA LIFT TRUCK 7FG14 5K ENGINE 1998-2001
• TOYOTA LIFT TRUCK 7FG15 4Y ENGINE 1998-2001
• TOYOTA LIFT TRUCK 7FG15 5K ENGINE 1998-2001
• TOYOTA LIFT TRUCK 7FG18 4Y ENGINE 1998-2001
• TOYOTA LIFT TRUCK 7FG18 5K ENGINE 1998-2001
• TOYOTA LIFT TRUCK 7FG20 4Y ENGINE 1998-2001
• TOYOTA LIFT TRUCK 7FG20 5K ENGINE 1998-2001
• TOYOTA LIFT TRUCK 7FG23 4Y ENGINE 1998-2001
• TOYOTA LIFT TRUCK 7FG23 5K ENGINE 1998-2001
• TOYOTA LIFT TRUCK 7FG25 4Y ENGINE 1998-2001
• TOYOTA LIFT TRUCK 7FG25 5K ENGINE 1998-2001
• TOYOTA LIFT TRUCK 7FG28 4Y ENGINE 1998-2001
• TOYOTA LIFT TRUCK 7FG30 4Y ENGINE 1998-2001
• TOYOTA LIFT TRUCK 7FGCSU20 4Y ENGINE 1993-2001
• TOYOTA LIFT TRUCK 7FGCU15 4Y ENGINE 1993-2001
• TOYOTA LIFT TRUCK 7FGCU15 5K ENGINE 1993-2001
• TOYOTA LIFT TRUCK 7FGCU18 4Y ENGINE 1993-2001
• TOYOTA LIFT TRUCK 7FGCU18 5K ENGINE 1993-2001
• TOYOTA LIFT TRUCK 7FGCU20 4Y ENGINE 1993-2001
• TOYOTA LIFT TRUCK 7FGCU20 5K ENGINE 1993-2001
• TOYOTA LIFT TRUCK 7FGCU25 4Y ENGINE 1993-2001
• TOYOTA LIFT TRUCK 7FGCU25 5K ENGINE 1993-2001
• TOYOTA LIFT TRUCK 7FGCU30 4Y ENGINE 1993-2001
• TOYOTA LIFT TRUCK 7FGCU30 5K ENGINE 1993-2001
• TOYOTA LIFT TRUCK 7FGCU32 4Y ENGINE 1993-2001
• TOYOTA LIFT TRUCK 7FGCU32 5K ENGINE 1993-2001
• TOYOTA LIFT TRUCK 7FGJ35 4Y ENGINE 1998-2001
• TOYOTA LIFT TRUCK 7FGK20 4Y ENGINE 1993-2001
• TOYOTA LIFT TRUCK 7FGK20 5K ENGINE 1993-2001
• TOYOTA LIFT TRUCK 7FGK23 5K ENGINE 1998-2001
• TOYOTA LIFT TRUCK 7FGK25 4Y ENGINE 1993-2001
• TOYOTA LIFT TRUCK 7FGK25 5K ENGINE 1993-2001
• TOYOTA LIFT TRUCK 7FGK30 4Y ENGINE 1993-2001
• TOYOTA LIFT TRUCK 7FGK30 5K ENGINE 1993-1997

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 50A
• Unit type: Denso
• Regulator: Internal, plug at 12:00
• Fan: Internal
• Polarity: Negative
• Output stud (B+): M6-1.0
• S, IG and L terminals: Spade
• Mount type: Spool
• Mounting ear 1 hole: M8-12.5 threaded, 0.61 in / 15.5 mm thick
• Mounting ear 2 hole: 10.5 mm unthreaded, 2.287 in / 58.1 mm thick
• Pulley: 1 groove, solid, 3 in / 76.2 mm OD
• Weight: 8.57 lb / 3.9 kg
• Condition: New aftermarket

Details

Shipping Information

  • Item Requires Shipping
  • 9.8 lbs.
  • W9.0000” x H9.0000” x L9.0000”
  • Free Shipping!
