OEM PART NUMBERS:
• Massey Ferguson: 1691806R1 3597372M2
• Perkins: 26410R
• Renault: 6005021272 7701031686
• 1367040
• Lucas: LRS00232 S5027

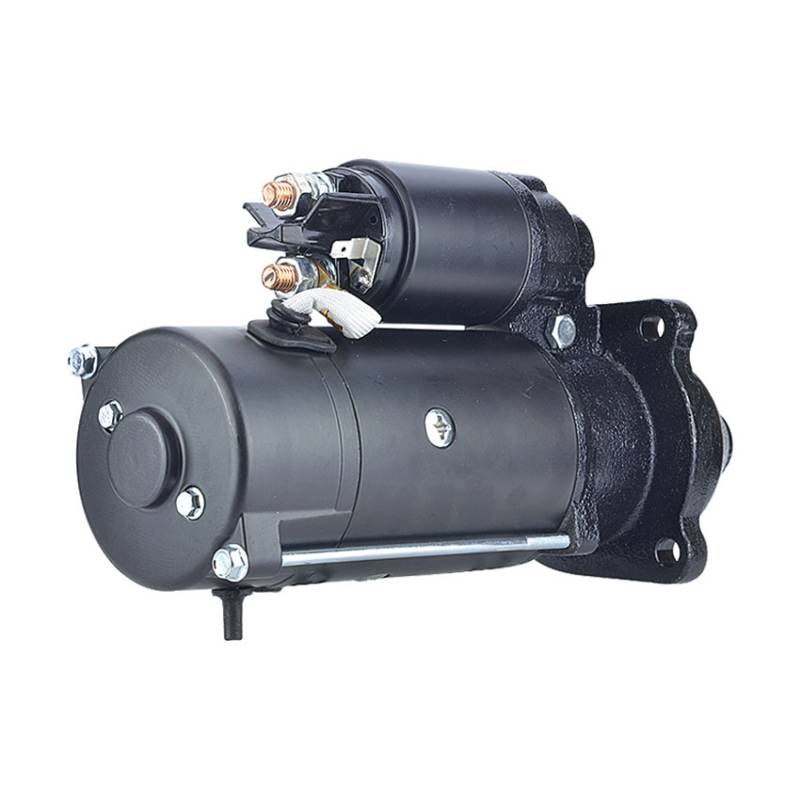

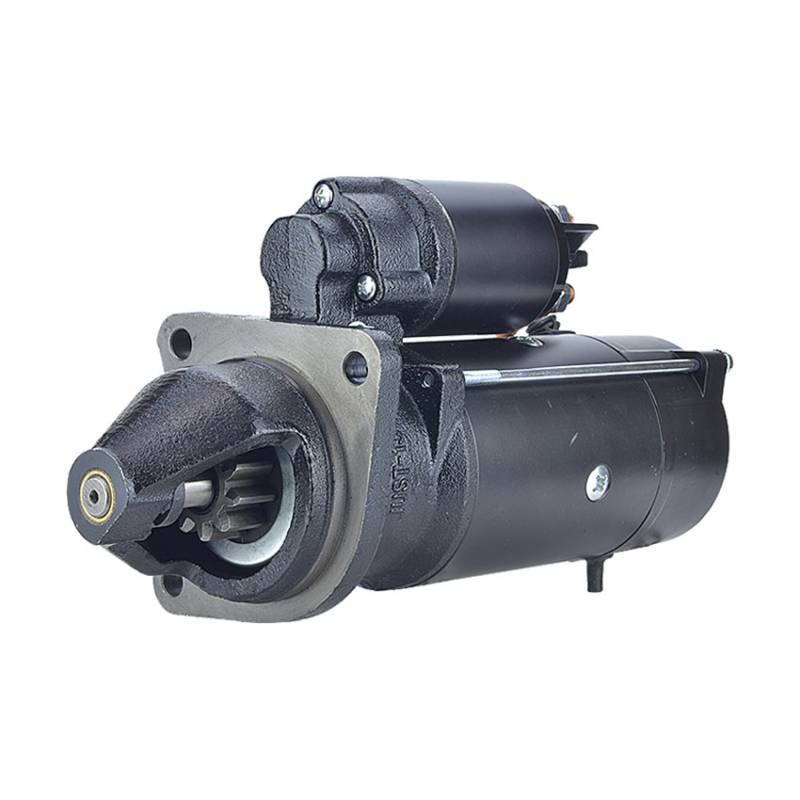

SPECIFICATIONS:
• Type: PLGR (Permanent Magnet Gear Reduction Starter)
• Voltage: 12V
• Power: 4.2 kW
• Rotation: Clockwise (CW)
• Teeth on Drive: 10
• Gear OD: 1.559" / 39.6mm
• Mounting: 3-Ear, 10.9mm Unthreaded Holes
• Registry OD: 3.5" / 88.9mm
• Length: 9.587" / 243.5mm
• Terminal: M10 B+ & Motor Studs, Spade S Terminal
• Weight: 23.35 lbs / 10.62 kg
• Condition: New
APPLICATIONS SUMMARY:
• Massey Ferguson Agricultural Tractors: MF-178 MF-487 MF-690 MF-1080 MF-1085 MF-1100 MF-1250 MF-3060 MF-3065 MF-3070 MF-6150 MF-6160 (1969-1997)
• Massey Ferguson Combines: MF-206 MF-207 MF-307 MF-506 MF-520 MF-525 MF-620 MF-625 TX-45 (1969-1977)
• Massey Ferguson Harvesters: MF-102 MF-105 MF-201 MF-205 Perkins-equipped variants (1972-2016)
• Perkins Engine Codes: A4.248 A4.318 A6.354 A6.354.4 AT4.236 AT6.354 A6.372 1004-4THR 1006-6
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
