OEM PART NUMBERS:
• Denso: 428000-6900 / 4280006900
• Denso: 428000-6901 / 4280006901
• Denso: 428000-9920 / 4280009920
• John Deere: RE537519 / RE539695 / RE548693
• John Deere: RE549230 / SE502559 / SE502823
SPECIFICATIONS:
• Voltage: 24V
• Type: PLGR (Planetary Gear Reduction)
• Series: Denso PA90S
• Rotation: CW (Clockwise)
• Power: 7.8kW
• Tooth Count: 10
• Gear OD: 40.4mm / 1.591"
• Length: 244.6mm / 9.63"
• Registry OD: 89mm / 3.504"
• Mounting Ears: 11.8mm Unthreaded
• Wet Clutch Seal: Yes
• Studs: M12 B+ & Ground, M10 Motor, M5 S Tab
• Brush Type: Carbon
• Weight: 18.33 lbs / 8.33 kg
• Condition: New
APPLICATION:
• John Deere 7230R-7290R 6.8L/9.0L Tractors (2011-2015)
• John Deere 8235R-8370RT 9.0L Tractors (2009-2015)
• John Deere 8120-8520 Prior Generation Tractors
• John Deere S650-S670HM Combines (2014-2015)
• John Deere 250D-300D Dump Trucks (2011-2015)
• John Deere 130G-870G Excavators
• John Deere 620G-872GP Motor Graders
• John Deere 450K-950K Crawler Dozers
• John Deere 444K-744K Wheel Loaders
• John Deere 640L-948L Skidders
• John Deere 803M-959M Feller Bunchers
• John Deere 803MH-1470G Harvesters
• John Deere 1110E-1910G Forwarders
• John Deere 3154G-3756G Swing Machines
• John Deere 310E Backhoe Loader
• Engines: 4045 4.5L / 6068 6.8L / 6090 9.0L Diesel

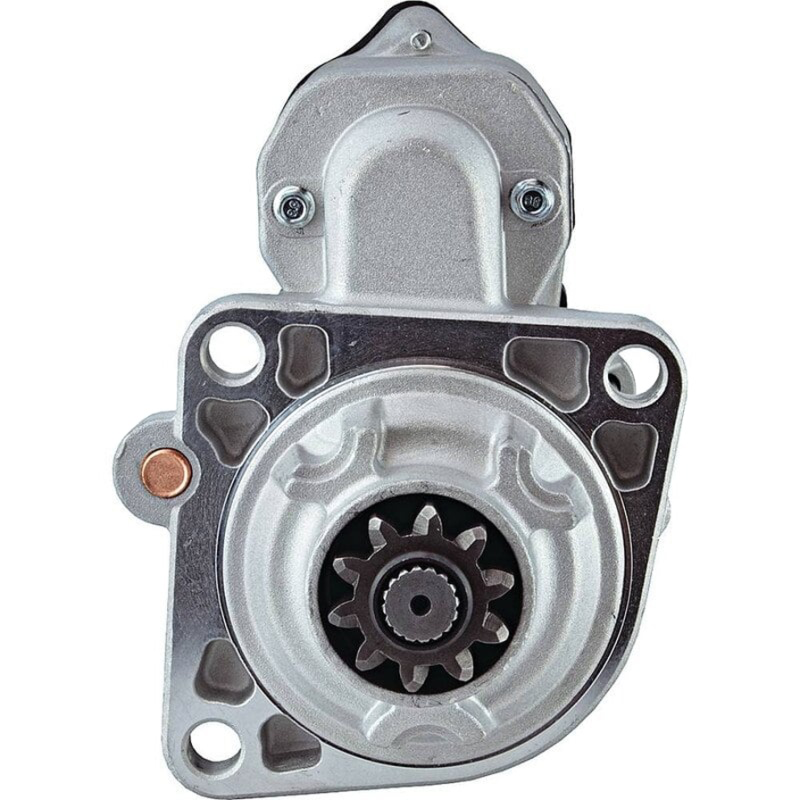

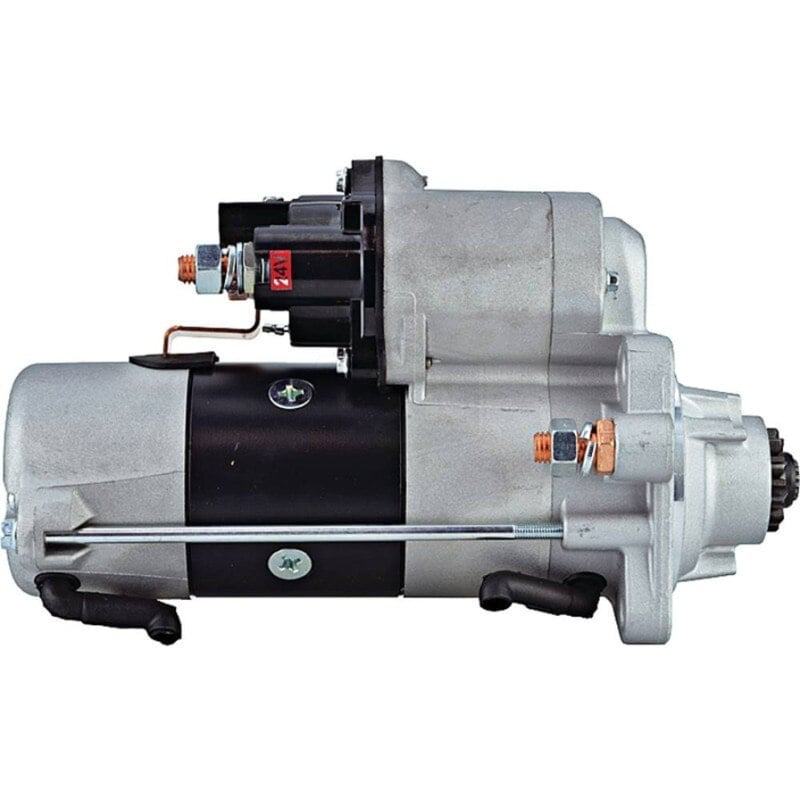

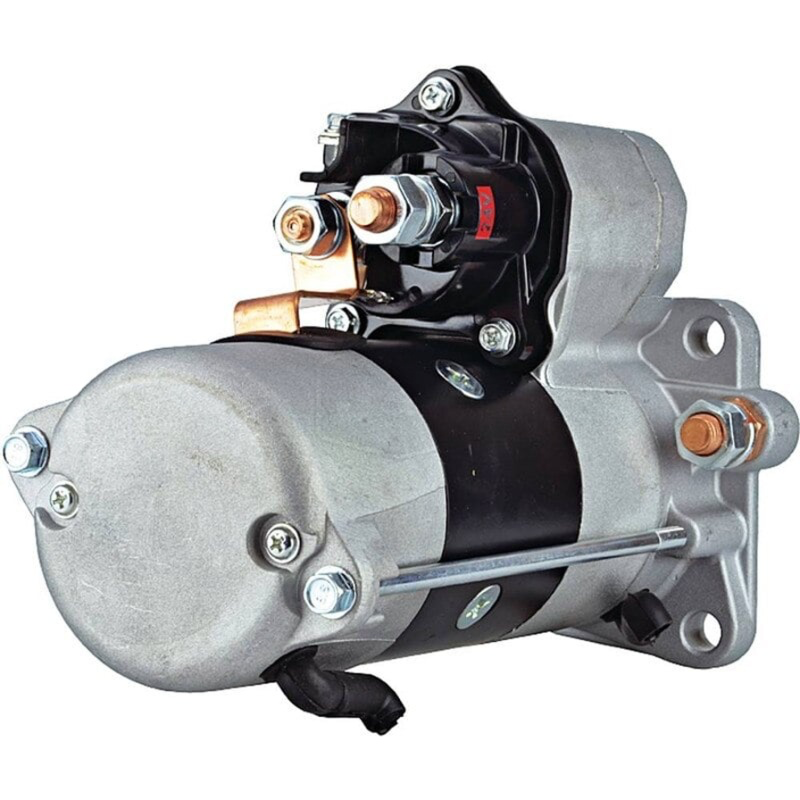

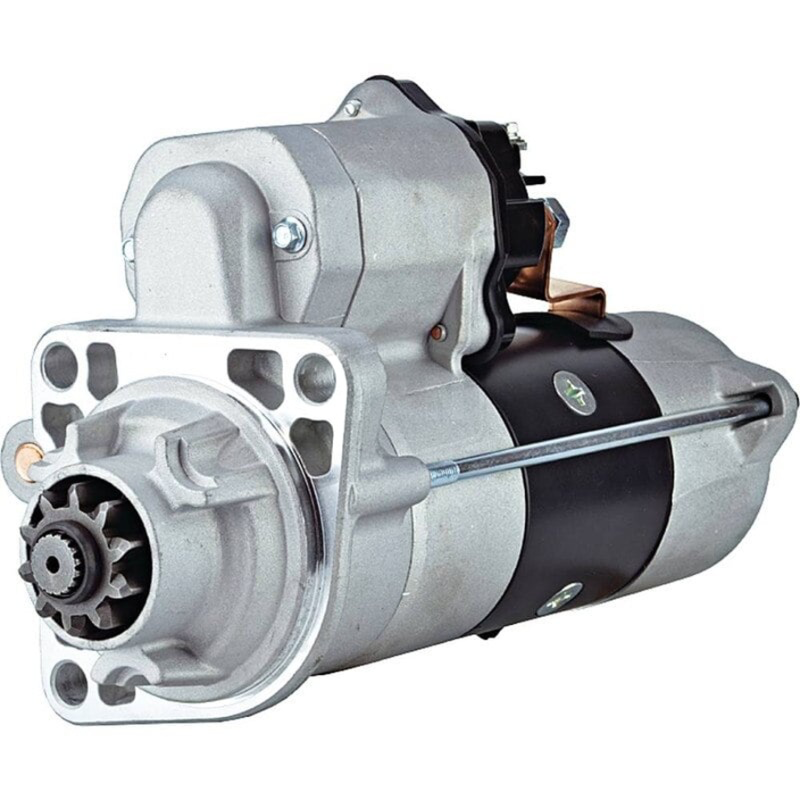

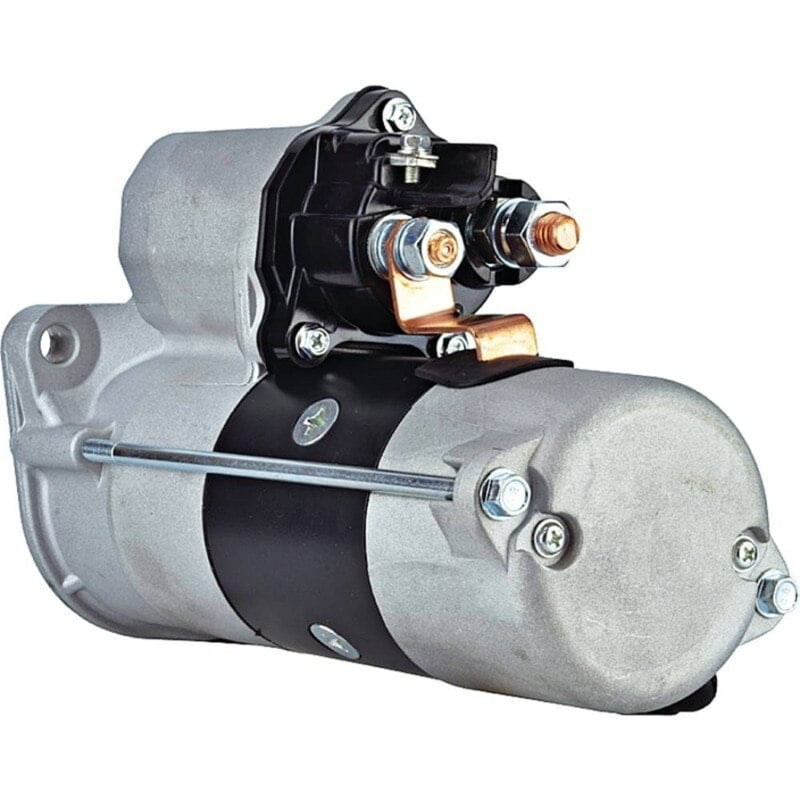

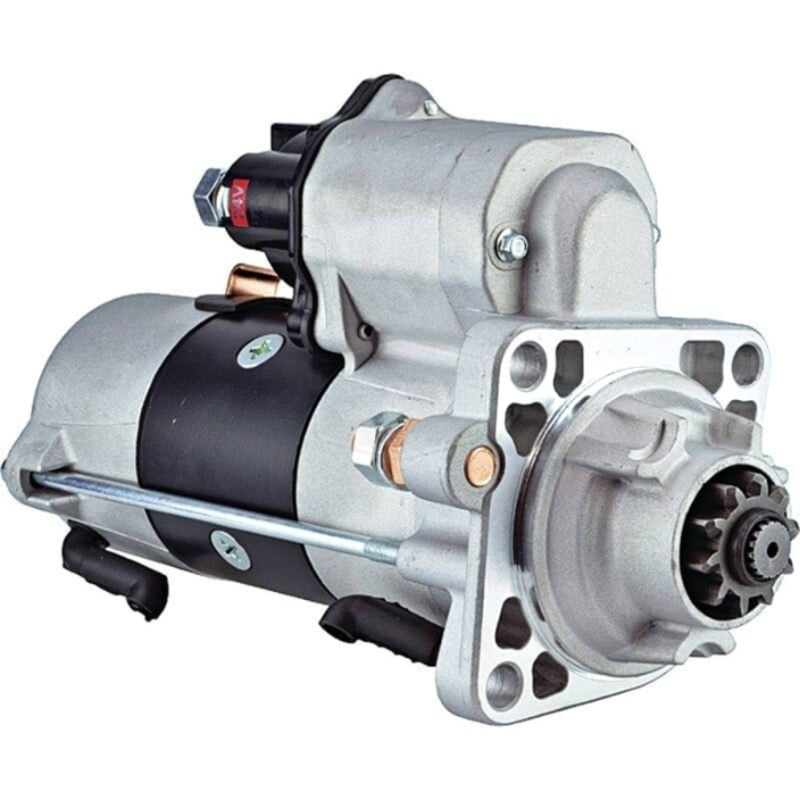

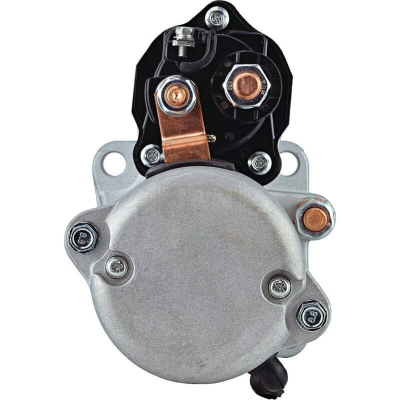

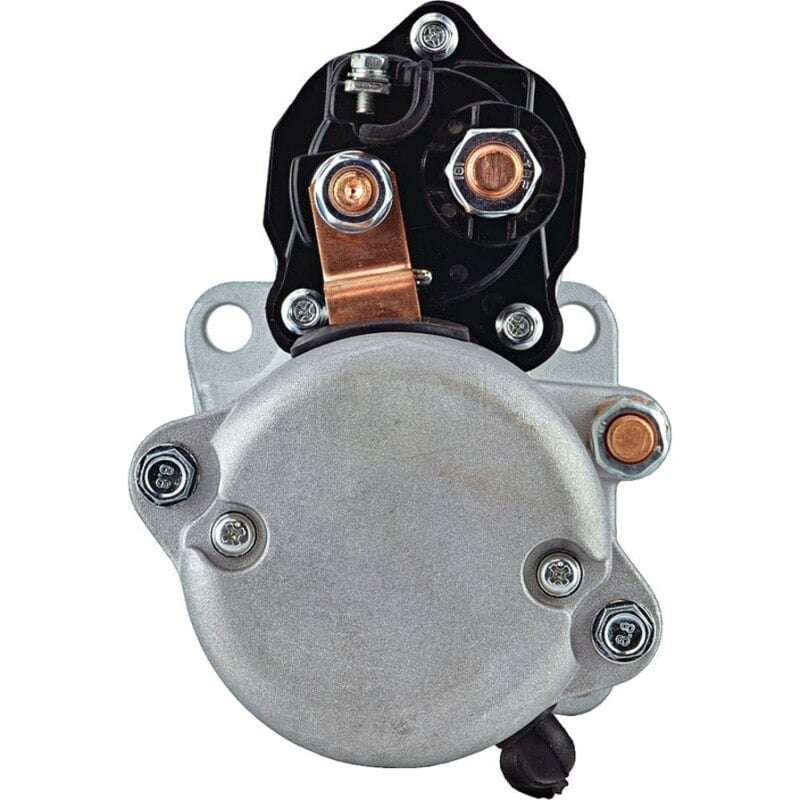

24V Denso PA90S PLGR Starter - John Deere 4045 6068 6090 Diesel Engines
Brand new Denso PA90S PLGR starter motor for John Deere agricultural, construction, and forestry equipment with 4045, 6068, and 6090 diesel engines. 24V clockwise rotation, 7.8kW output, 10 tooth pinion gear with 40.4mm gear OD. Features wet clutch seal, M12 B+ and ground studs, and 11.8mm unthreaded mounting ears. Replaces Denso 428000-6900, 428000-6901, 428000-9920, and John Deere RE537519, RE539695, RE548693, RE549230, SE502559, SE502823.
