OEM PART NUMBERS:
• 0120400665 / 0-120-400-665 / 0120400725 / 0-120-400-725 / AL21X
• Porsche: 901-603-104-52 / 901-603-106-52 / 901-603-118-00
• Porsche: 911-603-106-52 / 911-603-118-00 / 911-603-120-00
• Hatz: 50374700 / 50374701 / 50374702
• Lucas: LRA01048 / A6527
• Mahle: 11201853 / 11-201-853 / AAK2305
• Paris Rhone: A13N281 / A13N52
• 101822 / 2101822 / 436496 / 541768 / 2541768 / 71314202
• Andre Niermann: 02400725 / 2400725
SPECIFICATIONS:

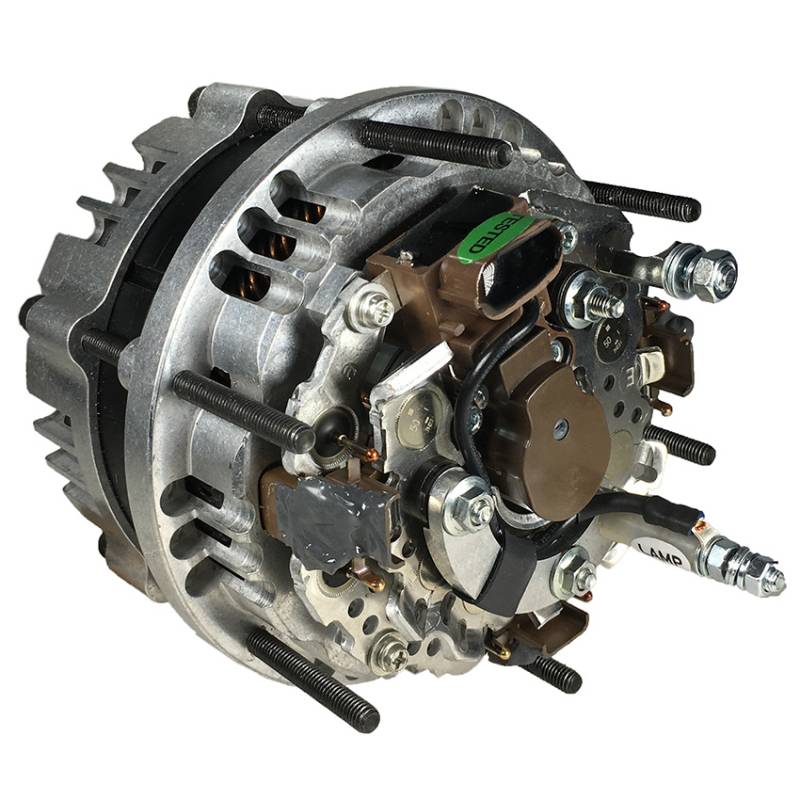

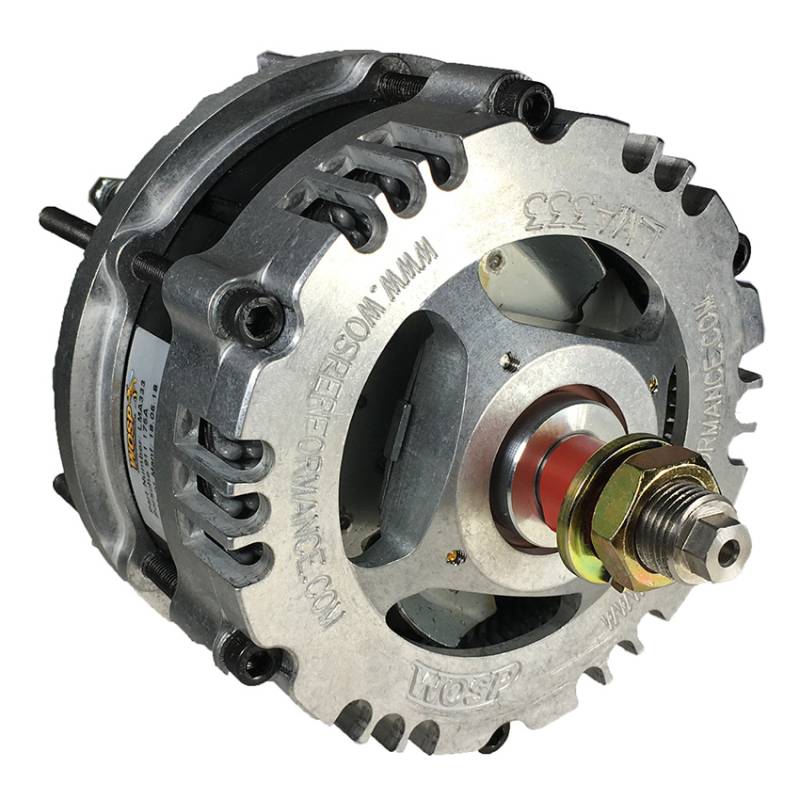

• Type: High Output Alternator — Hairpin Technology
• Construction: Full Billet Aluminum Body
• Voltage: 12V
• Amperage: 175A (High Output — OEM was 55A)
• Max Output Current: 173A at 6000 RPM
• Output at Idle: 102A at 1800 RPM
• Maximum Output Power: 2214W
• Fan: Internal
• Regulator: Internal
• Polarity: Negative (-VE)
• Connection: B+ / Lamp
• Shaft OD: 0.874" / 22.2mm
• Pulley: NOT Included
• Weight: 5.3 KG / 11.71 LBS
• Condition: New
PORSCHE / CASE APPLICATIONS:
• Porsche 911: 2.0L / 2.2L / 2.4L / 2.7L / 3.0L Flat-6 (1965-1977)
• Porsche 911L / 911S / 911T / 911E Variants (1967-1977)
• Porsche 914 1.7L Flat-4 (1970-1972) / 914-6 2.0L Flat-6 (1970-1972)
• Case/IH Roller 252 Hatz Diesel (1975-1985)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
