OEM PART NUMBERS:
• Service Europe: 0986040290 / 0-986-040-290
• Case: AR186125
• 3E7285
• Cummins: 3911248 / 3920679
• Hella: 8EL737217001 / 8EL-737-217-001
• John Deere: RE509106
• Letrika (Iskra): 11201935 / IA0595 / IA0998 / AAK3330 / AAK5123
SPECIFICATIONS:
• Voltage: 12V
• Amperage: 65A
• Fan: External
• Regulator: Internal
• Grooves: 5
• Shaft OD: 0.669in / 17mm
• Shaft Threads: M16-1.5
• Mounting Ear 1: M8-1.25 Threaded
• Mounting Ear 2: 10.5mm Unthreaded
• Mounting Ear 1 Thickness: 0.65in / 16.5mm
• Mounting Ear 2 Thickness: 2.008in / 51mm
• Mount Type: Spool
• B+ Terminal: M6-1.0
• D+ Terminal: Spade
• W Terminal: Spade
• Weight: 10.54 lbs / 4.79 kg
• Condition: New
APPLICATION:
• Case Uni-Loader 1835B/1835C/1840/1845C (1982-1999)
• Case Lift Truck 584E/585E/586E 390 Diesel (1990-1992)
• Case Trencher 550/760 (1988-1992) / Wheel Loader W11B (1983-1993)
• John Deere 7405/450H/450G 4045T (1993-1997)
• Raptor Sprayer 850/1000 Pro/1200 Pro (2003)

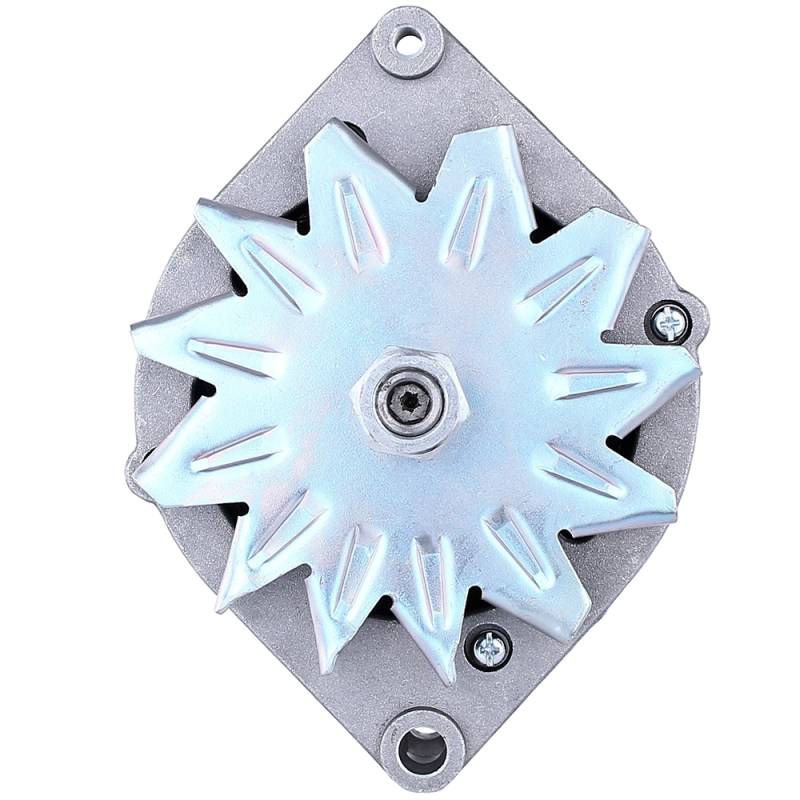

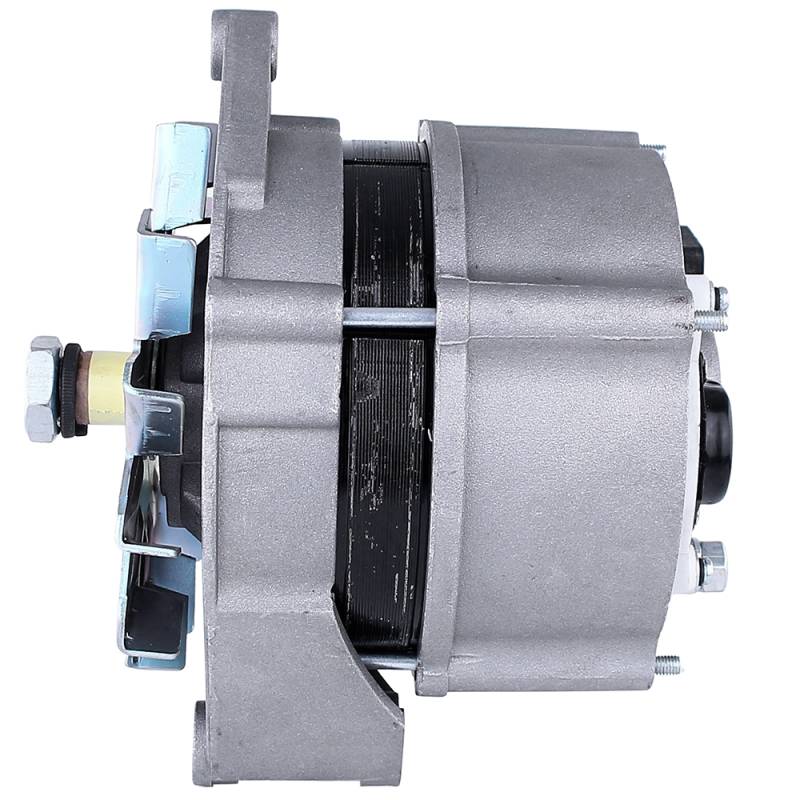

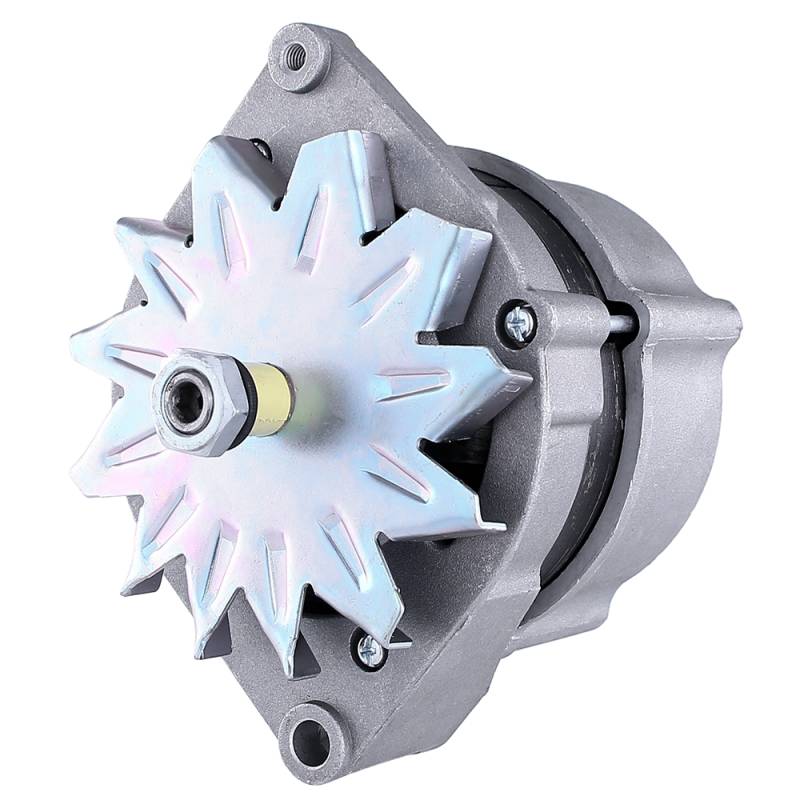

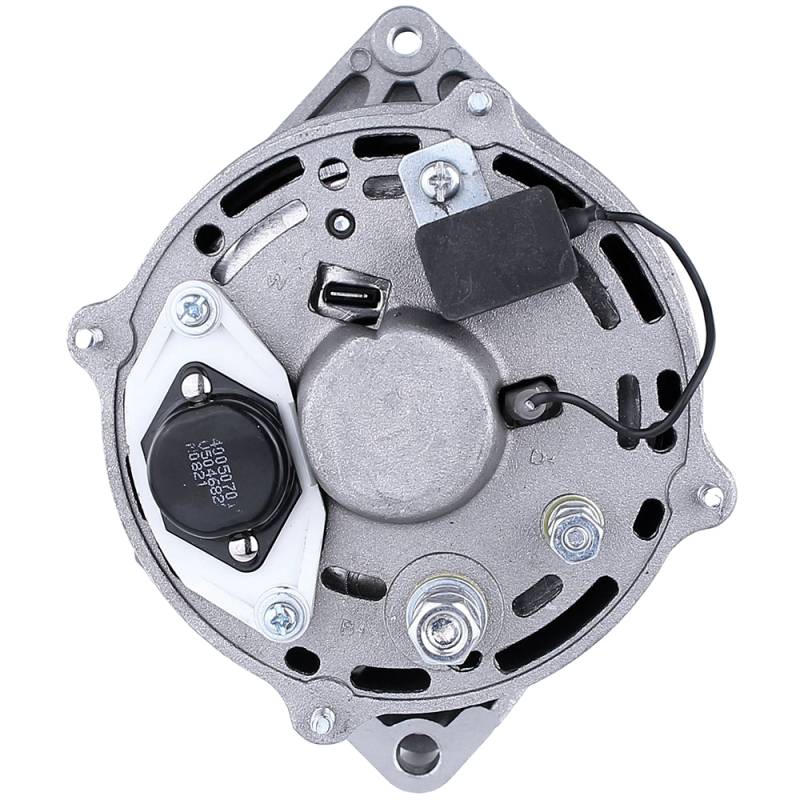

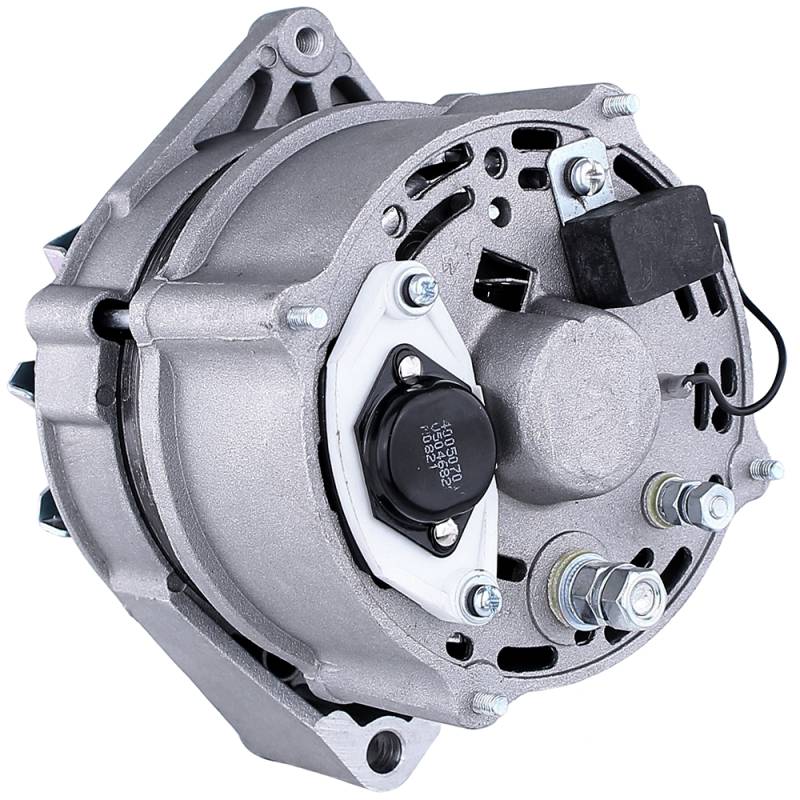

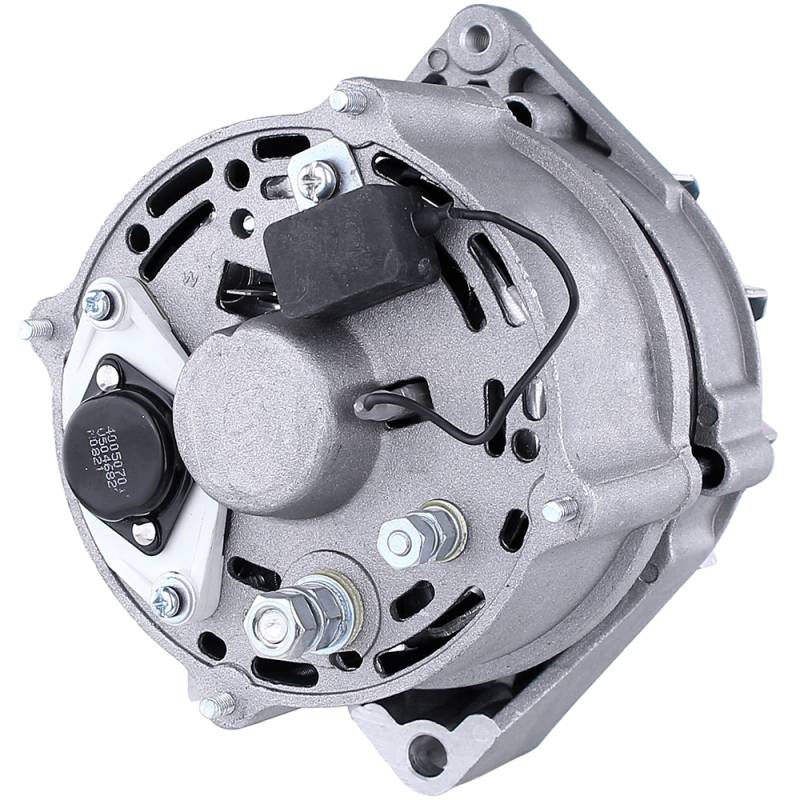

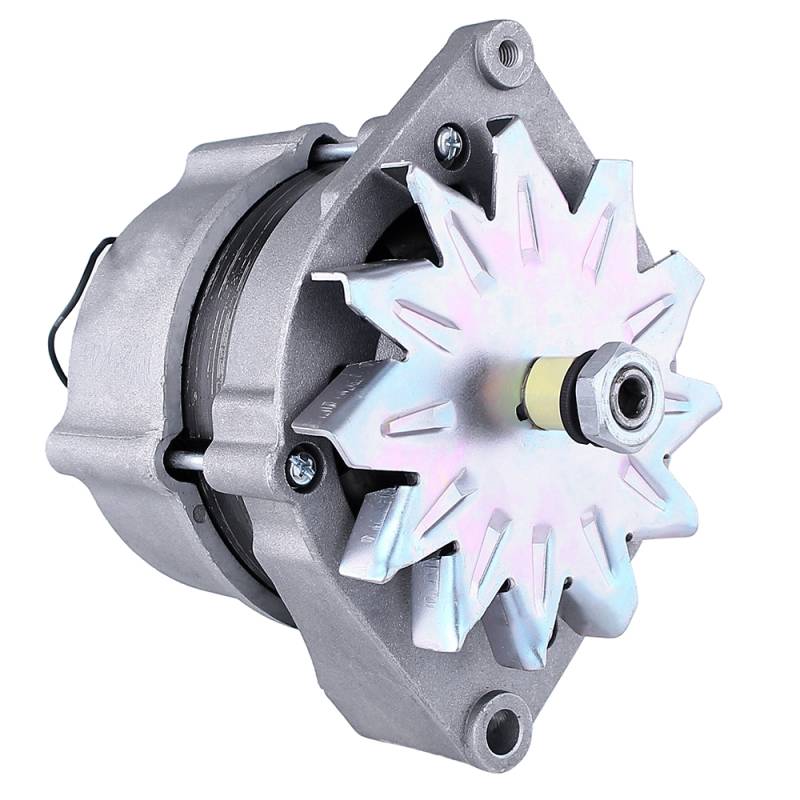

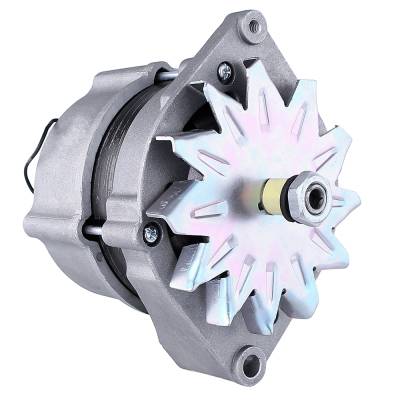

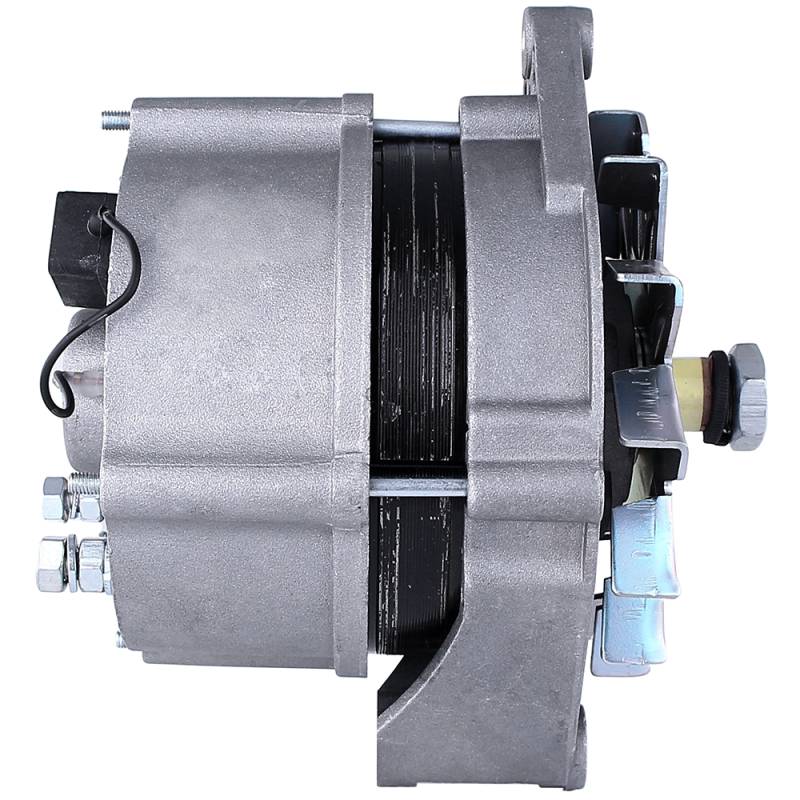

12V 65A Alternator — Case Equipment / John Deere / Raptor
Direct replacement -type 12V 65A alternator for Case uni-loaders, lift trucks, trenchers (1982-1999), John Deere tractors/crawlers, and Raptor sprayers. Spool mount with 5-groove pulley. Replaces 0986040290, Case AR186125, Cat 3E7285, Cummins 3911248/3920679, Hella 8EL737217001, JD RE509106, Letrika 11201935.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
