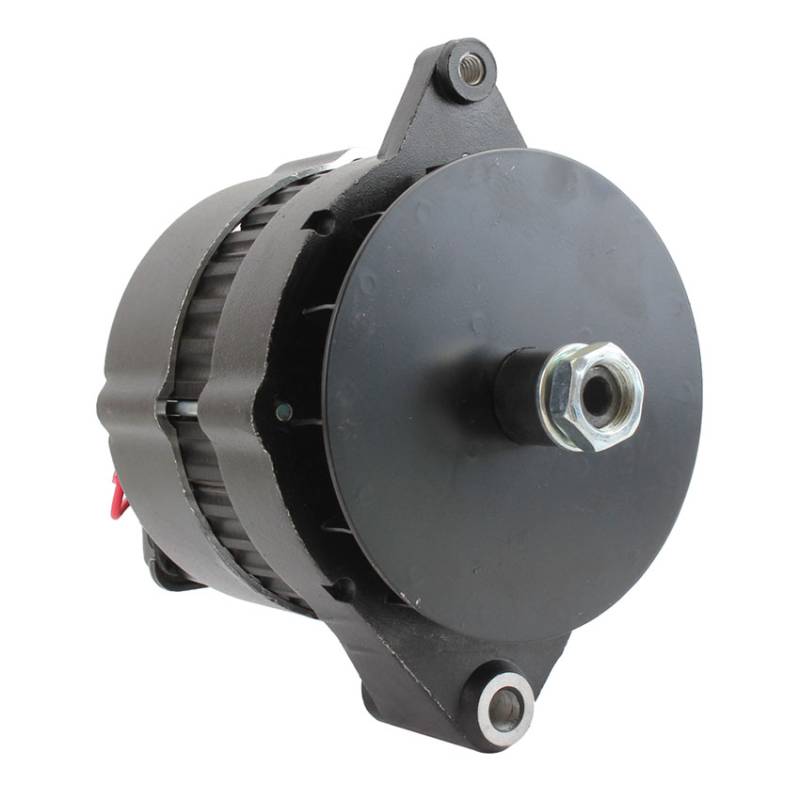

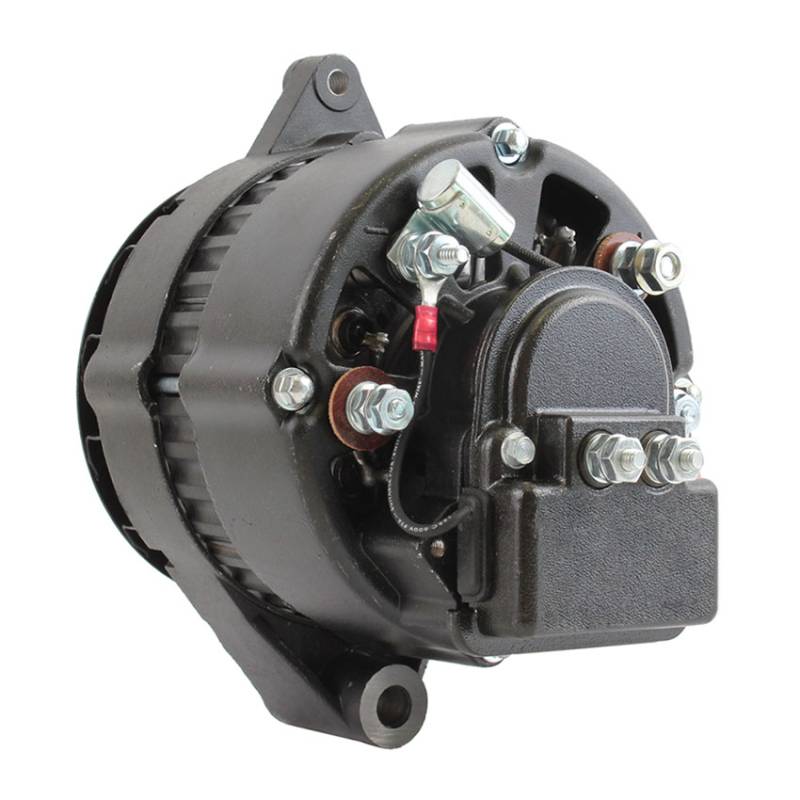

New 40A 24V Alternator Compatible With John Deere Excavators 495D 290D 90-05-9231 110486 8Mr2302l

8786N*4

LEECE NEVILLE: 110486 110-486 8EM3001G 8EM3002GCS 8MR3301G
MOTOROLA: 8MR2302L
WILSON: 90059154 90059231 90-05-9154 90-05-9231

VOLTAGE: 24
AMPERAGE: 40
SHAFT OD (PULLEY): 0.669IN / 17MM
MOUNTING EAR 1: M8-1.25 THREADED
MOUNTING EAR 2: 10.2MM UNTHREADED
REGULATOR CLOCK: 6:00
FAN: EXTERNAL
REGULATOR: INTERNAL
B+ TERMINAL: M6-1.0
EX TERMINAL: M5-0.8
R TERMINAL: M5-0.8
SPECIFICATIONS: INCLUDES FAN
SPECIFICATIONS: BI-DIRECTIONAL
SPECIFICATIONS: PAINTED
SPECIFICATIONS: IGNITION EXCITED
SPECIFICATIONS: NEGATIVE
SPECIFICATIONS: AC TAP
SPECIFICATIONS: VOLT SENSE
WEIGHT: 10.6 LBS / 4.82 KG

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $264.69
Sale: $151.25
Save: 43%
Save: $113.44
Qty:
Free Shipping!

Description

PLEASE VERIFY YOUR OEM PART NUMBER FROM YOUR ORIGINAL UNIT TO HELP ENSURE FITMENT.

JOHN DEERE 4039DFM 3.9L/239CI 4-CYL
JOHN DEERE 4045TFM 4.5L/276CI 4-CYL
JOHN DEERE CRAWLERS 655B JD 6.8L 120HP DSL 1982-1986
JOHN DEERE CRAWLERS 655B JD 6.8L 120HP DSL 1982-1986
JOHN DEERE CRAWLERS 655B JD 6.8L 120HP DSL 1982-1986
JOHN DEERE CRAWLERS 655B JD 6.8L 120HP DSL 1982-1986
JOHN DEERE CRAWLERS 655B JD 6.8L 120HP DSL 1982-1986
JOHN DEERE CRAWLERS 750B 1982-1990
JOHN DEERE CRAWLERS 750B 1982-1990
JOHN DEERE CRAWLERS 750B 1982-1990
JOHN DEERE CRAWLERS 750B 1982-1990
JOHN DEERE CRAWLERS 750B 1982-1990
JOHN DEERE CRAWLERS 750B 1982-1990
JOHN DEERE CRAWLERS 750B 1982-1990
JOHN DEERE CRAWLERS 750B 1982-1990
JOHN DEERE CRAWLERS 750B 1982-1990
JOHN DEERE CRAWLERS 755B JD 6.8L 140HP DSL 1985-1990
JOHN DEERE CRAWLERS 755B JD 6.8L 140HP DSL 1985-1990
JOHN DEERE CRAWLERS 755B JD 6.8L 140HP DSL 1985-1990
JOHN DEERE CRAWLERS 755B JD 6.8L 140HP DSL 1985-1990
JOHN DEERE CRAWLERS 755B JD 6.8L 140HP DSL 1985-1990
JOHN DEERE CRAWLERS 755B JD 6.8L 140HP DSL 1985-1990
JOHN DEERE ENGINES 4039
JOHN DEERE ENGINES 4045
JOHN DEERE ENGINES 6059
JOHN DEERE ENGINES 6068
JOHN DEERE ENGINES 6359D / 6359T
JOHN DEERE ENGINES 6466A / D / T
JOHN DEERE ENGINES 6619
JOHN DEERE ENGINES 8955T / A
JOHN DEERE ENGINES - MARINE 4039DFM (CODE 3117) 3.9L - 239CI - 4CYL
JOHN DEERE ENGINES - MARINE 4039DFM (CODE 3118) 3.9L - 239CI - 4CYL
JOHN DEERE ENGINES - MARINE 4039DFM (CODE 3119) 3.9L - 239CI - 4CYL
JOHN DEERE ENGINES - MARINE 4039DFM (CODE 3120) 3.9L - 239CI - 4CYL
JOHN DEERE ENGINES - MARINE 4045TFM (CODE 3117) 4.5L - 276CI - 4CYL
JOHN DEERE ENGINES - MARINE 4045TFM (CODE 3118) 4.5L - 276CI - 4CYL
JOHN DEERE ENGINES - MARINE 4045TFM (CODE 3119) 4.5L - 276CI - 4CYL
JOHN DEERE ENGINES - MARINE 4045TFM (CODE 3120) 4.5L - 276CI - 4CYL
JOHN DEERE EXCAVATORS 290D JD 3.9L 68HP DSL 1990-1995
JOHN DEERE EXCAVATORS 290D JD 3.9L 68HP DSL 1990-1995
JOHN DEERE EXCAVATORS 290D JD 3.9L 68HP DSL 1990-1995
JOHN DEERE EXCAVATORS 290D JD 3.9L 68HP DSL 1990-1995
JOHN DEERE EXCAVATORS 290D JD 3.9L 68HP DSL 1990-1995
JOHN DEERE EXCAVATORS 290D JD 3.9L 68HP DSL 1990-1995
JOHN DEERE EXCAVATORS 490D JD 4.5L 80HP DSL 1985-1988
JOHN DEERE EXCAVATORS 490D JD 4.5L 80HP DSL 1985-1988
JOHN DEERE EXCAVATORS 490D JD 4.5L 80HP DSL 1985-1988
JOHN DEERE EXCAVATORS 490D JD 4.5L 80HP DSL 1985-1988
JOHN DEERE EXCAVATORS 495D JD 4.5L 100HP DSL 1989-1992
JOHN DEERE EXCAVATORS 495D JD 4.5L 100HP DSL 1989-1992
JOHN DEERE EXCAVATORS 495D JD 4.5L 100HP DSL 1989-1992
JOHN DEERE EXCAVATORS 495D JD 4.5L 100HP DSL 1989-1992
JOHN DEERE EXCAVATORS 590D JD 4.5L 100HP DSL 1989-1995
JOHN DEERE EXCAVATORS 590D JD 4.5L 100HP DSL 1989-1995
JOHN DEERE EXCAVATORS 590D JD 4.5L 100HP DSL 1989-1995
JOHN DEERE EXCAVATORS 590D JD 4.5L 100HP DSL 1989-1995
JOHN DEERE EXCAVATORS 590D JD 4.5L 100HP DSL 1989-1995
JOHN DEERE EXCAVATORS 590D JD 4.5L 100HP DSL 1989-1995
JOHN DEERE EXCAVATORS 590D JD 4.5L 100HP DSL 1989-1995
JOHN DEERE EXCAVATORS 595D JD 4.5L 100HP DSL 1989-1995
JOHN DEERE EXCAVATORS 595D JD 4.5L 100HP DSL 1989-1995
JOHN DEERE EXCAVATORS 595D JD 4.5L 100HP DSL 1989-1995
JOHN DEERE EXCAVATORS 595D JD 4.5L 100HP DSL 1989-1995
JOHN DEERE EXCAVATORS 595D JD 4.5L 100HP DSL 1989-1995
JOHN DEERE EXCAVATORS 595D JD 4.5L 100HP DSL 1989-1995
JOHN DEERE EXCAVATORS 595D JD 4.5L 100HP DSL 1989-1995
JOHN DEERE EXCAVATORS 690D JD 6.8L 132HP DSL 1988
JOHN DEERE EXCAVATORS 690D JD 6.8L 132HP DSL 1989
JOHN DEERE EXCAVATORS 690D JD 6.8L 132HP DSL 1990
JOHN DEERE EXCAVATORS 690D JD 6.8L 132HP DSL 1991
JOHN DEERE EXCAVATORS 690D JD 6.8L 132HP DSL 1992
JOHN DEERE EXCAVATORS 690E JD 6.8L 140HP DSL
JOHN DEERE EXCAVATORS 690E LC JD 6.8L 140HP DSL
JOHN DEERE EXCAVATORS 70D JD 3.9L 55HP DSL 1988
JOHN DEERE EXCAVATORS 70D JD 3.9L 55HP DSL 1989
JOHN DEERE EXCAVATORS 70D JD 3.9L 55HP DSL 1990
JOHN DEERE EXCAVATORS 70D JD 3.9L 55HP DSL 1991
JOHN DEERE EXCAVATORS 70D JD 3.9L 55HP DSL 1992
JOHN DEERE EXCAVATORS 70D JD 3.9L 55HP DSL 1993
JOHN DEERE EXCAVATORS 790D 466 DIESEL 1988
JOHN DEERE EXCAVATORS 790D 466 DIESEL 1989
JOHN DEERE EXCAVATORS 790D 466 DIESEL 1990
JOHN DEERE EXCAVATORS 790D 466 DIESEL 1991
JOHN DEERE EXCAVATORS 790D 466 DIESEL 1992
JOHN DEERE EXCAVATORS 892D LC 466 DIESEL 1989
JOHN DEERE EXCAVATORS 892D LC 466 DIESEL 1990
JOHN DEERE EXCAVATORS 892D LC 466 DIESEL 1991
JOHN DEERE EXCAVATORS 892D LC 466 DIESEL 1992
JOHN DEERE EXCAVATORS 892D LC 466 DIESEL 1993
JOHN DEERE EXCAVATORS 992D 1988
JOHN DEERE EXCAVATORS 992D 1989
JOHN DEERE EXCAVATORS 992D 1990
JOHN DEERE EXCAVATORS 992D 1991
JOHN DEERE EXCAVATORS 992D 1992
JOHN DEERE EXCAVATORS 992D 1993
JOHN DEERE EXCAVATORS 992D LC 619 DIESEL 1988
JOHN DEERE EXCAVATORS 992D LC 619 DIESEL 1989
JOHN DEERE EXCAVATORS 992D LC 619 DIESEL 1990
JOHN DEERE EXCAVATORS 992D LC 619 DIESEL 1991
JOHN DEERE EXCAVATORS 992D LC 619 DIESEL 1992
JOHN DEERE EXCAVATORS 992D LC 619 DIESEL 1993
JOHN DEERE FELLER BUNCHERS 493D 4045 DIESEL 1988
JOHN DEERE FELLER BUNCHERS 493D 4045 DIESEL 1989
JOHN DEERE FELLER BUNCHERS 493D 4045 DIESEL 1990
JOHN DEERE FELLER BUNCHERS 493D 4045 DIESEL 1991
JOHN DEERE FELLER BUNCHERS 493D 4045 DIESEL 1992
JOHN DEERE FELLER BUNCHERS 493D 4045 DIESEL 1993
JOHN DEERE FELLER BUNCHERS 493D 4045 DIESEL 1994
JOHN DEERE FELLER BUNCHERS 493D 4045 DIESEL 1995
JOHN DEERE FELLER BUNCHERS 693D 6068 DIESEL 1988
JOHN DEERE FELLER BUNCHERS 693D 6068 DIESEL 1989
JOHN DEERE FELLER BUNCHERS 693D 6068 DIESEL 1990
JOHN DEERE FELLER BUNCHERS 693D 6068 DIESEL 1991
JOHN DEERE FELLER BUNCHERS 693D 6068 DIESEL 1992
JOHN DEERE FELLER BUNCHERS 693D 6068 DIESEL 1993
JOHN DEERE FELLER BUNCHERS 693D 6068 DIESEL 1994
JOHN DEERE FELLER BUNCHERS 693D 6068 DIESEL 1995
JOHN DEERE FELLER BUNCHERS 793D 1988
JOHN DEERE FELLER BUNCHERS 793D 1989
JOHN DEERE FELLER BUNCHERS 793D 1990
JOHN DEERE FELLER BUNCHERS 793D 1991
JOHN DEERE FELLER BUNCHERS 793D 1992
JOHN DEERE FELLER BUNCHERS 793D 1993
JOHN DEERE FELLER BUNCHERS 793D 1994
JOHN DEERE FELLER BUNCHERS 793D 1995
JOHN DEERE GRADERS 570B 359 DIESEL
TUG GPU TM-4900JD JOHN DEERE DSL

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 12.0 lbs.
  • W8.0000” x H8.0000” x L8.0000”
  • Free Shipping!
