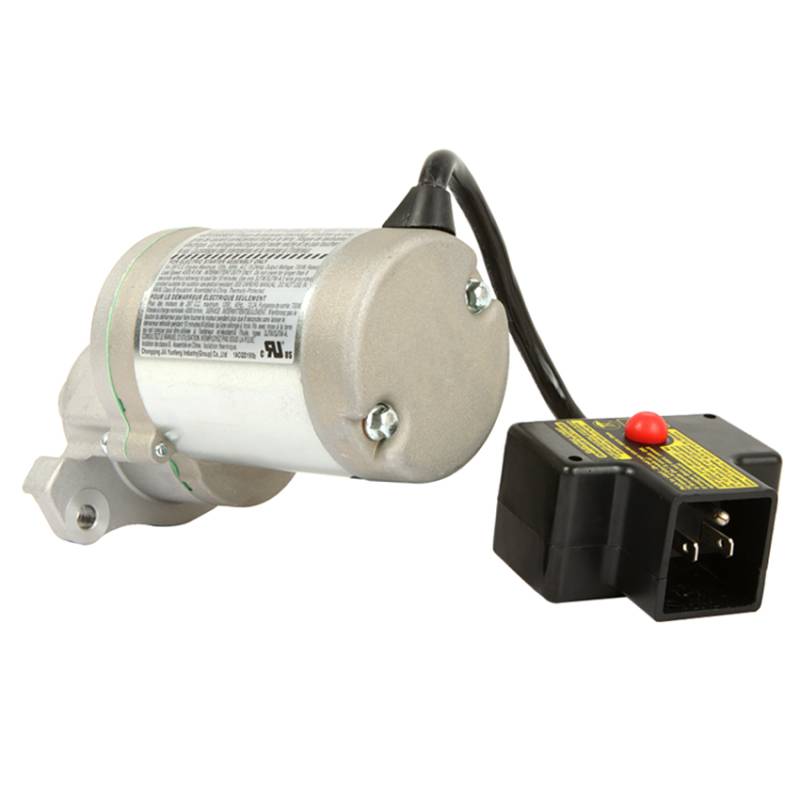

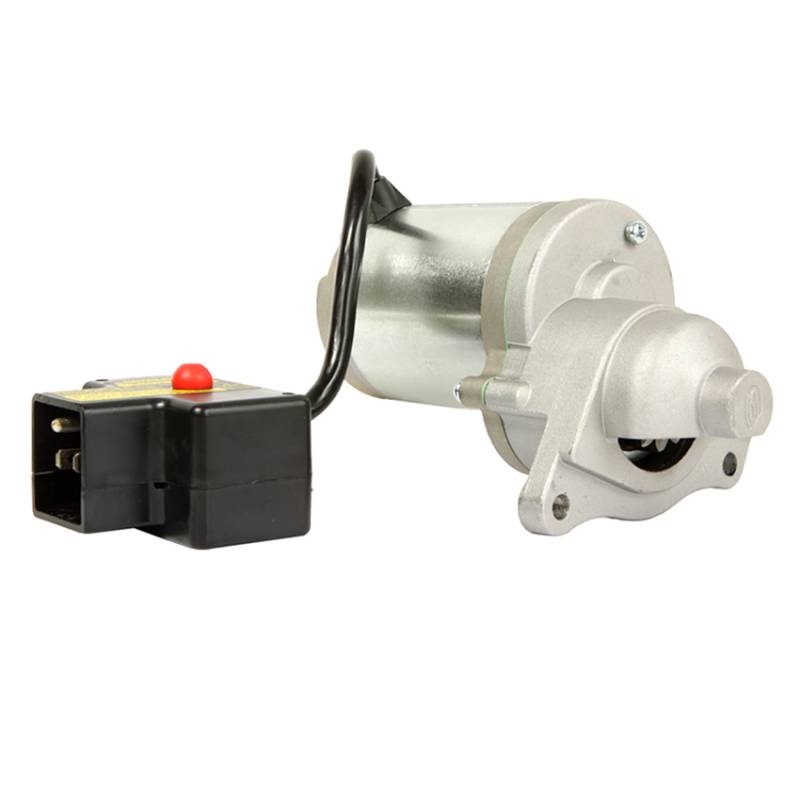

New 120V Ac Electric Starter Compatible With Subaru Robin Ex27 265Cc Ohc 9Hp Snowblower Snow Thrower

19485N*2
OEM / CROSS-REFERENCE PART NUMBERS:
• ACQD190B / 1ACQD190B
• EX27/120V
• SCH0071

SPECIFICATIONS:
• Type: OSGR (Offset Gear Reduction)
• Voltage: 120V AC (US Household Outlet)
• Plug Type: Standard US 120V Grounded
• Rotation: CCW (Counter-Clockwise)
• Teeth: 12
• Length: 7.531in / 191.3mm
• Mounting: Dual 8.5mm Unthreaded Ears
• Mounting Ear C-to-C: 3.504in / 89mm
• Weight: 5.88 lbs / 2.67 kg
• Condition: New

ENGINE APPLICATION:
• Subaru / Robin EX27 — 265cc OHC Single-Cyl Air-Cooled 9HP
• Used primarily on snow blowers with 120V AC electric start
• Fits by part number only — verify ACQD190B or 1ACQD190B

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $91.91
Sale: $52.52
Save: 43%
Save: $39.39
Qty:
Free Shipping!

Description

SUBARU / ROBIN EX27 ENGINE — BY PART NUMBER ONLY:
• This starter fits Subaru/Robin EX27 engine applications by part number
• Verify your equipment uses ACQD190B or 1ACQD190B before ordering

120V AC ELECTRIC START SYSTEM:
• Powered by standard 120V AC household electrical outlet (USA plug)
• Provides electric start for cold weather snowblower/equipment starting
• Connects via power cord — NOT battery powered

SUBARU / ROBIN EX27 ENGINE SPECIFICATIONS:
• Type: 4-Stroke OHC (Overhead Camshaft) Single-Cylinder
• Displacement: 265cc / 16.17ci
• Bore x Stroke: 75mm x 60mm (2.95" x 2.36")
• Compression Ratio: 8.3:1
• Power: 9.0HP (6.6kW) @ 4000 rpm
• Torque: 18.6 N·m / 13.7 lb-ft @ 2500 rpm
• Air-Cooled / Horizontal PTO Shaft / Chain-Driven OHC
• Cast Iron Cylinder Sleeve / Splash Lubrication
• Transistorized Magneto Ignition / Float Carburetor
• Rotation: CCW (from PTO shaft side)

TYPICAL EQUIPMENT USING EX27:
• Snow Blowers / Snow Throwers (primary application for 120V starter)
• Generators / Water Pumps / Pressure Washers / Lawn Equipment

NOTES:
• Robin brand now manufactured under Subaru Industrial Power Products
• 120V US plug version — European 230V variant (EX27/230V) is different part
• Some industry listings cite "287cc" — actual EX27 displacement is 265cc per OEM
