OEM PART NUMBERS:
• Mahle: IS 1059 / IS1059
• John Deere: SE501869
• Iskra: AZE4589

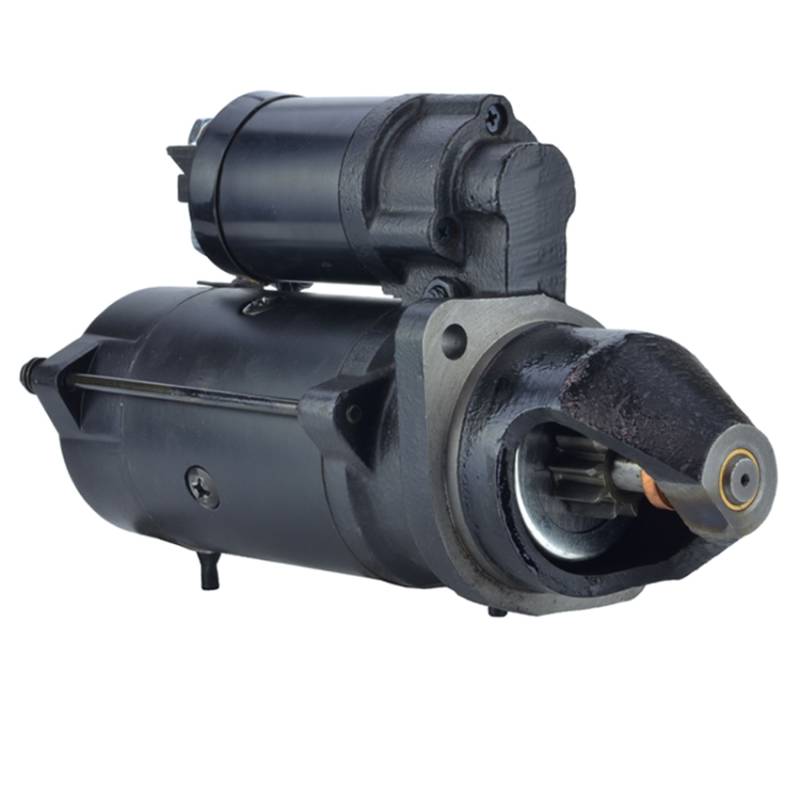

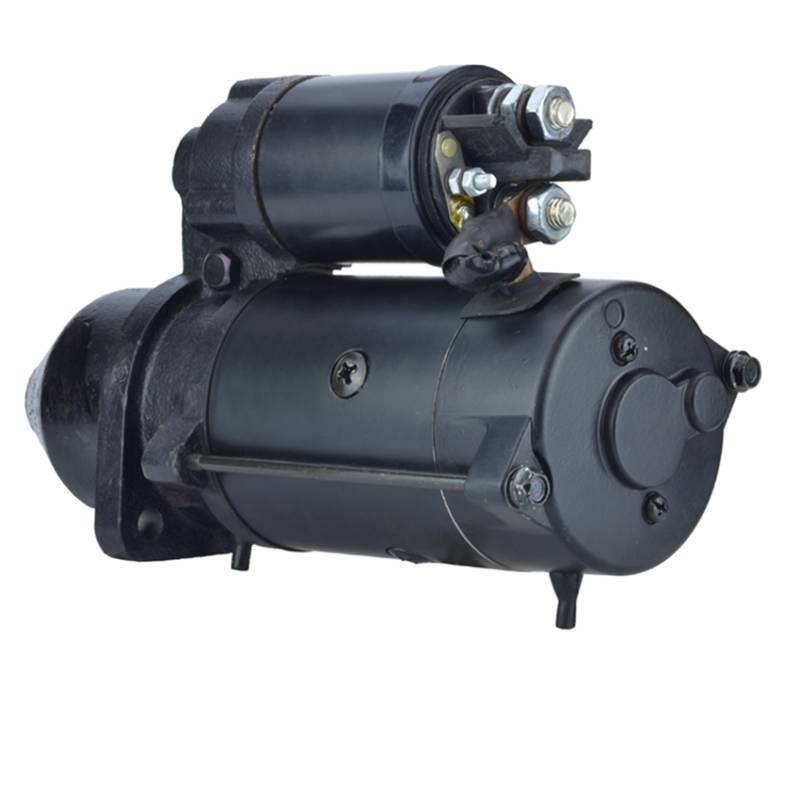

SPECIFICATIONS:
• Type: Starter Motor (PLGR)
• Voltage: 12V
• Power: 2.8 kW
• Rotation: Clockwise (CW)
• Pinion Teeth: 10
• Gear OD: 31.7 mm / 1.248 in
• Design: Mahle (Letrika/Iskra) Service Replacement
• Mounting: M10 x 1.5 thru-bolts, 10.4 mm unthreaded ears
• Weight: 18.8 lbs / 8.54 kg
• Solenoid: Integrated, with cover and plastic nut
JOHN DEERE — 6300-6510 + BACKHOES + COMBINES (1971-2001):
• John Deere 6300 / 6300L Tractor 4.039T / 4.239 3.9-4.0L Diesel (1992-1998)
• John Deere 6400 / 6400L Tractor 4.045T / 4.239 / 4.276 3.9-4.5L Diesel (1992-1998)
• John Deere 6405 Tractor 4.045T 4.5L Diesel (1998-2001)
• John Deere 6410 / 6410L Tractor 4.045T 4.5L Diesel (1998-2001)
• John Deere 6500 / 6500L Tractor (1993)
• John Deere 6510 / 6510L / 6510S Tractor 4.045T 4.5L Diesel (1998-2001)
• John Deere 940 Tractor 3.179DL 2.9L Diesel (1979-1986)
• John Deere MD945 Tractor 4.239TZ 3.9L Diesel (1973-1977)
• John Deere 1830 Air Compressor 4.219DL 3.6L Diesel (1972-1979)
• John Deere JD310 Backhoe 3.179DL 2.9L Diesel (1974-1988)
• John Deere JD450A / JD450B / JD450C Backhoe 4.202 / 4.219 3.6L Diesel (1971-1979)
• John Deere 4425 Combine 6.539 5.9L Diesel (1986-1988)
• John Deere 4435 Combine 6.539 5.9L Diesel (1989-1994)
• John Deere MD330C Combine 164D27Z 2.7L Diesel (1972-1974)
• John Deere MD930 / MD935 Combine 4.219DZ 3.6L Diesel (1972-1979)
• John Deere MD932 / MD942 Combine 4.239DZ 3.9L Diesel (1979-1983)
• John Deere MD940 Combine 4.239DZ 3.9L Diesel (1972-1975)
• John Deere MD950 Combine 6.329DZ 5.4L Diesel (1974-1975)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
