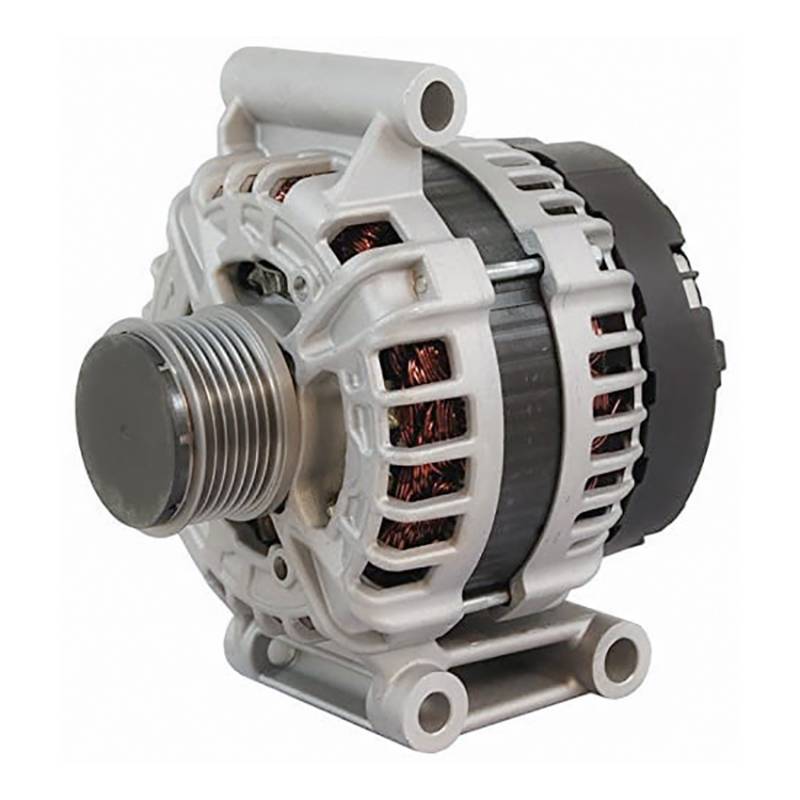

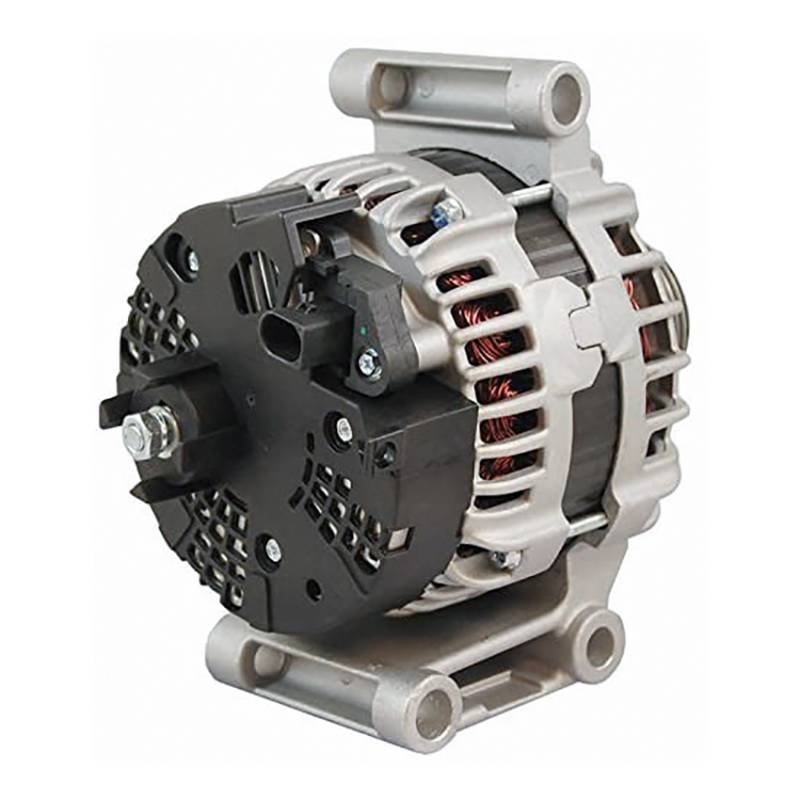

Alternator Compatible With 2015-2019 Ford Transit-350 Transit-250 Transit-150 3.2L 2015-2016 Ranger

OEM PART NUMBERS:
• Bosch: 0125711005 / 0-125-711-005
• Bosch: 0125711046 / 0-125-711-046
• Bosch: 0125711103 / 0-125-711-103
• Bosch: 0125711104 / 0-125-711-104
• Bosch: 0125711133 / 0-125-711-133
• Bosch: 0125711134 / 0-125-711-134
• Bosch Service Europe: 0986082330 / 0-986-082-330
• Ford: CC1T-10300-CA / CC1T-10300-CB / CC1T-10300-CC / CC1T-10300-CD
• Ford: CC1Z-10346-A / RMCC1T-10300-CD
• Ford: 1738113 / 1745662 / 1800123 / 1889372
• Lucas: LRA03639 / LEA0993

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 150A
• Type: Bosch Permanent Magnet (PMA)
• Rotation: CW (Clockwise)
• Fan: Internal
• Regulator: Internal
• Pulley: 7-Groove Serpentine Clutch Pulley
• Pulley OD: 59mm
• Plug Clock: 1
• Plug Orientation: Rear
• Condition: New

APPLICATION:
• Ford Transit-150/250/350/350 HD 3.2L Diesel (2015-2019)
• Ford Ranger 2.2L (2015-2016)
• Ford Europe Transit 2.2 TDCi (2011-2016)
• Ford Europe Ranger TKE 2.2/3.2 TDCi (2011-2015)

Alternator — Ford Transit 3.2L Ranger 2.2L Diesel
New 150-amp Bosch-type alternator for 2015-2019 Ford Transit-150, Transit-250, Transit-350, Transit-350 HD with 3.2L diesel and 2015-2016 Ranger 2.2L. Also covers Ford Europe Transit 2.2 TDCi and Ranger TKE configurations. Permanent magnet design with 7-groove clutch pulley at 59mm OD, clockwise rotation, internal fan and regulator. Replaces CC1Z-10346-A, Bosch 0125711046, and Lucas LRA03639.
