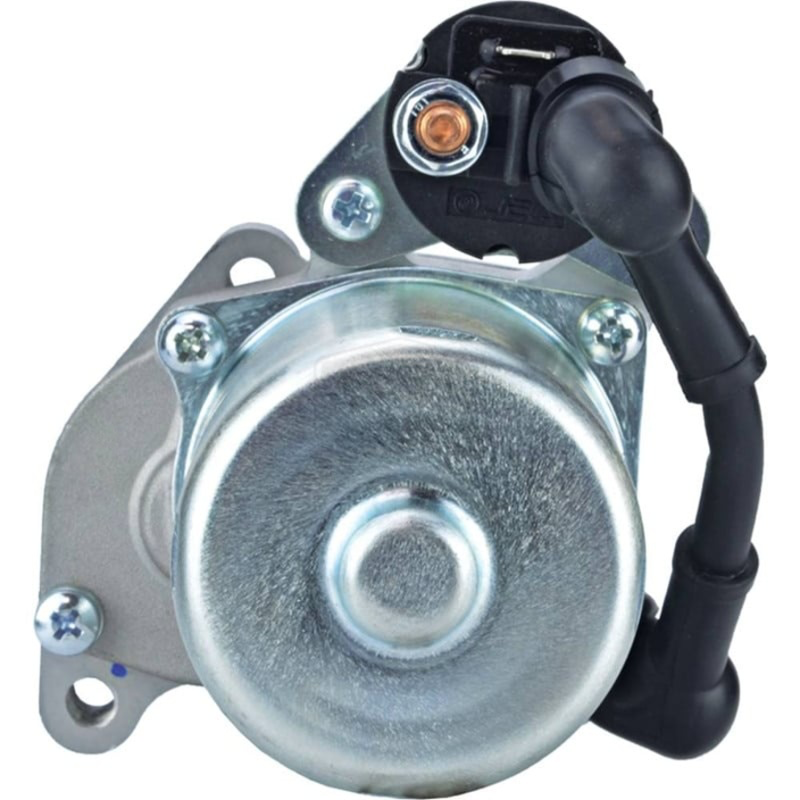

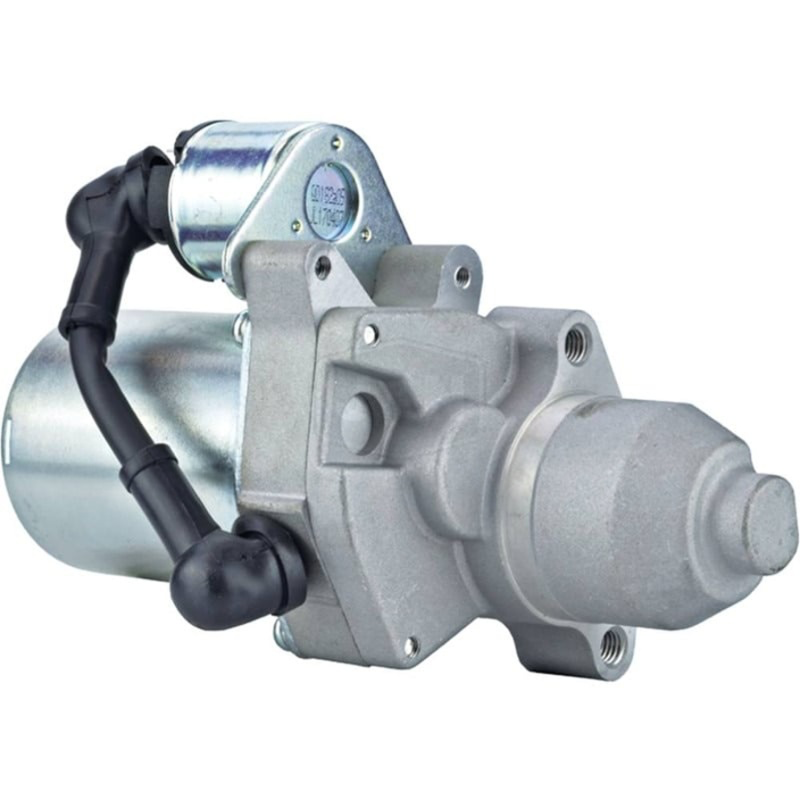

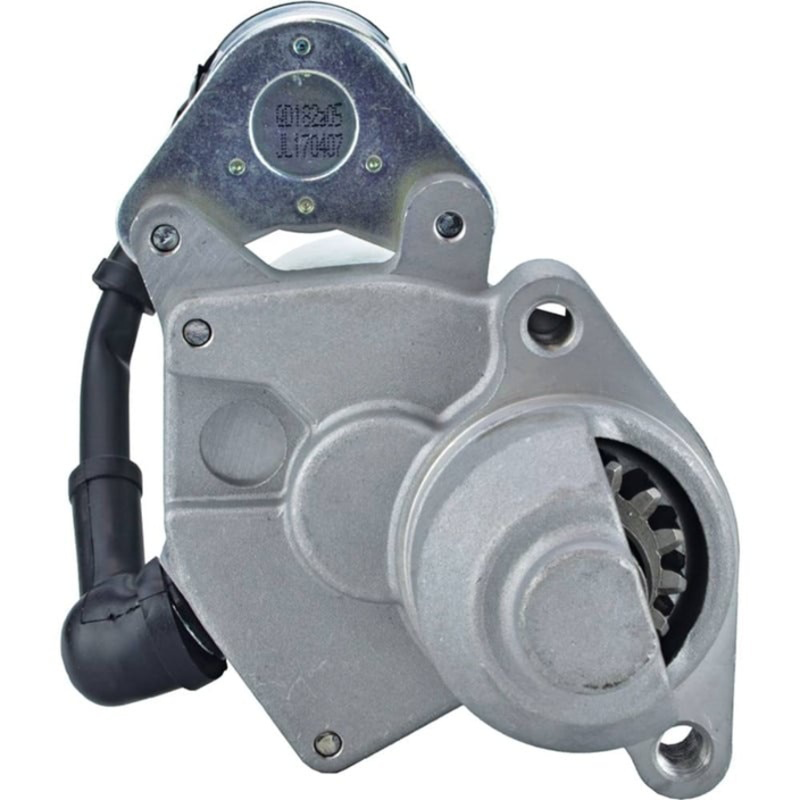

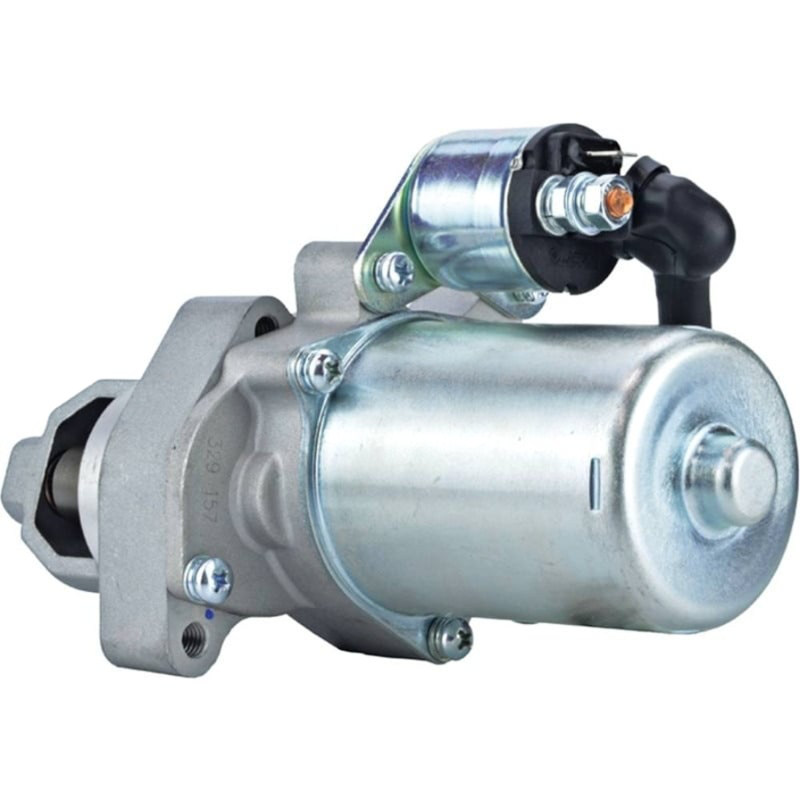

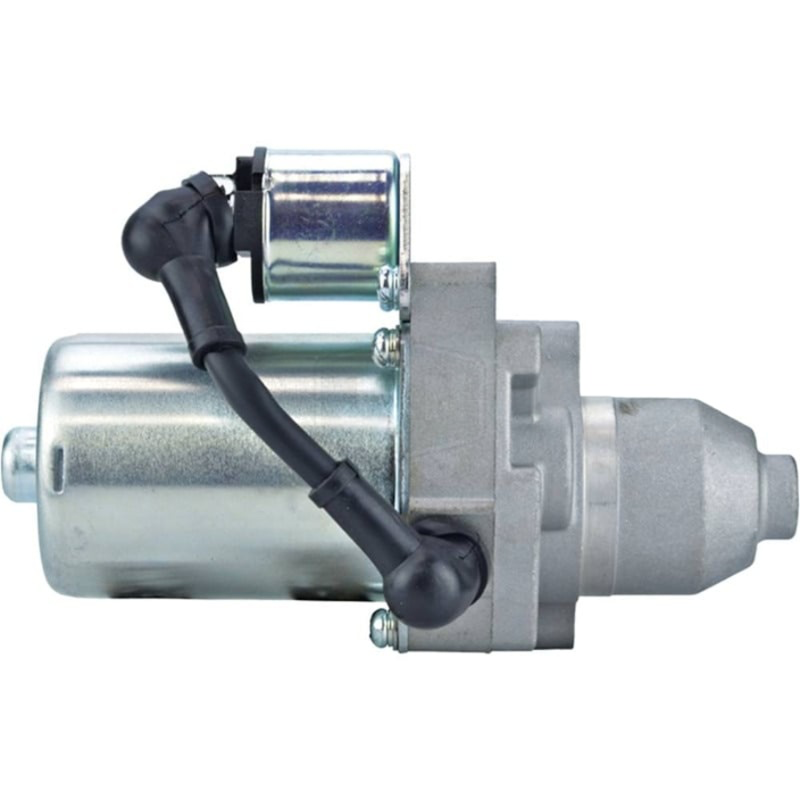

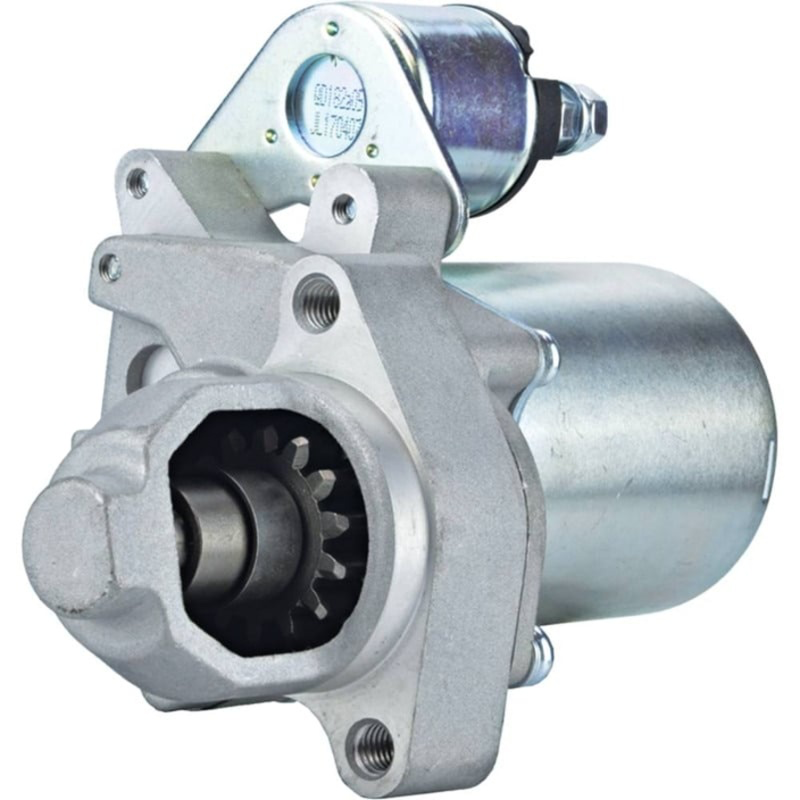

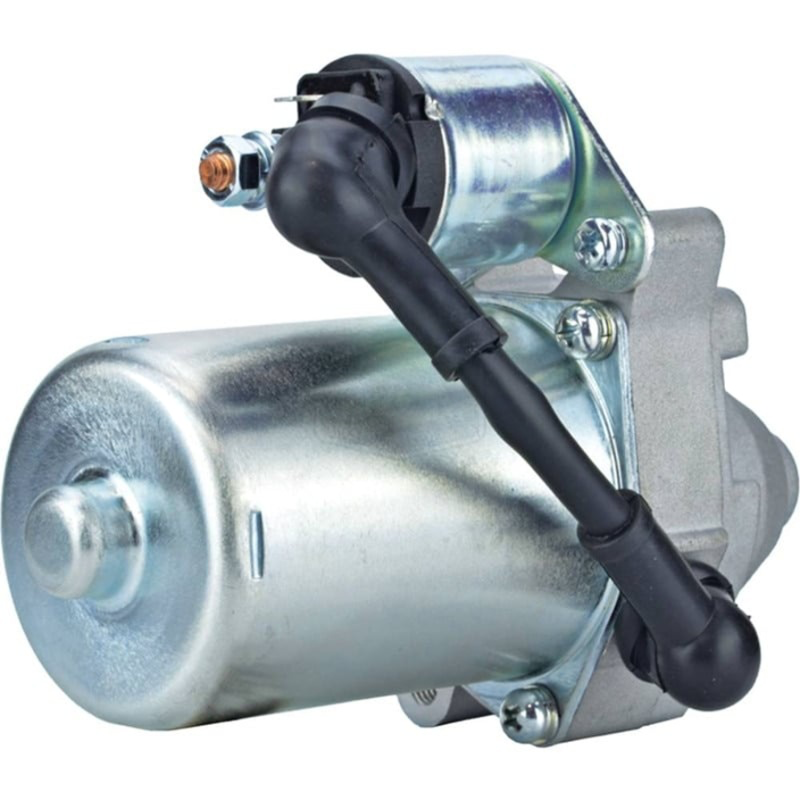

Starter Compatible With Kohler 17-098-04S 17-098-12S 1709804S 1709812S Command Pro Ch395 Engine

(0) Reviews: Write first review
SCH0104*1
KOHLER OEM PART NUMBERS:
• 17 098 04
• 17-098-04, 1709804
• 17 098 04-S
• 17-098-04S, 1709804S
• 17-098-04S-A
• 17 098 12-S
• 17-098-12S, 1709812S
• 17-098-12S-A

SPECIFICATIONS:
• Voltage: 12V
• Rotation: Counter Clockwise (CCW)
• Teeth: 14
• Length: 7.126" / 181mm
• Registry OD: 1.839" / 46.7mm
• Mount Holes: M8x1.25 Threaded (x2)
• Mounting Ear Distance: 2.559" / 65mm
• Weight: 3.76 lbs

ENGINE INFO:
• Engine: Kohler Command PRO CH395
• Displacement: 277cc / 16.9 cu in
• Horsepower: 9.5 HP
• Torque: 13.9 ft-lb
• Type: 4-Stroke OHV Horizontal Shaft

FITS EQUIPMENT:
• Arco PP35TK0-1, Dirty Hand Tools 107040
• Simpson ALK4033, PSK4033
• Mi-T-M CA-3003-1MAK, JP-3003-3MKB
• Ingersoll Rand SS5J9.5GK-WB
• Troy-Bilt Horse Tiller, BCS 720

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $173.25
Sale: $99.00
Save: 43%
Save: $74.25
Qty:
Free Shipping!

Description

KOHLER CH395 COMMAND PRO ENGINE MODELS:

CH395-0XXX SERIES:
• CH395-0021, CH395-0024, CH395-0025, CH395-0026
• CH395-0031, CH395-0032, CH395-0041, CH395-0065
• CH395-0112, CH395-0113, CH395-0114, CH395-0115, CH395-0116

CH395-1XXX SERIES:
• CH395-1031, CH395-1065

CH395-3XXX SERIES:
• CH395-3011, CH395-3018, CH395-3021, CH395-3024
• CH395-3026, CH395-3028, CH395-3029, CH395-3031
• CH395-3032, CH395-3038, CH395-3039
• CH395-3102, CH395-3149, CH395-3152, CH395-3155, CH395-3159

LOG SPLITTER APPLICATIONS:
• Arco PP35TK0-1 35-Ton Horizontal/Vertical
• Dirty Hand Tools 107040 30-Ton
• Speeco 22-Ton, 28-Ton Models
• Huskee/County Line Log Splitters
• Champion Log Splitters

PRESSURE WASHER APPLICATIONS:
• Simpson ALK4033 Aluminum Series 4000 PSI 3.3 GPM
• Simpson PSK4033 PowerShot 4000 PSI
• Mi-T-M CA-3003-1MAK 3000 PSI 3.0 GPM
• Mi-T-M JP-3003-3MKB 3000 PSI 3.0 GPM
• Mi-T-M HSP-3003-3MGK Hot Water 3000 PSI 2.9 GPM

AIR COMPRESSOR APPLICATIONS:
• Ingersoll Rand SS5J9.5GK-WB 8-Gallon Wheelbarrow
• Industrial Air CTA6590412 4-Gallon Portable

TILLER/CULTIVATOR APPLICATIONS:
• Troy-Bilt Horse Rear Tine Tiller
• BCS 720, 732 Walk-Behind Tractors

GENERATOR APPLICATIONS:
• Kohler PRO9.0 Portable Generator
• Kohler PRO9.0E Electric Start Portable

CONCRETE EQUIPMENT:
• Multiquip/Whiteman Power Trowels
• Bartell Morrison Power Trowels
• Walk-Behind Concrete Screeds

WATER PUMP APPLICATIONS:
• Multiquip Trash Pumps
• Tsurumi Semi-Trash Pumps
