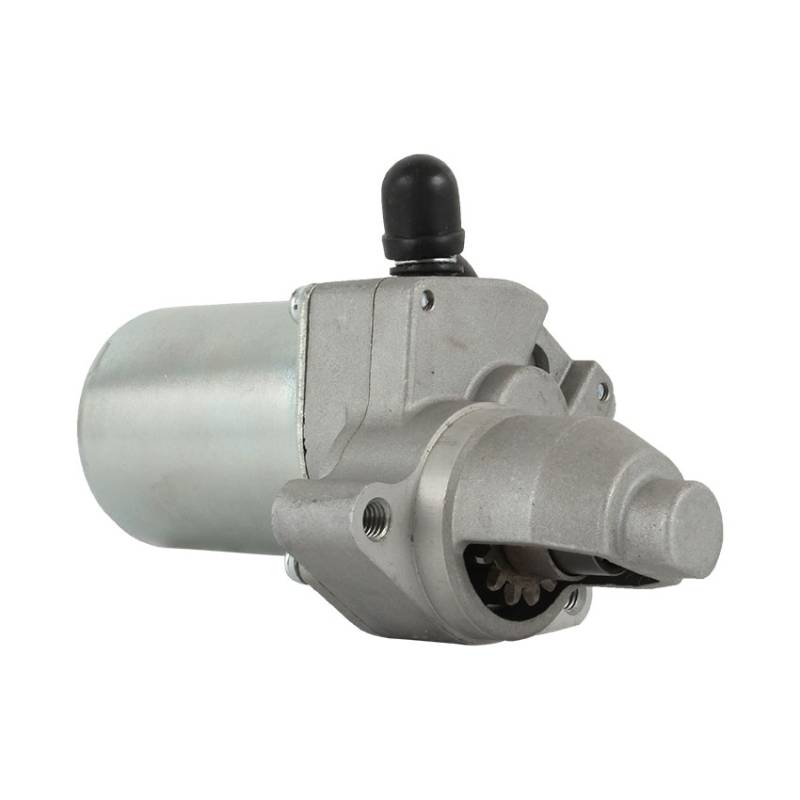

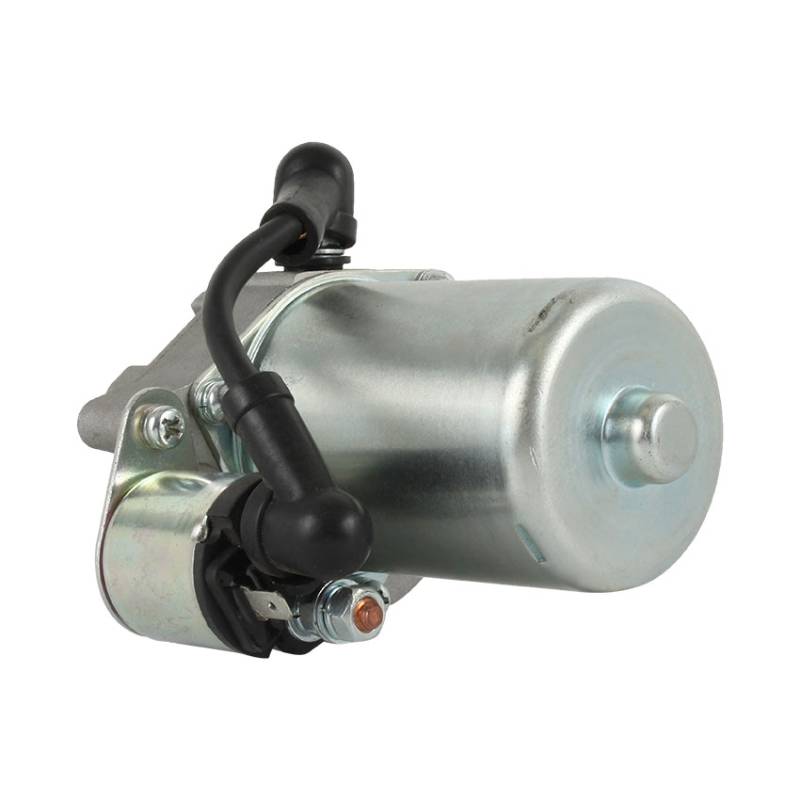

12V 10T Starter Compatible With Kohler Ch395-3031 Horizontal Engine 17-098-04 17-098-04S 17-098-12S

KOHLER OEM PART NUMBERS:
• 17-098-04 - Kohler Primary Part Number
• 17-098-04S - Kohler Service Part
• 17-098-04S-A - Kohler Alternate
• 17-098-12S - Kohler Cross-Reference
• 17-098-12S-A - Kohler Alternate
• 1709804 - Kohler (No Dashes)
• 1709804S - Kohler (No Dashes)
• 1709812S - Kohler (No Dashes)

BOSCH PART NUMBERS:
• 0001107027 - Bosch Primary
• 0-001-211-227 - Bosch Europe Format
• 0 001 211 512 - Bosch Europe Format
• 9000333116 - Bosch Reference

BOSCH SERVICE EUROPE:
• 0-986-010-300
• 0 986 601 327

FORD PART NUMBERS:
• 84FB11000BA - Ford
• 92AB-11000-GA - Ford
• D8RZ11002A - Ford
• 84FX-BA - Ford Engineering

OTHER OEM CROSS-REFERENCES:
• Hella: 8EA 726 045 001
• Lucas: LRS00732
• Letrika (Iskra): IS0483
• JLG: 7019668
• Valeo: VS101

SPECIFICATIONS:
• Type: Starter Motor - PMGR
• Unit Type: Bosch
• Voltage: 12V
• Power: 1.1kW
• Rotation: Clockwise (CW)
• Teeth on Drive: 10
• Gear OD: 1.035in / 26.3mm
• Mounting Ear 1: M10-1.5 Threaded
• Mounting Ear 2: M10-1.5 Threaded
• Mounting Ear 3: M10-1.5 Threaded
• Center to Center 1: 4.035in / 102.5mm
• Center to Center 2: 2.626in / 66.7mm
• Center to Center 3: 2.569in / 65.25mm
• Registry OD: 2.992in / 76mm
• B+ & Motor Studs: M8
• S Stud: M5
• Length: 6.929in / 176mm
• Weight: 7.69 lbs / 3.5 kg
