OEM PART NUMBERS:
• Delco: 10463120 / 10463195 / 10463204 / 10463213
• Delco: 10479855 / 10479907 / 1101454 / 1101604
• Delco: 10463026 / 10463063 / 1101182 / 1101274 / DRZ0178
• ACDelco: 321-324 / 321324 / 321-362 / 321362 / 321-411 / 321411
• ACDelco: 321-487 / 321487 / 321-495 / 321495 / 321-504 / 321504
• ACDelco: 334-2319 / 3342319 / 334-2320 / 3342320 / 335-1042 / 3351042
• Bosch: AL8649X
• Lucas: LRA01788
SPECIFICATIONS:

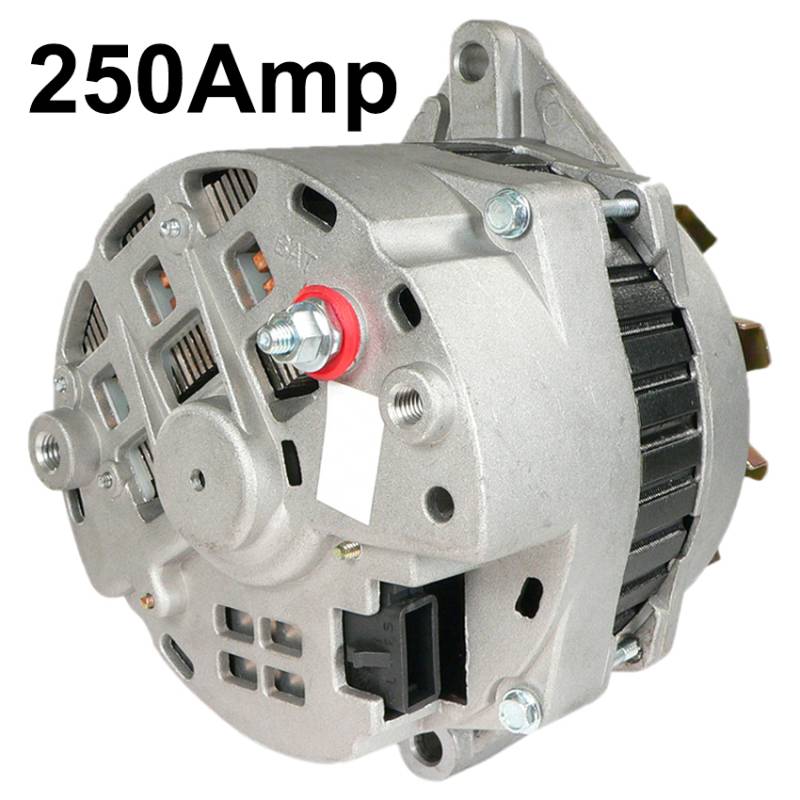

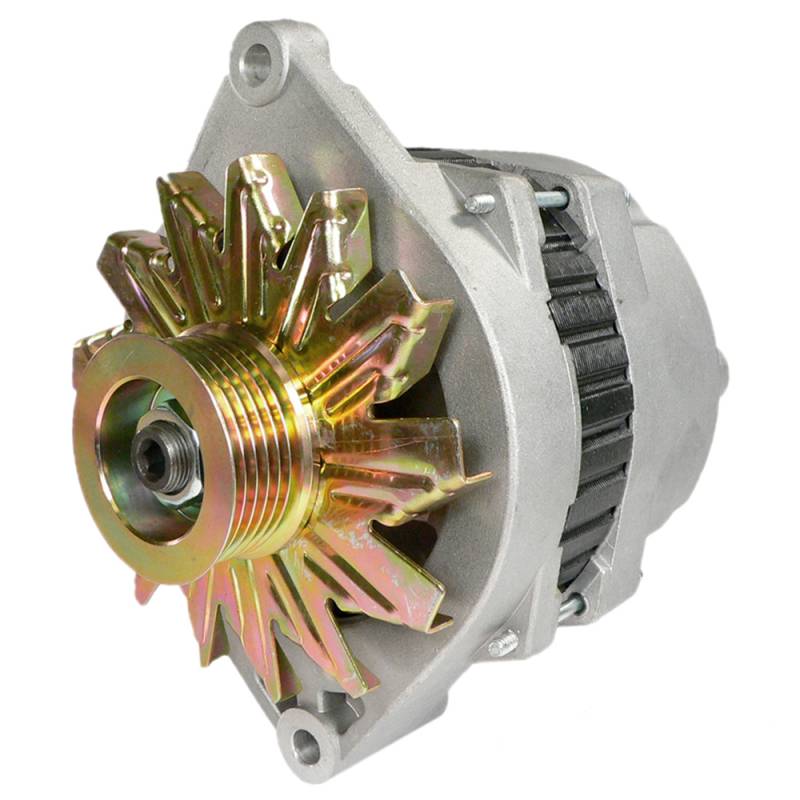

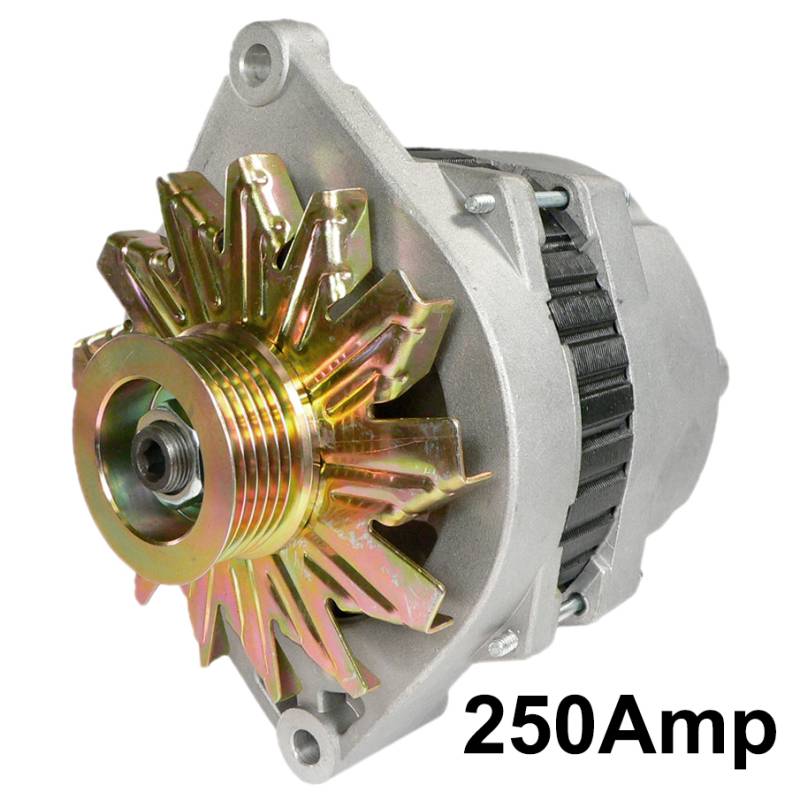

• Type: Alternator — Delco CS144 Series, High Output 250A
• Voltage: 12V
• Amperage: 250A (Replaces standard 120A unit)
• Fan: External
• Regulator: Internal
• Regulator Clock: 5:00
• Pulley: 6-Groove Serpentine, Solid, 60mm OD
• Serpentine Groove OD: 55.5mm (2.185")
• Mount Type: Spool
• Mounting Ear 1: 10.2mm Unthreaded, 20mm (0.787") Thick
• Mounting Ear 2: 9.8mm Unthreaded, 50mm (1.969") Thick
• Terminals: B+ (M6-1.0), STA (Spade), L (Spade), IG (Spade), S (Spade)
• Polarity: Negative
• Weight: 15.16 lbs (6.89 kg)
• Condition: New
BUICK / OLDSMOBILE / PONTIAC APPLICATIONS:
• Century / Electra / LeSabre / Regal 3.8L V6 (1986-1987)
• Ninety-Eight / Delta 88 3.8L V6 (1987)
• Bonneville 3.8L V6 (1987) / Firebird 3.8L V6 (1989)
CADILLAC / CHEVROLET APPLICATIONS:
• Brougham 5.0L V8 / 5.7L V8 (1990-1992)
• Fleetwood 5.7L V8 (1991-1992) / Commercial Chassis 5.7L V8 (1992)
• Caprice 4.3L V6 / 5.0L V8 / 5.7L V8 (1989-1993)
• Commercial Chassis 5.0L V8 / 5.7L V8 (1991-1993)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
