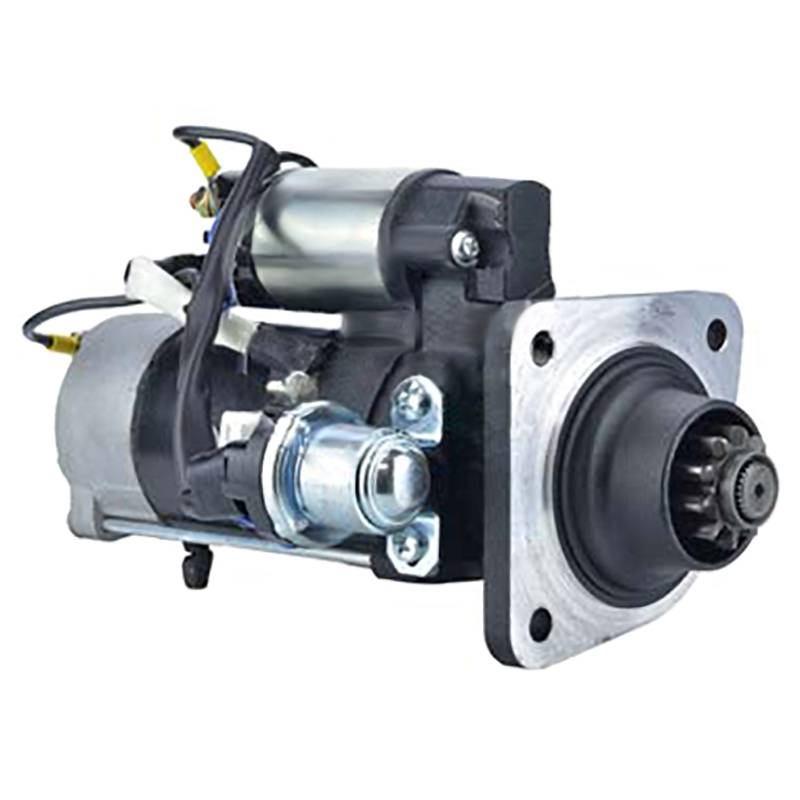

New Starter Motor Compatible With 1970-2000 Perkins Generator 4.209 4.236 Industrial Marine Diesel

OEM PART NUMBERS:
• CAV: 1321032 / 1327430 / 13211030 / 1321F033

SPECIFICATIONS:
• Type: Starter Motor (PLGR - Planetary Gear Reduction)
• Voltage: 24V
• Rotation: Clockwise (CW)
• Teeth: 10
• Pinion Gear OD: 39.9mm (1.571 in)
• Overall Length: 290mm (11.417 in)
• Registry OD: 88.8mm (3.496 in)
• Mounting: 11.2mm unthreaded, C-to-C 127mm / 89.8mm / 89.8mm
• Terminals: M8 B+ & Motor studs, M5 S terminal, M8 stud in CE housing
• Wet Clutch Seal: Yes
• Insulated: Yes
• Includes Control Relay
• Weight: 21.96 lbs (9.98 kg)
• Unit Type: CAV
