CROSS-REFERENCE PART NUMBERS:
• Fisher: A5819, 21500
• Western: 50133, 54133, 56058, 56062, 56133, 56398, 56410, 58058, 58082
• Buyers/SAM: 1306415, 1306325, 13036325
• Prestolite: 46-2473, 46-2584, 46-3618, 46-3938, MDL-2256, MKW-4009, MUE-6103, MUE-6103S, MUE-6111, MUE-6111S, MUE-6206, MUE-6206AS, MUE-7001
• Johnson Electric: MM18896, MM18996
• United Technologies: 1899628-M030SM
• Wilson: 94-06-1818N
• Wapsa: 9-130-450-036, 9-130-450-083, 9-130-450-099
SPECIFICATIONS:

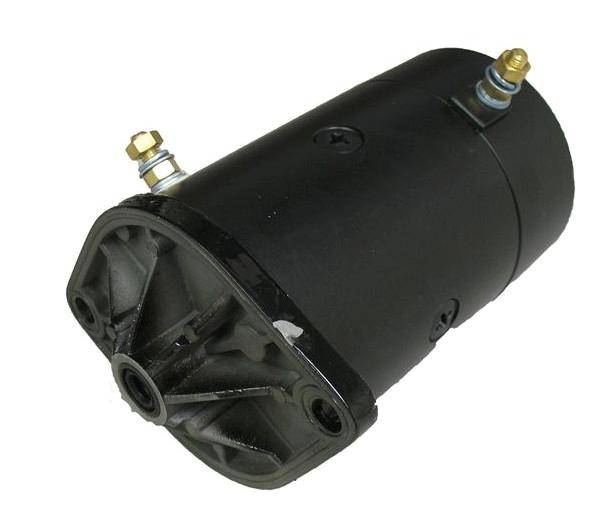

• Type: DC Electric Motor (Prestolite)
• Voltage: 12V DC
• Power: 1.7kW / 2.28HP
• Rotation: Clockwise
• Field Case OD: 4.5" / 114.3mm
• Overall Length: 8.268"
• Shaft OD: 0.626" / 16mm
• Shaft Style: Slotted
• Terminals: Dual Post 5/16-24
• Mounting Centers: 5.5"
• Weight: 17.3 lbs / 7.86 kg
• Ground: Insulated
• Bearings: Dual Ball Bearing
• Field Coils: 4
• Includes: Mounting Plate with 2x 12.9mm ID Holes
• Condition: New
APPLICATION:
• Fisher Snow Plows - All Uni-Mount Models (1981-Up)
• Western Snow Plows - All Uni-Mount Models (1981-Up)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
