BMW PART NUMBERS: • 12417638196, 12-41-7-638-196
• 12417638194, 7-638-194, 7638194
• 12417610349, 12-41-7-610-349
• 12417631054, 12-41-7-631-054
BOSCH PART NUMBERS: • 0001138043, 0 001 138 043
• 0001137044, 0 001 137 044
• 0001138049, 0-001-138-049
• 0001138058, 0 001 138 058
• 0001138059, 0-001-138-059
• 0986023940, 0-986-023-940
• 1986S00835, 1 986 S00 835
VALEO PART NUMBERS: • 438558
DELCO REMY PART NUMBERS: • DRS0686
EUROTEC PART NUMBERS: • 11023940

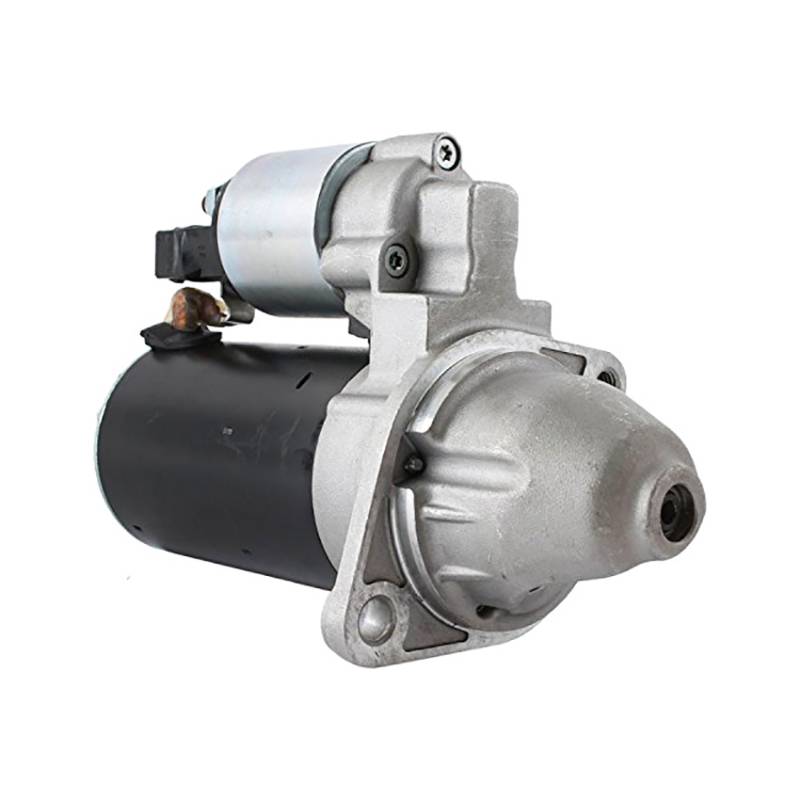

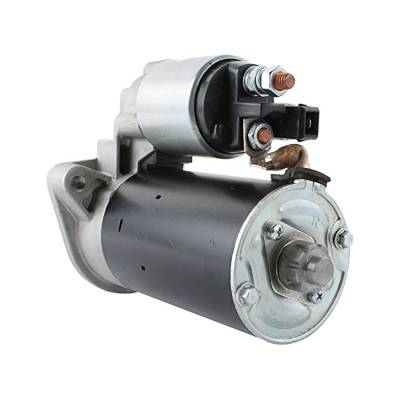

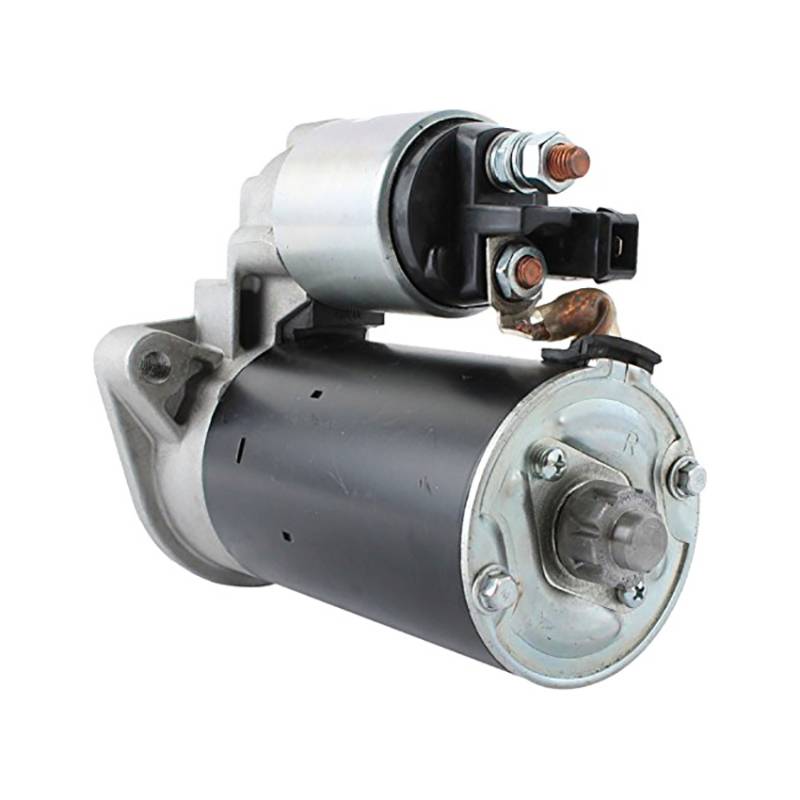

SPECIFICATIONS: • Type: Bosch permanent magnet gear reduction (PMGR), start/stop duty
• Voltage: 12 Volt
• Power: 2.0 kW
• Rotation: Clockwise (CW)
• Pinion: 9 teeth, 28.2 mm (1.11 in) OD
• Length: 166 mm (6.535 in)
• Mounting ear 1: M10-1.5 threaded
• Mounting ear 2: 11 mm unthreaded
• Ear center to center: 105 mm (4.134 in)
• Registry: 76.3 mm (3.004 in)
• Terminals: M8-1.25 B+ and motor studs, spade S terminal
• Weight: 7.82 lb (3.55 kg)
• Condition: New
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
