BMW PART NUMBERS: • 12417638196, 7638196, 7-638-196
• 12417638194, 12-41-7-638-194
• 12417638197, 12-41-7-638-197
• 12417626546, 12-41-7-626-546
• 12417610342, 12-41-7-610-342
BOSCH PART NUMBERS: • 0001138060, 0 001 138 060
• 0001137044, 0-001-137-044
• 0001138044, 0 001 138 044
• 0001138049, 0001138049
• 0001138058, 0-001-138-058
• 0986023940, 0 986 023 940
VALEO PART NUMBERS: • 458910
LUCAS PART NUMBERS: • LRS02325, LRS2325
MEAT & DORIA PART NUMBERS: • 5010477

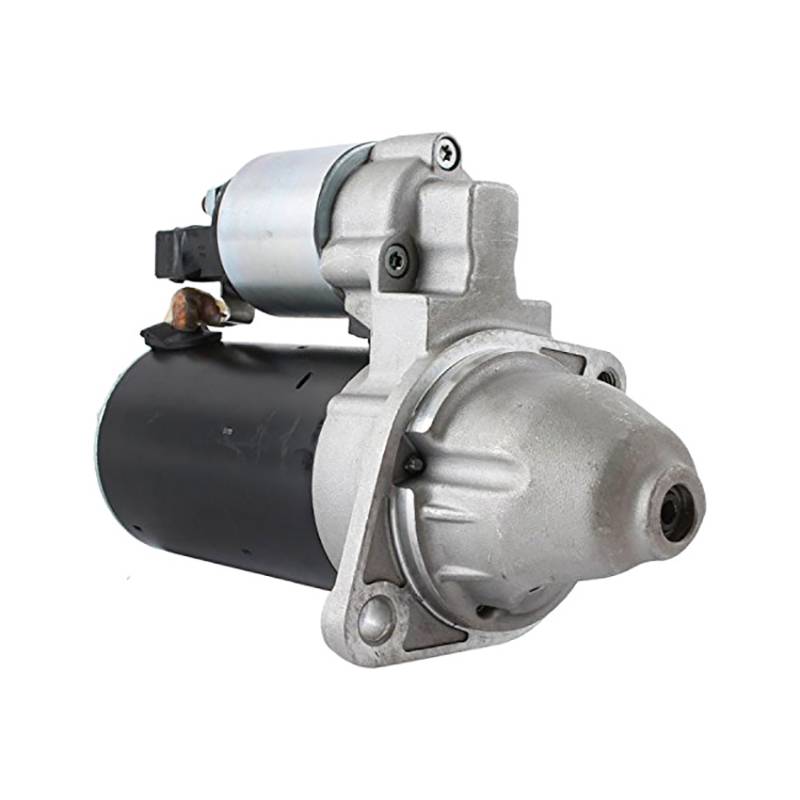

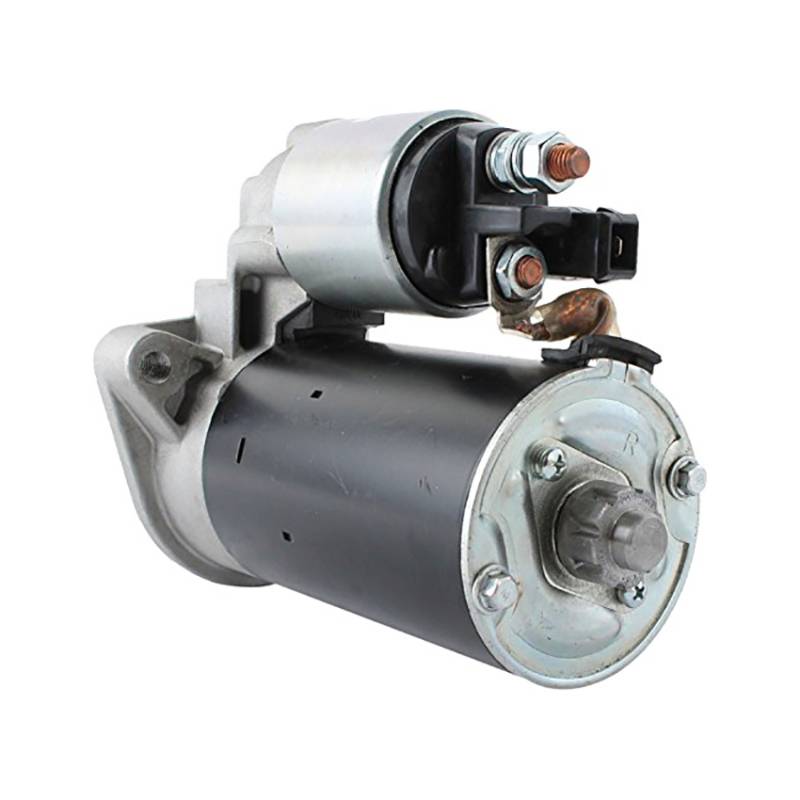

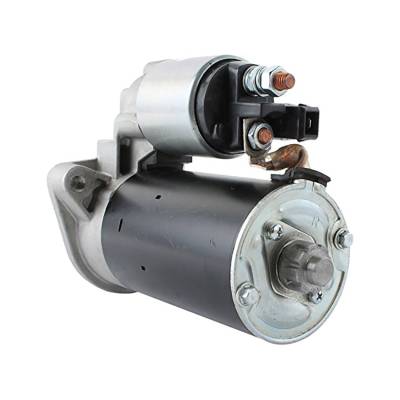

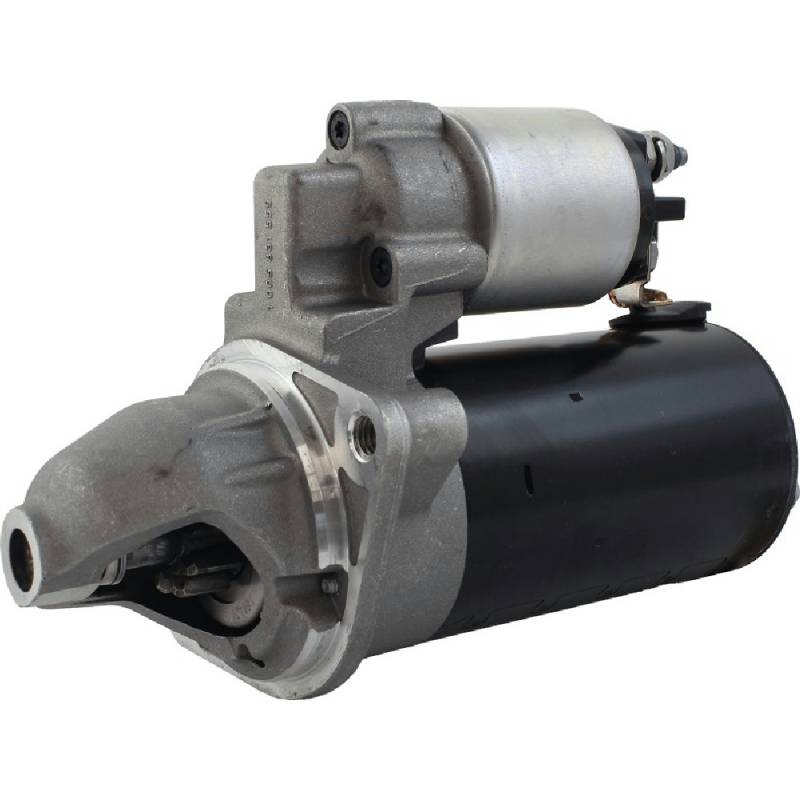

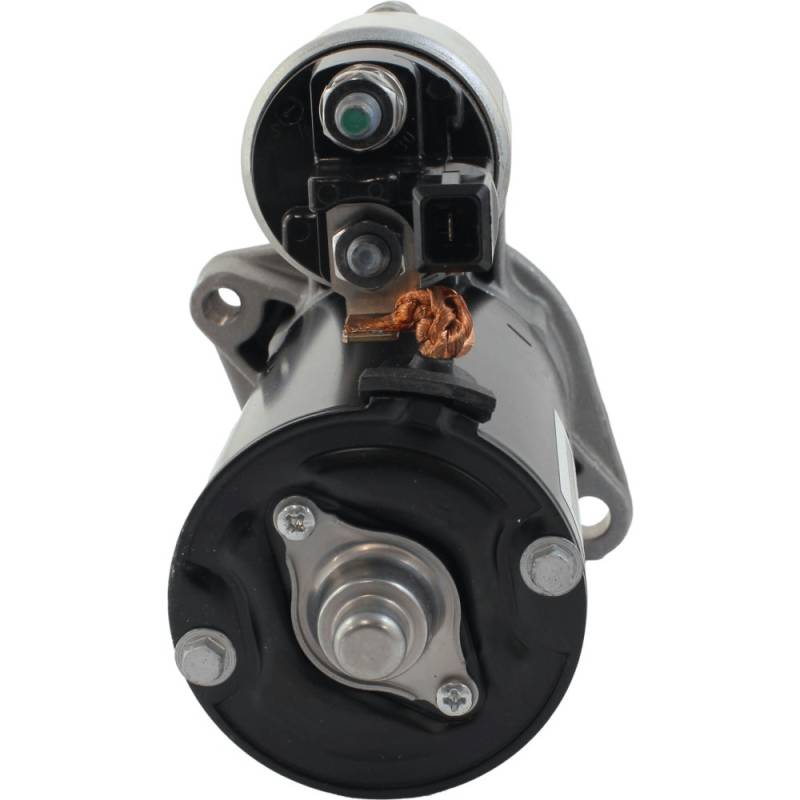

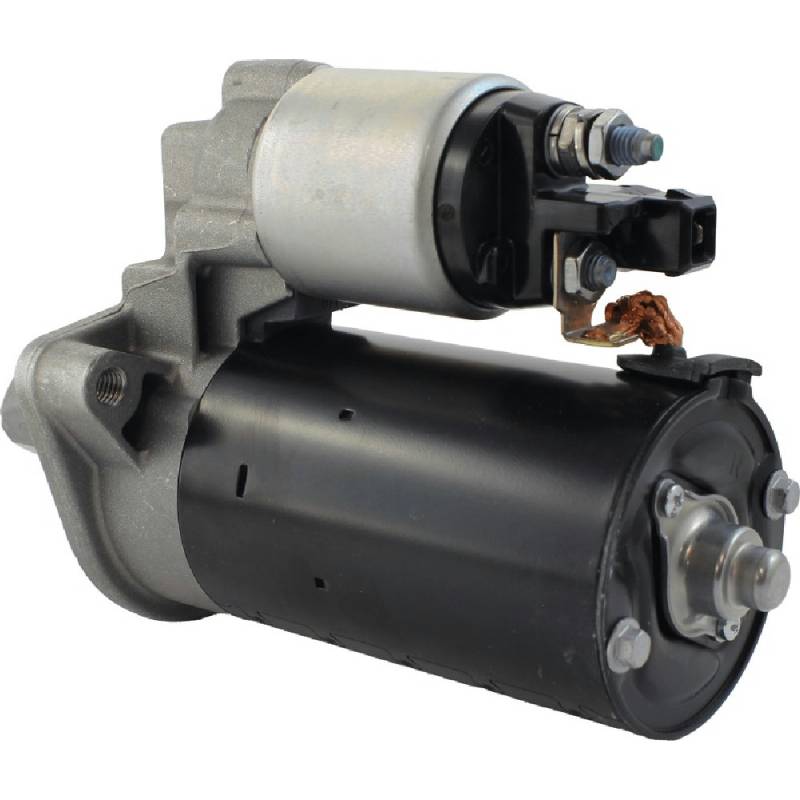

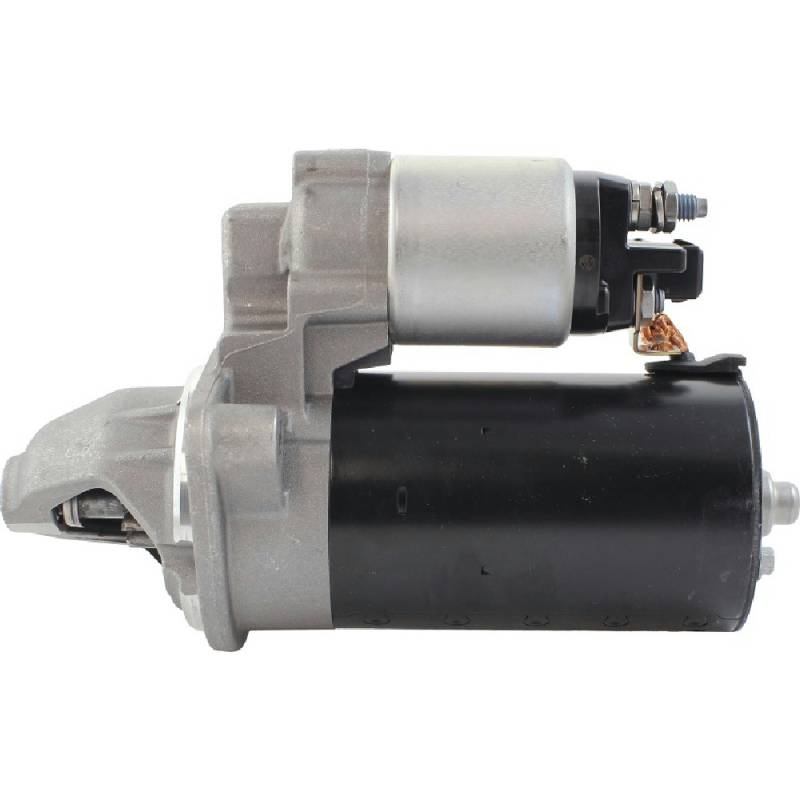

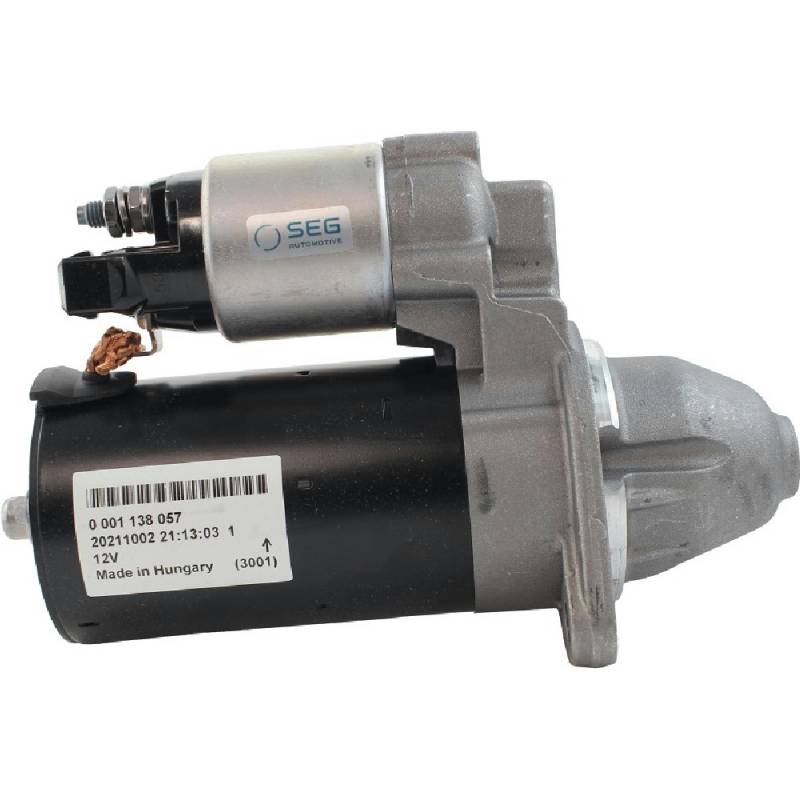

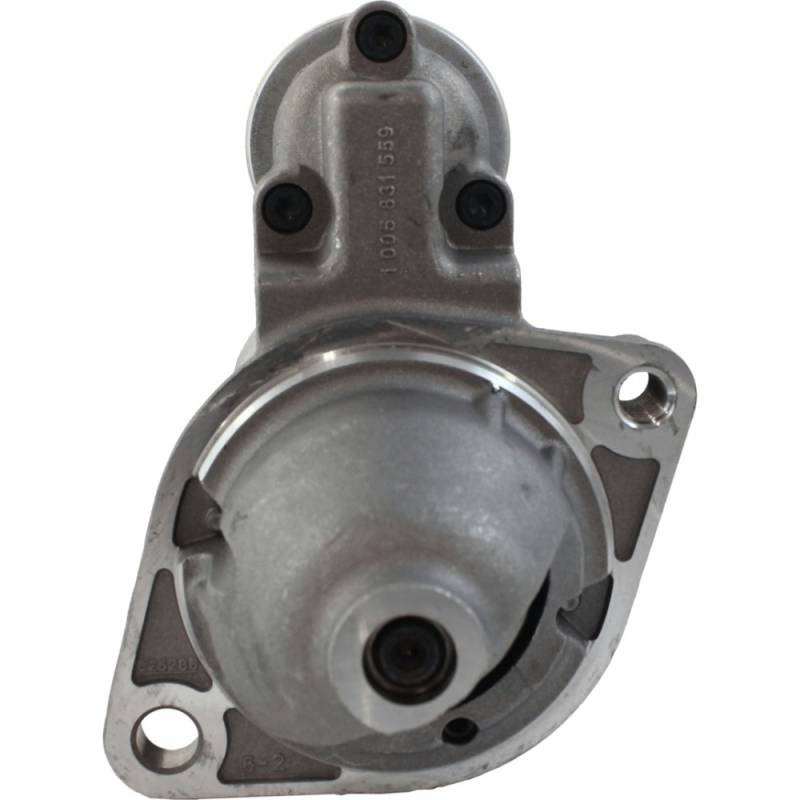

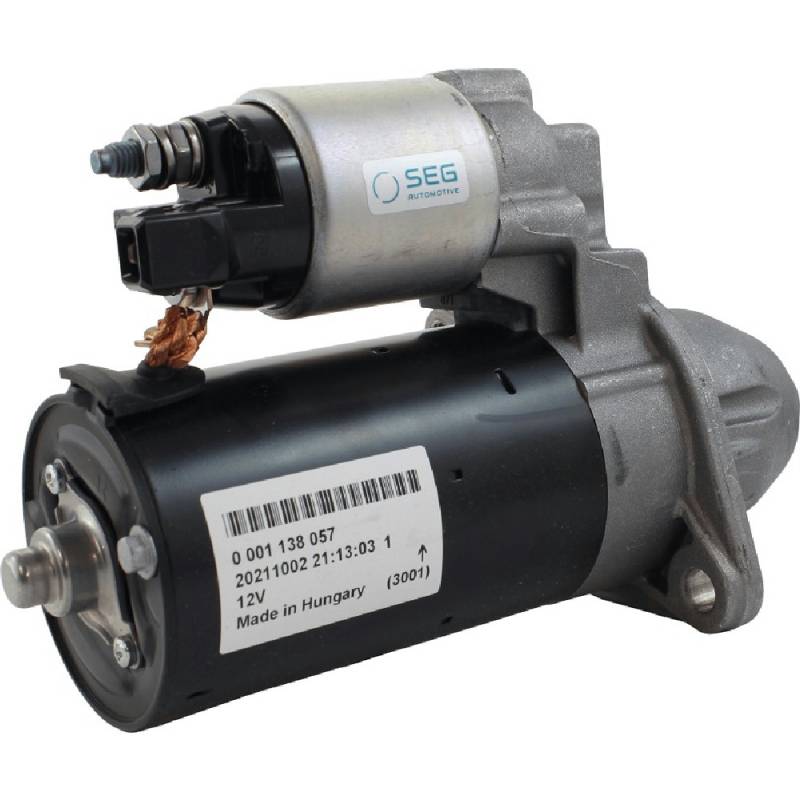

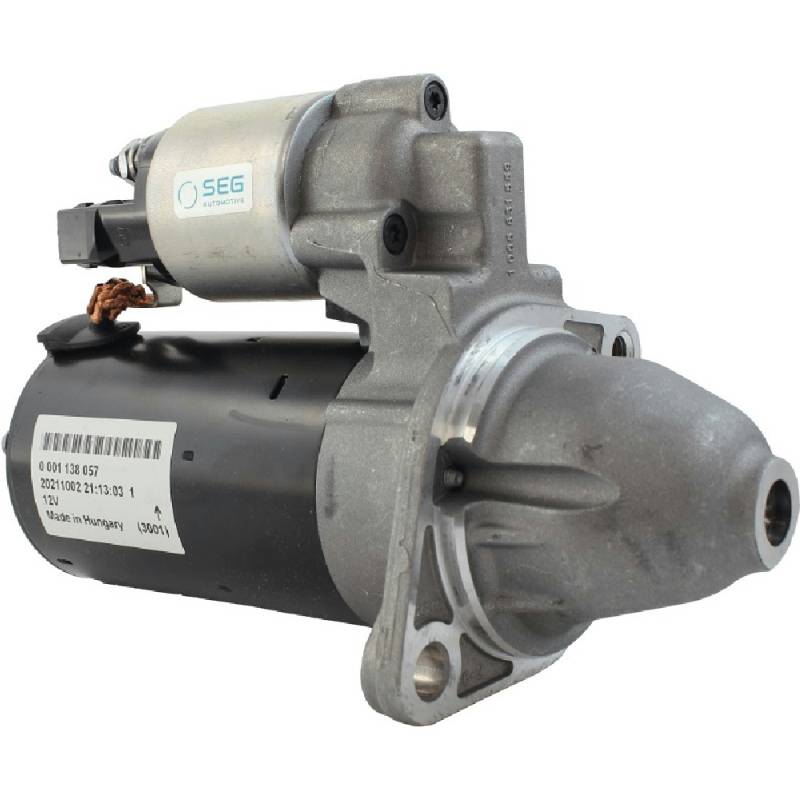

SPECIFICATIONS: • Type: Bosch permanent magnet gear reduction (PMGR), start/stop duty
• Voltage: 12 Volt
• Power: 2.0 kW
• Rotation: Clockwise (CW)
• Pinion: 9 teeth, 28.2 mm (1.11 in) OD
• Length: 166 mm (6.535 in)
• Mounting ear 1: M10-1.5 threaded
• Mounting ear 2: 11 mm unthreaded
• Ear center to center: 105 mm (4.134 in)
• Registry: 76.3 mm (3.004 in)
• Terminals: M8-1.25 B+ and motor studs, spade S terminal
• Weight: 7.82 lb (3.55 kg)
• Condition: New
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
