OEM PART NUMBERS:
• Exmark: 116-1620 (current part number)
• Exmark: 116-1604 (superseded by 116-1620)
• Exmark: 109-9282 (superseded by 116-1604)
• Toro: 116-1620, 116-1604, 109-9282
• Warner: 5218-207 (current)
• Warner: 5218-163 (superseded by 5218-207)
SPECIFICATIONS:

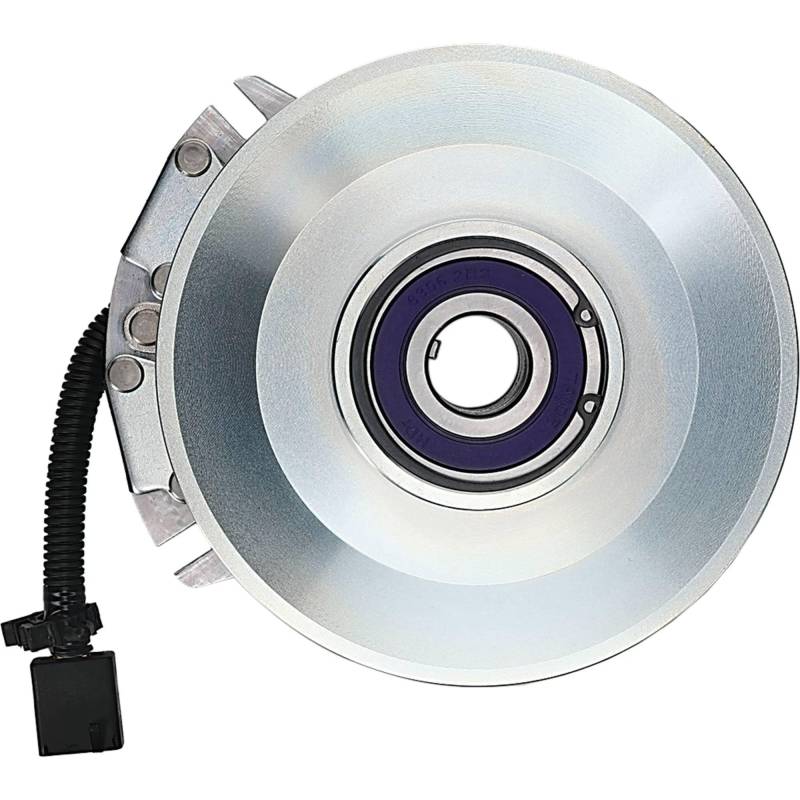

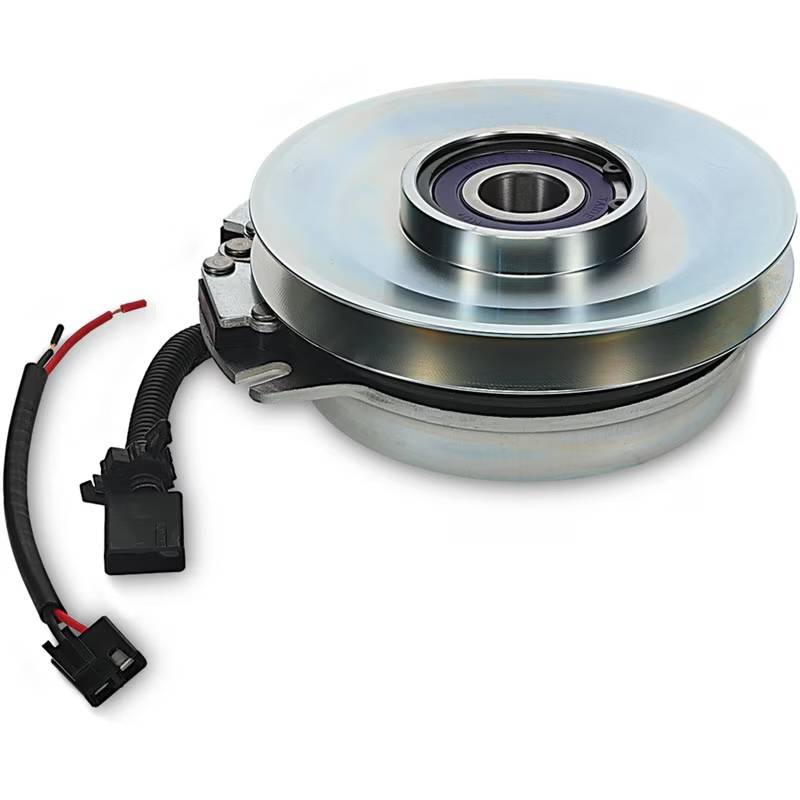

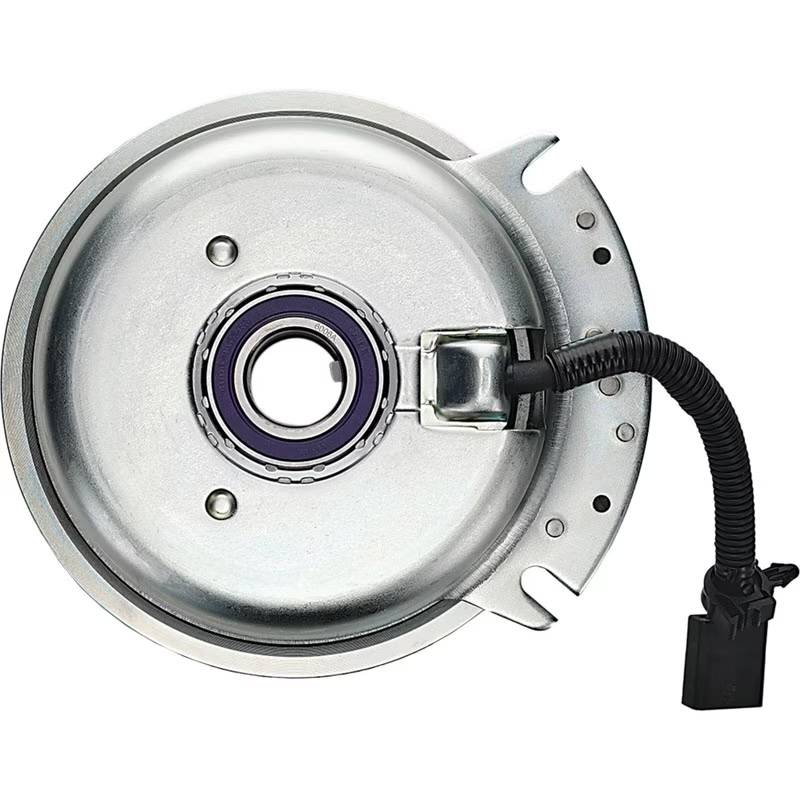

• Type: Electric PTO Clutch
• Crankshaft Diameter: 1.125 in (1-1/8 in)
• Pulley Outside Diameter: 7.4 in
• Rotation: Counterclockwise (CCW)
• Torque: 200 ft-lbs
• Belt Width: 1/2 in or 5/8 in
• Height: 3-1/4 in
• Weight: 12 lbs
FITS EXMARK ZERO TURN MOWERS:
• Lazer Z S-Series, E-Series, X-Series - SN 312,000 and Up
• Lazer Z Z-Series, Lazer Z AS - SN 790,000 and Up
• Next Lazer Z Air Cooled - SN 790,000 and Up
• Next Lazer Z ASX - SN 850,000 and Up
• Quest SP / Quest P-Series - SN 850,000 and Up
• Pioneer S-Series - SN 312,000 and Up
FITS TORO ZERO TURN MOWERS:
• Z Master G3 Turbo Force 48, 52, 60, 72 in - SN 290000001 to 312999999
• Z Master 3000, 4000, 5000, 6000 Series Turbo Force
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
