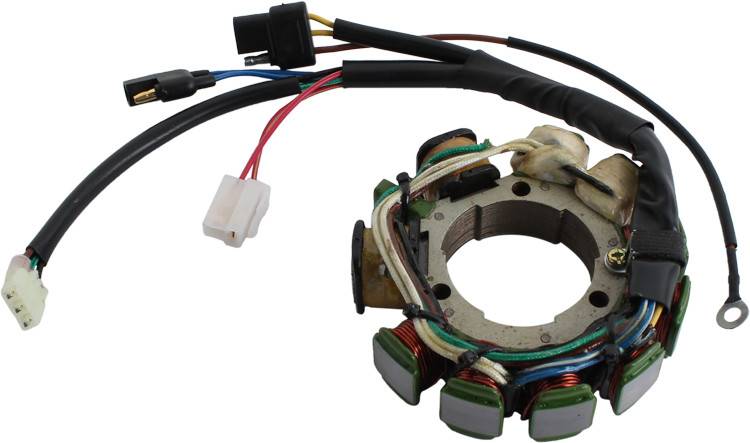

New Snowmobile Stator Coil Compatible With 1997-1999 Arctic

ARCTIC CAT EXT SERIES APPLICATIONS (1998):
• 1998 Arctic Cat EXT 580 EFI LC 580cc 2-Cyl 2-Stroke Liquid-Cooled

ARCTIC CAT PANTERA SERIES APPLICATIONS (1999-2001):
• 1999 Arctic Cat Pantera 580 EFI LC 580cc 2-Cyl 2-Stroke
• 2000 Arctic Cat Pantera 580 EFI LC 580cc 2-Cyl 2-Stroke
• 2001 Arctic Cat Pantera 580 EFI LC 580cc 2-Cyl 2-Stroke

ARCTIC CAT POWDER SPECIAL APPLICATIONS (1997-2000):
• 1997 Arctic Cat Powder Special 580 EFI LC 580cc 2-Cyl 2-Stroke
• 1998 Arctic Cat Powder Special 580 EFI LC 580cc 2-Cyl 2-Stroke
• 1999 Arctic Cat Powder Special 580 EFI LC 580cc 2-Cyl 2-Stroke
• 1999 Arctic Cat Powder Special 500 EFI LC 499cc 2-Cyl 2-Stroke
• 2000 Arctic Cat Powder Special 500 EFI LC 499cc 2-Cyl 2-Stroke
• 1998 Arctic Cat Powder Special 600 EFI LC 599cc 2-Cyl 2-Stroke
• 1999 Arctic Cat Powder Special 600 EFI LC 599cc 2-Cyl 2-Stroke
• 2000 Arctic Cat Powder Special 600 EFI LC 599cc 2-Cyl 2-Stroke
• 1999 Arctic Cat Powder Special 600 LE EFI LC 599cc Limited Edition

ARCTIC CAT ZL SERIES APPLICATIONS (1999-2000):
• 1999 Arctic Cat ZL500 EFI LC 499cc 2-Cyl 2-Stroke
• 2000 Arctic Cat ZL500 EFI LC 499cc 2-Cyl 2-Stroke
• 2000 Arctic Cat ZL580 EFI LC 580cc 2-Cyl 2-Stroke
• 1999 Arctic Cat ZL600 EFI LC 599cc 2-Cyl 2-Stroke

ARCTIC CAT ZR SERIES APPLICATIONS (1997-1999):
• 1997 Arctic Cat ZR580 EFI LC 580cc 2-Cyl 2-Stroke
• 1999 Arctic Cat ZR500 EFI LC 499cc 2-Cyl 2-Stroke
• 2000 Arctic Cat ZR500 EFI LC 499cc 2-Cyl 2-Stroke
• 1998 Arctic Cat ZR600 EFI LC 599cc 2-Cyl 2-Stroke
• 1999 Arctic Cat ZR600 EFI LC 599cc 2-Cyl 2-Stroke
• 1998 Arctic Cat ZR600 EFI LE 599cc Limited Edition

ENGINE COMPATIBILITY:
• Arctic Cat / Suzuki 499cc 2-Cyl 2-Stroke Liquid-Cooled EFI (500-Class)
• Arctic Cat / Suzuki 580cc 2-Cyl 2-Stroke Liquid-Cooled EFI (580-Class)
• Arctic Cat / Suzuki 599cc 2-Cyl 2-Stroke Liquid-Cooled EFI (600-Class)
• All EFI (Electronic Fuel Injection)
• All LC (Liquid-Cooled)
• All Parallel-Twin 2-Stroke Architecture
• Suzuki-Built Engines for Arctic Cat

OEM ARCTIC CAT / ARCTCO PART NUMBERS:
• Arctco OEM: 3005-080 / 3005080

INDUSTRY CROSS-REFERENCES:
• Industry: AAC4001
• Industry: 24-001 / 24001
• Industry: 44-10903
• Other Names: Stator Coil
• Other Names: Ignition Stator
• Other Names: Magneto Stator
• Other Names: Generator Stator
• Other Names: Snowmobile Stator
• Other Names: Arctic Cat Stator
• Other Names: EFI LC Stator
• Other Names: Stator Plate Magneto

PRODUCT SPECIFICATIONS:
• Product Type: Stator Coil / Ignition Stator
• Unit Type: Arctco / Arctic Cat Charging System
• Application: Snowmobile Ignition / Charging
• Material: Copper Windings (High-Grade)
• Core Architecture: Aeronautic-Grade Components
• Electromagnetic Flow: Large / High-Performance
• Heat Management: Reduced Thermal Generation
• Weight: 4 lbs (1.81 kg)
• Function: Generates AC Current for Charging System
• Function: Provides Ignition Signal
• Integration: Works with CDI Module
• Condition: New Aftermarket
• Quantity: Sold Individually (1 Piece)
• Fit: Direct Fit OEM Replacement
• Installation: Stock Mounting Locations
• Recommended Use: OE Replacement
• Compliance: OEM-Spec Certified
• Designed For: Handling Increased Power Loads

INCLUDES:
• One (1) Stator Coil Assembly
• Rubber Grommet
• Pickup Pulser Coil
• All Necessary Components for Professional Installation

PLATFORM CONTEXT — ARCTIC CAT EFI LC ERA:
• Late 1990s Arctic Cat Snowmobile Platform
• EFI = Electronic Fuel Injection
• LC = Liquid-Cooled
• Arctic Cat's Premium Performance Era
• Uses Suzuki-Built 2-Stroke Parallel-Twin Engines
• ZR = Performance Sport Sled
• ZL = Mid-Performance Sport Sled
• EXT = Trail/Utility
• Pantera = Touring
• Powder Special = Mountain / Deep-Snow Specialty
• LE = Limited Edition (Premium Trim)

CRITICAL FITMENT NOTES:
• For EFI (Electronic Fuel Injection) Models ONLY
• For LC (Liquid-Cooled) Models ONLY
• Does NOT Fit Carbureted Arctic Cat Models
• Does NOT Fit Fan-Cooled Arctic Cat Models
• Does NOT Fit Bearcat / Panther / Jag Models
• Does NOT Fit Mountain Cat / King Cat (Different Stator)
• Does NOT Fit Post-2002 Arctic Cat Models
• Does NOT Fit Pre-1997 Arctic Cat Models
• Verify Arctco OEM Part Number Before Ordering

INSTALLATION NOTES:
• Fully Charge Battery Before Installation
• Have Battery Load Tested if Uncertain
• Use Locking Compound on Mounting Bolts
• Apply Hi-Temp Dielectric Grease on Connectors
• Check AC Output Before Finalizing Installation
• Inspect Pickup Coil Air Gap (≤0.010")
• Verify Flywheel Magnets Not Damaged

SYMPTOMS OF FAILED STATOR:
• Engine Will Not Start / No Spark
• Weak Spark / Intermittent Start
• Battery Not Charging / Dead Battery
• Engine Stalls at High RPM
• Electrical Accessories Not Working
• No AC Output from Stator
• Burnt Smell from Alternator/Stator Area
• Melted or Discolored Windings
• Shorted Winding (Continuity to Ground)
