HYUNDAI:
• HYUNDAI TRUCK TUCSON L4 2.0L 1999CC 2014-2015
KIA:
• KIA FORTE L4 1.8L 1797CC 2014-2015
• KIA FORTE L4 2.0L 1999CC 122CID 2014-2015
• KIA FORTE KOUP L4 2.0L 1999CC 122CID 2014
• KIA SOUL L4 2.0L 1999CC 122CID VIN 5 2014-2016
• Kia Forte 1.8L L4 without engine stop-start (ISG), built from 05/12/2014
• Kia Forte 2.0L L4, built from 05/12/2014
• Kia Soul 2.0L L4 without engine stop-start (ISG), built to 08/2015

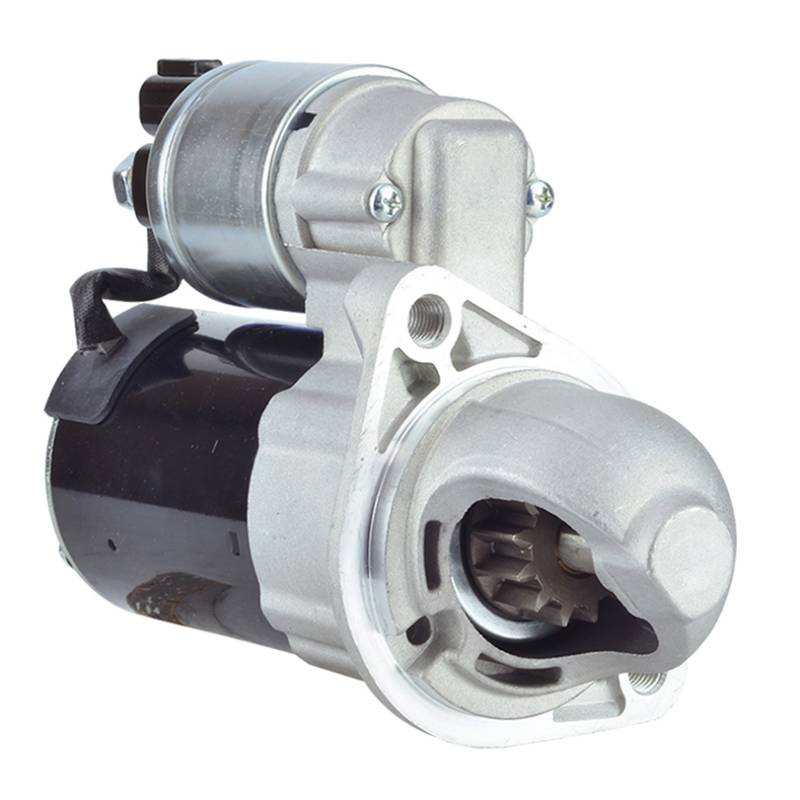

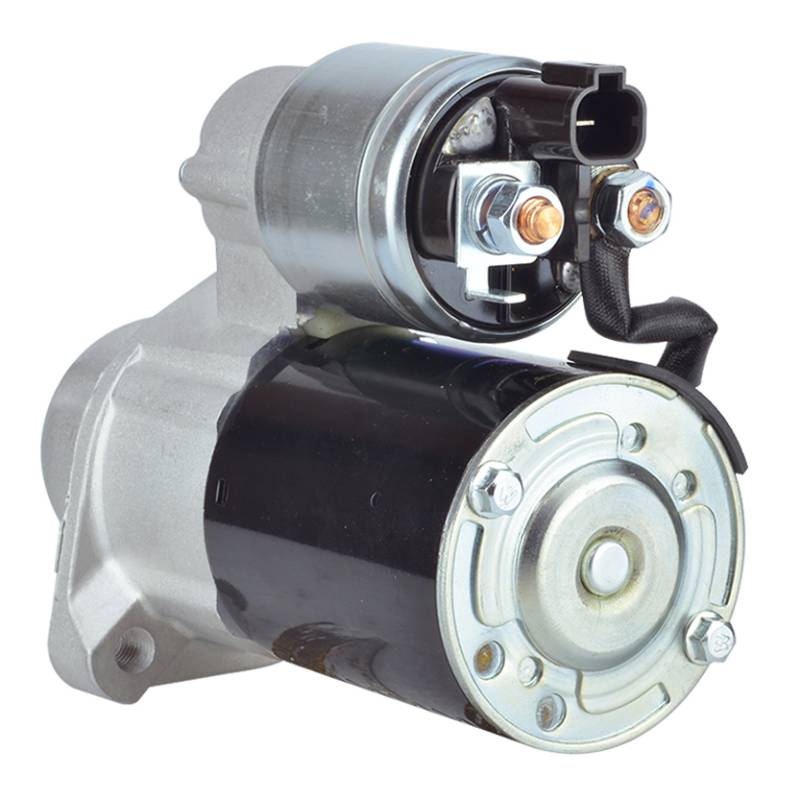

SPECIFICATIONS:
• Voltage: 12V
• Type: PMGR, permanent magnet gear reduction, Valeo design
• Rotation: CW, clockwise
• Teeth: 13 tooth pinion
• Power: 1.3kW / 1.74HP
• Length: 7.02in / 178.3mm
• Mounting ear holes: M10-1.25 threaded (2)
• Mounting ear center to center: 3.732in / 94.8mm
• Registry OD: 2.827in / 71.8mm
• Terminals: M8-1.25 B+ and motor studs, spade S terminal encased in plastic housing
• Weight: 6.64 lbs / 3.02 kg
• Condition: New aftermarket, not a Hyundai, Kia or Valeo branded unit
• ⚠️ 12 volt, clockwise, 13 tooth permanent magnet gear reduction starter. 36100-2E120 is the 11 tooth starter on Kia Forte cars built before 05/12/2014, and 36100-2E200 is the later starter (Kia Soul built from 08/2015). Cars with engine stop-start (ISG) use a different starter. Count the pinion teeth and match the number on your old starter before ordering.
