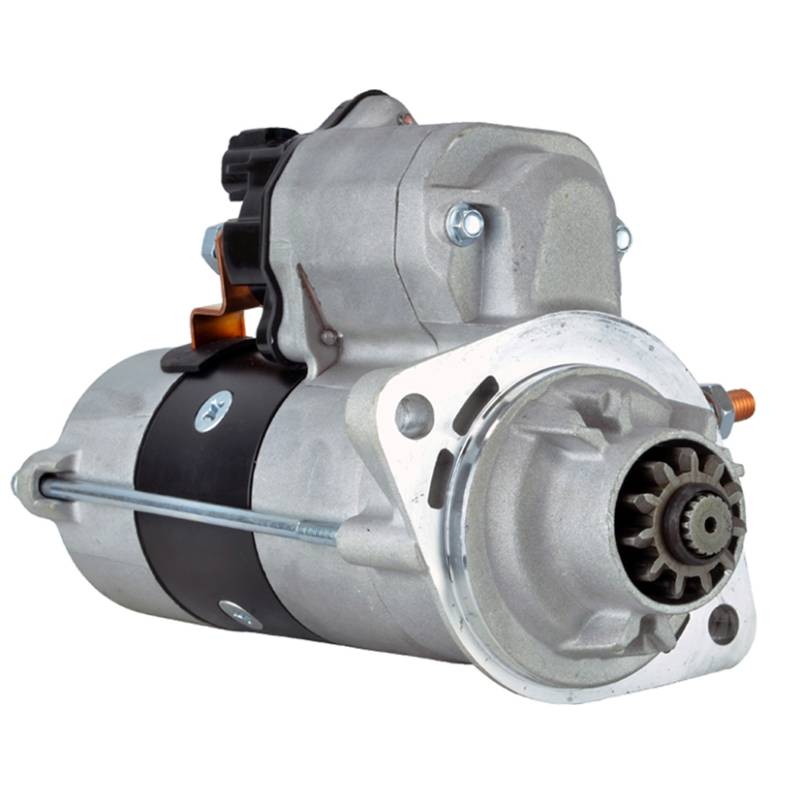

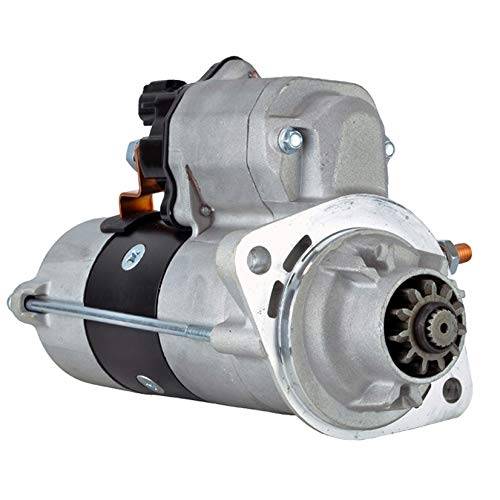

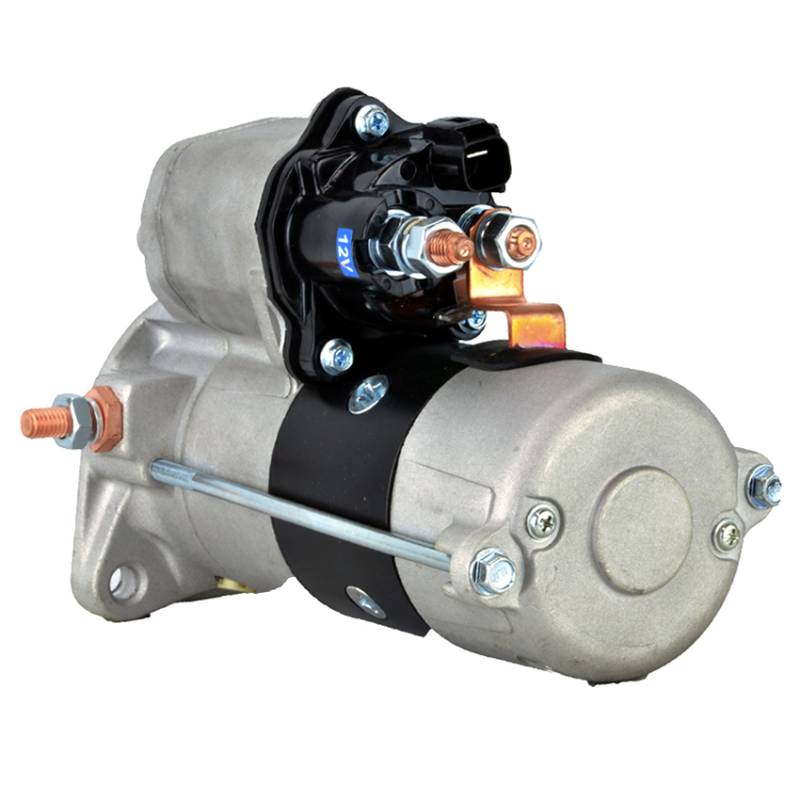

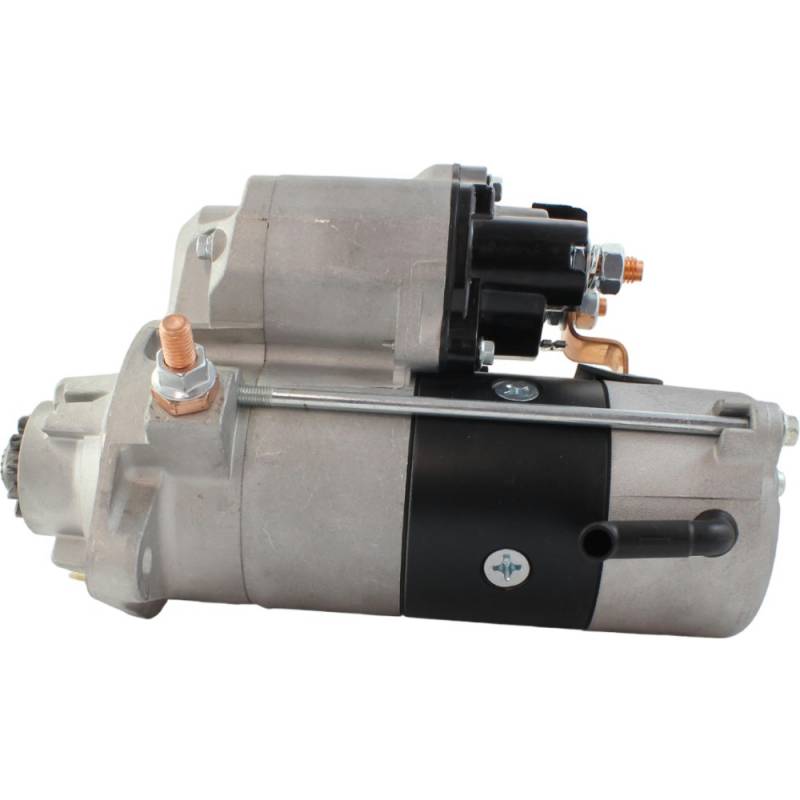

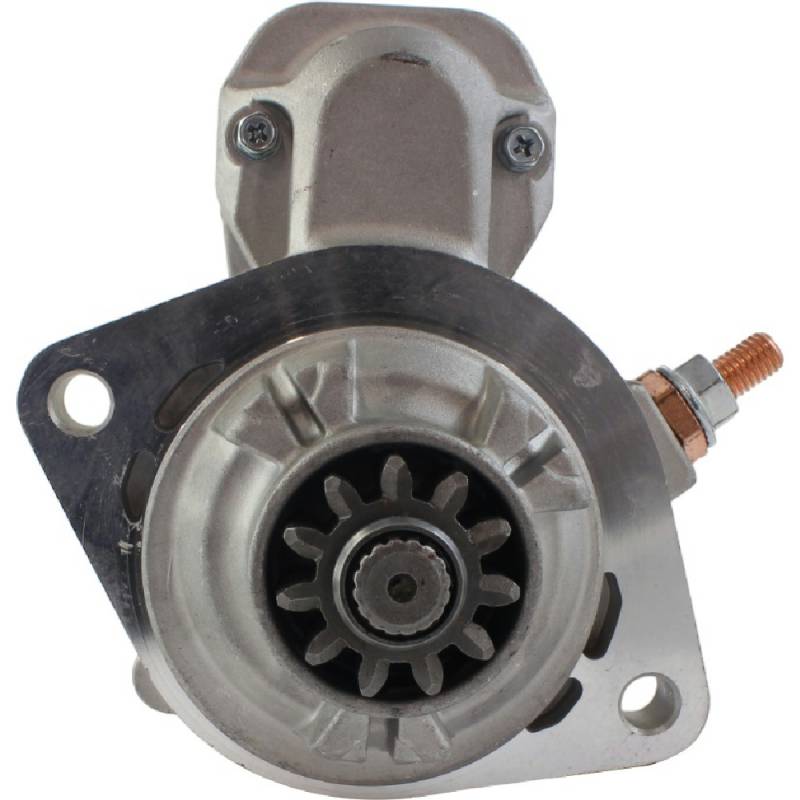

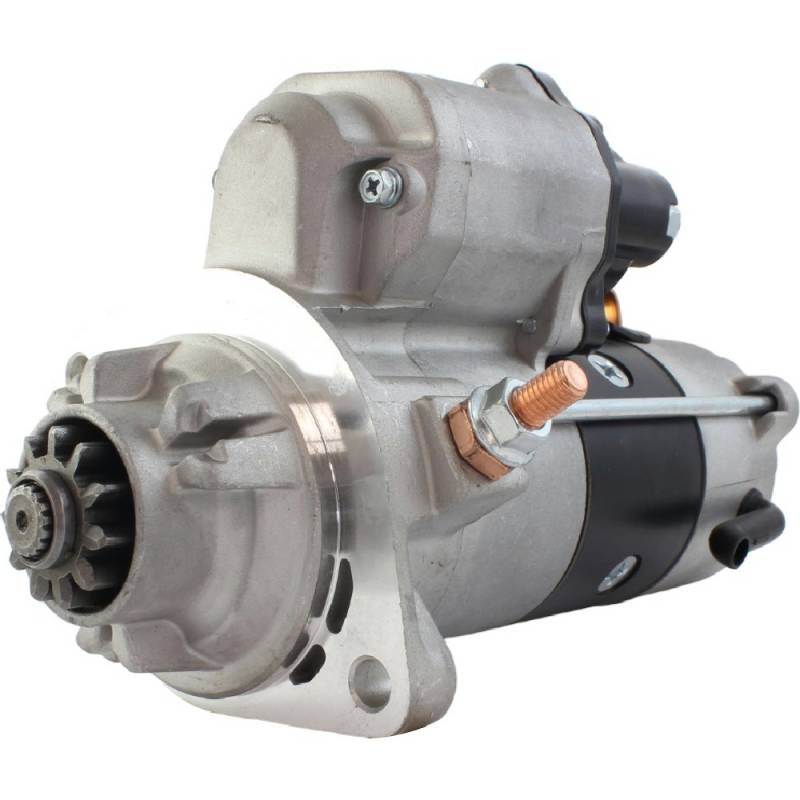

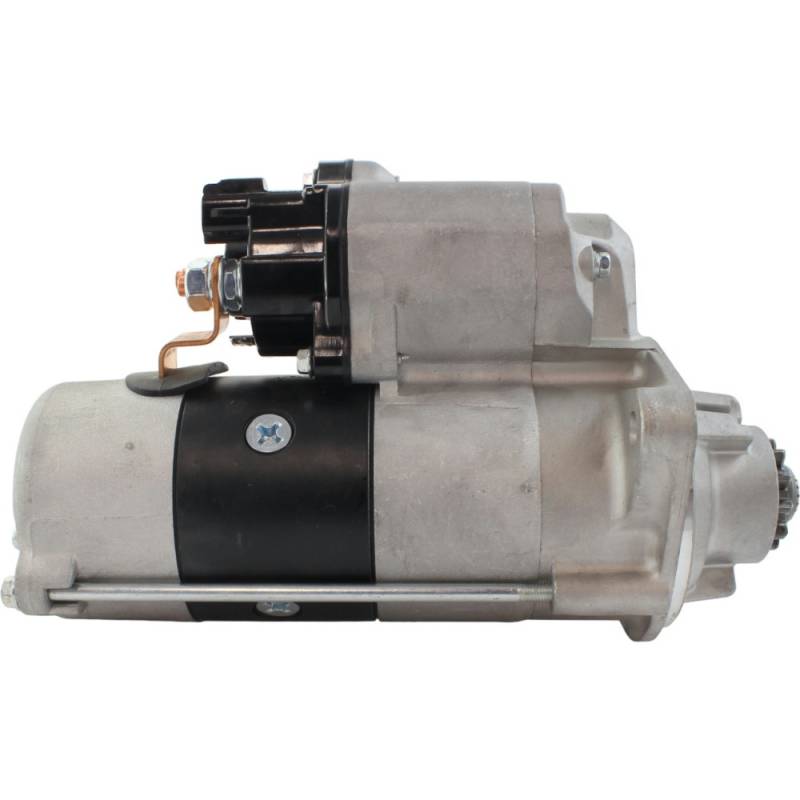

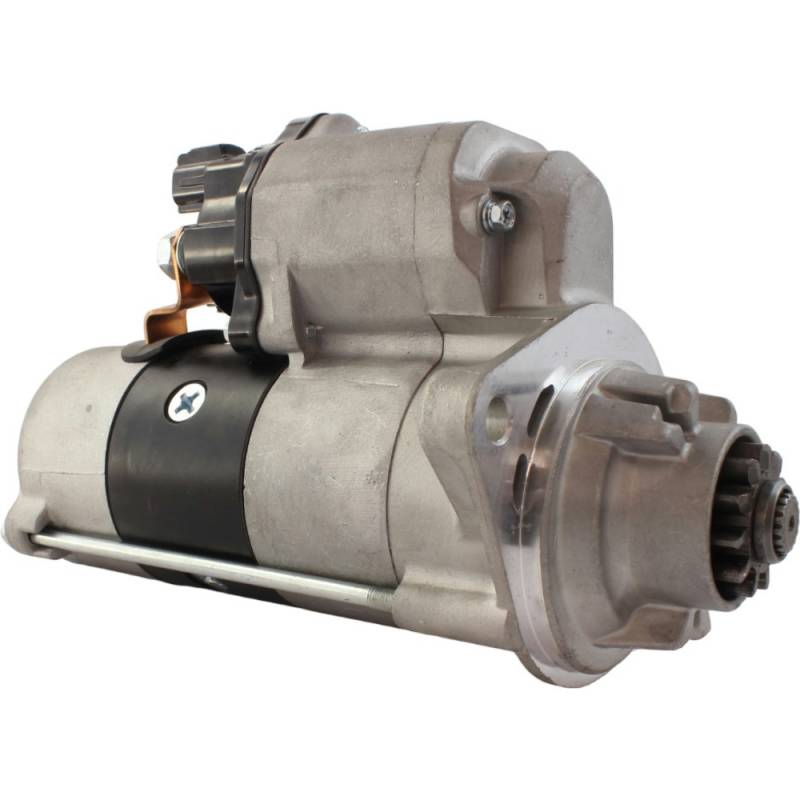

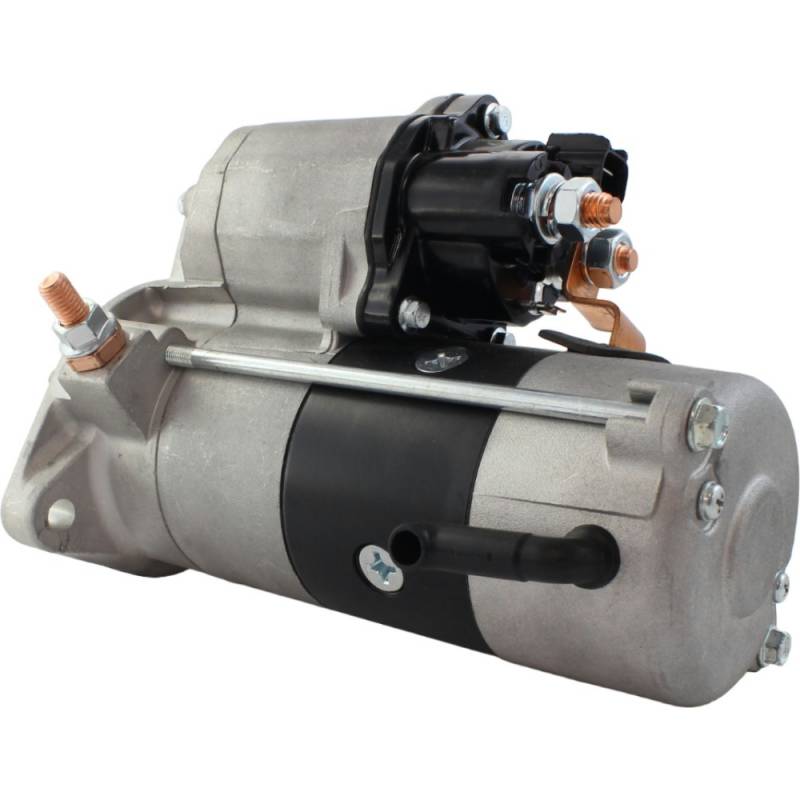

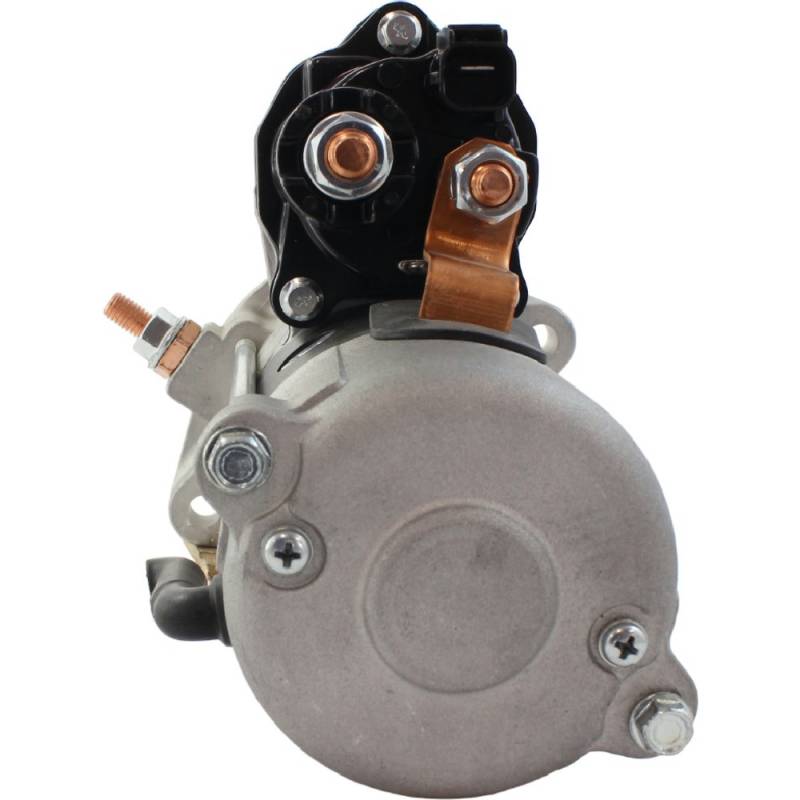

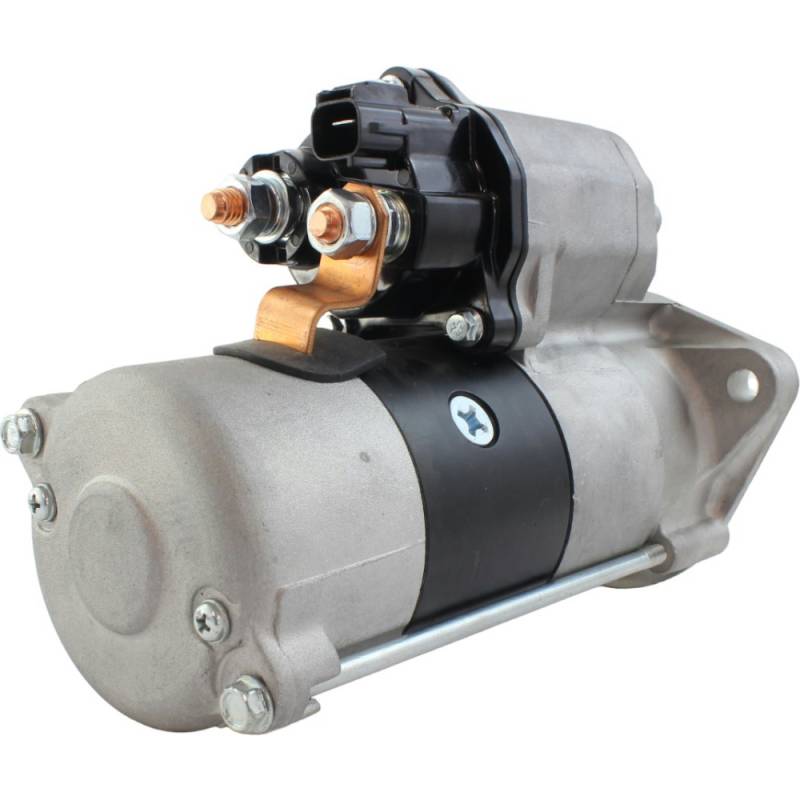

New Cw 12V Starter Fits Thomas Built Bus 6.7L 2007-2009 428000-5310 4280009340

19335N*1
DENSO PART NUMBERS:
• 428000-5310, 4280005310
• 428000-5311, 4280005311
• 428000-5312, 4280005312
• 428000-9340, 4280009340
• 428000-9341, 4280009341

FREIGHTLINER / THOMAS BUILT BUSES (DAIMLER TRUCKS NORTH AMERICA) PART NUMBERS:
• NPD 428000 5310, NPD428000-5310
• NPD428000-9340, NPD4280009340

SPECIFICATIONS:
• Family: Denso PA90S
• Type: planetary gear reduction (PLGR)
• Voltage: 12 Volt
• Power: 3.0 kW (4.02 HP)
• Rotation: Clockwise (CW)
• Pinion: 11 teeth, 40 mm (1.575 in) OD
• Mounting ears: 2, unthreaded, 11 mm
• Ear center to center: 126.2 mm (4.969 in)
• Registry OD: 88.9 mm (3.5 in)
• Length: 278 mm (10.945 in)
• Weight: 16.47 lb (7.48 kg)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $447.07
Sale: $255.47
Save: 43%
Save: $191.60
Qty:
Free Shipping!

Description

⚠️ 12 VOLT 3.0 KW 11 TOOTH CW DENSO PA90S PLGR STARTER:
• 12V, 3.0 kW (4.02 HP), clockwise, Denso PA90S planetary gear reduction (PLGR)
• 11 tooth pinion, 40 mm (1.575 in) gear OD
• Two unthreaded 11 mm mounting ears, 126.2 mm (4.969 in) center to center, 88.9 mm (3.5 in) registry
• 278 mm (10.945 in) long, 16.47 lb (7.48 kg)
• Cummins ISB 6.7L and ISL 8.9L two ear mount; 24 volt and 13 tooth ISB starters are different units

THOMAS BUILT BUSES:
• Thomas Built Buses, various models with the Cummins ISB 07 6.7L 2007-2016

FREIGHTLINER:
• Freightliner M2 106 with the Cummins ISB 6.7L 2010-2013
• Freightliner M2 106 with the Cummins ISL 8.9L 2010-2013
• Freightliner M2 112 with the Cummins ISL 8.9L 2010-2013
• Freightliner 108SD with the Cummins ISB 6.7L 2010-2013
• Freightliner 108SD with the Cummins ISL 8.9L 2010-2013
• Freightliner 114SD with the Cummins ISL 8.9L 2010-2013

CAPACITY YARD TRUCKS:
• Capacity TJ5000 with the Cummins ISB 07 6.7L diesel 2007-2009
• Capacity TJ6500 with the Cummins ISB 6.7L diesel 2011-2016
• Capacity TJ7000 with the Cummins ISB 6.7L diesel 2013-2014
