OEM PART NUMBERS:
• Denso: 228000-5851, TG228000-5851
• Denso: 280-8019, 9722809-585
• Caterpillar: 0R9226
• Navistar: 2585347C91
SPECIFICATIONS:
• Voltage: 12V
• Type: OSGR (Off Set Gear Reduction)
• Power: 4 kW / 5.36 HP
• Rotation: CW (Clockwise)
• Tooth Count: 10
• Gear OD: 38.7mm / 1.524in
• Mounting Ear 1: 10.0mm ID Unthreaded
• Mounting Ear 2: 10.0mm ID Unthreaded
• Weight: 26.12 lbs / 11.87 kg
• Condition: New
APPLICATION:
• Western Star Trucks Cat 3126 (2000-2003)
• Cross-references to Sterling, Ford, Bluebird, Thomas Built Cat 3116/3126 applications

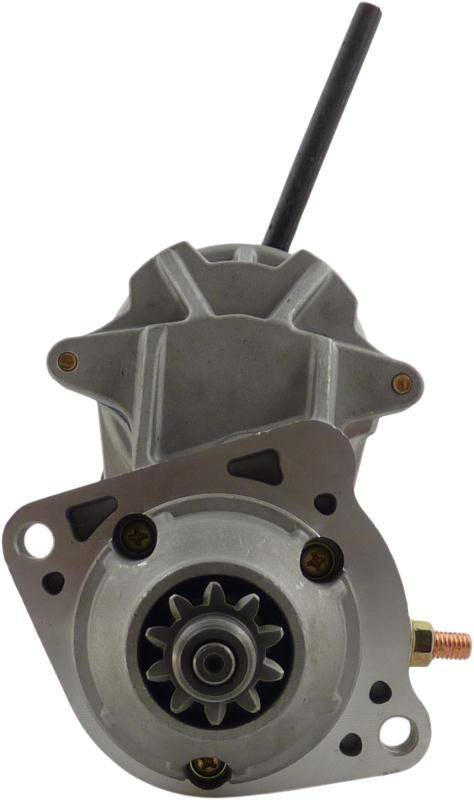

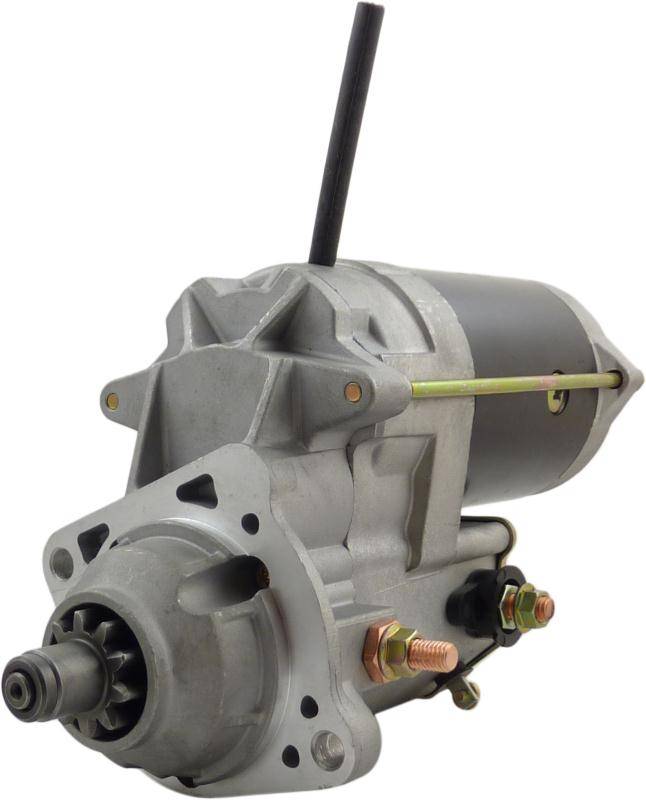

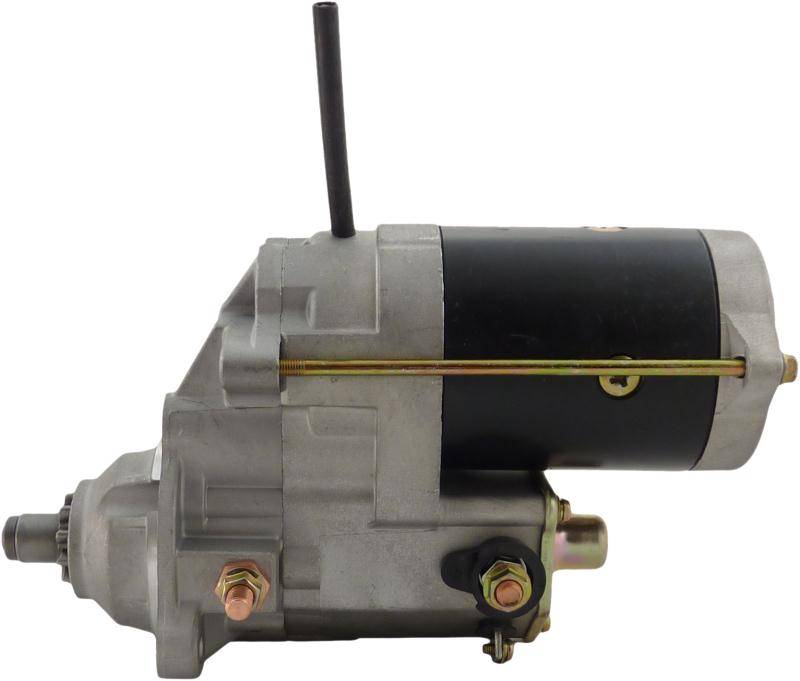

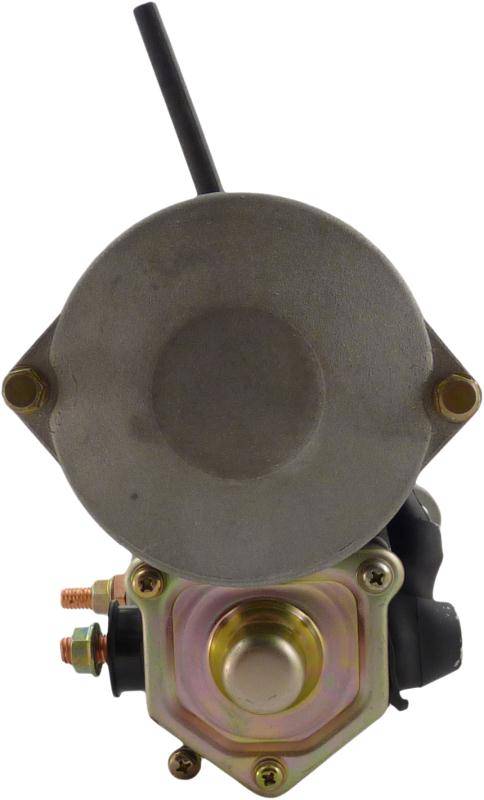

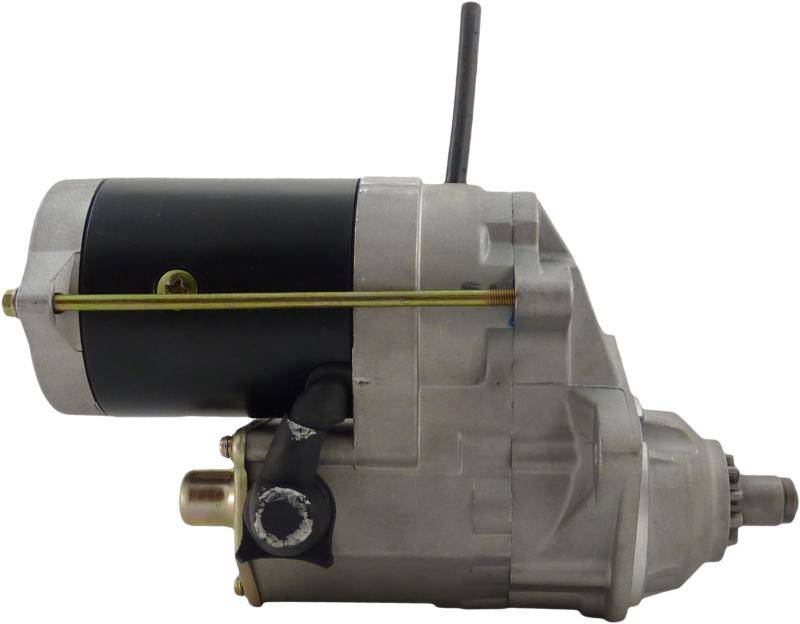

12V Starter Motor — Western Star Trucks Caterpillar 3126
OSGR starter motor designed for Western Star heavy duty trucks with Caterpillar 3126 diesel engines from 2000-2003. This 12-volt Denso-type unit delivers 4 kW of cranking power through a 10-tooth pinion gear with clockwise rotation. The off set gear reduction design provides superior cranking torque for reliable cold-weather starting on heavy duty diesel applications. Features dual 10.0mm unthreaded mounting ears for direct bolt-on replacement. Robust construction at 26.12 lbs for demanding commercial truck service. Also cross-references to applications in Sterling trucks, Ford medium/heavy duty trucks, Bluebird buses, and Thomas Built buses with Caterpillar 3116/3126 engines. Replaces Denso 228000-5851, TG228000-5851, and Caterpillar 0R9226.
