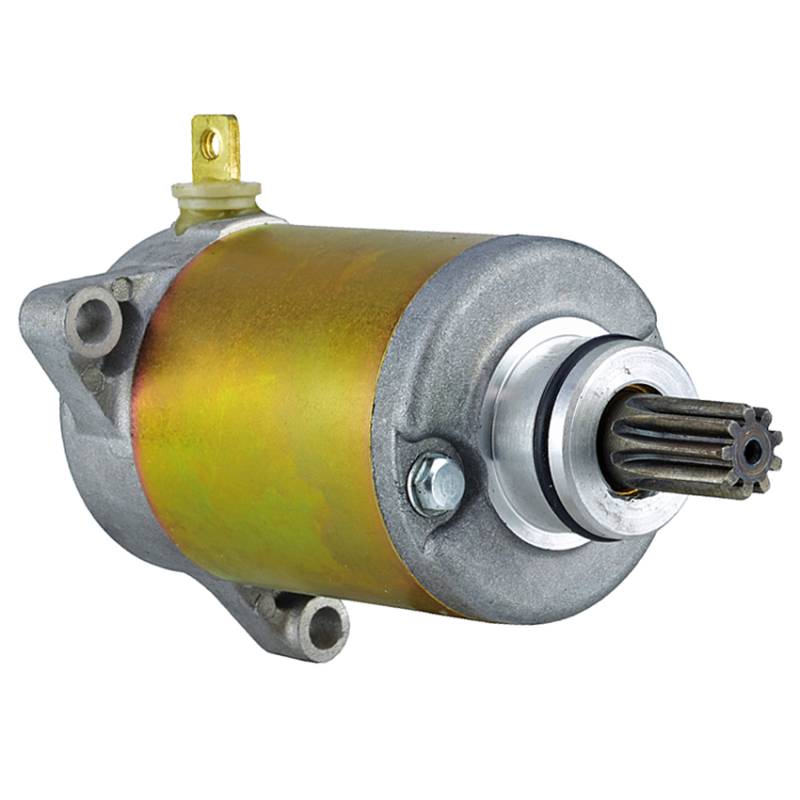

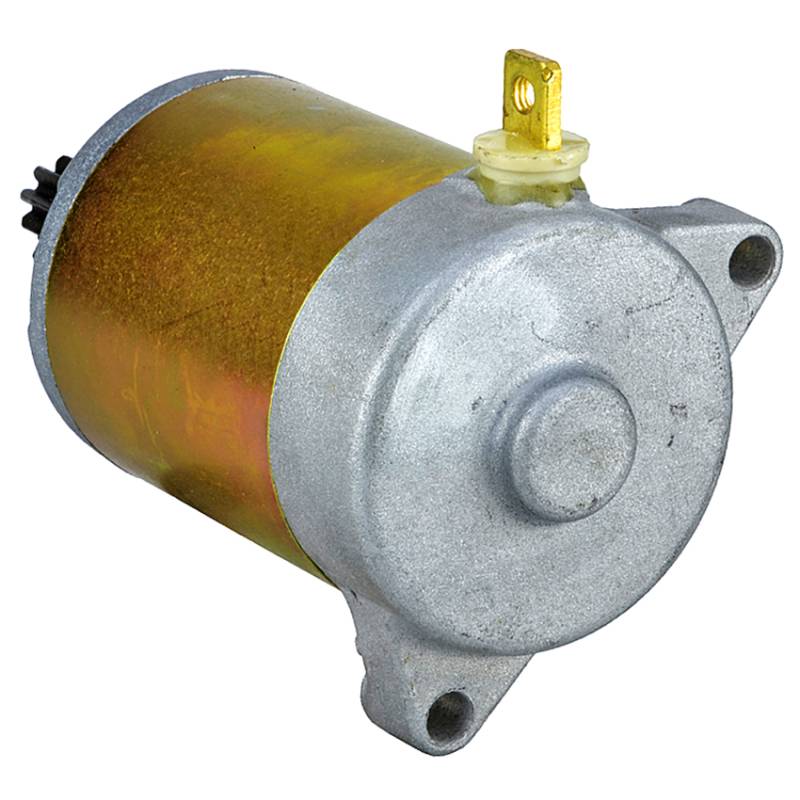

New 12V Pmdd Starter Motor Compatible With 1995-2000 Suzuki An125 124Cc An150 150Cc Vecstar Scooter

30464N*1
OEM PART NUMBERS:
• Suzuki: 31100-20E00 / 3110020E00
• Denso: 228000-3450 / 2280003450

SPECIFICATIONS:
• Type: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Rotation: CCW (Counter-Clockwise)
• Teeth: 9
• Gear OD: 0.559in / 14.2mm
• Length: 5.366in / 136.3mm
• Registry OD: 1.142in / 29mm
• Mounting: Dual 7mm Unthreaded Ears
• Mounting Ear C-to-C: 2.835in / 72mm
• B+ Terminal: Spade Type with M5-0.8 Threaded Hole
• Weight: 2.12 lbs / 0.97 kg
• Condition: New

SCOOTER APPLICATIONS:
• Suzuki AN125 Vecstar 125 (CF42A) 124cc (1995-2000)
• Suzuki AN150 Vecstar 150 (CG41A) 150cc (1995-2000)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $119.91
Sale: $68.52
Save: 43%
Save: $51.39
Qty:
Free Shipping!

Description

SUZUKI AN125 / VECSTAR 125 SCOOTER (CF42A):
• AN125 Vecstar 125 (CF42A) 124cc Air-Cooled Single-Cylinder 4-Stroke SOHC 2-Valve CVT (1995-2000)

SUZUKI AN150 / VECSTAR 150 SCOOTER (CG41A):
• AN150 Vecstar 150 (CG41A) 150cc Air-Cooled Single-Cylinder 4-Stroke SOHC 2-Valve CVT (1995-2000)

ENGINE SPECIFICATIONS:
• AN125: 124cc Air-Cooled Single-Cylinder 4-Stroke SOHC 2-Valve
• AN150: 150cc Air-Cooled Single-Cylinder 4-Stroke SOHC 2-Valve
• Transmission: CVT Automatic / V-Belt Final Drive
• Electric Start / Fuel Tank: 8 Liters

MODEL DETAILS:
• AN125 Vecstar 125 — Model Code CF42A
• AN150 Vecstar 150 — Model Code CG41A
• Vecstar 125 launched July 1994 / Vecstar 150 launched October 1994
• Primarily European and Japanese market scooters
• Full bodywork, large headlight, storage compartments
• 8-liter fuel tank with external filler lid

NOTES:
• AN125/AN150 are NOT the same as the later Burgman 125 (UH125)
• The UH125 Burgman (2002+) is a different liquid-cooled maxi-scooter
• The AN125/AN150 Vecstar series shares no lineage with the Burgman family
