BELARUS (MTZ) PART NUMBERS: • 20073708000, 2007.3708.000, 2007 3708 000
• 20063708, 2006.3708
LETRIKA (ISKRA) PART NUMBERS: • 11.131.006, 11131006
• AZJ3353, AZJ-3353
• IS1002, IS-1002
• 11.130.676, 11130676 (earlier number)
• AZJ3223 (earlier number)
MAHLE PART NUMBERS: • MS360, MS 360, MS-360
• MS0360, MS 0360
LUCAS PART NUMBERS: • LRS01945, LRS1945
WILSON PART NUMBERS: • 91-23-6506, 91236506

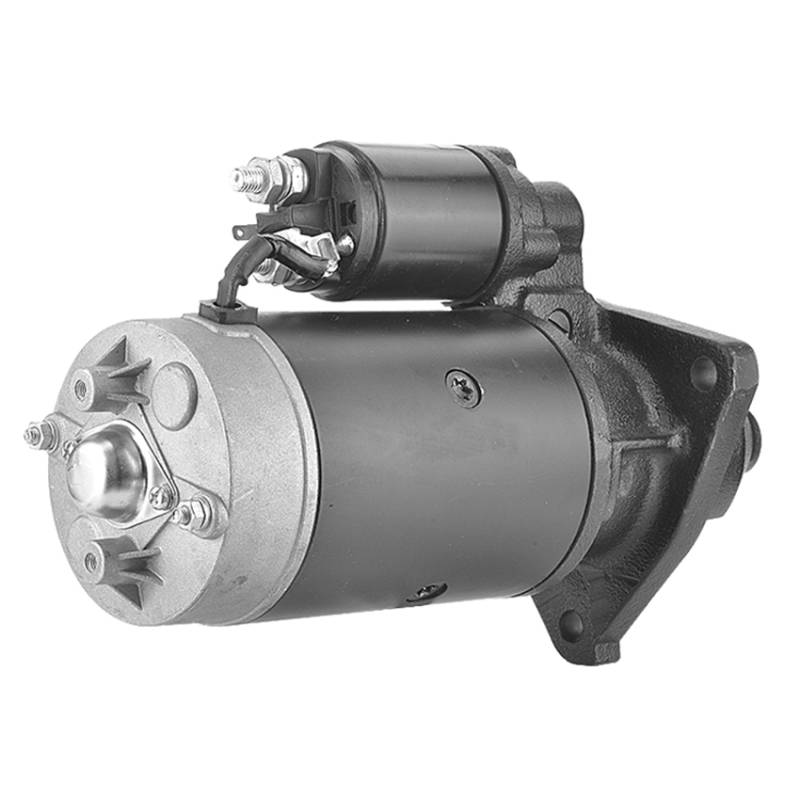

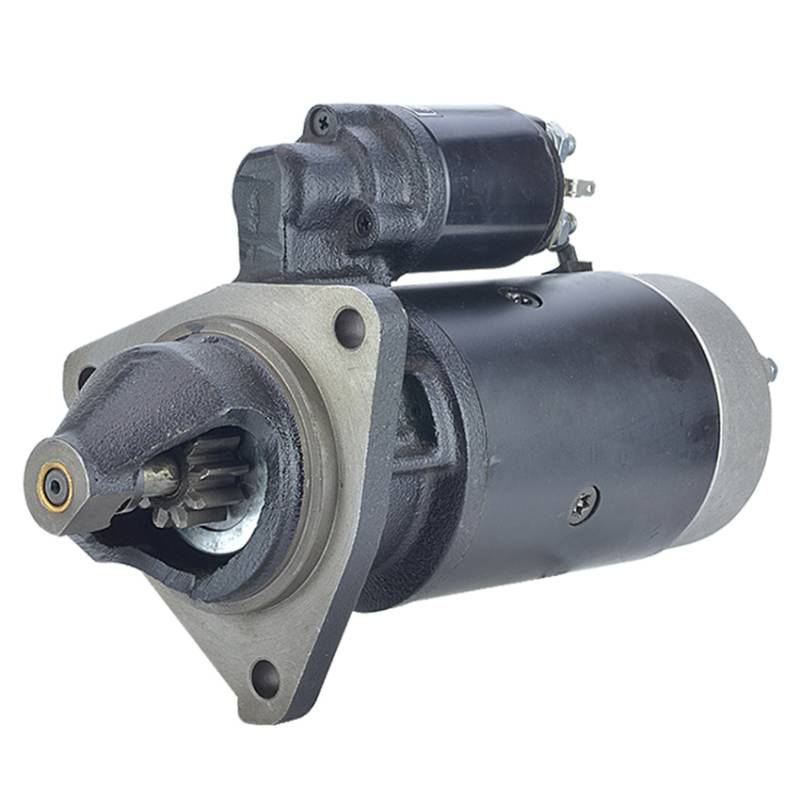

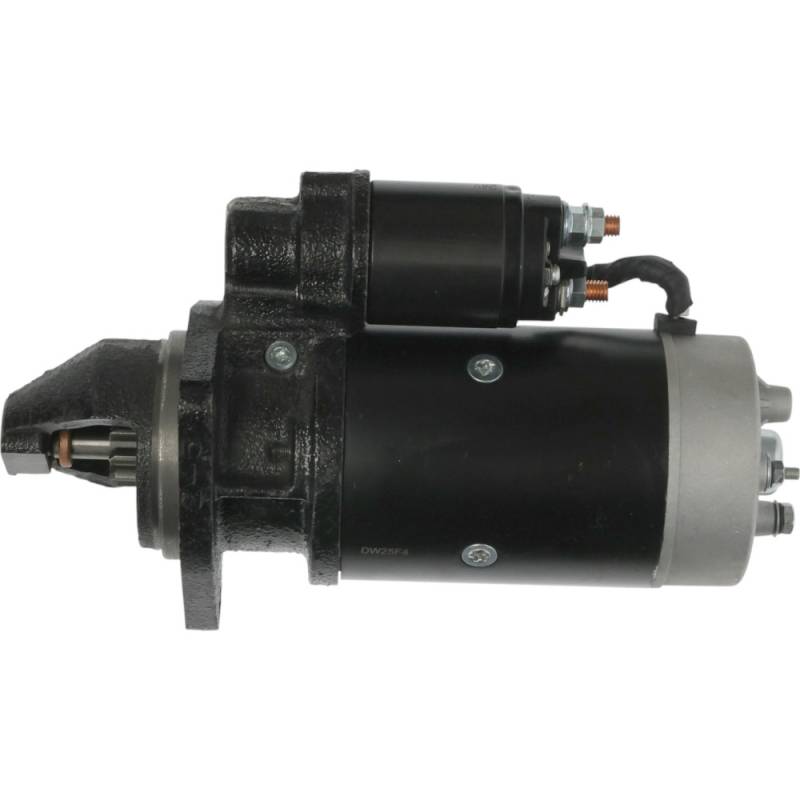

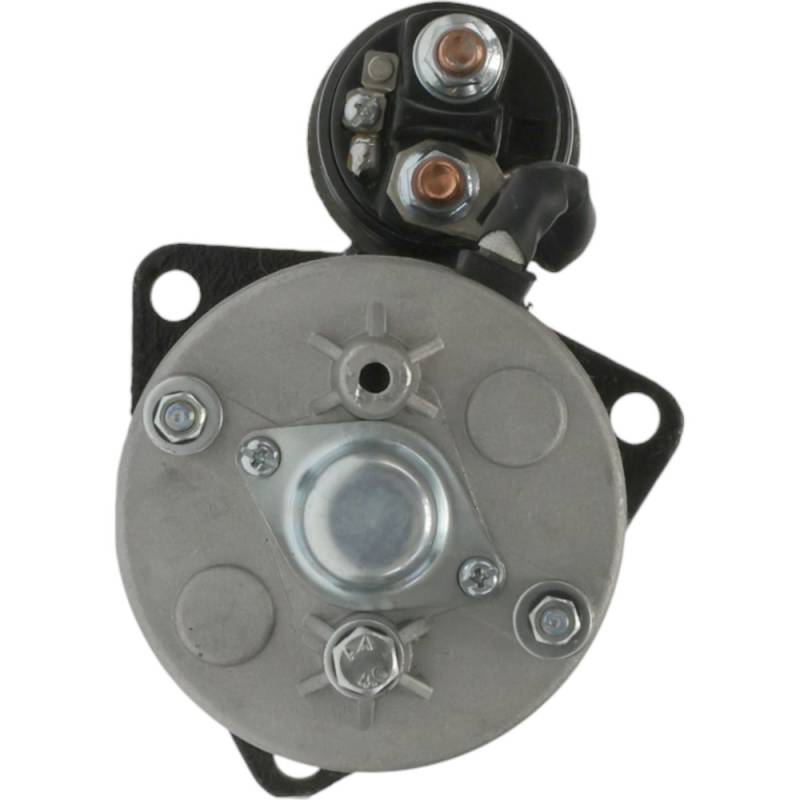

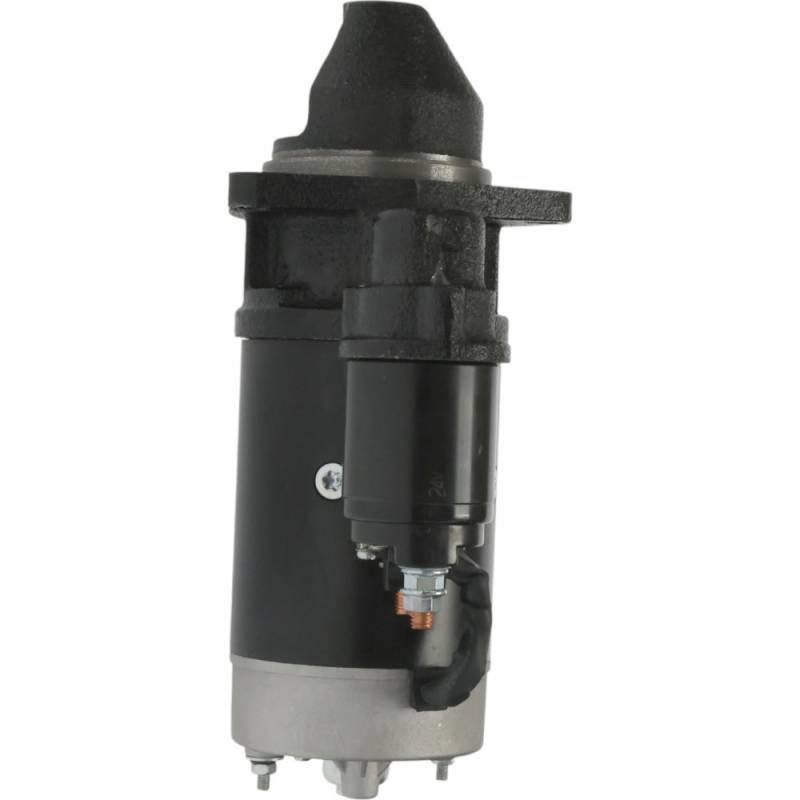

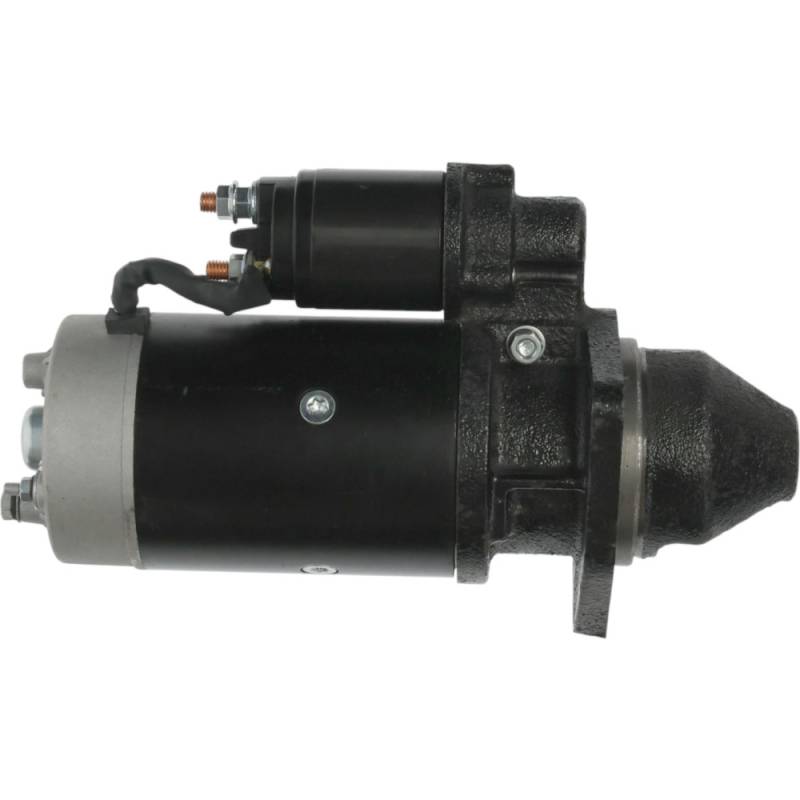

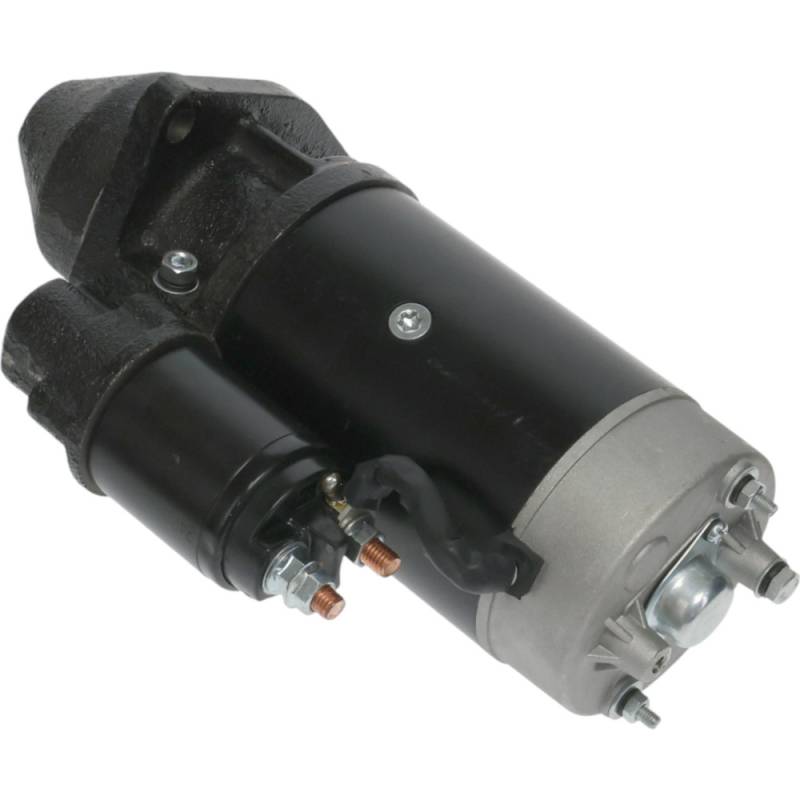

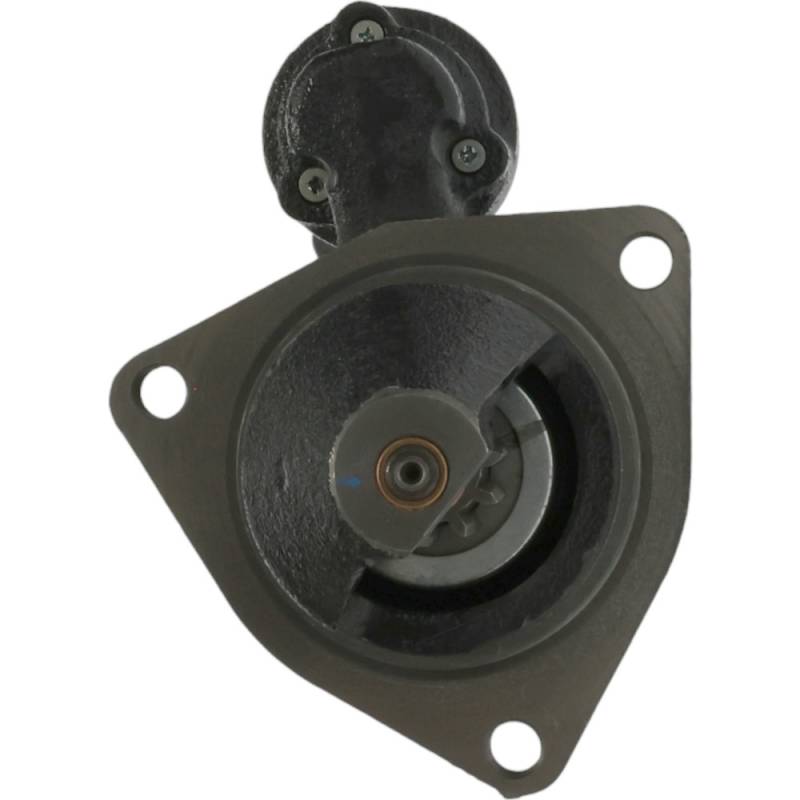

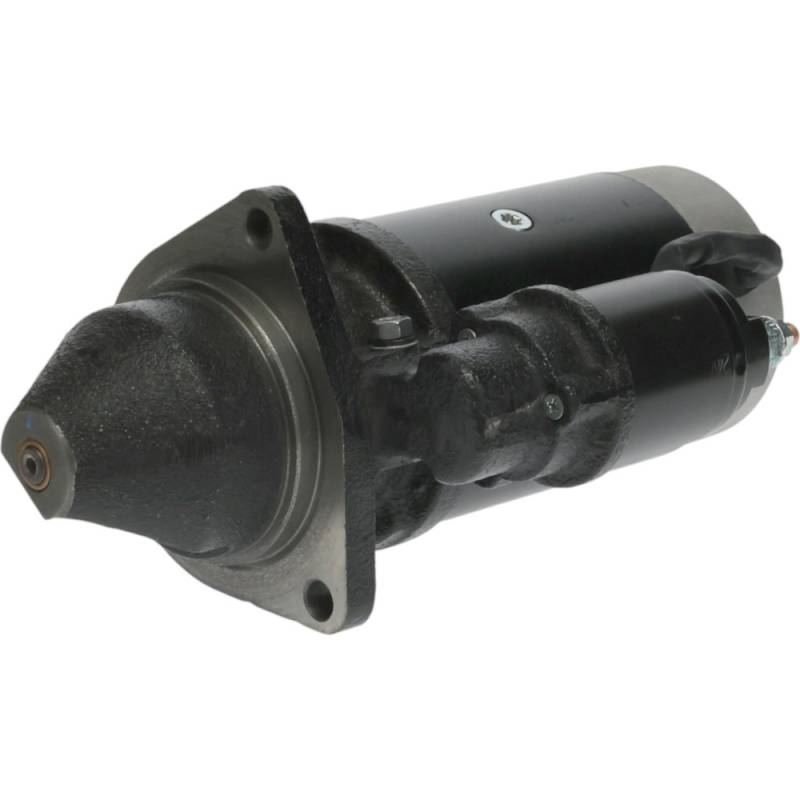

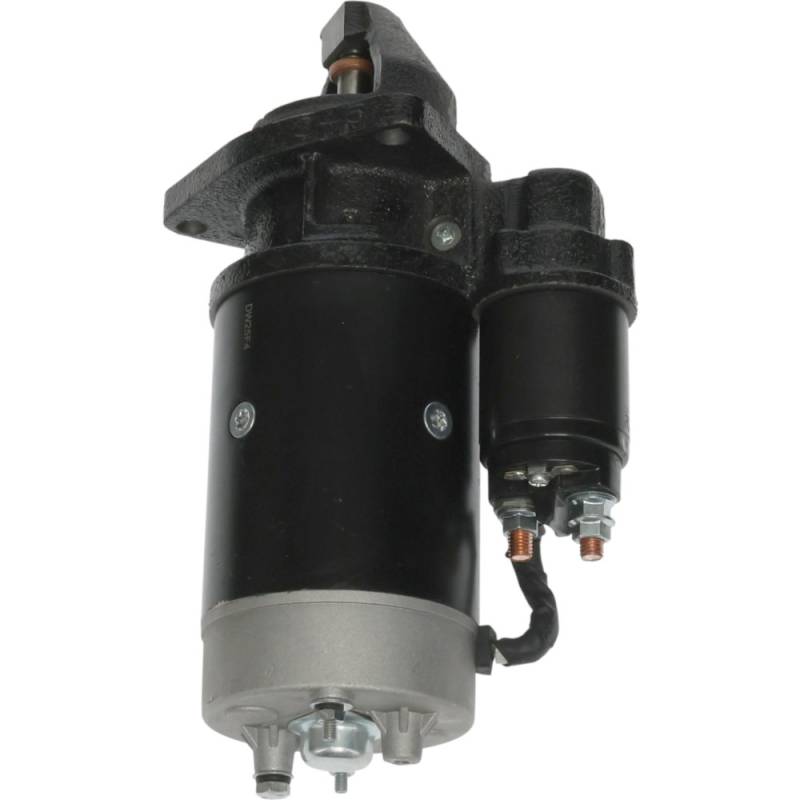

SPECIFICATIONS: • Type: Letrika / Iskra type direct drive (DD)
• Voltage: 24 Volt
• Power: 4.0 kW (5.36 HP)
• Rotation: Clockwise (CW)
• Pinion: 10 teeth, 37.7 mm (1.484 in) OD
• Length: 263 mm
• Registry: 100 mm (3.937 in)
• Mounting: 3 unthreaded 13 mm holes, 126.3 mm (4.972 in) ear to ear, 146 mm bolt circle
• Terminals: M10 x 1.5 battery and motor studs, spade S terminal
• Weight: 32.9 lb (14.97 kg)
• Condition: New
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
