OEM PART NUMBERS:
• 100211-9130 / 1002119130
• Toyota: 27060-78151-71 / 270607815171
SPECIFICATIONS:

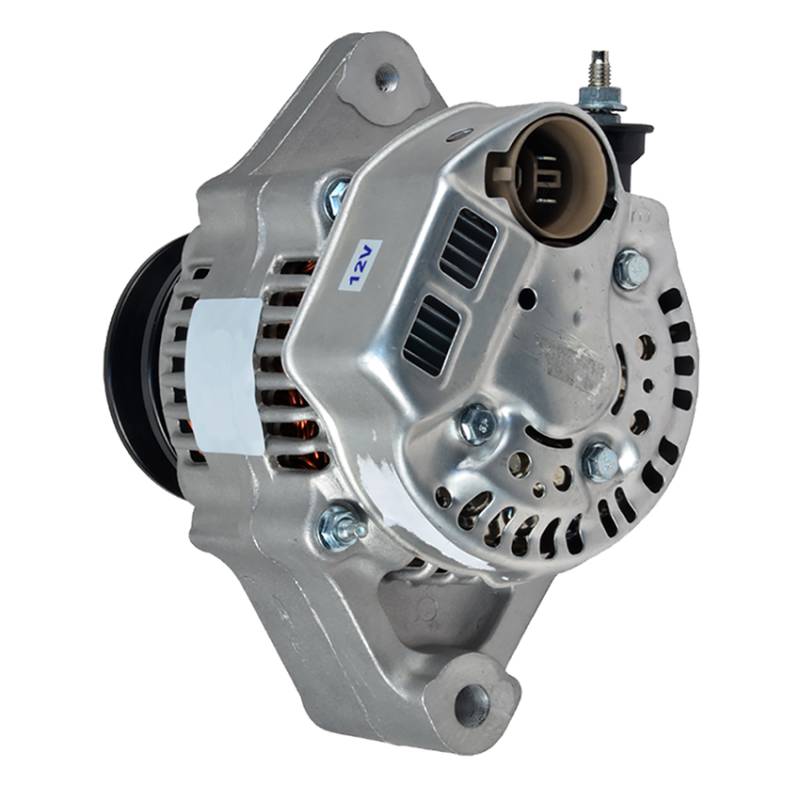

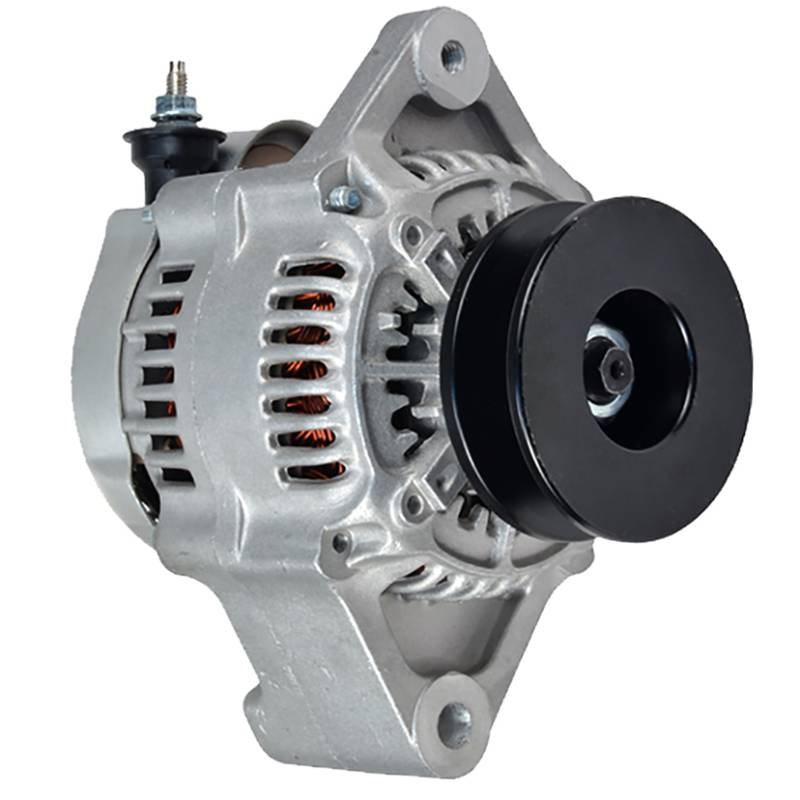

• Type: Alternator
• Manufacturer Type:
• Voltage: 12V
• Amperage: 50A
• Fan: Internal
• Regulator: Internal
• Mount Type: Spool
• B+ Terminal: M6-1.0
• Polarity: Negative
• Grooves: 2
• Pulley Type: Solid
• Weight: 9.76 lbs / 4.43 kg
• Condition: New
ENGINE SPECIFICATIONS — TOYOTA 4Y:
• Displacement: 2,237cc (2.2L / 136 cu.in.)
• Configuration: Inline 4-Cylinder OHV 8-Valve
• Bore x Stroke: 91mm x 86mm
• Compression Ratio: 8.8:1
• Power: 39.7kW (54HP) @ 2,400 rpm
• Torque: 162 N·m @ 1,800 rpm
• Fuel: Gasoline / LPG / CNG
TOWING TRACTOR APPLICATIONS:
• Toyota 2TG20 / 02-2TG20 — 2.0 Ton Towing Capacity
• Toyota 2TG25 / 02-2TG25 — 2.5 Ton Towing Capacity
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
