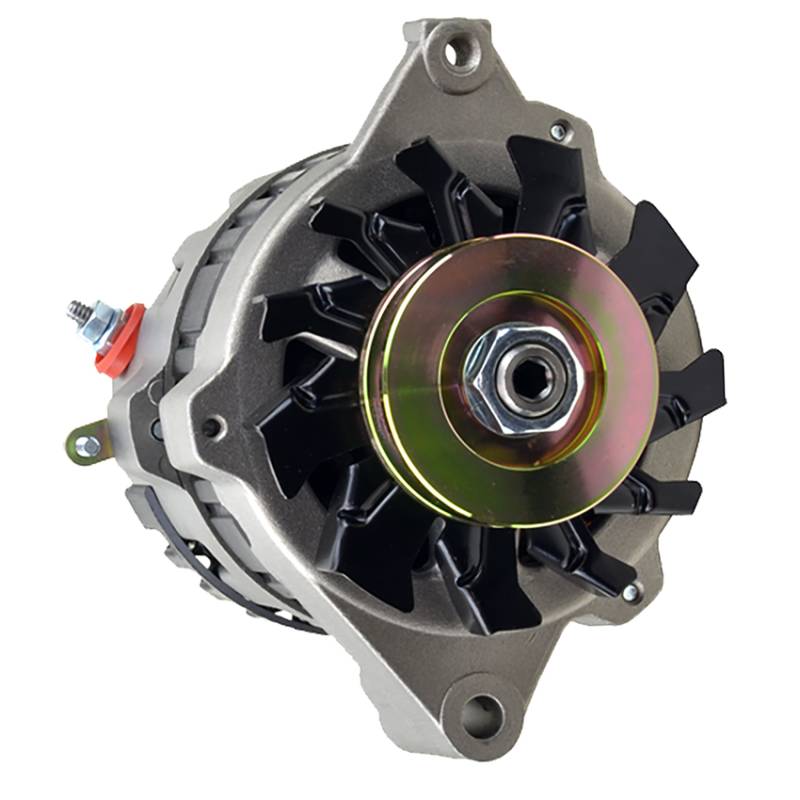

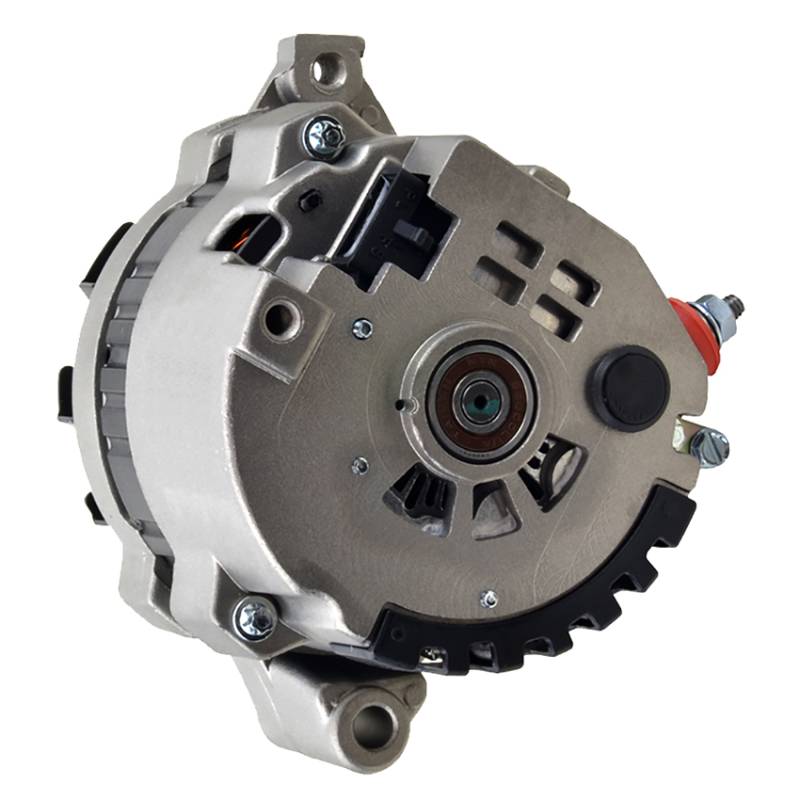

New 80 Amp Gm Cs121 Alternator Compatible With Mini Chevrolet Pontiac Buick Oldsmobile Race Hot Rod

400-12374*1
PART NUMBERS:
• Tuff Stuff: 7937ST (Factory Cast) / 7937AST (Chrome) / 7937APST (Polished)
• 400-12374

SPECIFICATIONS:
• Series: GM CS121 Mini Racer
• Voltage: 12V
• Amperage: 80 Amp
• Design: IR/EF (Internal Regulator / External Fan)
• System: 1-Wire Self-Excited (low idle cut-in regulator)
• Case Diameter: 4.75 in (121mm) — CS121 Mini
• Depth: 5 in with flat end frame
• Mounting: Spool — 6-1/8 in (155.6mm) hole spacing
• Mounting Ear 1/3: M8-1.25 Threaded / Ear 2: 10mm Unthreaded
• Pulley: Single V-Belt Solid 66.6mm OD (3/8 in belt)
• B+ Terminal: Side Post (exits side of SRE housing)
• Rear Mounting Ear 3 on SRE housing
• Polarity: Negative Ground
• Weight: 11.01 lbs / 5 kg
• Condition: New

APPLICATIONS:
• Universal GM Race / Muscle Car / Hot Rod / Street Rod / Show Car

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $443.54
Sale: $247.68
Save: 44%
Save: $195.86
Qty:
Free Shipping!

Description

GM STYLE MINI ALTERNATOR — UNIVERSAL RACE / PERFORMANCE APPLICATIONS:
• GM Muscle Cars, Hot Rods, Street Rods, Customs, Show Cars (1971+ internally regulated or older with conversion)
• Chevrolet Small Block / Big Block V8 — Camaro, Chevelle, Nova, Corvette, Impala, El Camino, Monte Carlo
• Pontiac GTO, Firebird, Trans Am, LeMans, Grand Prix
• Buick GS, Skylark, Riviera, Regal
• Oldsmobile 442, Cutlass, Toronado
• GM Trucks — C10, C20, K10, K20, Blazer, Jimmy, Suburban
• Any GM-based hot rod, street rod, kit car, or race car needing compact high-output charging

KEY FEATURES:
• GM CS121 Case Style — ultra-compact 4.75 in (121mm) diameter
• Only 5 in deep with flat end frame — fits tight engine bays
• 6-1/8 in (155.6mm) mounting hole spacing
• Side post B+ terminal — nearly 1 in extra rear clearance vs standard
• 1-Wire self-excited — eliminates wiring hassles, simply connect B+
• Low idle cut-in regulator — over 60 amp charging at low RPMs

Details

Shipping Information

  • Item Requires Shipping
  • 11.0 lbs.
  • W8.0000” x H8.0000” x L8.0000”
  • Free Shipping!
