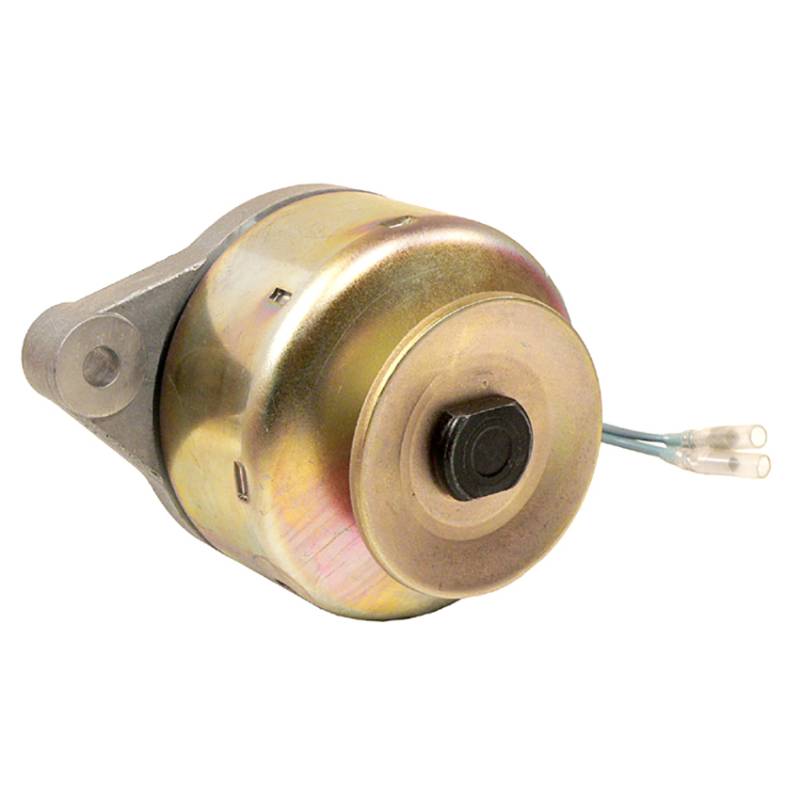

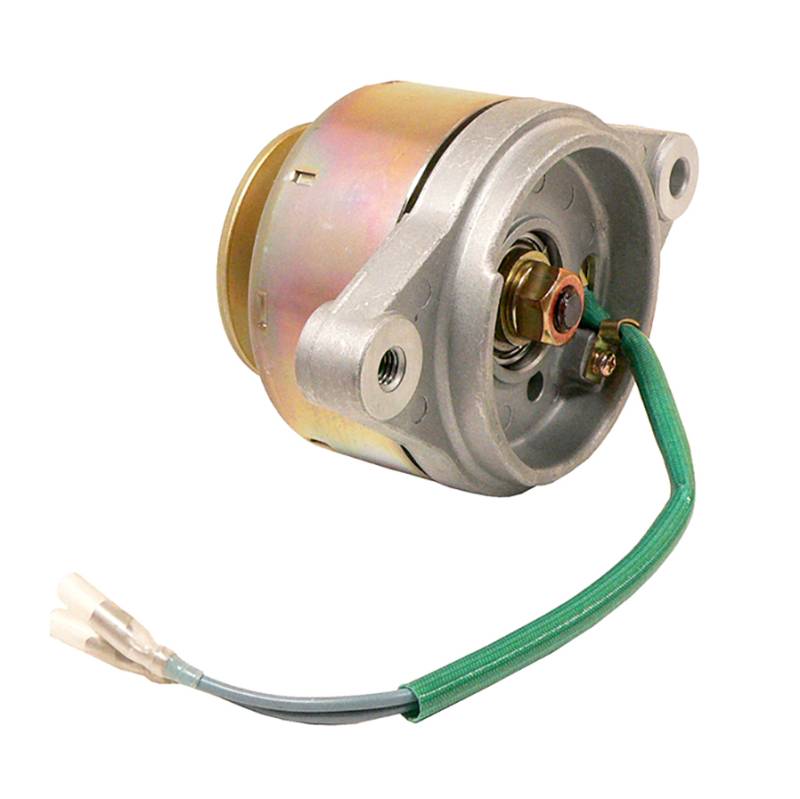

New 17 Amp Permanent Magnet Alternator Compatible With Kubota B1550 B1700 B2100 Bx2200 Bx1800 Bx23

10942N*1
OEM PART NUMBERS:
• Kubota: 15531-64013/64016/64017 / 15531-54013/64010/64014
• Kubota: 6C040-59250/59252/59270
• Kubota: EG673-64010/64013 / 17531-64012 / KEARA15531
• APM0012 / APM0001 / 400-58002 / 400-58019
• Lester: 10942 / 10932 / 10935 / 10938 / 10945

SPECIFICATIONS:
• Type: Permanent Magnet Alternator (PMA/Dynamo)
• Voltage: 12V
• Amperage: 17A (high-amp upgrade)
• Rotation: CW
• Regulator: External
• Pulley: 1-Groove V-Belt (V1), 66mm OD, Solid
• Mount: Ear 1 M8-1.25 threaded / Ear 2 8.5mm unthreaded
• Ear Thickness: 15.5mm each
• Harness: Exits rear at 7:00
• Weight: 3.05 lbs / 1.39 kg
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $341.30
Sale: $195.03
Save: 43%
Save: $146.27
Qty:
Free Shipping!

Description

KUBOTA COMPACT TRACTORS:
• B1550D/E D850-5B 17HP Diesel (1988-1996)
• B1700DT/E/HSD D905-D10 17HP Diesel (1995-1998)
• B20/B20TL D950AT 20HP Diesel (1990-1998)
• B2100DT/HSD D1005-D10 21HP Diesel (1995-1998)
• B2400HST/B2410HSD D1105-D10 24HP Diesel (1995-1998)
• B5200DT/E D750 13HP (1983-1996) / B6200 D850-5B 15HP (1983-1994)
• B7200/B7300/B7410 D722/D782-E 18HP (1993-2005)
• B7500/B7510/B7610/B7800 various engines
• B8200 D950 19HP (1981-1990) / B9200 V1200-A 22.5HP (1987-1990)
• BX1500/BX1800/BX1830/BX22/BX2200/BX2230/BX23

KUBOTA MOWERS:
• F2000/F2100E / G1800/G1900/G2000/G3200/G4200H/G5200H/G6200H
• GF1800/GR2100/GR2110/GR2120 / T1600H
• ZD18/ZD21/ZD25/ZD28/ZD221/ZD321/ZD323/ZD326/ZD331

KUBOTA EXCAVATORS:
• K008/K008-3 D722 10HP / KH007 Z430-K1 8.5HP
• KH35 D850BH 13.7HP / KH41 D950 17.8HP / KH61 D950BH 22.2HP
• KH36/KH51/KH51H/KH61H

KUBOTA UTILITY VEHICLES:
• RTV500/RTV500A/RTV500RA

KIOTI TRACTORS: LB1714 / LB1914

KOMATSU: Applications by part number only

TYPE: Permanent magnet alternator (PMA/dynamo). 12V, 17A (high-amp upgrade), CW. External regulator. 1-groove V-belt pulley (V1, 66mm OD). Harness exits rear at 7:00. Weight 3.05 lbs.
