OEM PART NUMBERS:
• Denso: 102211-0830 / 1022110830
• Denso: 021080-0500 / 0210800500
• Komatsu: 600-861-1951 / 6008611951
• Bomag: 31791226
• Cummins: C6008611951, 4982230
• Gradall: 70021849
• SkyTrak: 70021849
SPECIFICATIONS:
• Unit Type: Denso
• Voltage: 12V
• Amperage: 120A
• Rotation: CW (Clockwise)
• Mount Type: Spool
• Mounting Ear 1: M8-1.25 Threaded, 22mm (0.866in)
• Mounting Ear 2: 10.3mm Unthreaded, 58mm (2.283in)
• Regulator: Internal, 12:00 Position
• Fan: Internal
• Polarity: Negative Ground
• B+ Terminal: M8-1.25
• Plug Code: P-IG-L
• Pulley: 2-Groove Solid, 85mm (3.35in) OD
• Belt Width: 15mm
• Output Stud: M8-1.25
• Weight: 16.03 lbs / 7.29 kg
• Condition: New
APPLICATION:
• Komatsu WA65-5/WA70-5/WA80-5 Wheel Loader 4D95L 3.3L (2005-2009)
• Komatsu WA100M-5 Wheel Loader 4D95L (2007-2009)
• SkyTrak 8042 Telehandler Cummins QSB3.3
• Gradall Telehandlers Cummins B3.3
• TUG Tow Tractor MA-25 Cummins B3.3
• Bomag Rollers/Compactors w/ Komatsu 4D95L
• Cummins B3.3 3.3L Industrial Diesel Engines

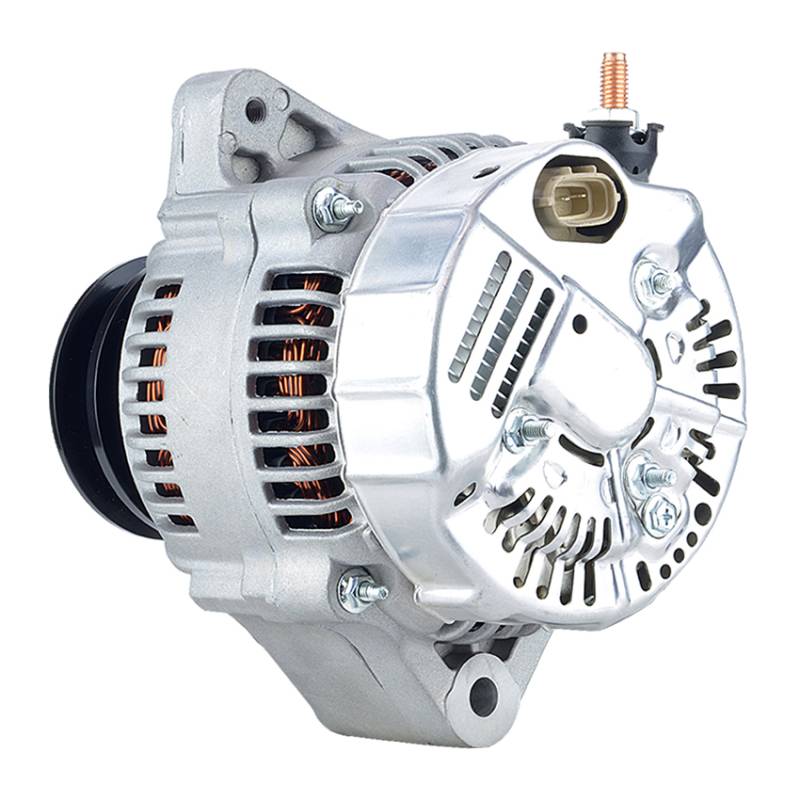

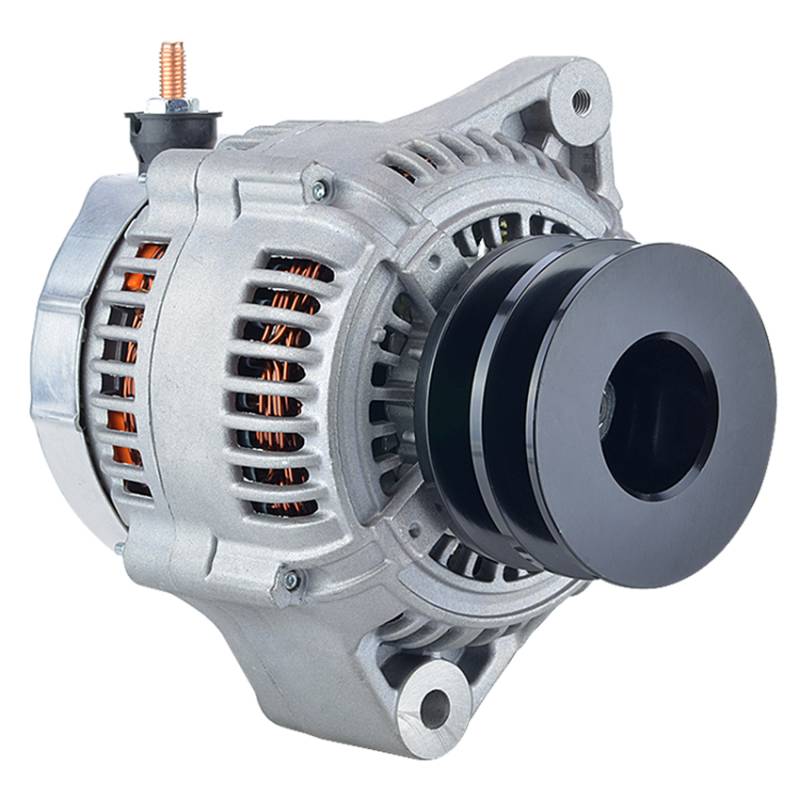

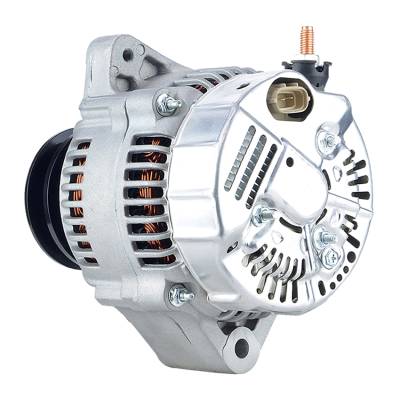

12V Alternator - Komatsu Wheel Loader / SkyTrak / Gradall
Premium 12V alternator delivering 120 amps. Cross-references Gradall/SkyTrak 70021849 and Denso 021080-0500. Clockwise rotation, negative ground, 85mm 2-groove pulley. Fits Komatsu WA65-5, WA70-5, WA80-5, WA100M-5, SkyTrak 8042, and Bomag compaction equipment.
