OEM PART NUMBERS:
• Mahle: IS 1059 / IS1059
• John Deere: RE502156
• Valeo: 187031
SPECIFICATIONS:

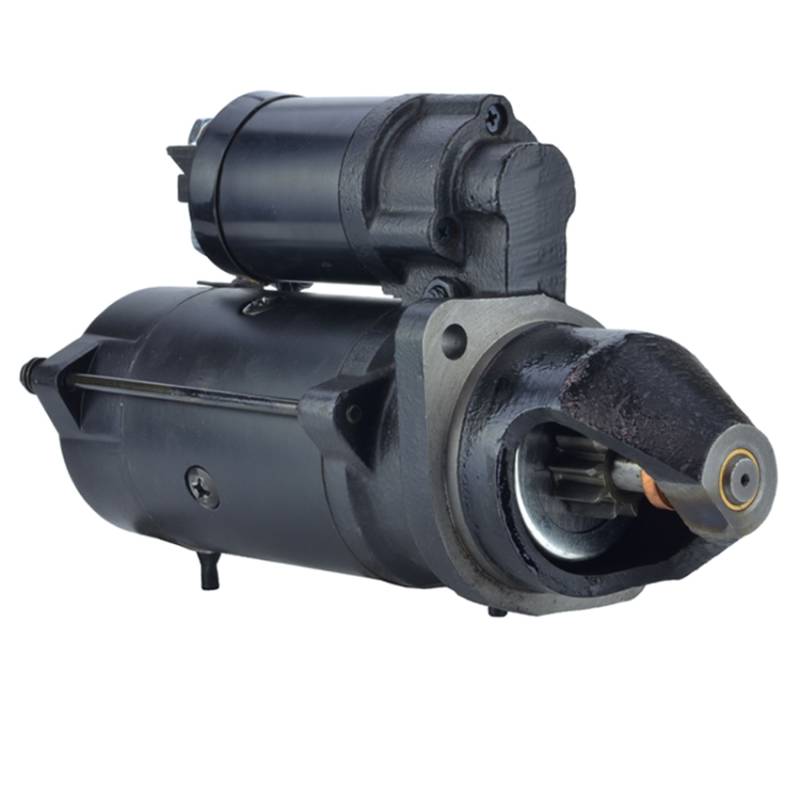

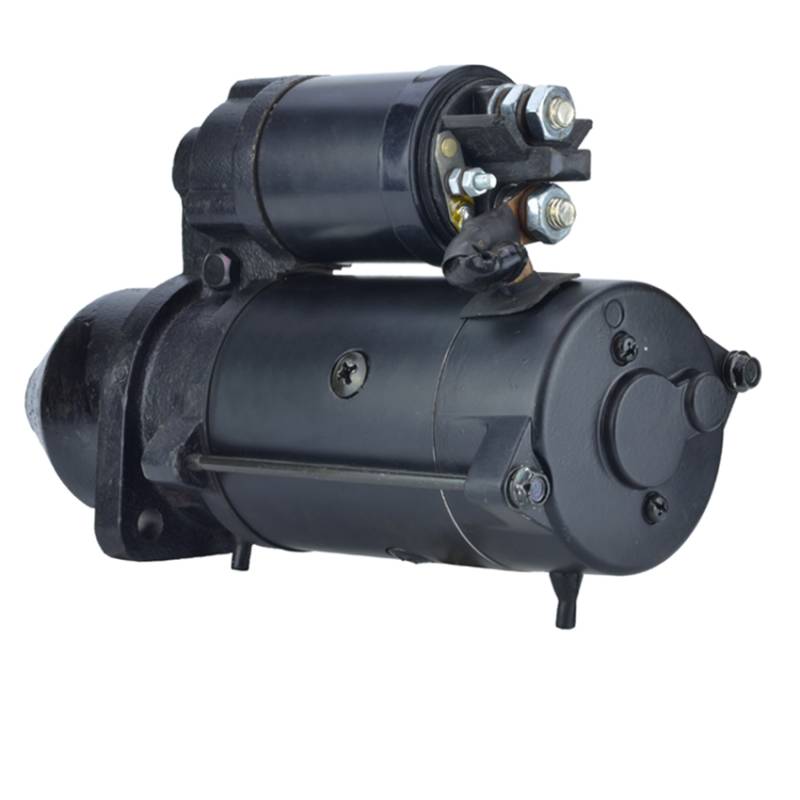

• Type: Starter Motor (PLGR)
• Voltage: 12V
• Power: 2.8 kW
• Rotation: Clockwise (CW)
• Pinion Teeth: 10
• Gear OD: 31.7 mm / 1.248 in
• Design: Mahle (Letrika/Iskra) Service Replacement
• Mounting: M10 x 1.5 thru-bolts, 10.4 mm unthreaded ears
• Weight: 18.8 lbs / 8.54 kg
• Solenoid: Integrated, with cover and plastic nut
JOHN DEERE — INDUSTRIAL / UTILITY / WINDROWER (1971-2002):
• JD410 Tractor 4.219DL 3.6L Diesel (1974-1988)
• 3055 / 3155 / 3255 Industrial 6.359 5.9L Diesel (1987-1992)
• JD300/JD300A Industrial 3.152DL 2.5L Diesel (1971-1974)
• JD350/JD350A Industrial 3.152DL 2.5L Diesel (1971-1988)
• JD400/JD400A Industrial 4.202/4.219 3.6L Diesel (1971-1979)
• 1020 Utility 3.164 5.8L Diesel (1981-1983)
• 2030 Utility 4.219DL 3.6L Diesel (1972-1979)
• 2040 Utility 3.152/4.239DL 2.5-3.9L Diesel (1979-1986)
• 2155 Utility 3.179 2.9L Diesel (1987-1992)
• 2240 Utility 3.179DL 2.9L Diesel (1976-1982)
• 2350/2355/2355N Utility 4.239 3.9L Diesel (1982-1992)
• 2550 Utility 4.239DL 3.9L Diesel (1982-1987)
• 3120 Utility Tractor (1972)
• 5200/5300N/5400N/5500N Utility 3.179/4.239 2.9-3.9L Diesel (1992)
• 5510N Utility 320 2.9L Diesel (1995-2000)
• 820/820VU Utility 3.152 2.5L Diesel (1971-1980)
• 840 Utility 3.179DL 2.9L Diesel (1979-1986)
• 920 Utility 3.152DL 2.5L Diesel (1971-1975)
• 930 Utility 3.164DL 2.7L Diesel (1975-1979)
• 2250 Windrower 4.239DL 3.9L Diesel (1986-1994)
• 830 Windrower 3-Cyl Diesel (1972-1980)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
