OEM PART NUMBERS:
• (Nippondenso): 128000-2740 / 1280002740
• 128000-2741 / 1280002741
• 128000-2742 / 1280002742
• Isuzu: 1-81100-239-0 / 1811002390
• Isuzu: 1-81100-239-1 / 1811002391
• Isuzu: 1-81100-239-2 / 1811002392
SPECIFICATIONS:

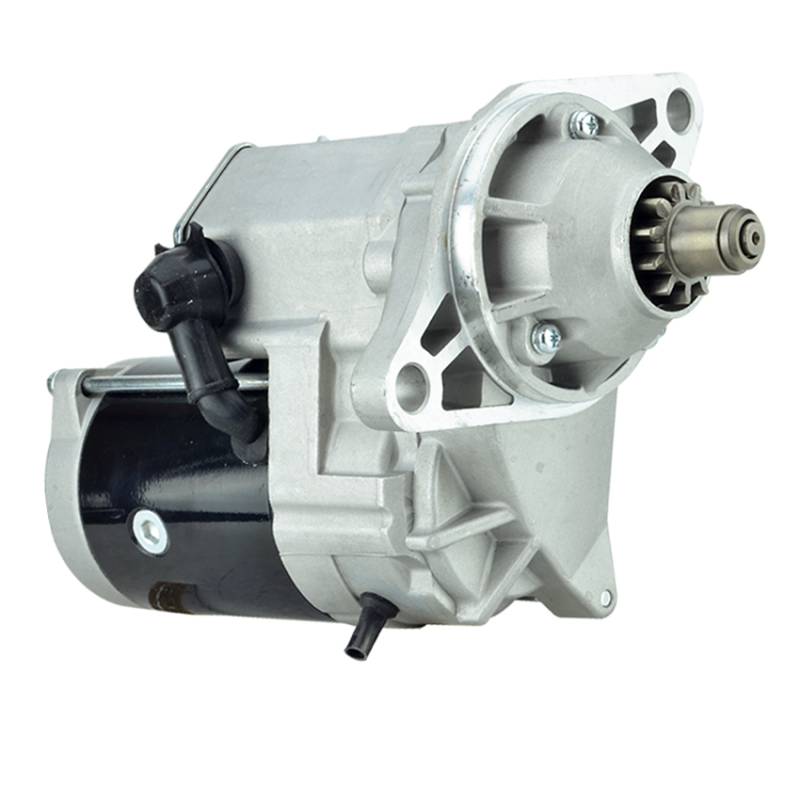

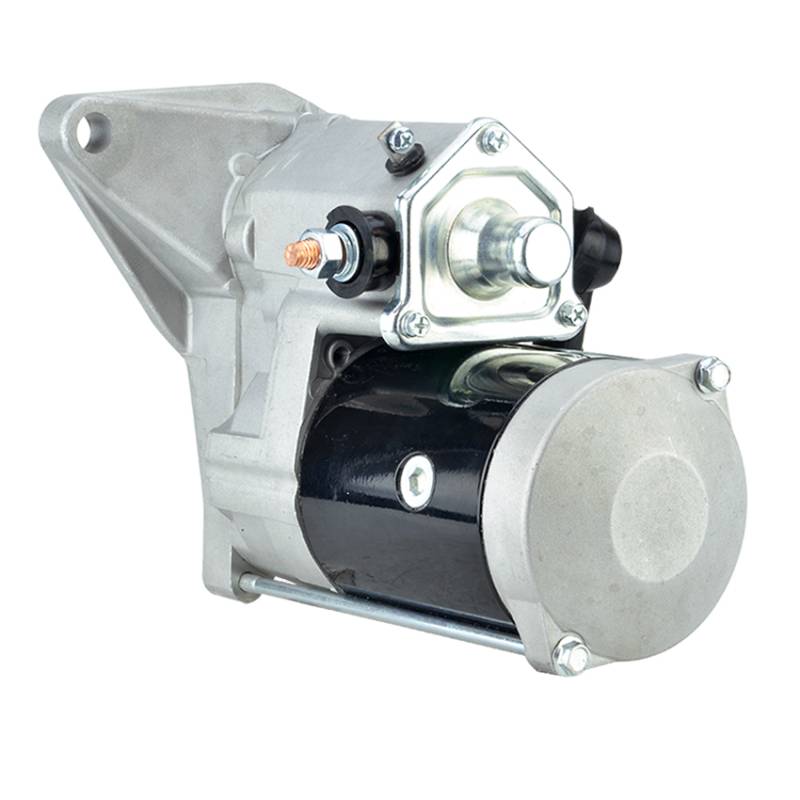

• Type: Starter Motor
• Design: OSGR (Offset Gear Reduction)
• Voltage: 24V
• Power: 5.5 kW
• Rotation: CW (Clockwise)
• Teeth: 11
• Pinion/Gear OD: 40.1mm / 1.579in
• Length: 232.2mm / 9.142in
• Mounting Hole 1: 15.6mm ID Unthreaded
• Mounting Hole 2: 15.6mm ID Unthreaded
• Mounting Ear Center to Center: 175mm / 6.89in
• Registry OD: 105mm / 4.134in
• B+ Terminal: M10-1.5 Stud
• S Terminal: Tab with M5-0.8 Threaded Hole
• Polarity: Negative
• Weight: 23.89 lbs / 10.86 kg
• Condition: New
ISUZU / LINK-BELT APPLICATIONS:
• Isuzu 6SA1 5.6L 5629cc 6-Cyl NA Diesel Industrial Engine (1985+)
• Link-Belt LS4300 Hydraulic Excavator w/ Isuzu 6SA1 (1986+)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
