DELCO REMY PART NUMBERS: • 1117944
KOMATSU / DRESSER PART NUMBERS: • 1305787H91
• 1307203H1
KOMATSU EXCHANGE NUMBERS: • ALT1023
• R1316278H91
OTHER REPLACEMENT NUMBERS: • Prestolite 110-446, 110446
• Daewoo 219072
• Doosan 300901-00034, 30090100034
• Doosan A464038
• Samsung 1022-03500, 102203500
ALSO REPLACES (THE SAME 24 VOLT 70 AMP UNIT): • Caterpillar 107-7977, 1077977, 0R-8279, 0R8279
• Cummins 3675174RX, 3920618, 3675201RX, 3920617
• Delco Remy 10461235, 1117900, 19010195, 19010111, 19010182, 10459261, 1117915, 19010185, 19010200, 10459461, 1117897, 19010108, 19010199
• Komatsu / Dresser 1307-203-H1, 1307203H1
• Komatsu exchange ALT1022, ALT-1023, ALT1023, R131678H91
• John Deere F054034
• Lucas LEA0267
• Doosan 22178115
• Hyundai 21E6-40030, 21E640030

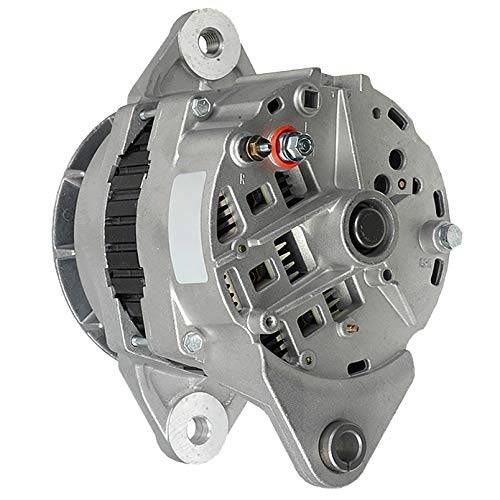

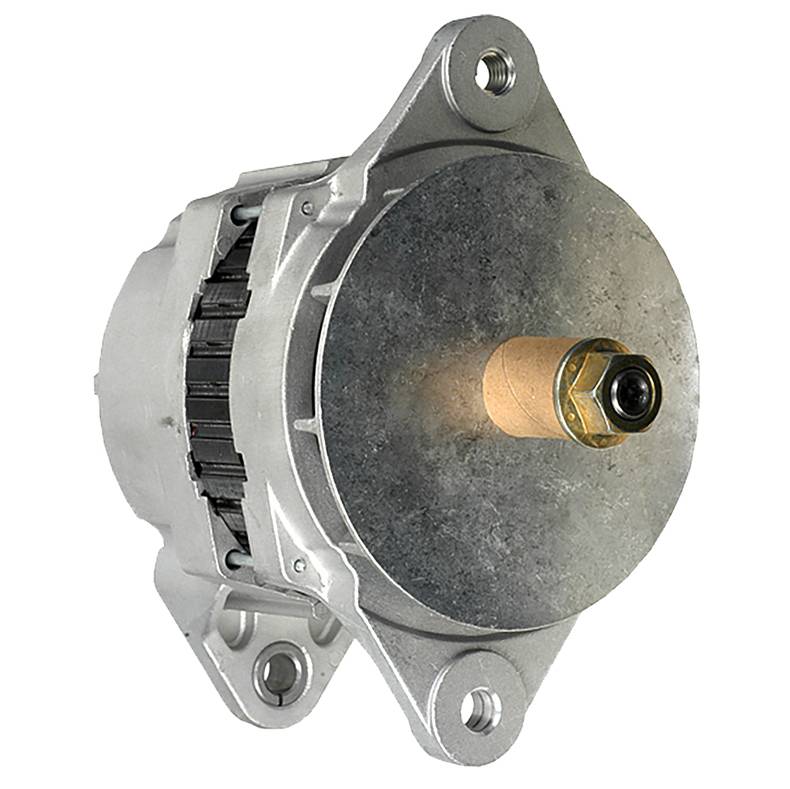

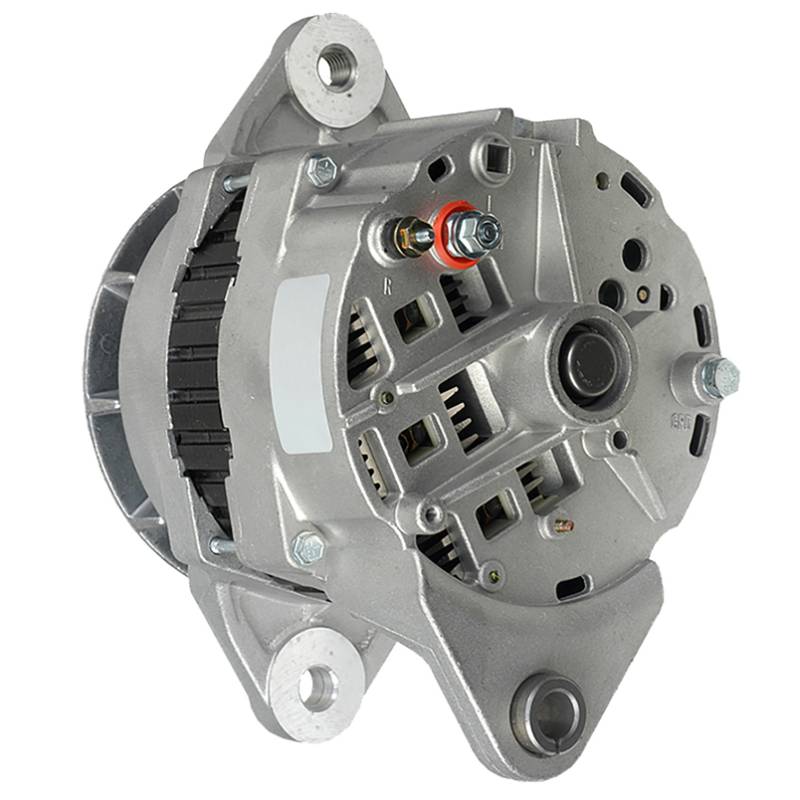

SPECIFICATIONS: • Type: 21SI Type alternator, internal regulator and external fan (IR/EF)
• Voltage: 24 volt
• Output: 70 amp
• Mount: J180 hinge mount
• B+ terminal: M6-1.0 stud
• R terminal: combination pin and M4-0.8 threaded terminal
• I terminal: M4 threaded stud, with anti-feedback diode
• Wiring: 1-wire system; the R and I terminals serve machines that use a relay, tachometer or indicator lamp lead
• Pulley: ships without pulley, reuse the pulley from your old unit
• Polarity: negative ground
• Weight: 16 lb (7.27 kg)
• Condition: New aftermarket, not a Delco Remy branded unit
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
