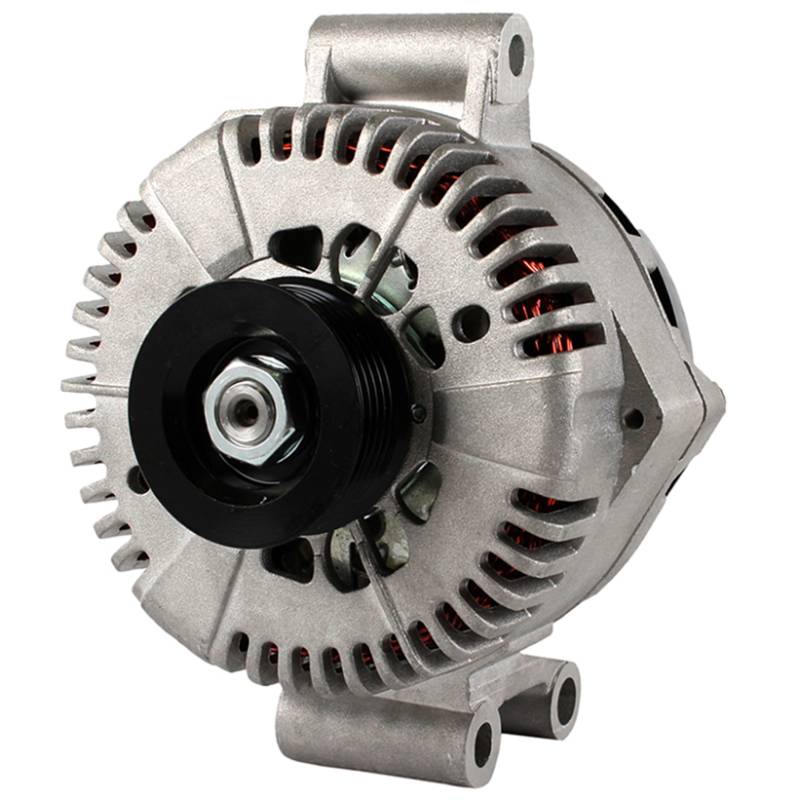

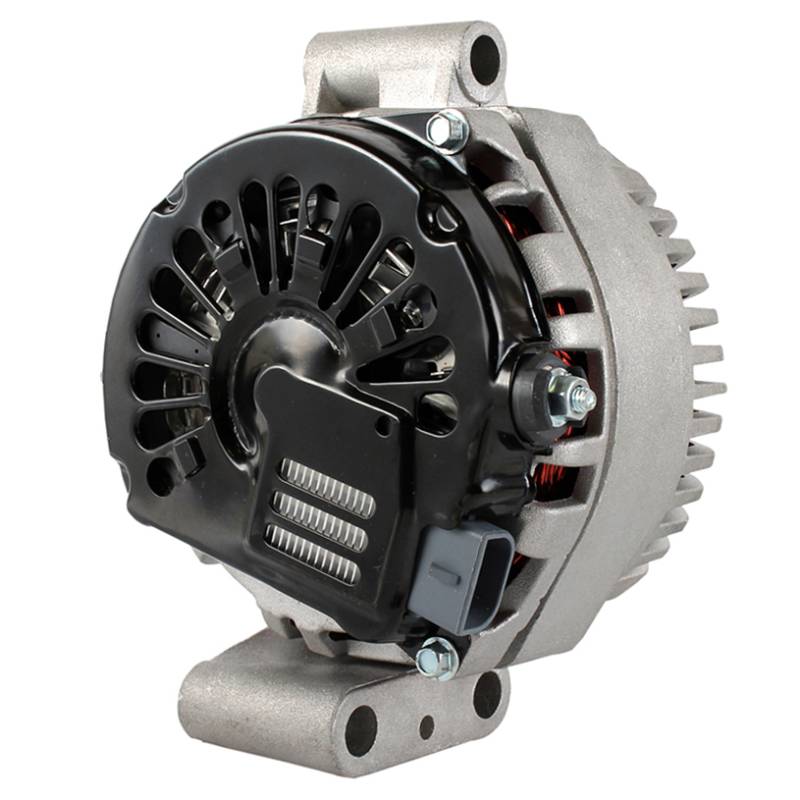

New 12V 220A Alternator Fits Ford Explorer 4.0L Vin E 1997-01 Al7543x Glv8695rm

7787NA1
FORD PART NUMBERS:
• XL2Z-10346-AA, XL2Z10346AA
• F77U-10300-AB, F77U10300AB
• F77U-10300-AC, F77U10300AC
• XL2U-10300-AA, XL2U10300AA
• 1L2U-10300-AA, 1L2U10300AA
• 1L2U-10300-AB, 1L2U10300AB
• 1L2Z-10346-AB, 1L2Z10346AB
• F77Z-10346-AB, F77Z10346AB
• 4G7U-10300-AA, 4G7U10300AA
• 4G7Z-10346-AA, 4G7Z10346AA

FORD REMAN NUMBERS REPLACED:
• XL2Z-10346-AARM, XL2Z10346AARM
• 4U2Z-10V346-CZRM, 4U2Z10V346CZRM
• XL2Z-10V346-ABRM, XL2Z10V346ABRM
• 1L2Z-10V346-ADRM, 1L2Z10V346ADRM
• F77Z-10346-ABRM, F77Z10346ABRM
• F77Z-10V346-ACRM, F77Z10V346ACRM
• 4G7Z-10346-AARM2, 4G7Z10346AARM2

FORD STAMP CODES (ON THE LABEL):
• XL2U-AA, XL2UAA
• 1L2U-AA, 1L2UAA
• 1L2U-AB, 1L2UAB
• F77U-AC, F77UAC
• F77U-AB, F77UAB

MOTORCRAFT PART NUMBERS:
• GL-423, GL423
• GL-613, GL613
• GL-363, GL363
• GL-454, GL454
• GL-607, GL607

MOTORCRAFT REMAN AND VALUE SERIES NUMBERS REPLACED:
• GL-423-RM, GL423RM
• GL-363-RM, GL363RM
• GLV-8693-RM, GLV8693RM
• GLV-8613-RM, GLV8613RM
• GLV-8423-RM, GLV8423RM
• GLV-8695-RM, GLV8695RM
• GLV-8363-RM, GLV8363RM

BOSCH NUMBERS REPLACED:
• AL7543X
• AL7562X

SPECIFICATIONS:
• Voltage: 12 Volt
• Output: 130 Amp
• Family: 6G type
• Rotation: Clockwise (CW)
• Regulator: internal
• Fan: internal
• Pulley: 6 groove solid, 2.504 in / 63.6 mm OD
• Regulator plug clock position: 4:00, 3 spade terminals A, N/C, L
• Polarity: negative ground
• B+ terminal: M6-1.0 stud
• Mounting: T mount, 3 ears (10.4 mm, 10.5 x 11.5 mm slotted, 12.5 mm)
• Weight: 14.46 lb / 6.57 kg
• Condition: New aftermarket, not a Ford or Motorcraft branded unit

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $334.79
Sale: $191.31
Save: 43%
Save: $143.48
Qty:
Free Shipping!

Description

⚠️ NEW AFTERMARKET 12V 130A 6G TYPE ALTERNATOR, 4.0L SOHC V6 AND 5.0L V8:
• 12 volt, 130 amp, clockwise (CW), internal regulator, internal fan
• 6 groove solid serpentine pulley, 2.504 in / 63.6 mm OD (groove OD 2.315 in / 58.8 mm)
• Regulator plug at 4:00, 3 spade terminals (A, N/C, L), M6-1.0 B+ stud, negative ground
• T mount, 3 ears: 10.4 mm unthreaded, 10.5 x 11.5 mm slotted, 12.5 mm unthreaded; ear width 2.181 in / 55.4 mm
• Weight 14.46 lb / 6.57 kg
• Not for the 4.0L OHV (VIN X) or the 4.6L V8 engines

FORD EXPLORER SPORT 2 DOOR:
• Ford Explorer Sport with the 4.0L V6 SOHC 2001
• Ford Explorer Sport with the 4.0L V6 SOHC 2002
• Ford Explorer Sport with the 4.0L V6 SOHC 2003

FORD EXPLORER SPORT TRAC:
• Ford Explorer Sport Trac with the 4.0L V6 SOHC 2001
• Ford Explorer Sport Trac with the 4.0L V6 SOHC 2002
• Ford Explorer Sport Trac with the 4.0L V6 SOHC 2003
• Ford Explorer Sport Trac with the 4.0L V6 SOHC 2004

FORD EXPLORER 4.0L V6 SOHC (VIN E):
• Ford Explorer with the 4.0L V6 SOHC VIN E 1997
• Ford Explorer with the 4.0L V6 SOHC VIN E 1998
• Ford Explorer with the 4.0L V6 SOHC VIN E 1999
• Ford Explorer with the 4.0L V6 SOHC VIN E 2000
• Ford Explorer with the 4.0L V6 SOHC VIN E 2001

FORD EXPLORER 4.0L V6 SOHC (VIN K):
• Ford Explorer with the 4.0L V6 SOHC VIN K 2001
• Ford Explorer with the 4.0L V6 SOHC VIN K 2002
• Ford Explorer with the 4.0L V6 SOHC VIN K 2003
• Ford Explorer with the 4.0L V6 SOHC 2004 (130A unit)

MERCURY MOUNTAINEER 4.0L V6 SOHC:
• Mercury Mountaineer with the 4.0L V6 SOHC 1998
• Mercury Mountaineer with the 4.0L V6 SOHC 1999
• Mercury Mountaineer with the 4.0L V6 SOHC 2000
• Mercury Mountaineer with the 4.0L V6 SOHC 2001
• Mercury Mountaineer with the 4.0L V6 SOHC 2002
• Mercury Mountaineer with the 4.0L V6 SOHC 2003
• Mercury Mountaineer with the 4.0L V6 SOHC 2004 (130A unit)

FORD EXPLORER 5.0L V8:
• Ford Explorer with the 5.0L 302 V8 VIN P 1996
• Ford Explorer with the 5.0L 302 V8 VIN P 1997
• Ford Explorer with the 5.0L 302 V8 VIN P 1998
• Ford Explorer with the 5.0L 302 V8 VIN P 1999
• Ford Explorer with the 5.0L 302 V8 VIN P 2000
• Ford Explorer with the 5.0L 302 V8 VIN P 2001

MERCURY MOUNTAINEER 5.0L V8:
• Mercury Mountaineer with the 5.0L 302 V8 1997
• Mercury Mountaineer with the 5.0L 302 V8 1998
• Mercury Mountaineer with the 5.0L 302 V8 1999
• Mercury Mountaineer with the 5.0L 302 V8 2000
• Mercury Mountaineer with the 5.0L 302 V8 2001
