OEM PART NUMBERS:
• Denso: 128000-5600 / 128000-5601 / 128000-5602
• Denso: 228000-1190 / 228000-0020
• IHC / Navistar: 1959854C1
• Lucas: S9134
• Teledyne: TMD-27M00519 / TMD-27M507 / TMD-27M509
• Teledyne: TMD-27M512 / TMD-27M521
SPECIFICATIONS:
• Voltage: 12V
• Type: OSGR (Offset Gear Reduction)
• Power: 2.5kW / 3.35HP
• Rotation: CW (Clockwise)
• Teeth: 10
• Gear OD: 40.2mm / 1.583"
• Overall Length: 292mm / 11.496"
• Mounting Holes: 2x 11mm Unthreaded
• Mounting Ear Center to Center: 127.2mm / 5.008"
• Registry OD: 88.8mm / 3.496"
• Weight: 19.2 lbs / 8.73 kg
• Condition: New
APPLICATION:
• Case Uni-Loader 1835C Teledyne Diesel (1987-1998)
• Teledyne Continental TMD-27 / TMD-27M Diesel (1986-1998)
• Teledyne Continental 2.0L Diesel Industrial (1986-1992)

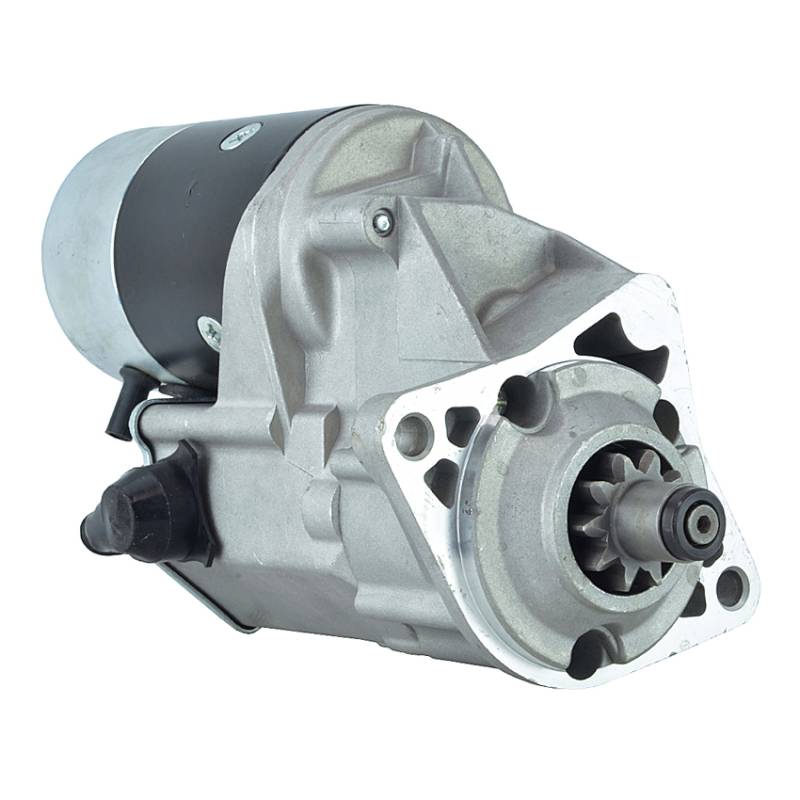

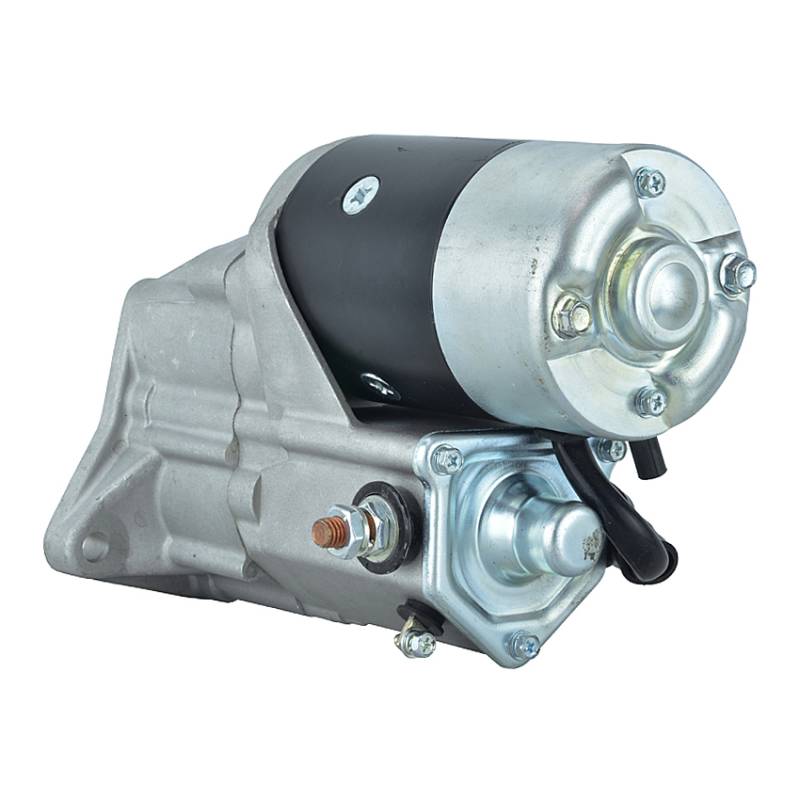

12V Starter Motor - Case 1835C Teledyne TMD-27 Diesel
New 12V OSGR starter. CW rotation, 10 teeth, 40.2mm gear OD, 2.5kW, 19.2 lbs. Two 11mm unthreaded mounting holes, 127.2mm center to center. Direct OEM replacement for Denso 128000-5600, 128000-5601, 128000-5602, 228000-1190, 228000-0020, IHC/Navistar 1959854C1, Lucas S9134, Teledyne TMD-27M507, TMD-27M509, TMD-27M512, TMD-27M521, TMD-27M00519. Verify OEM part number from your original unit before ordering.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
