BOSCH REMANUFACTURED: AL8659X
DELCO1101465

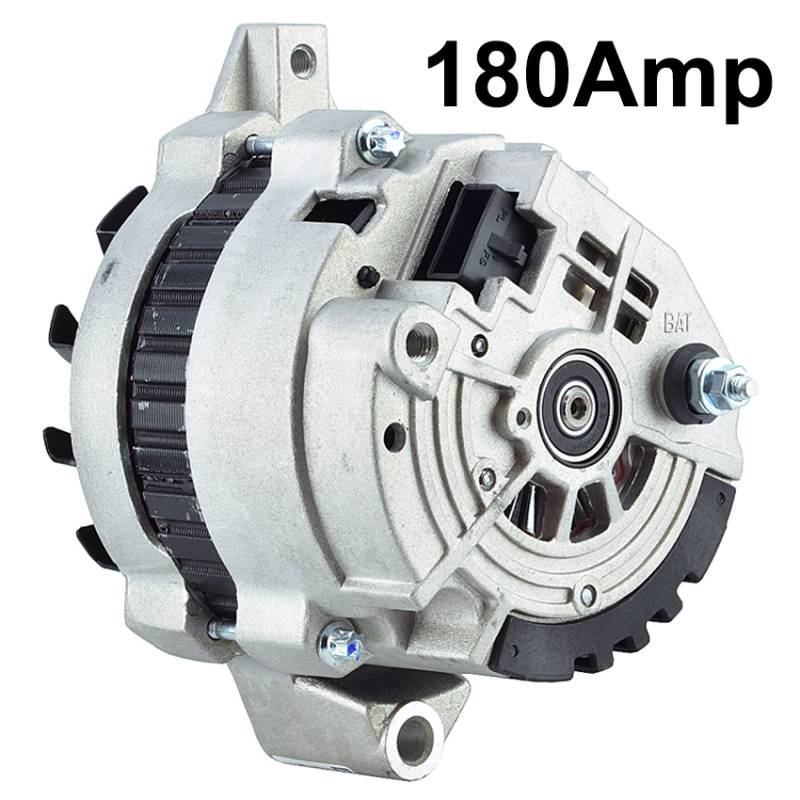

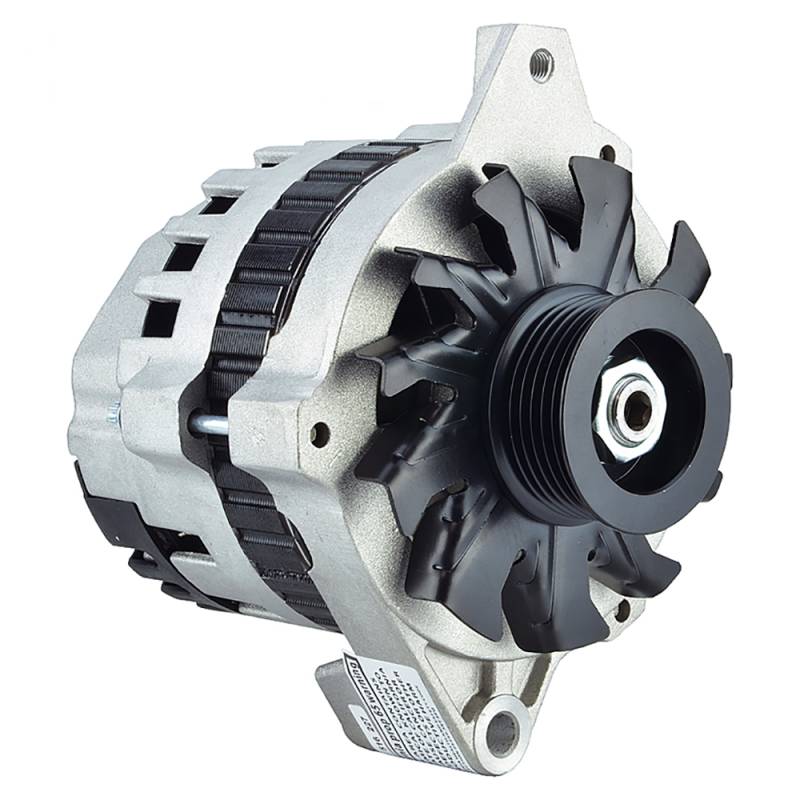

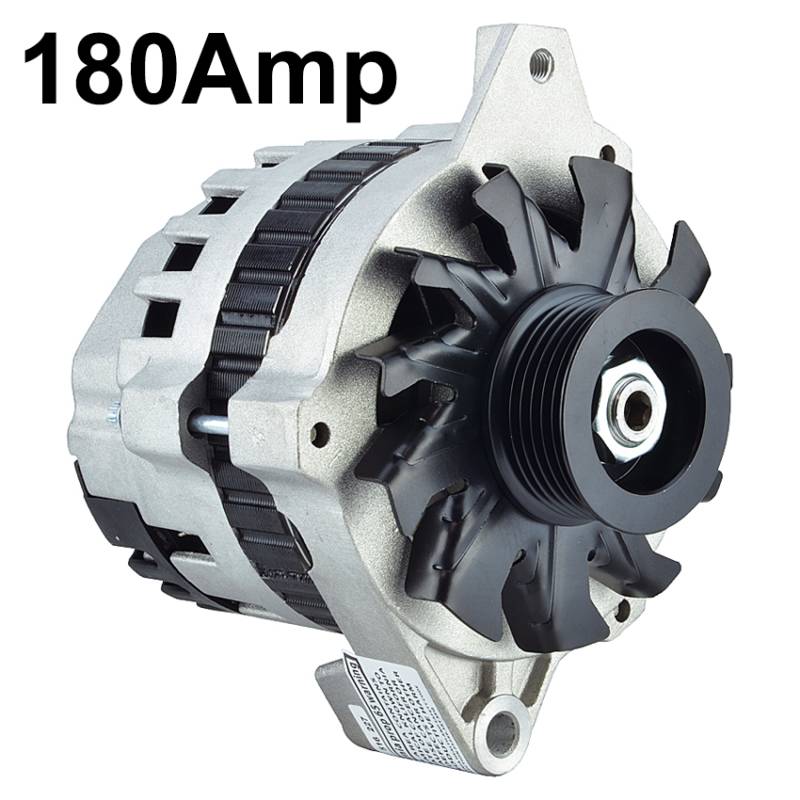

ITEM DESCRIPTION: ALTERNATOR
UNIT TYPE: DELCO
VOLTAGE: 12
AMPERAGE: 180
FAN: EXTERNAL
REGULATOR: INTERNAL
PULLEY GROOVES: 5
SERPENTINE GROOVES OD: 2.185IN / 55.5MM
PULLEY TYPE: SOLID
PULLEY OD: 2.362IN / 60MM
MOUNT TYPE: SPOOL
MOUNTING EAR 1 HOLE: M8-1.25 THREADED
MOUNTING EAR 2 HOLE: 10.2MM UNTHREADED
MOUNTING EAR 1 THICKNESS: 0.65IN / 16.5MM
MOUNTING EAR 2 THICKNESS: 2.008IN / 51MM
B+ TERMINAL: M6-1.0
P TERMINAL: SPADE
L TERMINAL: SPADE
IG TERMINAL: SPADE
S TERMINAL: SPADE
POLARITY: NEGATIVE
SPECIFICATIONS: (1) M8-1.25 THREADED MOUNTING HOLE IN REAR OF SRE HOUSING
WEIGHT: 12.2 LBS / 5.55 KG
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
THIS ALTERNATOR IS 180 AMPS WITH A 5 GROOVE PULLEY
CHEVROLET BLAZER 5.7L/350CI V8 1987 - 1988
CHEVROLET BLAZER 6.2L/379CI V8 1991
CHEVROLET G20 6.2L/379CI V8 1991 - 1993
CHEVROLET G30 6.2L/379CI V8 1991 - 1993
CHEVROLET P20 5.7L/350CI V8 1987 - 1989
CHEVROLET P30 4.3L/262CI V6 VIN Z 1990
CHEVROLET P30 4.3L/262CI V6 1990 - 1993
CHEVROLET P30 5.7L/350CI V8 1987 - 1993
CHEVROLET P30 6.2L/379CI V8 1991 - 1993
CHEVROLET P30 7.4L/454CI V8 1987 - 1993
CHEVROLET P42 CHASSIS 7.4L/454CI V8 1989 - 1993
CHEVROLET P42, P52, P62 7.4L/454CI V8 1991 - 1993
CHEVROLET P52 CHASSIS 7.4L/454CI V8 1991 - 1993
CHEVROLET P62 CHASSIS 7.4L/454CI V8 1991 - 1993
CHEVROLET R10 5.7L/350CI V8 1987
CHEVROLET R10 SUBURBAN 5.7L/350CI V8 1987 - 1988
CHEVROLET R1500 SUBURBAN 6.2L/379CI V8 1991
CHEVROLET R20 5.7L/350CI V8 1987 - 1988
CHEVROLET R20 7.4L/454CI V8 1988
CHEVROLET R20 SUBURBAN 5.7L/350CI V8 1987 - 1988
CHEVROLET R20 SUBURBAN 7.4L/454CI V8 1988
CHEVROLET R2500 SUBURBAN 6.2L/379CI V8 1991
CHEVROLET R30 5.7L/350CI V8 1987 - 1988
CHEVROLET R30 7.4L/454CI V8 1988
CHEVROLET R3500 6.2L/379CI V8 1991
CHEVROLET R3500 7.4L/454CI V8 1991
CHEVROLET SUBURBAN 7.4L/454CI V8 1988
CHEVROLET V10 5.7L/350CI V8 1987
CHEVROLET V10 SUBURBAN 5.7L/350CI V8 1987 - 1988
CHEVROLET V1500 SUBURBAN 6.2L/379CI V8 1991
CHEVROLET V20 5.7L/350CI V8 1987
CHEVROLET V20 SUBURBAN 5.7L/350CI V8 1987 - 1988
CHEVROLET V20 SUBURBAN 7.4L/454CI V8 1988
CHEVROLET V2500 SUBURBAN 6.2L/379CI V8 1991
CHEVROLET V30 5.7L/350CI V8 1987 - 1988
CHEVROLET V30 7.4L/454CI V8 1988
CHEVROLET V3500 6.2L/379CI V8 1991
CHEVROLET V3500 7.4L/454CI V8 1991
GMC G2500 6.2L/379CI V8 1991 - 1993
GMC G3500 6.2L/379CI V8 1991 - 1993
GMC G3500 6.2L/379CI V8 VIN C 1992
GMC G3500 6.2L/379CI V8 VIN J 1992
GMC JIMMY 5.7L/350CI V8 1987 - 1988
GMC JIMMY 6.2L/379CI V8 1991
GMC P2500 5.7L/350CI V8 1987 - 1989
GMC P3500 4.3L/262CI V6 VIN Z 1990
GMC P3500 4.3L/262CI V6 1990 - 1993
GMC P3500 5.7L/350CI V8 1987 - 1993
GMC P3500 6.2L/379CI V8 1991 - 1993
GMC P3500 7.4L/454CI V8 1987 - 1993
GMC P42 CHASSIS 7.4L/454CI V8 1989 - 1993
GMC P52 CHASSIS 7.4L/454CI V8 1991 - 1993
GMC P62 CHASSIS 7.4L/454CI V8 1991 - 1993
GMC R1500 5.7L/350CI V8 1987
GMC R1500 SUBURBAN 5.7L/350CI V8 1987 - 1988
GMC R1500 SUBURBAN 6.2L/379CI V8 1991
GMC R2500 5.7L/350CI V8 1987 - 1988
GMC R2500 7.4L/454CI V8 1988
GMC R2500 SUBURBAN 5.7L/350CI V8 1987 - 1988
GMC R2500 SUBURBAN 6.2L/379CI V8 1991
GMC R2500 SUBURBAN 7.4L/454CI V8 1988
GMC R3500 5.7L/350CI V8 1987 - 1988
GMC R3500 6.2L/379CI V8 1991
GMC R3500 7.4L/454CI V8 1988 - 1991
GMC SUBURBAN 7.4L/454CI V8 1988
GMC V1500 5.7L/350CI V8 1987
GMC V1500 SUBURBAN 5.7L/350CI V8 1987 - 1988
GMC V1500 SUBURBAN 6.2L/379CI V8 1991
GMC V2500 5.7L/350CI V8 1987
GMC V2500 SUBURBAN 5.7L/350CI V8 1987 - 1988
GMC V2500 SUBURBAN 6.2L/379CI V8 1991
GMC V3500 5.7L/350CI V8 1987 - 1988
GMC V3500 6.2L/379CI V8 1991
GMC V3500 7.4L/454CI V8 1988 - 1991
PONTIAC FIERO 2.8L/173CI V6 VIN 9 1988
