REPLACES: 240-5253 400-12397 ADR0163Y

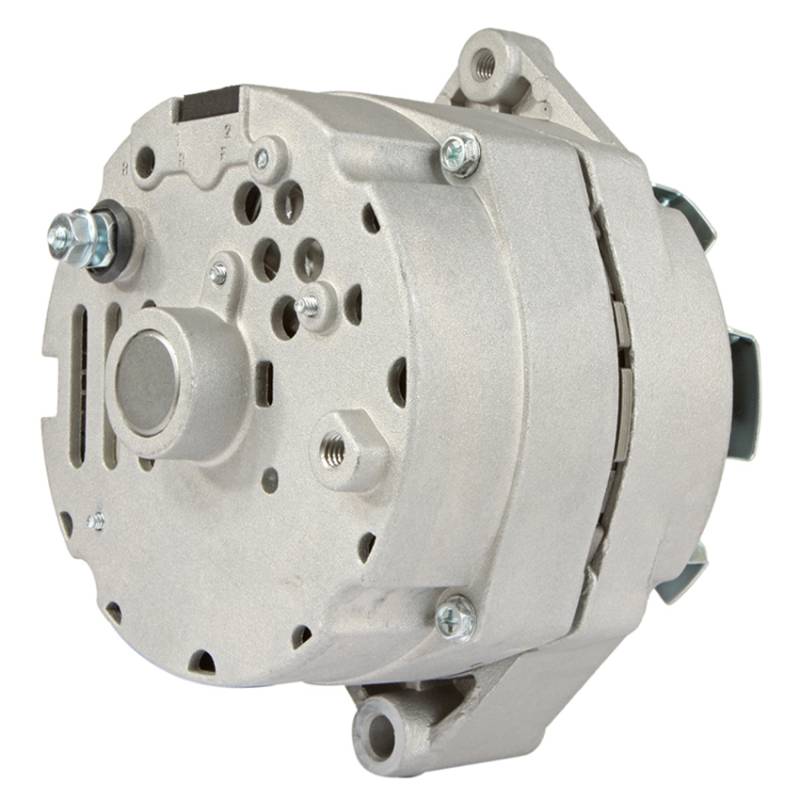

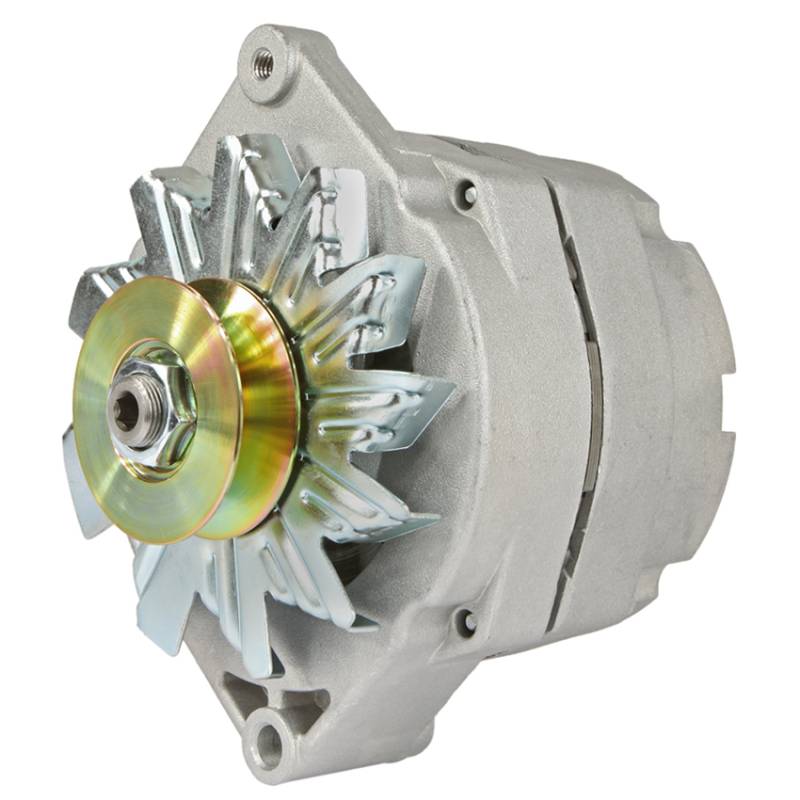

ITEM DESCRIPTION: ALTERNATOR
UNIT TYPE: DELCO
VOLTAGE: 12
AMPERAGE: 63
FAN: EXTERNAL
REGULATOR: INTERNAL
PULLEY GROOVES: 1
PULLEY TYPE: SOLID
PULLEY OD: 2.476IN / 62.9MM
MOUNT TYPE: SPOOL
MOUNTING EAR 1 HOLE: 5/16-18 THREADED
MOUNTING EAR 2 HOLE: 3/8 UNTHREADED
MOUNTING EAR 1 THICKNESS: 0.697IN / 17.7MM
MOUNTING EAR 2 THICKNESS: 2IN / 50.8MM
POLARITY: NEGATIVE
SPECIFICATIONS: 1-WIRE SYSTEM
SPECIFICATIONS: SELF-EXCITED
SPECIFICATIONS: 15MM WIDE PULLEY
WEIGHT: 12.03 LBS / 5.47 KG
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
FOR INTERNATIONAL HARVESTER MODEL M, SUPER M TRACTORS
APPLICATIONS MUST HAVE BEEN CONVERTED PREVIOUSLY FROM A GENERATOR TO ALTERNATOR.
THIS IS THE ALTERNATOR ONLY. IF YOU NEED A CONVERSION KIT PLEASE SEE SKU: AKT0003
