HELLA: 8EL-737-061-001
HITACHI: LR180-03 LR15520 LR180-03A LR15520B LR180-03C LR18003B
PRESTOLITE: 20115006TBA
SIERRA MARINE: 18-6929 18-6278 186927
YANMAR: 119573-77200 12977277200 129470-77200 11957377201

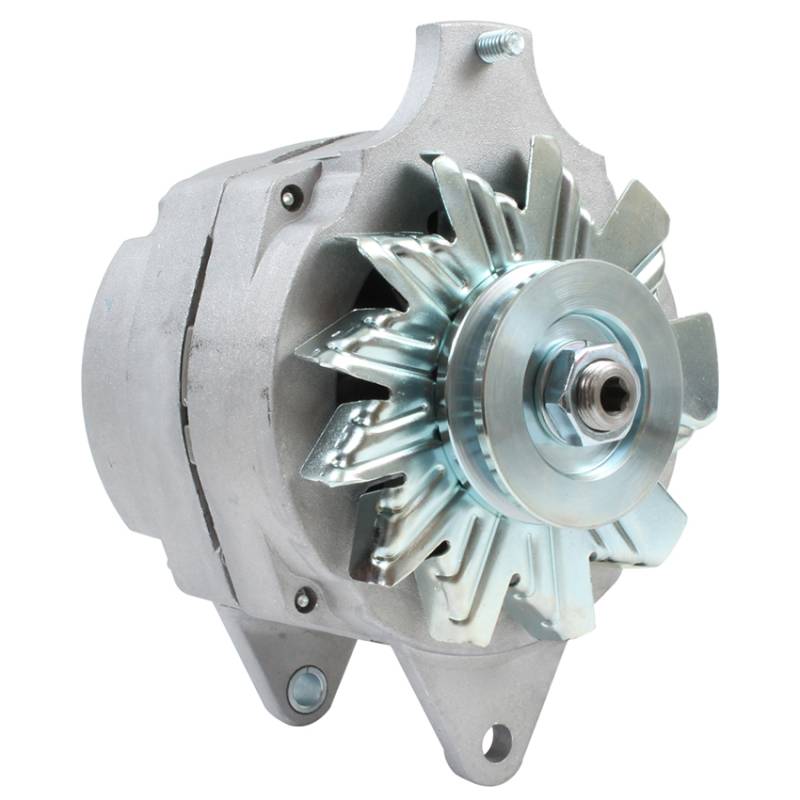

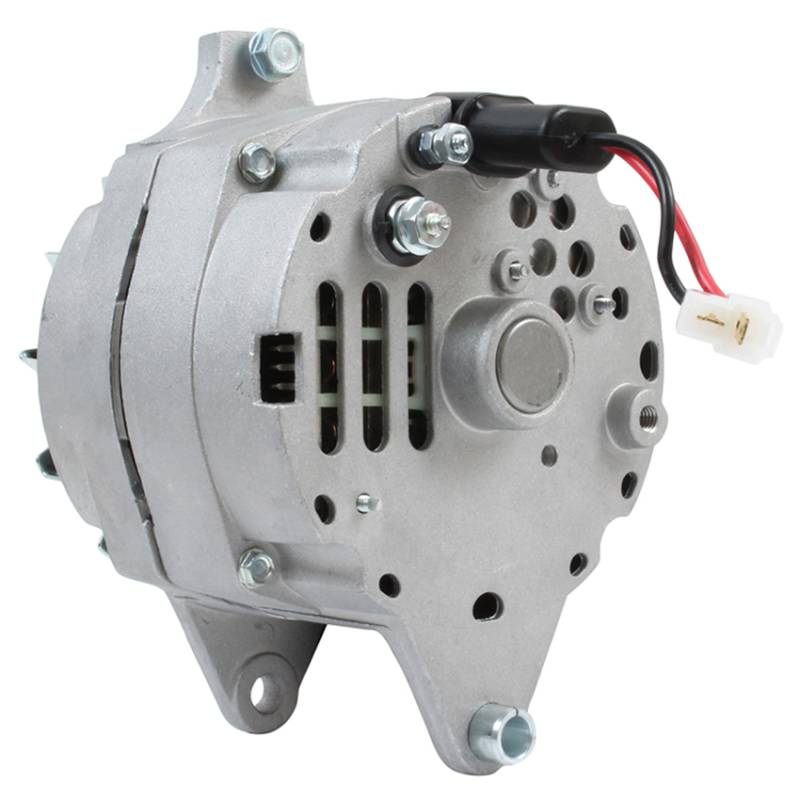

ITEM DESCRIPTION: ALTERNATOR
UNIT TYPE: YANMAR
VOLTAGE: 12
AMPERAGE: 120
FAN: EXTERNAL
REGULATOR: INTERNAL
PULLEY GROOVES: 1
PULLEY TYPE: SOLID
PULLEY OD: 2.618IN / 66.5MM
MOUNTING EAR 1 HOLE: 5/16-18 THREADED
MOUNTING EAR 2 HOLE: 10MM UNTHREADED
MOUNTING EAR 3 HOLE: 10MM UNTHREADED
MOUNTING EAR 1 THICKNESS: 0.476IN / 12.1MM
MOUNTING EAR 2 THICKNESS: 0.374IN / 9.5MM
MOUNTING EAR 3 THICKNESS: 0.787IN / 20MM
IGN TERMINAL: BLADE
L TERMINAL: BLADE
POLARITY: NEGATIVE
SPECIFICATIONS: NEGATIVE GROUND
SPECIFICATIONS: 10SI REPLACEMENT TYPE
WEIGHT: 12.43 LBS / 5.65 KG
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REPLACES HITACHI UNITS ON YANMAR MARINE APPLICATIONS.
THIS ALTERNATOR IS 120 AMPS.
NOTE: ORIGINAL HITACHI UNIT HAS ISOLATED GROUND
THIS ALTERNATOR IS NEGATIVE GROUND. THERE IS NO NEED FOR GROUND CABLE TO OPERATE.
YANMAR ENGINE - MARINE 2GM20 2CYL, 38.81CI, 0.636L DIESEL
YANMAR ENGINE - MARINE 2GMFL 2CYL DIESEL
YANMAR ENGINE - MARINE 2GMFY(E)-E 2CYL DIESEL
YANMAR ENGINE - MARINE 2GML 2CYL DIESEL
YANMAR ENGINE - MARINE 2GMYE-EC 2CYL DIESEL
YANMAR ENGINE - MARINE 3GM30 3CYL DIESEL
YANMAR ENGINE - MARINE 3HM35 3CYL DIESEL 1982-1992
YANMAR ENGINE - MARINE 3JH2 3CYL DIESEL 1991-1999
YANMAR ENGINE - MARINE 3JH2BE 3CYL DIESEL 1991-1999
YANMAR ENGINE - MARINE 3JH2E 3CYL DIESEL 1991-1999
YANMAR ENGINE - MARINE 3JH3 3CYL DIESEL 1999-2003
YANMAR ENGINE - MARINE 3JH3E 3CYL DIESEL
YANMAR ENGINE - MARINE 3JH3E-YEU 3CYL DIESEL
YANMAR ENGINE - MARINE 3JH4E 3CYL, 100CI, 1.64L DIESEL
YANMAR ENGINE - MARINE 3YM20 3CYL DIESEL
YANMAR ENGINE - MARINE 3YM30 3CYL, 68CI, 1.116L DIESEL
YANMAR ENGINE - MARINE 4JH-DTE 4CYL DIESEL
YANMAR ENGINE - MARINE 4JH-HT-E 4CYL DIESEL
YANMAR ENGINE - MARINE 4JH-TE 4CYL DIESEL
YANMAR ENGINE - MARINE 4JH2-CE 4CYL DIESEL
YANMAR ENGINE - MARINE 4JH2-DTE 4CYL DIESEL
YANMAR ENGINE - MARINE 4JH2-E 4CYL DIESEL
YANMAR ENGINE - MARINE 4JH2-HTE 4CYL DIESEL
YANMAR ENGINE - MARINE 4JH2-TE 4CYL DIESEL
YANMAR ENGINE - MARINE 4JH2-UTE 4CYL DIESEL
YANMAR ENGINE - MARINE 4JH3-CE 4CYL DIESEL 1994-2003
YANMAR ENGINE - MARINE 4JH3-DTE 4CYL DIESEL 1994-2003
YANMAR ENGINE - MARINE 4JH3-HTE 4CYL DIESEL 1994-2003
YANMAR ENGINE - MARINE 4JH3-TCE 4CYL DIESEL 1994-2003
YANMAR ENGINE - MARINE 4JH3-TE 4CYL DIESEL 1994-2003
YANMAR ENGINE - MARINE 4JH3-TE-YEU 4CYL DIESEL 1994-2003
YANMAR ENGINE - MARINE 4JH3E 4CYL DIESEL 1994-2003
YANMAR ENGINE - MARINE 4JHE 4CYL DIESEL
