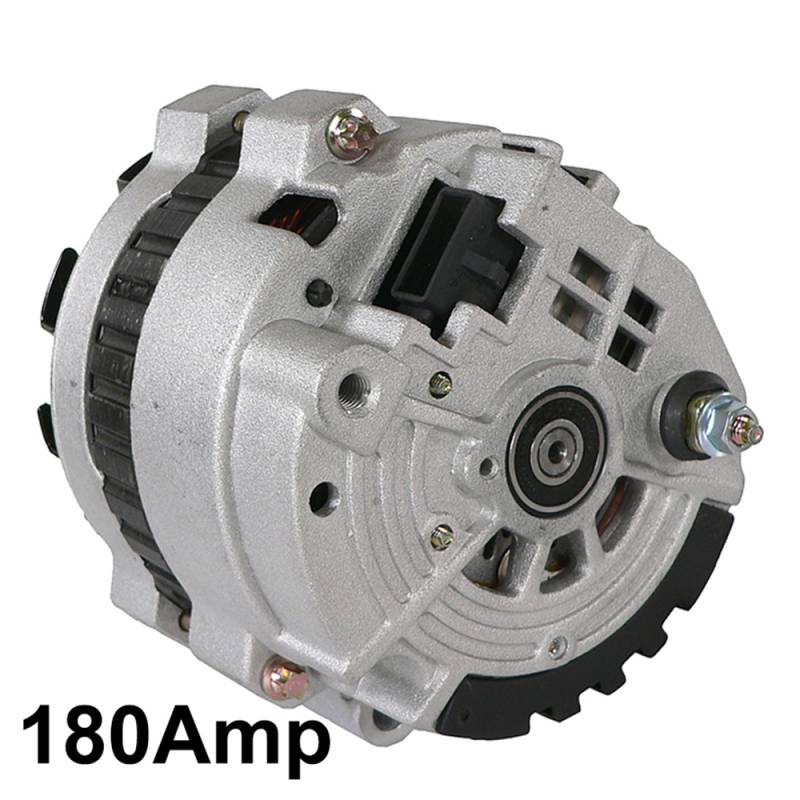

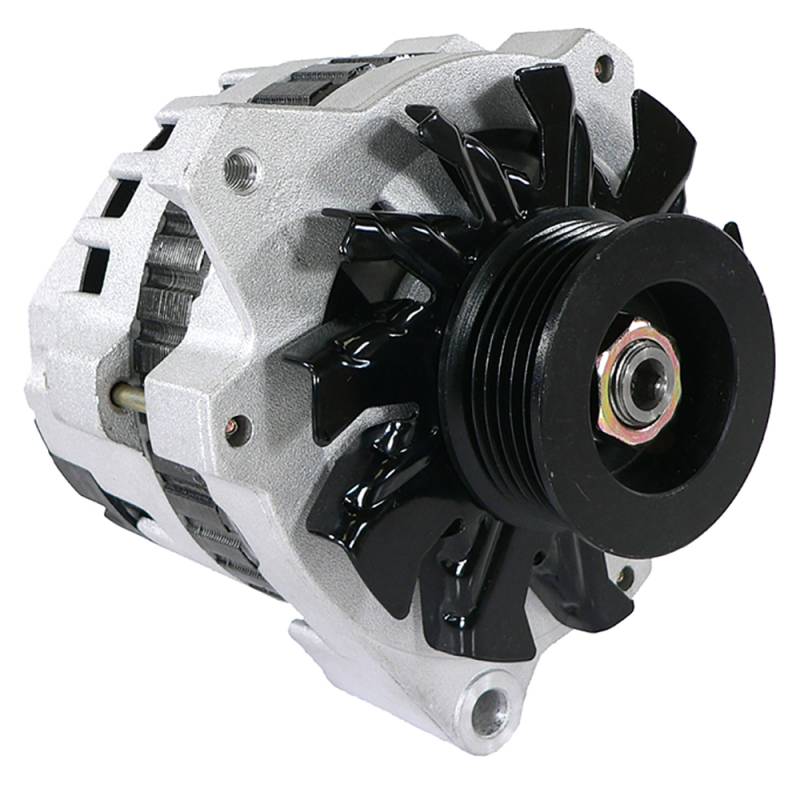

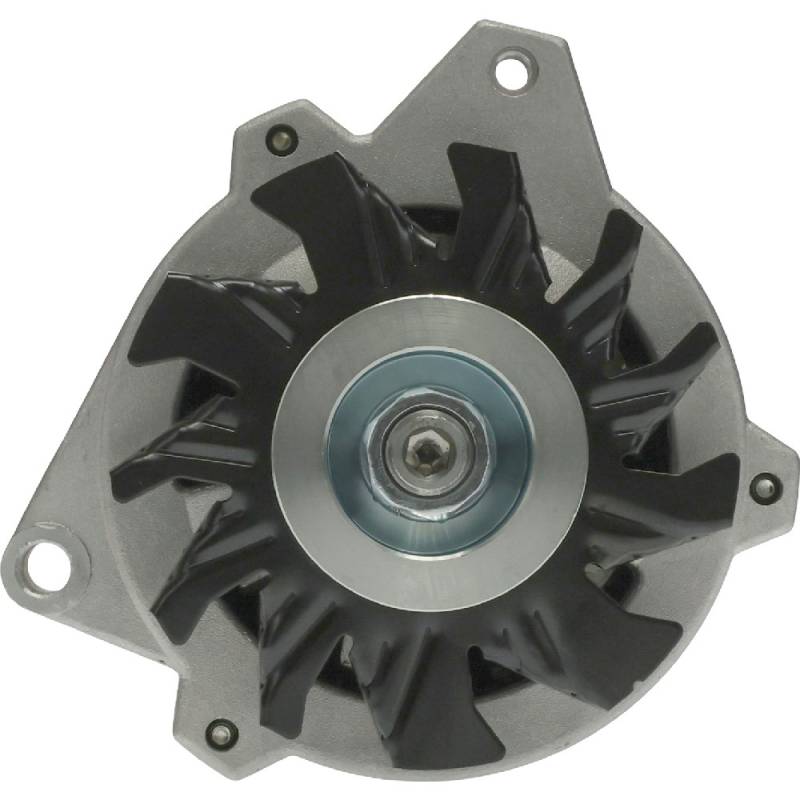

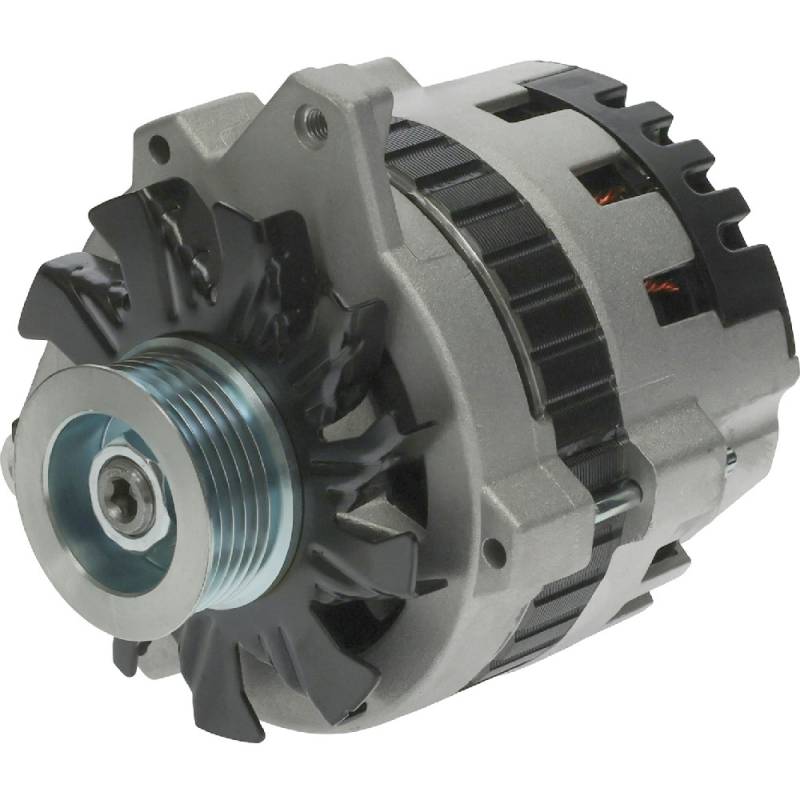

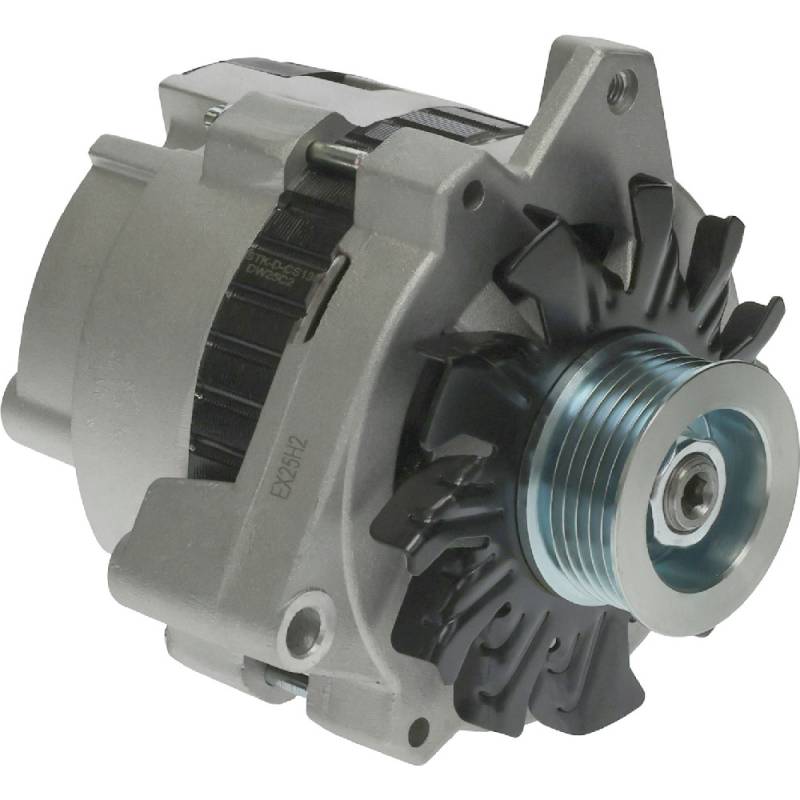

New 180 Amp Alternator Compatible With Chevrolet Gmc C1500 K1500 C2500 K2500 C3500 K3500 V8 5.7L V6

7861-11-180A*1
OEM PART NUMBERS:
• Delco: 10479906 / 1101599 / 1101646 / 1101645 / 1105711
• GM: 10463002 / 10463045 / 10463158
• GM: 10463212 / 10463148 / 10463181
• Bosch: AL668X

SPECIFICATIONS:
• Series: Delco CS144
• Voltage: 12V
• Amperage: 180 Amp
• Design: IR/EF (Internal Regulator / External Fan)
• Pulley: Solid Serpentine 6-Groove, 60mm OD (2.362 in)
• Mount: Spool (M8-1.25 Threaded + 10.2mm Unthreaded)
• B+ Terminal: M6-1.0
• P/L/IG/S Terminals: Spade
• M8-1.25 Mounting Hole
• Polarity: Negative Ground
• Weight: 11.77 lbs / 5.35 kg
• Condition: New

APPLICATIONS:
• Chevy/GMC C/K 1500-3500 (1988-1989) / G-Series Vans (1987-1991)
• Camaro/Firebird/Caprice/Roadmaster/Brougham (1990-1993)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $338.94
Sale: $193.68
Save: 43%
Save: $145.26
Qty:
Free Shipping!

Description

CHEVROLET / GMC TRUCKS (1987-1989):
• Chevy/GMC C1500/K1500 V6 4.3L / V8 5.0L / V8 5.7L (1988-1989)
• Chevy/GMC C2500/K2500 V6 4.3L / V8 5.0L / V8 5.7L (1988-1989)
• Chevy/GMC C3500/K3500 V8 5.7L (1988-1989)
• Chevy Blazer / GMC Jimmy V8 5.0L (1987)
• Chevy R10/R20/V10 / GMC R1500/R2500/V1500 (1987)

CHEVROLET / GMC VANS (1987-1991):
• Chevy G10-G30 / GMC G1500-G3500 V6 4.3L / V8 5.0L / V8 5.7L
• Chevy Astro / GMC Safari V6 4.3L (1987-1989)

GM CARS (1990-1993):
• Chevy Camaro V8 5.0L 305ci TBI (1990-1992)
• Chevy Caprice V6 4.3L / V8 5.0L / V8 5.7L (1991-1993)
• Pontiac Firebird V8 5.0L 305ci VIN E (1990-1992)
• Buick Roadmaster / Commercial Chassis V8 5.0L/5.7L (1991-1992)
• Cadillac Brougham V8 5.0L / V8 5.7L (1991-1992)
• Oldsmobile Custom Cruiser V8 5.0L / V8 5.7L (1991-1992)

NOTE: 180 amp Delco CS144 type. 6-groove solid serpentine (60mm OD). Spool mount. IR/EF. P/L/IG/S spade terminals. 11.77 lbs.

Details

Shipping Information

  • Item Requires Shipping
  • 11.8 lbs.
  • W8.0000” x H8.0000” x L8.0000”
  • Free Shipping!
