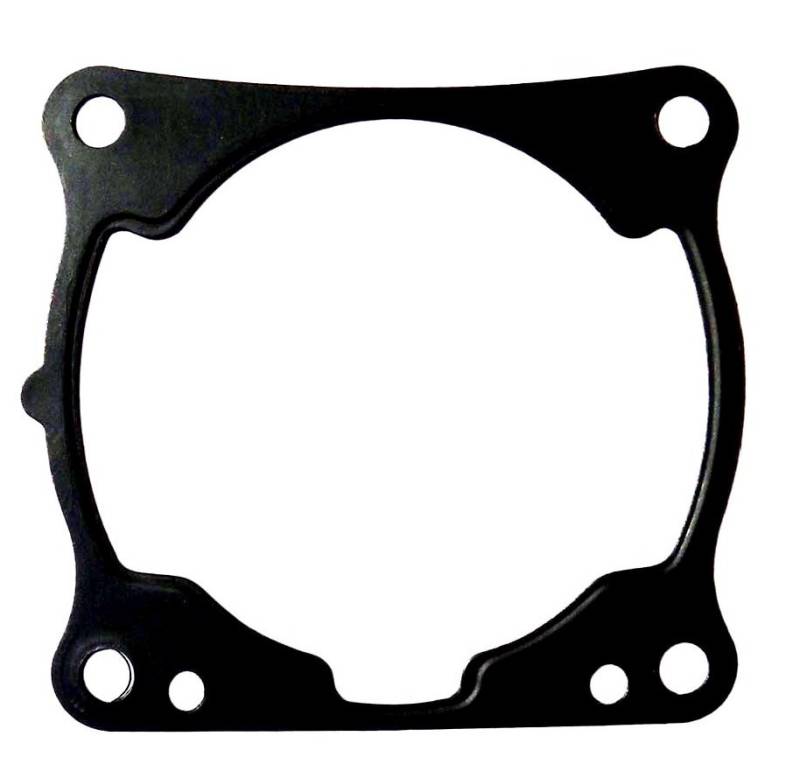

Cylinder Base Gasket Replacement Compatible With 1999-2005 Kawasaki Jet Ski Ultra 150 2002-2005

(0) Reviews: Write first review
007-333*1
/ Reference Part Numbers:

Kawasaki 11060-3783
110603783

Specifications:

Type: Cylinder Base Gasket
Engine: 1176cc 2-Stroke 3-Cylinder Triple
Bore x Stroke: 80mm x 78mm / 145 HP @ 6,750 RPM
Compression: 5.8:1 / Reed Valve Induction
Fuel: Triple Keihin CDCV 40-35 Carburetors
Ignition: DC-CDI / K-TRIC
Quantity: 1 Gasket (3 Required Per Engine)

Applications:

Kawasaki Jet Ski Ultra 150 1200 1999-2005, STX-R 1200 2002-2005

Kawasaki Ultra 150 STX-R 1200 Base Gasket
Replacement cylinder base gasket for Kawasaki Jet Ski Ultra 150 and STX-R 1200 personal watercraft equipped with the 1176cc 2-stroke 3-cylinder triple engine. This engine features an 80mm bore and 78mm stroke producing 145 horsepower at 6750 RPM with a 5.8 to 1 compression ratio. The engine uses crankcase reed valve induction with triple Keihin CDCV 40-35 carburetors and K-TRIC CDI ignition. The base gasket seals the joint between the crankcase and the cylinder block on each cylinder. A failed base gasket causes crankcase air leaks that lean out the fuel mixture leading to overheating piston seizure and engine damage. The 3-cylinder engine requires three base gaskets for a complete set. Replace all base gaskets during any top-end rebuild or cylinder service. Clean all mating surfaces before installation. One gasket per package sold individually.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $37.01
Sale: $21.15
Save: 43%
Save: $15.86
Qty:
Free Shipping!

Description

Applications:

Kawasaki Ultra 150 STX-R 1200 Base Gasket Fitment:

1999-2005 Kawasaki Jet Ski Ultra 150 1200
2002-2005 Kawasaki Jet Ski STX-R 1200

Verify your part number before purchasing to confirm fitment.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 0.0 lbs.
  • W6.0000” x H0.2500” x L8.3000”
  • Free Shipping!
