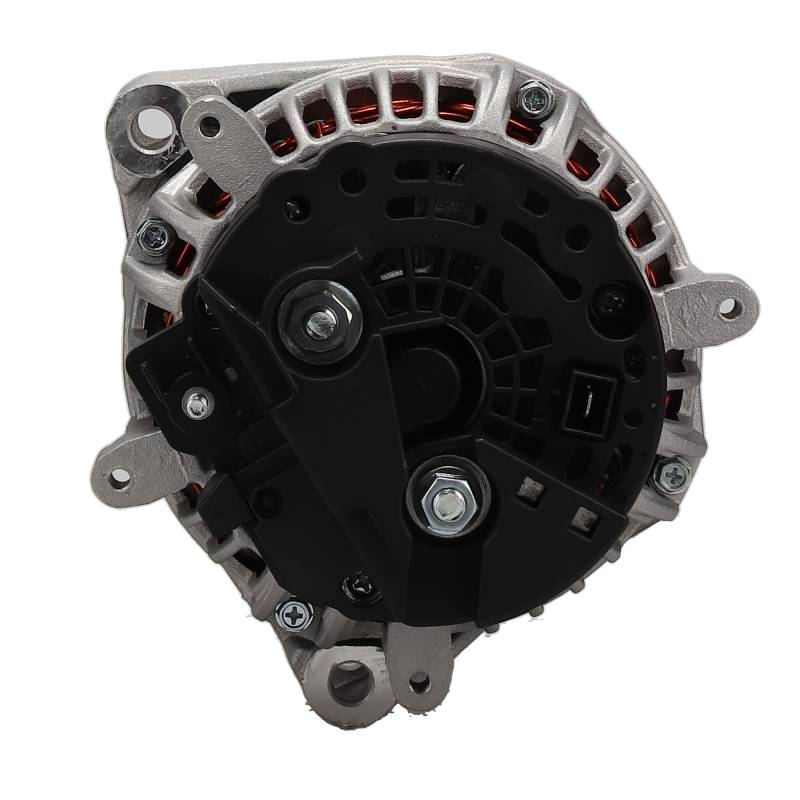

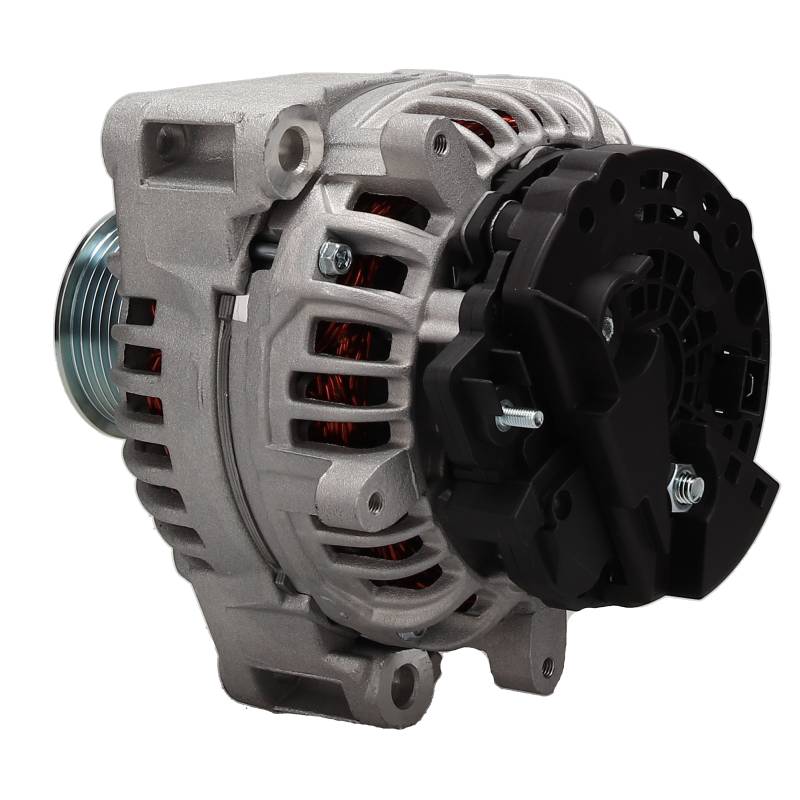

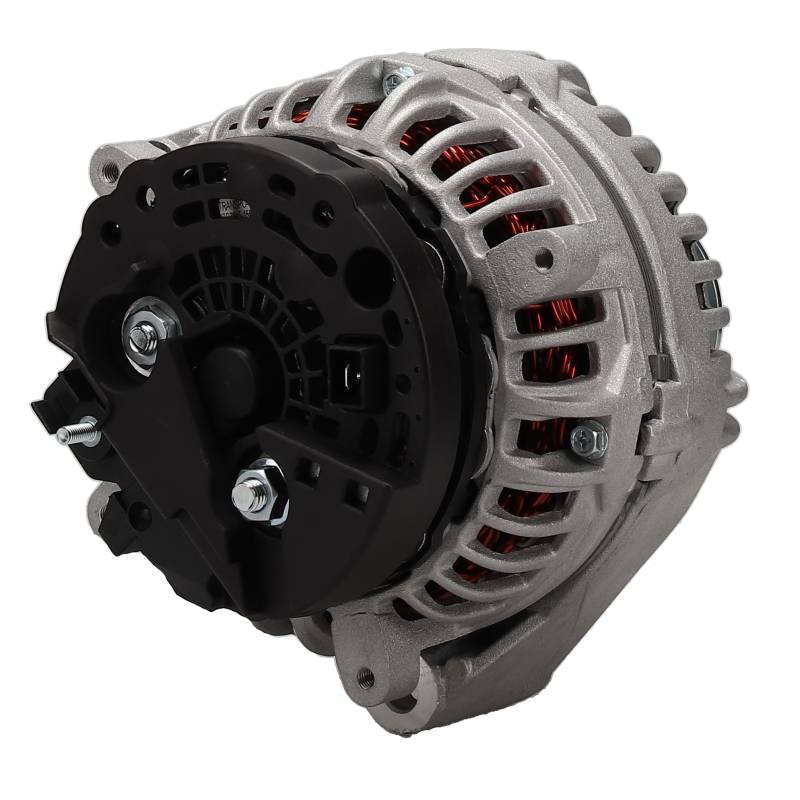

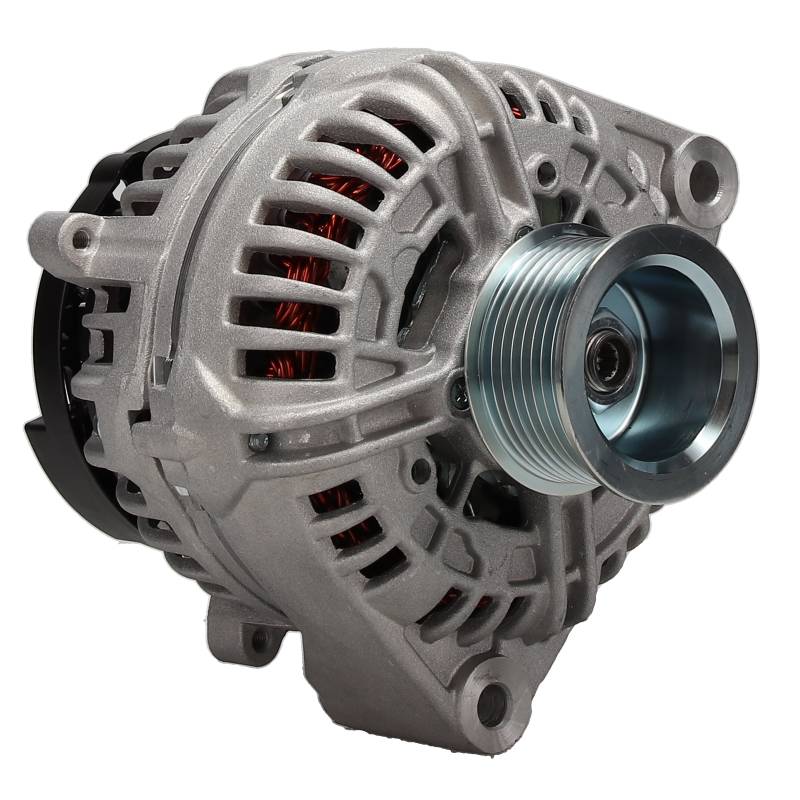

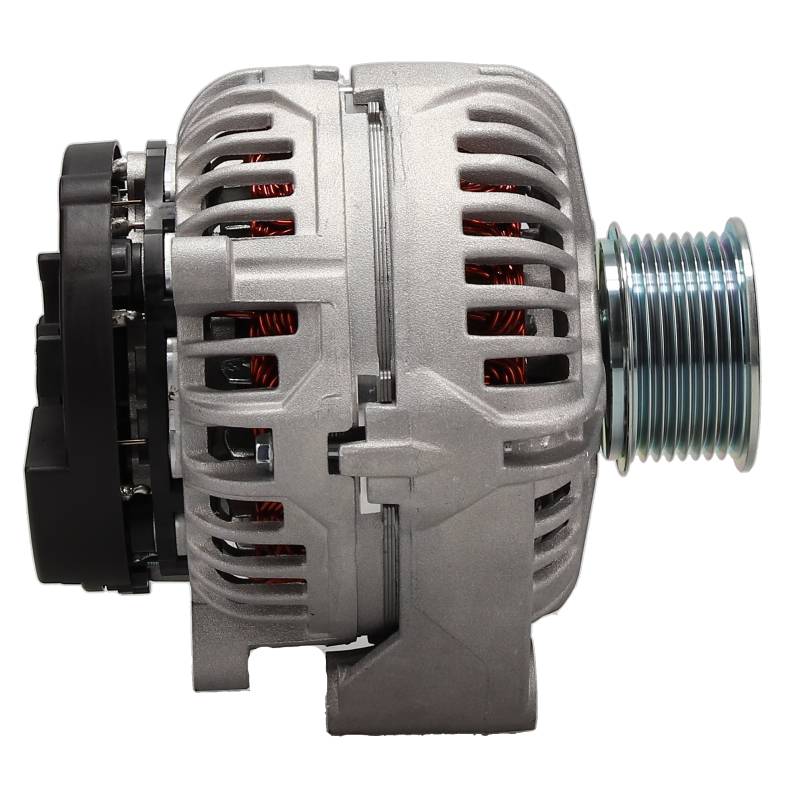

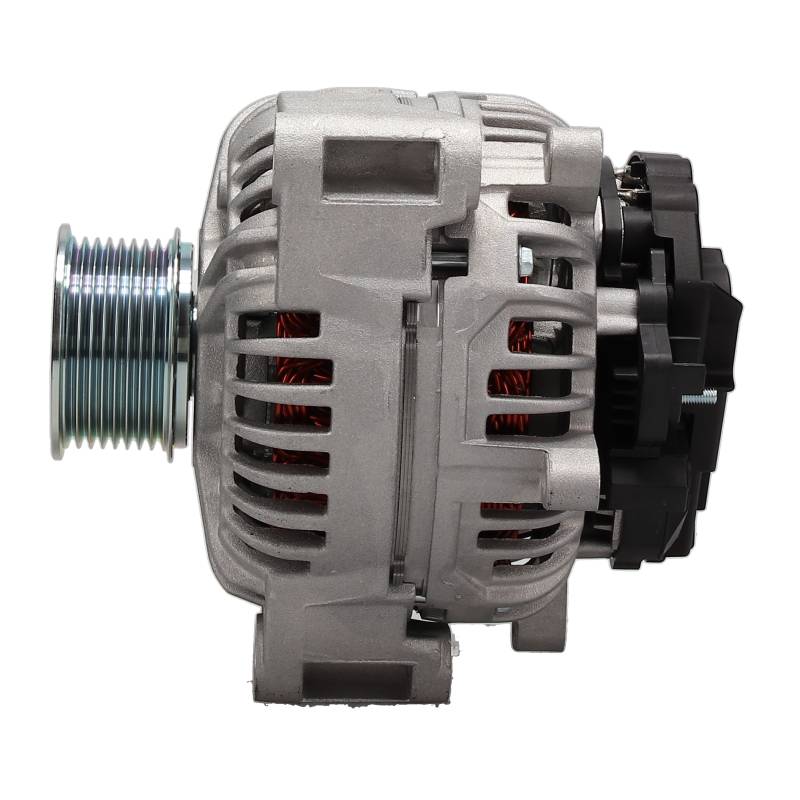

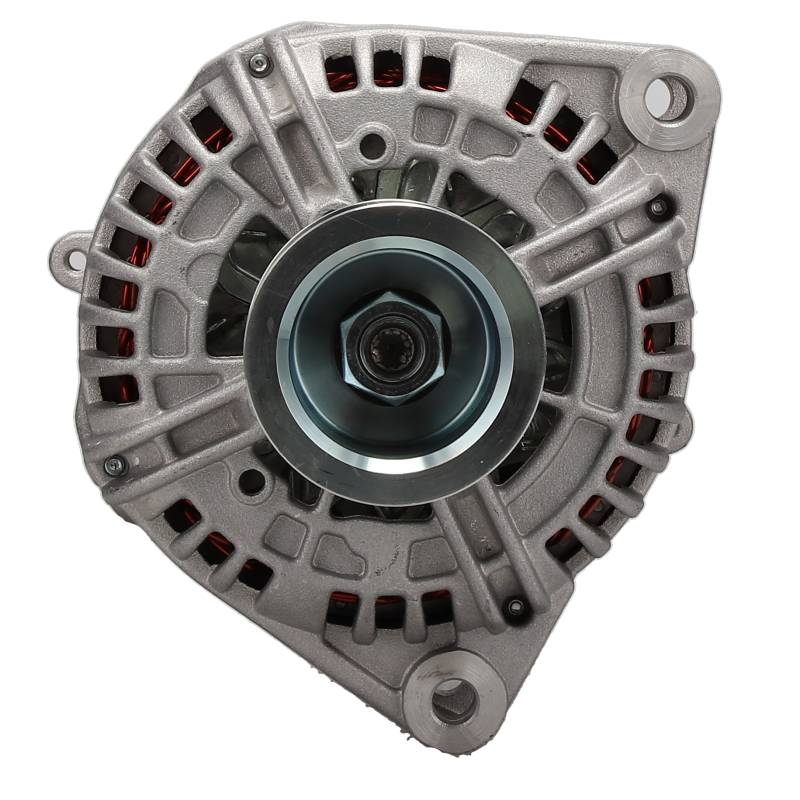

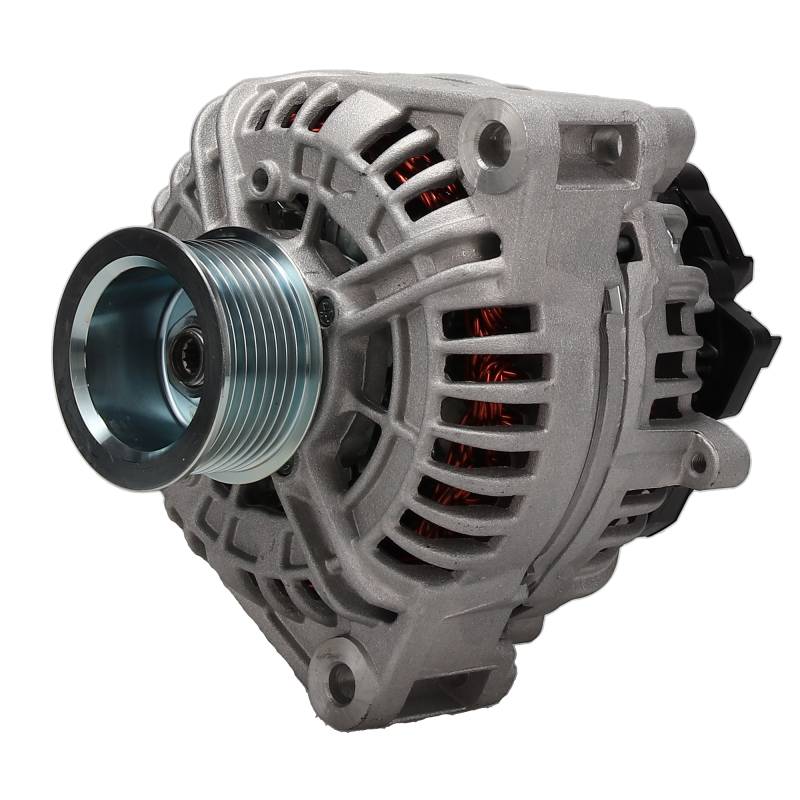

24V 100 Amp Alternator Compatible With 2011-2015 250D Ii 300D Ii 370E 410E 460E Dump Truck 6-549

OEM PART NUMBERS:
• Bosch: 0124655190 / 0124655189 / 0124655081
• John Deere: RE538241, RE558676, SE502563

SPECIFICATIONS:
• Voltage: 24V
• Amperage: 100A
• Unit Type: Bosch IR/IF
• Rotation: CW (Clockwise)
• Fan: Internal
• Regulator: Internal
• Pulley Type: Solid S8 (8-Groove Serpentine)
• Pulley OD: 2.913" / 74mm
• Serpentine Grooves OD: 2.717" / 69mm
• Mount Type: Spool
• Mounting Ear 1: 10.5mm Unthreaded
• Mounting Ear 2: 10.5mm Unthreaded
• Ear 1 Thickness: 2.193" / 55.7mm
• Ear 2 Thickness: 2.193" / 55.7mm
• B+ Terminal: M8-1.25
• L Terminal: M5-0.8
• W Terminal: Spade
• Weight: 17.19 lbs / 7.81 kg
• Condition: New

APPLICATION:
• 250D II / 300D II 6-549 Diesel Dump Trucks (2011-2014)
• 370E / 410E AT / 460E 6-824 Diesel Dump Trucks (2011-2014)
• 24V 100A Bosch IR/IF with 8-groove serpentine pulley
• Spool mount with dual 10.5mm unthreaded ears

24V 100A Alternator — Articulated Dump Trucks 250D/300D/370E/410E/460E
24 volt 100 amp alternator for 250D II, 300D II, 370E, 410E AT, and 460E articulated dump trucks with 6-549 and 6-824 diesel engines (2011-2014). Bosch IR/IF design with internal fan and regulator. 8-groove solid serpentine pulley, spool mount with dual 10.5mm unthreaded ears. B+ terminal M8-1.25, L terminal M5-0.8, W terminal spade. Direct replacement for Bosch 0124655190, 0124655189, 0124655081 and RE538241, RE558676, SE502563.
